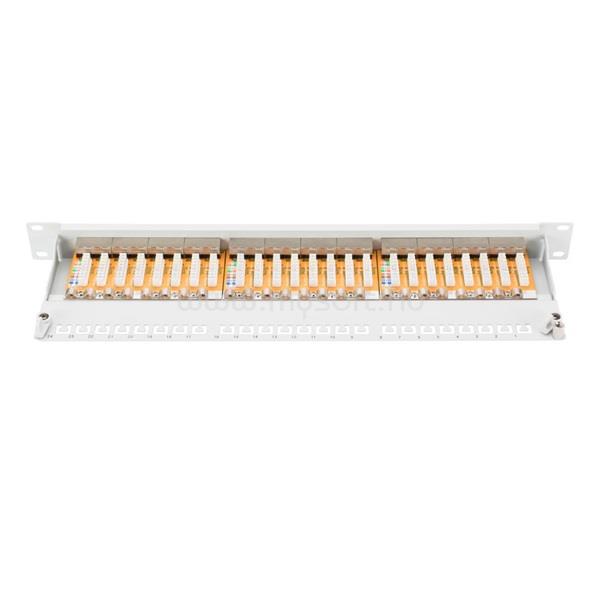

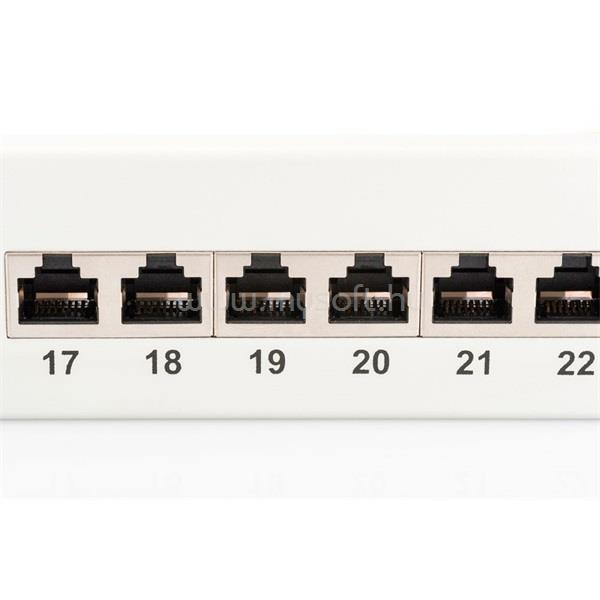

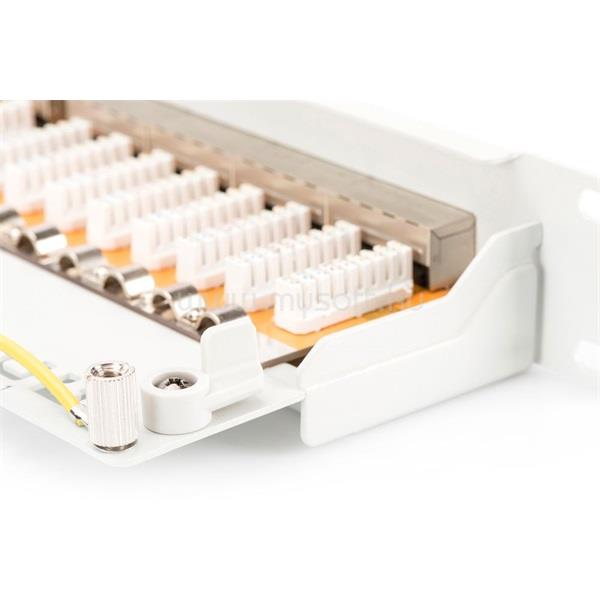

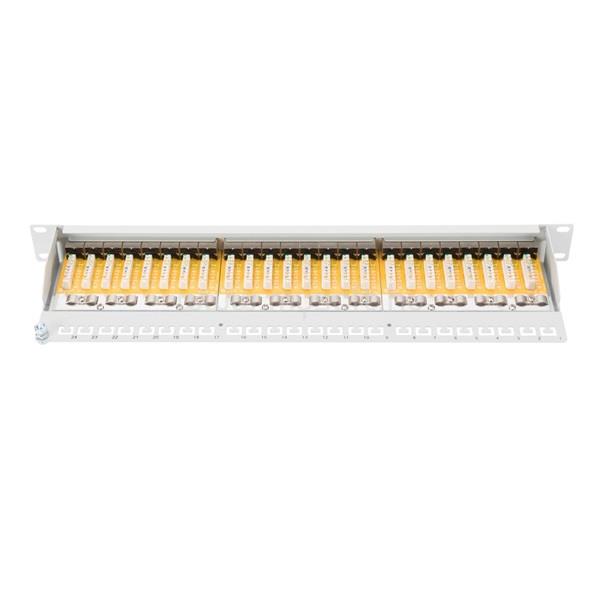

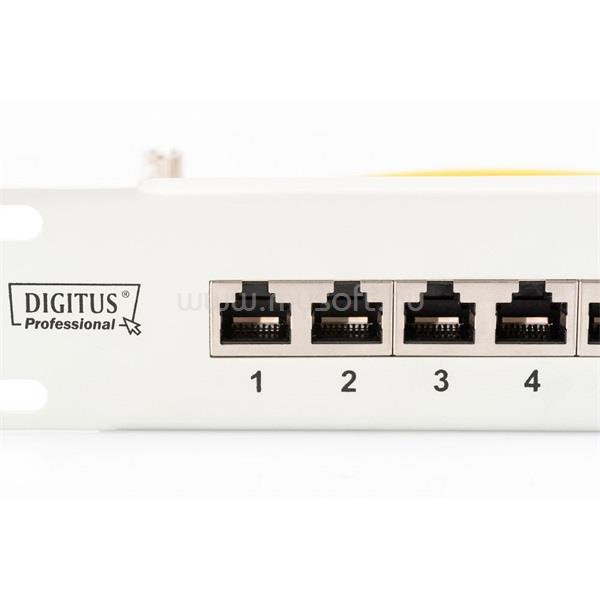

DIGITUS CAT6 24PORT 19" 1U KOMPAKT SZÜRKE ÁRNYÉKOLT PATCH PANEL

• Transmission properties

• Category 6
• Area of application
• Up to 250 MHz, 1GBase-T
• Norms
• ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

• General properties

• Suitable for 483 mm (19") cabinet mounting
• RJ45 female, 8P8C
• Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
• Cable fixing with smart cable ties
• Central ground connection
• 360° shield coverage

• Mechanical properties

• Housing material
• 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 female material
• ABS UL 94V-0
• RJ45 female contact
• Tinned phosphor bronze, 0.5 ? gold-plated contact
• RJ45 shielding
• Tinned bronze
• LSA termination clamp
• Krone LSA+, UL 94V-2, zinc plated phosphor bronze
• Ground wire
• Not included
• Conductor plate
• FR4, UL 94V-0

• Physical properties

• Insertion force
• 30N max. (IEC 60603-7-5)
• Retention strength
• 7.7 kg between jack and plug
• Operation temperature
• -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Mating cycles female
• > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Clamp
• > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• IDC wire size
• 22 - 26 AWG solid and stranded conductor
• Insulation resistance
• > 500 MOhm
• Contact resistance
• < 20 MilliOhm
• Dielectric strength
• 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
• Color
• light grey, RAL 7035
• Ports
• 24
• Units
• 1
• Category
• CAT 6
