DIGITUS DN-170094 1500 VA ONLINE RACK SZÜNETMENTES TÁPEGYSÉG (FEKETE)

• Technical details

• Online double conversion system (VFI-SS-111)
• Replaceable internal battery pack during operation.
• Emergency power-off (EPO) contact for UPS shutdown in case of emergency
• Input
• socket IEC60320 C14, 208/220/230/240 Vac
• Output
• 8 x IEC60320 C13, max. 10A per socket
• System power rating
• 1500 VA / 1500 W, power factor 1.0
• AC-AC (online VFI) efficiency
• 93 %, ECO mode efficiency: 98 %.
• Battery
• valve-regulated, non-spillable lead-acid battery.
• Battery capacity
• 3 x 12V x 9.0 Ah
• Full load run time
• 4 min; half load run time: 12 min
• Charge
• 4 hours to 90% capacity after fully discharged
• Network connection
• Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.

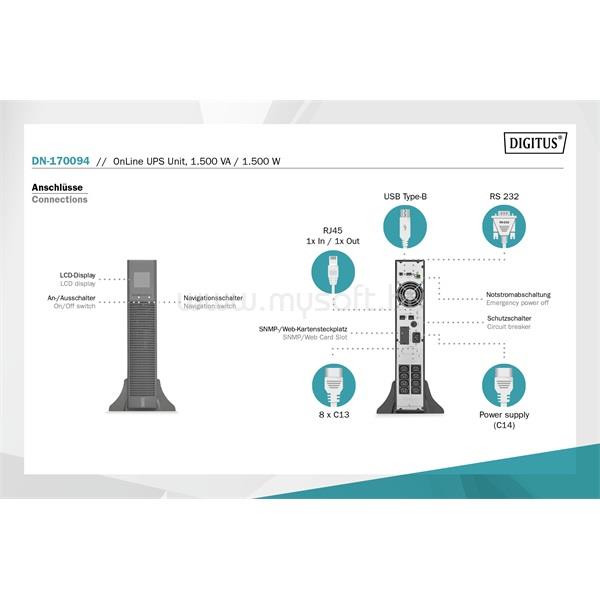

• Local communication ports
• USB, RS-232 (serial), SNMP card (optional), relay card (optional)
• Maximum operating temperature
• 0 - 40 °C
• Storage temperature
• -25 - 55 °C
• Relative humidity
• 20 - 90% non-condensing
• Operating altitude
• < 1500 m
• Product dimensions WxDxH (mm)
• 440 (19") x 460 x 86.5 (2U)
• Product weight
• 15,5 kg
• Shipping dimensions WxDxH (mm)
• 555 x 595 x 202
• Shipping weight
• 20,2 kg
• Safety standards
• IEC/EN62040-1,IEC/EN60950-1
• EMC standards
• IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
• Approval
• CE declaration
• Scope of delivery
• UPS unit, feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, mains cable (1.8m protective contact socket (type 7/4) to IEC60320 socket C14), IEC C13 connection cable, 19" installation brackets

• Attributes

• Inch form factor (IEC 60297): 482.6 mm (19")

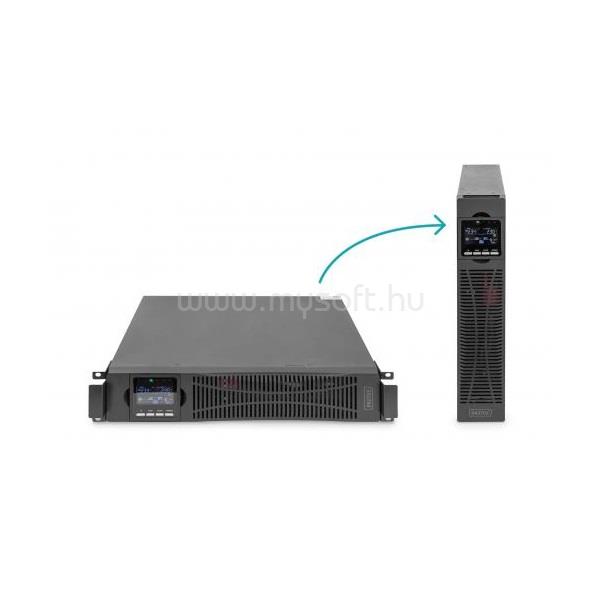

• Installation
• Desktop, Rack
• Installation
• Desktop, Rack 0U, Rack 1U
• Plug
• IEC 60320 C14 inlet
• Power
• 1500VA - 3000VA
• Technology
• Online double conversion

• Package content

• 1 x OnLine UPS system, 1500 VA / 1500 W
• 1 x UPS user manual
• 1 x USB connection cable 1.2 m
• 1 x Mains cable 1.8 m
• 1 x RS232 cable
• UPS software license
• 19" installation brackets
• Feet for tower installation

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
