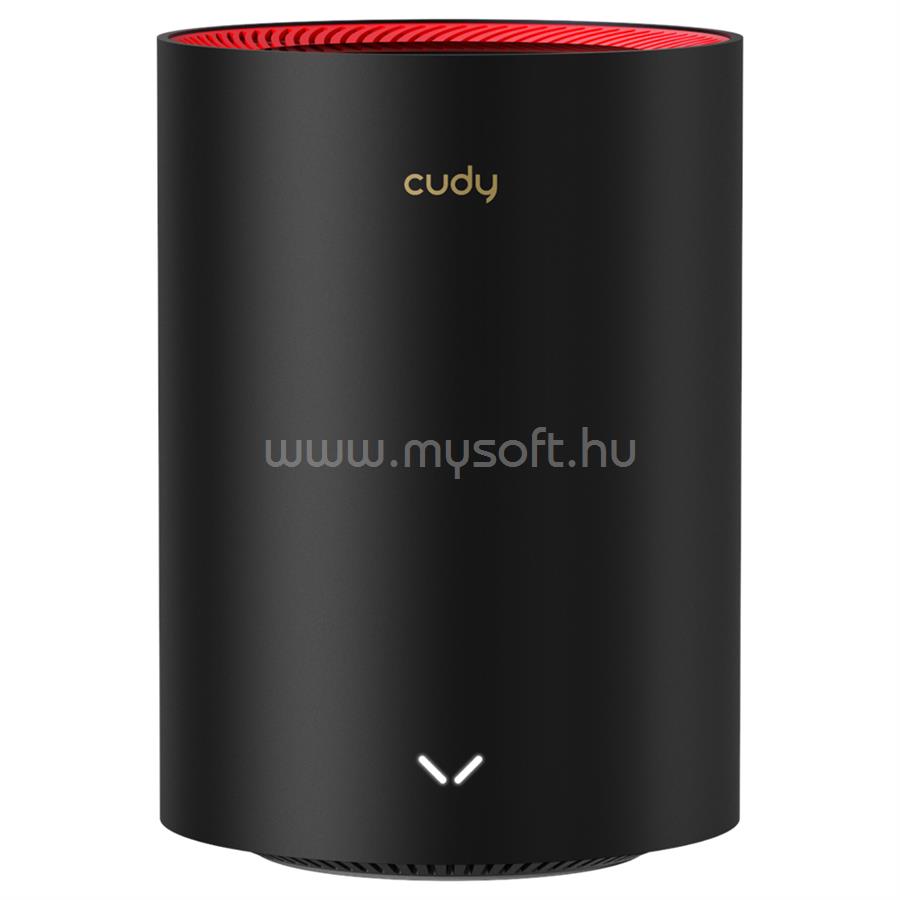

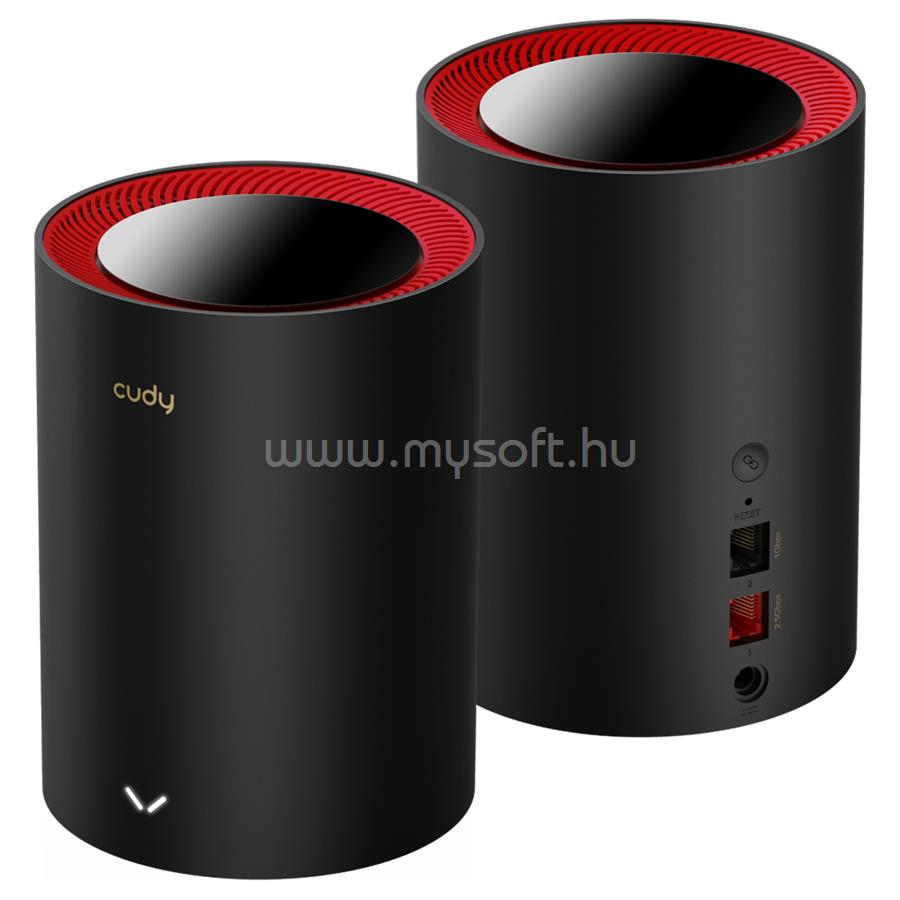

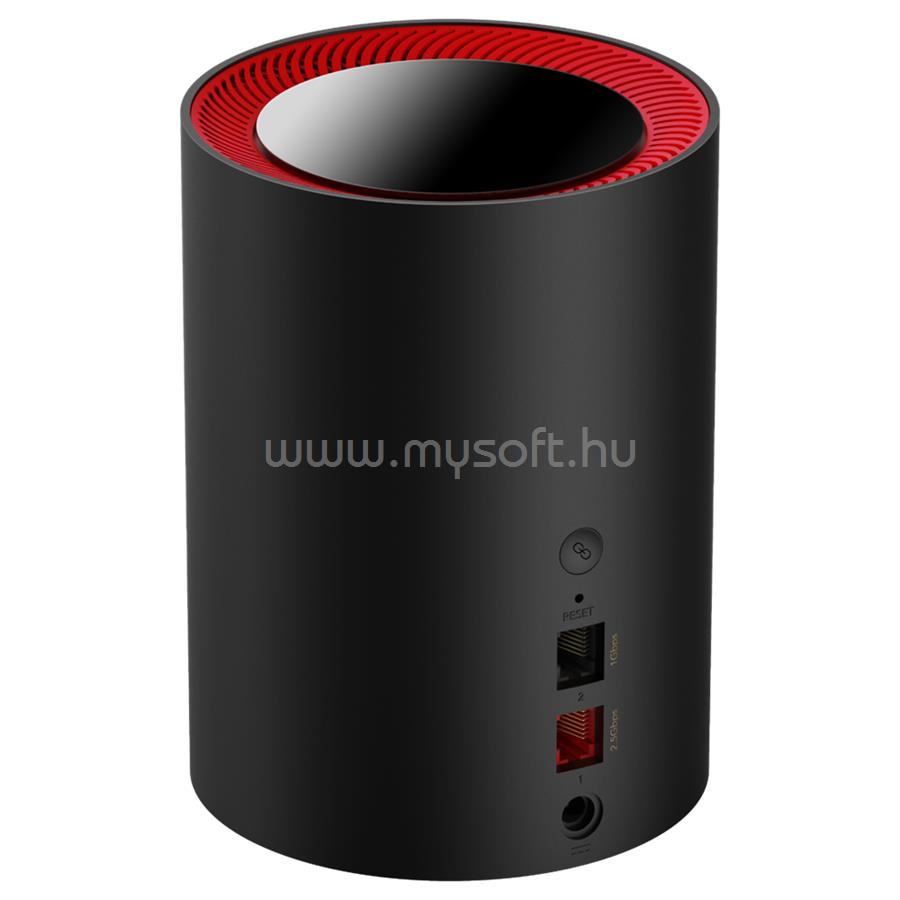

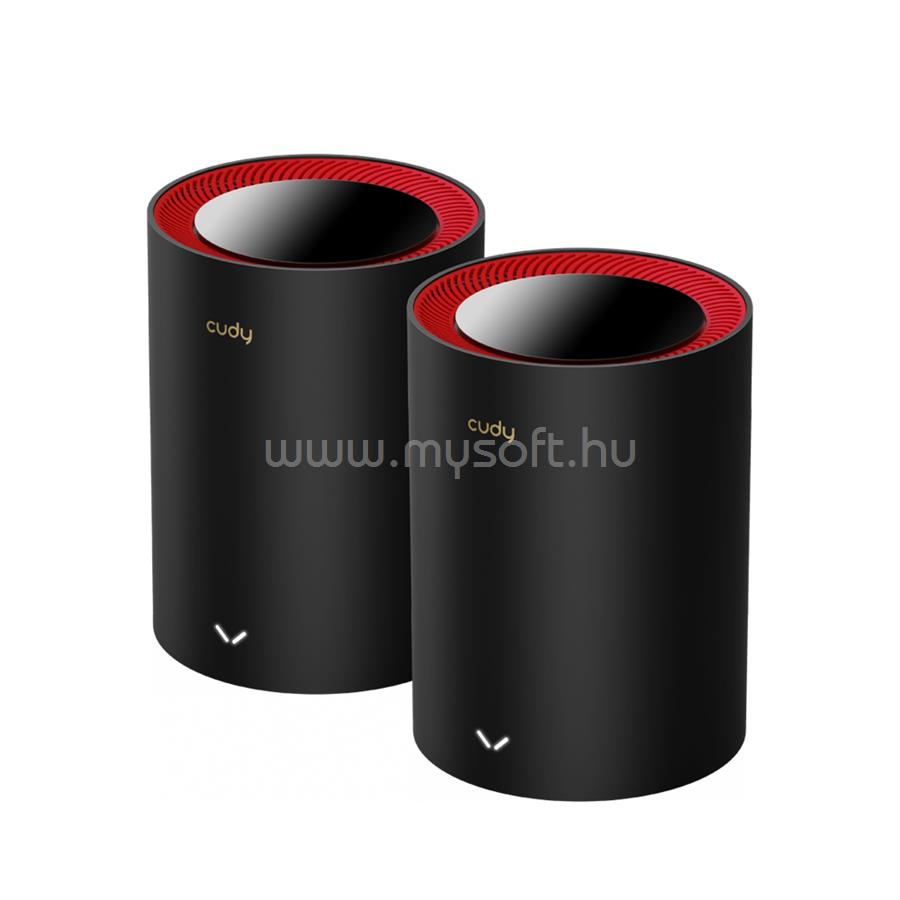

CUDY M3000(2-PACK) KÉTSÁVOS AX3000 WIFI6 MESH 2,5 GIGABIT ROUTER (2DB-OS SZETT, FEKETE)

CUDY M3000(2-Pack) kétsávos AX3000 WIFI6 MESH 2,5 gigabit router (2db-os szett, fekete)

Hálózat > Wi-Fi Rendszer

nem elérhető


  • mysoft azonosító
    0-3689593
Adatlap frissítve: 2026. 02. 15. 17:45:25



cib
GLS
  • CPU

  • CPU Details
  • 1.3 GHz Dual-Core, ARM Cortex-A53
  • Memory/Storage

  • Flash/ROM
  • 128 MB (1 Gbit) NAND
  • DDR/RAM
  • 256 MB (2 Gbit) DDR3
  • Wireless

  • 5 GHz Wi-Fi Speed
  • 2402 Mbps
  • 2.4 GHz Wi-Fi Speed
  • 574 Mbps
  • 5 GHz Wi-Fi Streams
  • 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams
  • 2T2R (2×2 MIMO)
  • Wi-Fi Antennas
  • 5× Internal
  • FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
  • Beamforming
  • True
  • Range Performance
  • Max: 220 m (722 ft)
  • Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
  • Wall Performance
  • Two wooden walls with thickness < 10 cm (4'')
  • One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
  • Indoor Coverage Reference
  • 2 Pack: 200 m2 (2100 sq ft)
  • 3 Pack: 270 m2 (2900 sq ft)
  • Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
  • Interfaces

  • 2.5G RJ45 Ports
  • 1
  • Gigabit RJ45 Ports
  • 1
  • Ethernet Notes
  • The 2.5G port is the WAN port, the Gigabit port is LAN port
  • LED
  • System
  • Speed/Link/ACT of Ethernet Port
  • Physical Buttons
  • WPS Button
  • Reset Button
  • Power Input
  • DC Jack
  • Power

  • Power Methods
  • DC
  • DC Input
  • 12V 1A
  • Power Adapter
  • Input: 100 ~ 240 V, 50/60 Hz AC
  • Output: 12V 1A DC
  • Max Power Consumption (W)
  • 11.5W
  • Idle Power Consumption (W)
  • 4.2W
  • Reliability

  • Environment
  • Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
  • Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
  • Mechanical

  • Installation
  • Desktop
  • Dimension
  • 110×154.5 mm
  • 4.33×6.08 inches
  • Product Weight
  • 360 g (12.7 oz.)
  • Package Content

  • M3000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
