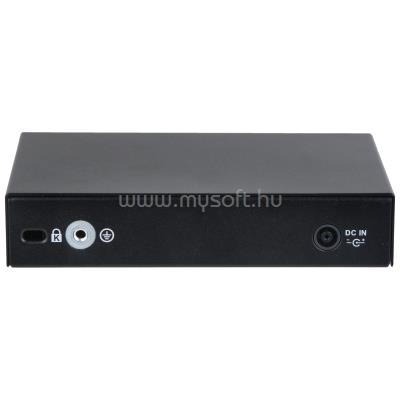

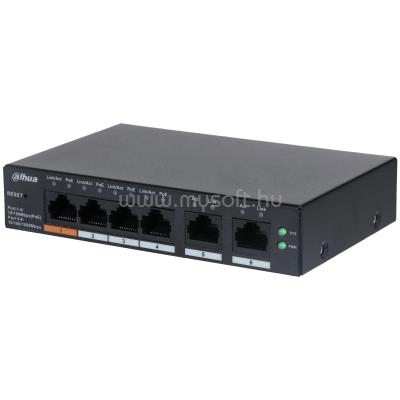

DAHUA CS4006-4ET-60 POE SWITCH (CLOUD MENEDZSMENT; 4X100MBPS POE; + 2X 100MBPS UPLINK, 65W)

• Hardware

• Included Power Adapter
• Yes
• PoE
• Yes
• Ethernet Port
• 4
• Ethernet Port Speed
• 10/100 Mbps
• Ethernet Port Uplink Speed
• 10/100/1000 Mbps
• Description of Function Slots

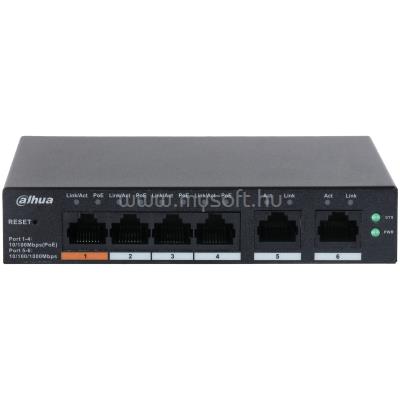

• Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
• Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
• Reset Button
• 1
• Power Supply
• External power supply: 53 VDC, 1.226 A
• Operating Temperature
• -10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity
• 5%-95% (RH), non-condensing
• Storage Temperature / Humidity
• -40 °C to +70 °C / 5%-95% (RH)
• Power Consumption
• Idling: ?3 W / Full load: 65 W

• Performance

• Layer
• Layer 2
• Management Type
• Yes (Smart Managed Switch)
• MTBF
• 232.62 years
• Switching Capacity
• 4.8 Gbps
• Packet Forwarding Rate
• 3.57 Mpps
• Packet Buffer Size
• 4 Mbit
• Jumbo Frame
• 9216 Byte
• MAC Table Size
• 8K
• VLAN Number
• 32
• Communication Standard
• IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

• Feature

• PoE Protocol
• IEEE802.3af; IEEE802.3at; Hi-PoE
• PoE Power
• Port 1 ? 60 W, Port 2-4 ? 30 W, total ? 60 W
• PoE Power Consumption Management
• Yes
• PoE Pin Assignment
• 1,2,4,5(V+),3,6,7,8(V-)
• Long Distance PoE Transmission
• Yes
• VLAN Function
• Port-based VLAN
• IEEE 802.3x Flow Control
• Yes
• DHCP Function
• DHCP Client
• Equipment Management
• Web management; App management

• General

• Statics Protection
• Air discharge: 8 kV; Contact discharge: 6 kV
• Lighting Protection
• Common mode: 4 kV; Differential mode: 2 kV
• Net Weight / Gross Weight
• 0.28 kg / 0.92 kg
• Product Dimensions
• 130 mm × 90 mm × 26 mm (L × W × H)
• Packaging Dimensions
• 265 mm × 238 mm × 76 mm (L × W × H)
• Casing Material
• Sheet metal
• Installation
• Desktop mount; wall mount
