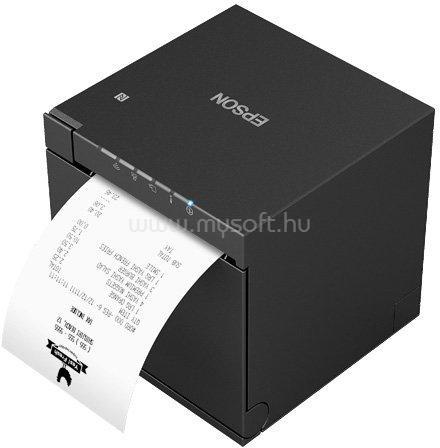

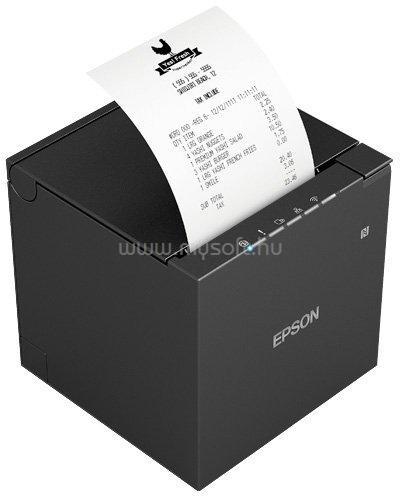

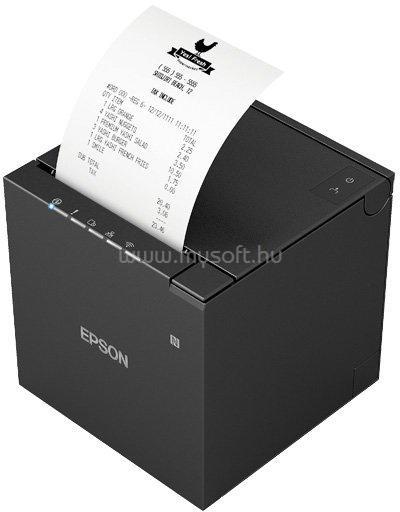

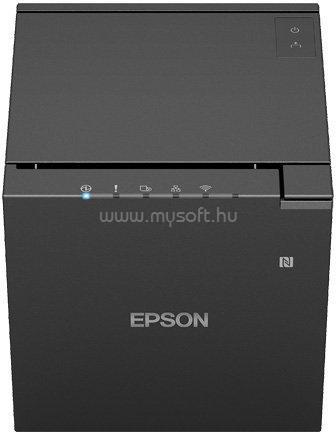

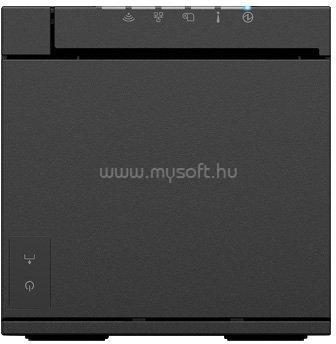

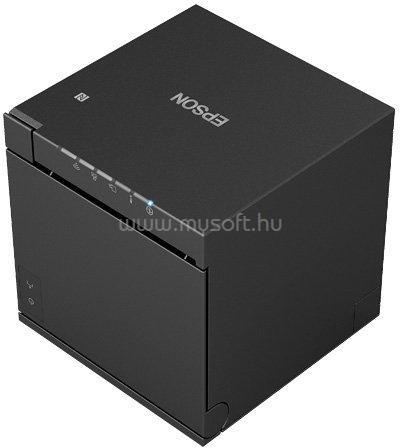

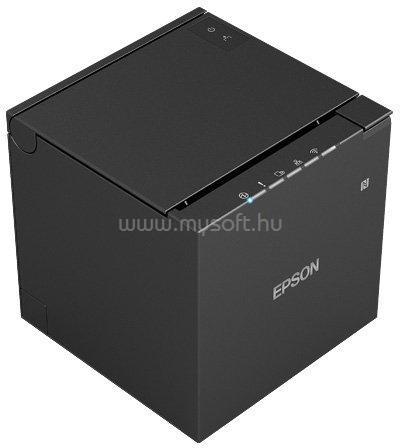

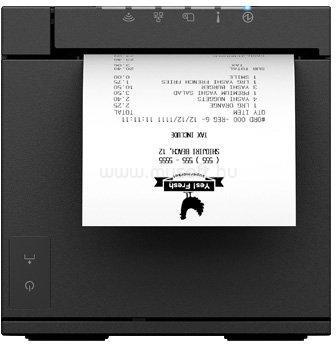

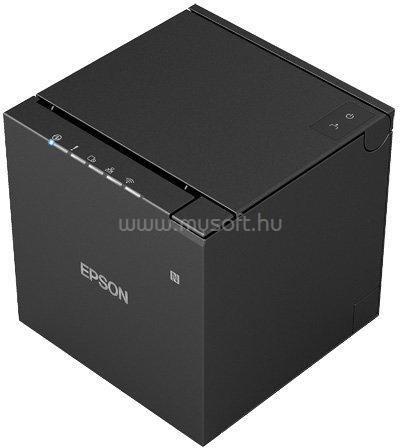

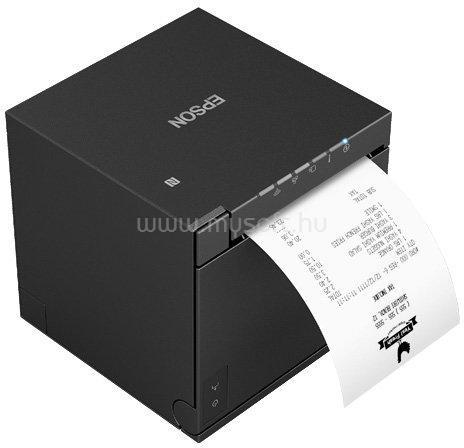

EPSON TM-M30III 112A0 BLOKKNYOMTATÓ

Funkciók

• • Másolás
  • Szkennelés
  • FAX
  • Duplex nyomtatás

Csatlakozók

• • USB
  • LAN
  • Wi-Fi
  • Párhuzamos port

Nyomtatási méret

Tálcák

• 1. tálca:
  2. tálca:

• Print type

• Print method
• Thermal line printing
• Print method receipt
• Thermal line printing
• Technology
• Thermal Line

• Print

• Printing Font
• ANK, Traditional Chinese, Simplified Chinese, Japanese, Korean
• Character set
• 95 Alphanumeric, 18 set International, 128 x 43 Graphic, Traditional / Simplified Chinese, Korean, Japanese, GB18030-2000, Big5, KSC5601
• Printing Speed
• Max. 300 mm/sec at 203 x 203 DPI ( printing width80 mm)
• Printing Resolution
• 203 x 203 DPI
• Barcodes
• Coda bar (NW-7), Code 128, Code 39, Code 93, Composite Symbology, Data Matrix, EAN-13, EAN-8, GS1-128, GS1-DataBar, ITF, JAN13, JAN8, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
• Printing Characters
• Text (incl. Euro symbol), Graphics, Barcode, 2D barcode

• Fonts & Styles

• Print Speed
• 300 mm/sec, 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (default)
• 300 mm/sec
• Print Speed (label)
• 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed (peeler mode)
• 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed character
• 300 mm/sec, 0,00 ~ 0,00 lps, 0 / 0 cps, 0,00 lps (0 mm paper width)
• Print Speed graphic
• 300 mm/sec, 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed receipt
• 300 mm/sec, 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed slip
• 0,00 ~ 0,00 lps, 0 / 0 cps
• Print Speed endorsement
• 0,00 ~ 0,00 lps, 0 / 0 cps
• Printing Font Receipt
• ANK, Traditional Chinese, Simplified Chinese
• Column capacity receipt
• Paper width80 mm, 48 / 35
• Character set receipt
• 95 Alphanumeric, 18 set International, 128 x 43 Graphic, Traditional / Simplified Chinese, Korean, Japanese, JIS X0208-1990, GB18030-2000, Big5, KSC5601
• Dot density
• 203 DPI x 203 DPI
• Colour Printing
• Black

• Paper

• Paper Types
• Receipt, Roll
• Paper Thickness
• 48 i??m - 80 i??m
• Paper size ASF
• Min 0 - 0 mm
• Paper size endorsement
• Min 0 - 0 mm
• Paper size manual feed
• Min 0 - 0 mm
• Paper size roll paper
• 79,50 ? 0,50 (W) mm x dia 83,00 mm, 57,50 ? 0,50 (W) mm x dia 83,00 mm
• Paper size sheet
• Min 0 - 0 mm
• Paper size slip
• Min 0 - 0 mm
• Paper size validation
• Min 0 - 0 mm

• Interfaces

• Interfaces
• USB 2.0-A, USB Type-C, Ethernet interface (100 Base-TX / 10 Base-T), Micro SD Card Slot, USB 2.0 Type B (Service Only), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), Drawer kick-out, Wi-Fi Direct (optional), Near Field Communication (NFC)
• Tablet Charge & Sync
• 1x

• data buffer

• Data Buffer
• 4 kB or 45 Bytes, ,

• Power

• Power Supply
• EURO AC cable, PS-190
• Power Consumption
• Mean:0,1 A, Mean Receipt unit: approx.1,8 A
• Power Consumption
• Standby:1,4 W
• Operating Voltage
• 24 V

• General

• Product dimensions
• 127? x 127 x 130 mm (Width x Depth x Height)
• Product weight
• 1,3 kg
• Noise
• Operation:53 dB (A)
• Autocutter
• Yes Included
• Colour
• Black
• Installation
• horizontally, vertically, wall hanging
• Noise Level
• Operation (Roll):53 dB (A)
• Power consumption
• Printing: Appx.1 W, Standby: Appx.31 W
• Power Supply
• External
• Reliability
• MTBF: 360.000 Hours , MCBF: 65.000.000 passes
• Supply Voltage
• AC 100 V - 230 V, 50 Hz - 60 Hz
• Supported Humidity
• Operation 10% - 90%, Storage 10% - 90%
• Supported Temperature
• Operation 5° C - 45° C, Storage -20° C - 60° C

• Reliability

• Reliability
• 65.000.000 MCBF (Lines)
• Reliability Receipt Printing
• 65.000.000 MCBF (Lines)
• Auto Cutter Life
• 2.200.000 Cuts
• Printer Life
• 17.000.000 Lines
• Print Head Life
• 150 km
• Print Head Life receipt unit
• 150 km

• Standards Compliance

• EMC Standards
• CE marking

• Other Features

• NFC
• Near Field Communication available
• Cutter
• Full Cut
• Factory options
• Autocutter, Near-end sensor
• Preloaded SW
• Server Direct Print
• Sensors
• Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Paper Jam Sensor, Receipt near-end sensor, Receipt paper sensor
• Paper Saving Function
• Yes

• Roll Paper Unit

• Print Speed receipt
• 300 mm/sec
• Dot density receipt
• 203 DPI x 203 DPI

• Supported Media

• Formats
• Roll 57mm, Roll 80mm
• Width
• Min58 mm, Max80 mm

• What is in the box?

• AC adapter
• AC cable
• Main unit
• Paper roll spacer
• Quick Start Guide
• Roll paper
• Setup guide

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
