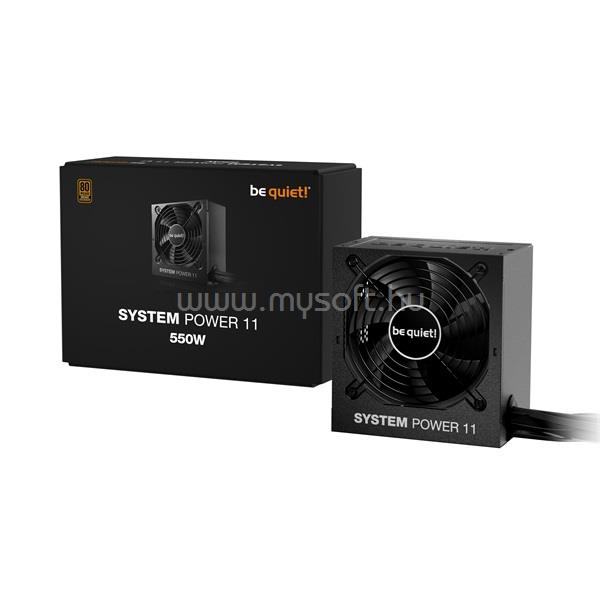

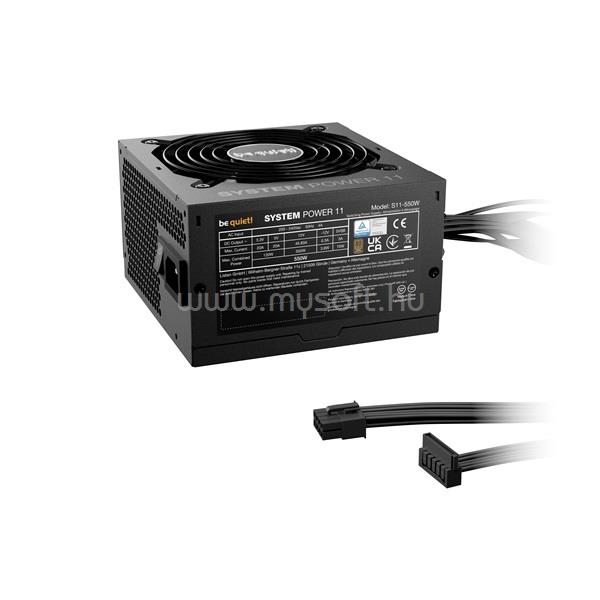

BE QUIET TÁPEGYSÉG SYSTEM POWER 11 550W 80+ BRONZE

• General data

• Continuous power (W)
• 550
• Peak power (W)
• -
• Form factor
• Version 3.1
• Form factor EPS 12V
• Version 2.92
• Topology
• Double forward + DC-DC
• Digitally controlled
• -
• Voltage (Vac)
• 200 - 240
• Frequency (Hz)
• 50
• Input current (A)
• 4
• Power factor at 100% load
• >0.98
• Modern standby
• Yes
• Power consumption in standby (W)
• <0.1
• Average life time (h / 25°C)
• >100,000
• Operating temperature up to (°C)
• 40

• Efficiency

• 80 PLUS certification
• Bronze
• Efficiency (%) at 230V, 2% load
• 64.4
• Efficiency (%) at 230V, 10% load
• 84.4
• Efficiency (%) at 230V, 20% load
• 88.6
• Efficiency (%) at 230V, 50% load
• 89.7
• Efficiency (%) at 230V, 100% load
• 86.6

• Fan and cooling technology

• Cybenetics Noise Rating
• -
• Fan
• Silence-optimized be quiet! fan
• Fan size (mm)
• 120
• Bearing technology
• Rifle
• Motor technology
• 4-pole fan motor
• Max. fan speed (rpm)
• 1800
• dB(A) at 10% load
• 10.4
• dB(A) at 20% load
• 10.8
• dB(A) at 50% load
• 11.0
• dB(A) at 100% load
• 24.2

• Output

• Multi-rail operation (12V rails)
• -
• 12V single rail operation
• Yes
• Overclocking key
• -
• +3.3V (A)
• 20
• +5V (A)
• 20
• +12V1 (A)
• 45.83
• +12V2 (A)
• -
• +12V3 (A)
• -
• +12V4 (A)
• -
• +12V5 (A)
• -
• +12V6 (A)
• -
• -12V (A)
• 0.3
• +5Vsb (A)
• 3
• Max. combined power 12V (W)
• 550
• Max. combined power 12V-2x6 (W)
• 300
• Max. combined power 3.3V + 5V (W)
• 120
• Hold-up time at 100% load (ms)
• 16.86
• Hold-up time at 80% load (ms)
• 20.92
• Power good signal (ms)
• 100 - 150

• Cables and connectors

• Modular cables
• -
• Sleeved cables
• P24
• Flat cables
• P4+4, P4, PCIe, drives
• Maximum cable length (cm)
• 55
• Cable length to motherboard (cm)
• 79
• No. of cables
• 7
• ATX-Motherboard (20+4-pin)
• 1
• P4+4 (CPU)
• 1
• P8 (CPU)
• -
• P4 (CPU)
• 1
• 12V-2x6 cables
• 1
• PCI-e 6+2-pin (GPU)
• 2
• PCI-e 6-pin (GPU)
• -
• SATA
• 5
• PATA
• 1
• FDD (Floppy)
• -

• Protection

• OTP (over temperature protection)
• OCP (over current protection)
• OPP (over power protection)
• SCP (short circuit protection)
• OVP (over Voltage protection)
• UVP (under Voltage protection)
• SIP (Surge & Inrush protection)

• Scope of delivery

• Thumb screws
• -
• Screws
• Yes
• Cable ties
• Yes
• Velcro cable ties
• -
• User manual languages
• -
• OCK slot bracket with switch / OCK jumper
• -
• SFX-to-ATX adapter bracket
• -

• Casing

• Dimensions without cable (L x W x H), (mm)
• 86 x 150 x 140
• Weight (kg)
• 1.92
• Color
• Black

• Logistics data and RRP

• Dimensions, package (L x W x H), (mm)
• 268 x 195 x 97
• Gross weight, package (kg)
• 2.3
