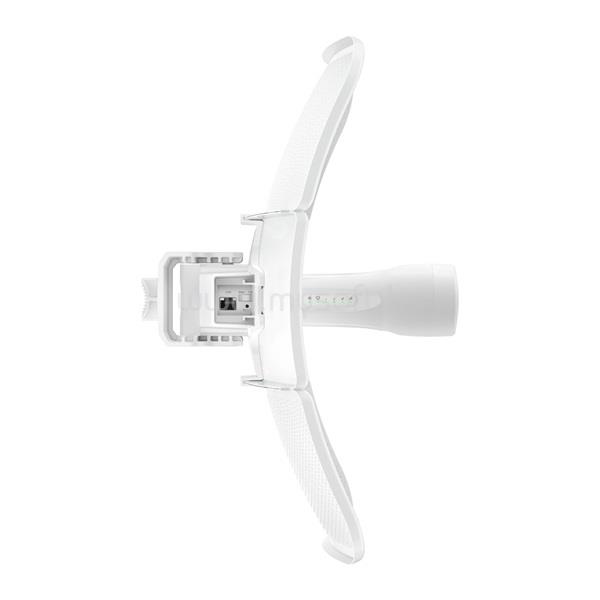

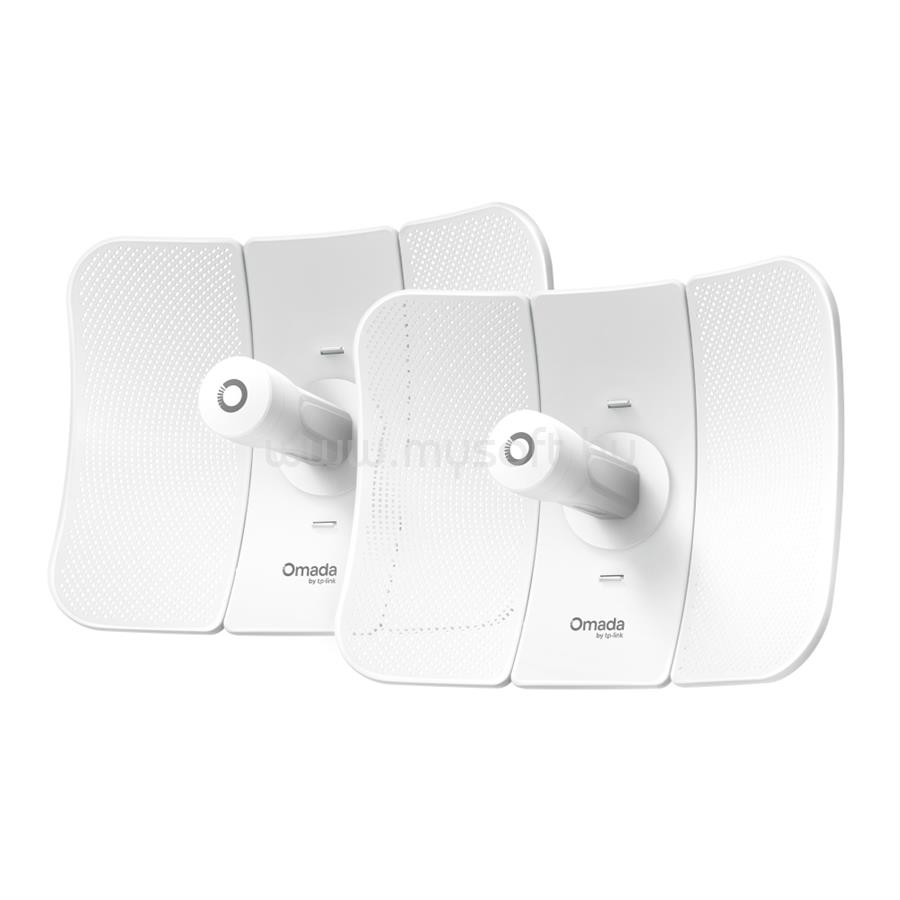

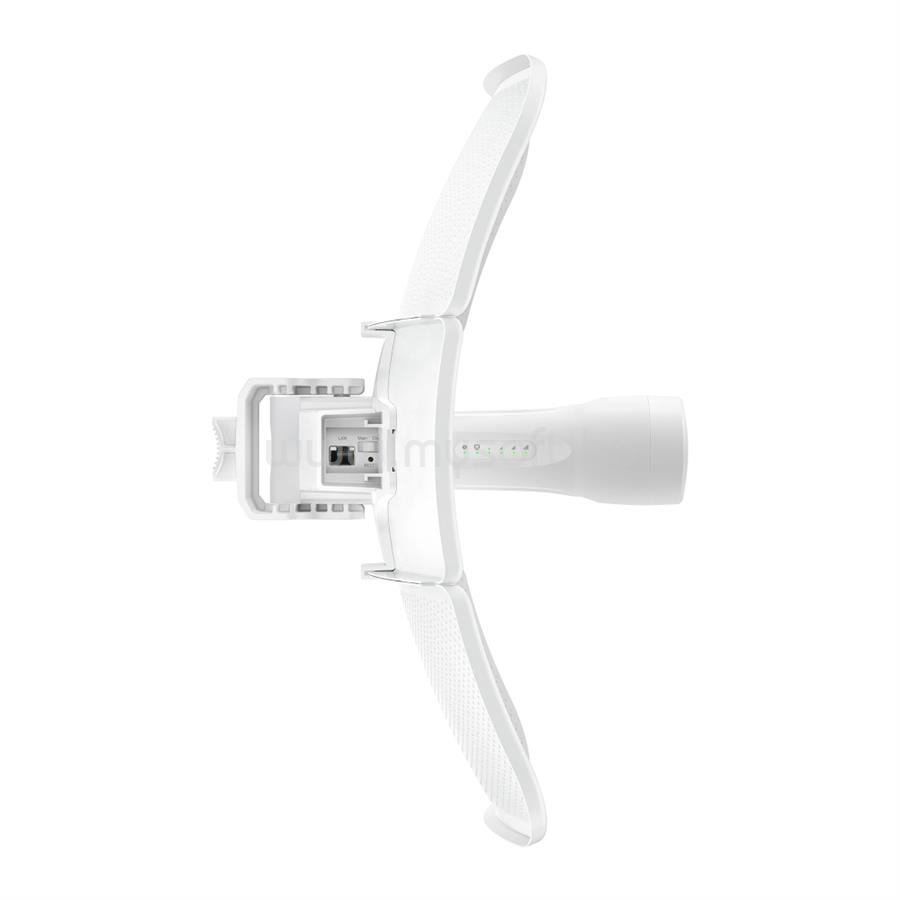

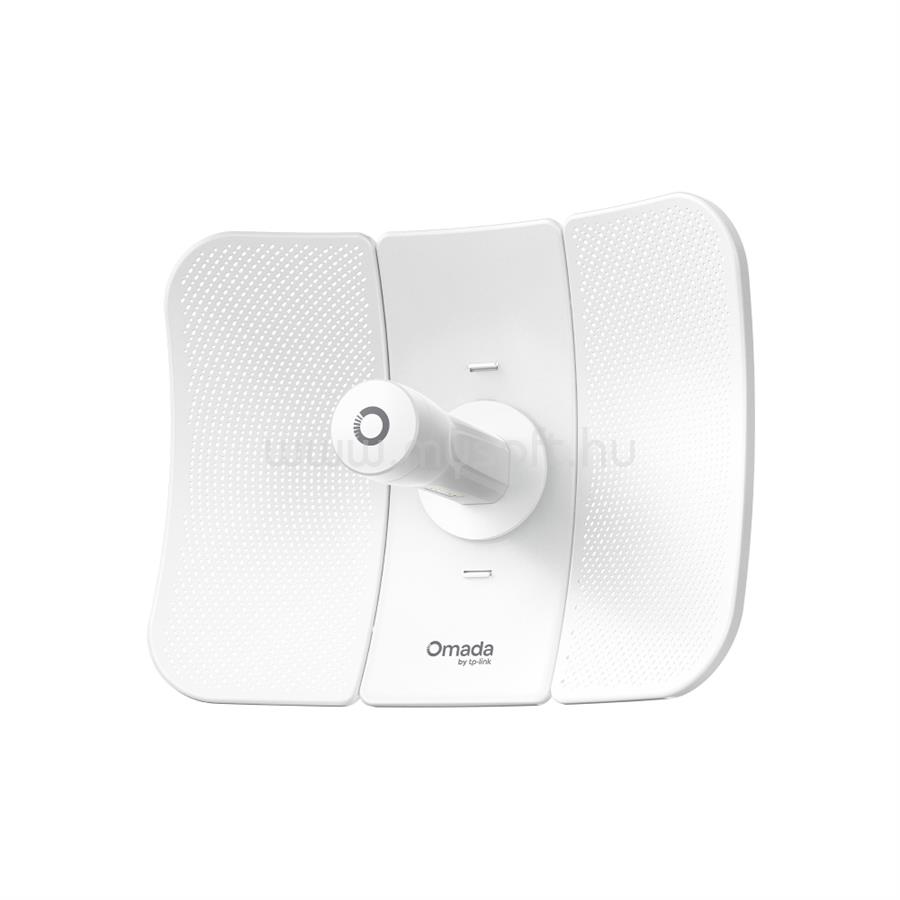

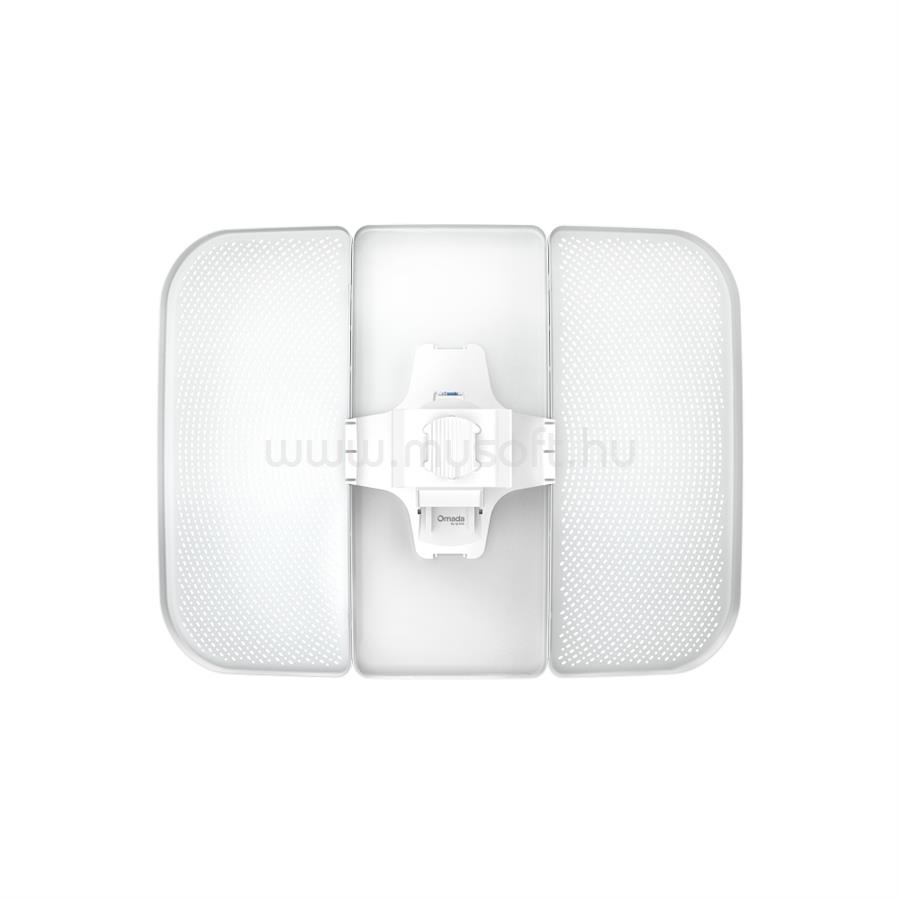

TP-LINK BEAM BRIDGE 5 UR KIT WIRELESS ACCESS POINT 5GHZ 867MBPS KÜLTÉRI/BELTÉRI 15KM HATÓTÁV

• HARDWARE FEATURES

• Interface
• 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
• Button
• 1 × Reset Button
• 1 × System Mode Selection Button
• DIP Switch
• Role Switch
• Power Supply
• 802.3af PoE (1,2pins; 3,6pins)
• 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
• Max. Power Consumption
• 15.8W
• Dimensions ( W x D x H )
• 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
• Antenna
• External 2×2 Dual-Polarized Directional MIMO Antennas
• 5 GHz: 23 dBi
• Antenna Beamwidth
• Horizontal: 9°, Vertical: 7°
• Weatherproof Enclosure
• IP65
• Bandwidth
• 5 GHz: 20 MHz/40 MHz/80 MHz
• Mounting
• Pole Mounting (Kits Included)

• WIRELESS FEATURES

• PtP
• Yes
• Transmission Distance
• 15 km (9.3 mi)
• Wireless Standards
• IEEE 802.11 a/n/ac
• Frequency
• 5 GHz
• Signal Rate
• 5 GHz: Up to 867 Mbps
• Wireless Functions
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Maximum number of associated STAs: 8
• Speed Test
• Channel Optimization
• Antenna Alignment
• ACS (Automatic Channel Selection)
• Rate Limit
• Guest Network
• Wireless Security
• VLAN
• Rogue AP Detection
• Maximum number of MAC Filter: 4,000
• Wireless Encryption
• Transmission Power
• CE:
• <23 dBm (5 GHz, U-NII-1/2A, ERIP)
• <30 dBm (5 GHz, U-NII-1/2C, ERIP)
• FCC:
• <27 dBm (5 GHz, U-NII-1)
• <27 dBm (5 GHz, U-NII-3)

• Management Features

• Omada App
• Yes
• Restore & Backup
• Yes
• Firmware update via Web
• Yes
• NTP
• Yes
• Centralized Management
• Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access
• Yes. Require the use of an Omada Controller.
• Email Alerts
• Yes
• LED ON/OFF Control
• Yes
• SNMP
• Yes
• SSH
• Yes
• Web-based Management
• Yes
• Zero-Touch Provisioning
• Yes

• OTHERS

• Certification
• CE, FCC, RoHS
• Lightning Protection
• Ethernet Ports: +/-6 kV
• Environment
• Operating Temperature: -40 °C-70 °C (-40 °F-158 °F);
• Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
• Operating Humidity: 10%-90% non-condensing;
• Storage Humidity: 5%-90% non-condensing
• Weight
• 1.1 kg (2.43 lb)
• Package Content
• Beam Bridge 5 UR KIT
• Installation Guide
• Mounting Kit
• Passive PoE Adapter
• Power Cord

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
