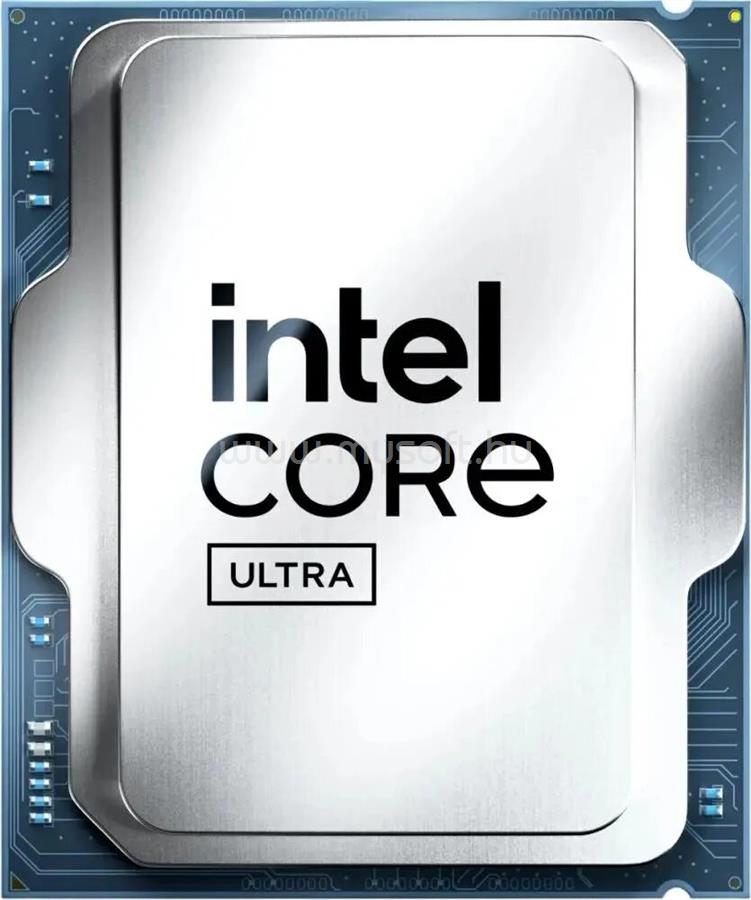

INTEL CORE ULTRA 9 285K (24 CORES, 36M CACHE, 3.2 UP TO 5.7 GHZ, FCLGA1851) OEM, HŰTÉS NÉLKÜL

• Essentials

• Product Collection
• Intel© Core™ Ultra Processors (Series 2)
• Code Name
• Products formerly Arrow Lake
• Vertical Segment
• Desktop
• Processor Number
• 285K
• Overall Peak TOPS (Int8)
• 36

• CPU Specifications

• Total Cores
• 24
• # of Performance-cores
• 8
• # of Efficient-cores
• 16
• Total Threads
• 24
• Max Turbo Frequency
• 5.7 GHz
• Intel© Thermal Velocity Boost Frequency
• 5.7 GHz
• Intel© Turbo Boost Max Technology 3.0 Frequency
• 5.6 GHz
• Performance-core Max Turbo Frequency
• 5.5 GHz
• Efficient-core Max Turbo Frequency
• 4.6 GHz
• Performance-core Base Frequency
• 3.7 GHz
• Efficient-core Base Frequency
• 3.2 GHz
• Cache
• 36 MB Intel© Smart Cache
• Total L2 Cache
• 40 MB
• Processor Base Power
• 125 W
• Maximum Turbo Power
• 250 W
• Intel© Deep Learning Boost (Intel© DL Boost) on CPU
• Yes
• AI Software Frameworks Supported by CPU
• OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• CPU Lithography
• TSMC N3B

• Supplemental Information

• Marketing Status
• Launched
• Launch Date
• Q4'24
• Embedded Options Available
• No
• Use Conditions
• PC/Client/Tablet, Workstation

• Memory Specifications

• Max Memory Size (dependent on memory type)
• 256 GB
• Memory Types
• Up to DDR5 6400 MT/s
• Maximum Memory Speed
• 6400 MHz
• Max # of Memory Channels
• 2
• ECC Memory Supported
• Yes

• GPU Specifications

• GPU Name
• Intel© Graphics
• Graphics Base Frequency
• 300 MHz
• Graphics Max Dynamic Frequency
• 2 GHz
• GPU Peak TOPS (Int8)
• 8
• Graphics Output
• DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
• Xe-cores
• 4
• Max Resolution (HDMI)
• 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
• Max Resolution (DP)
• 8K @ 60Hz
• Max Resolution (eDP - Integrated Flat Panel)
• 4K @ 60Hz
• DirectX* Support
• 12
• OpenGL* Support
• 4.5
• OpenCL* Support
• 3
• Intel© Quick Sync Video
• Yes
• # of Displays Supported
• 4
• Device
• ID0x7D67
• Intel© Deep Learning Boost (Intel© DL Boost) on GPU
• Yes

• NPU Specifications

• NPU Name
• Intel© AI Boost
• NPU Peak TOPS (Int8)
• 13
• Sparsity Support
• Yes
• Windows Studio Effects Support
• Yes
• AI Software Frameworks Supported by NPU
• OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

• Expansion Options

• Direct Media Interface (DMI) Revision
• 4
• Max # of DMI Lanes
• 8
• Intel© Thunderbolt 4
• Yes
• Scalability
• 1S Only
• PCI Express Revision
• 5.0 and 4.0
• PCI Express Configurations
• Up to 1x16+2x4, 2x8+2x4,
• 1x8+4x4
• Max # of PCI Express Lanes
• 24

• Package Specifications

• Sockets Supported
• FCLGA1851
• Thermal Solution Specification
• PCG 2020A
• Max Operating Temperature
• 105 °C

• Advanced Technologies

• Intel© Volume Management Device (VMD)
• Yes
• Intel© Gaussian & Neural Accelerator
• 3.5
• Intel© Thread Director
• Yes
• Intel© Speed Shift Technology
• Yes
• Intel© Thermal Velocity Boost
• Yes
• Intel© Turbo Boost Max Technology 3.0
• Yes
• Intel© Turbo Boost Technology
• 2.0
• Intel© 64
• Yes
• Instruction Set
• 64-bit
• Instruction Set Extensions
• Intel© SSE4.1, Intel© SSE4.2, Intel© AVX2
• Idle States
• Yes
• Enhanced Intel SpeedStep© Technology
• Yes
• Thermal Monitoring Technologies
• Yes

• Security & Reliability

• Intel vPro© Eligibility
• Intel vPro© Enterprise
• Intel© Hardware Shield Eligibility
• Yes
• Intel© Threat Detection Technology (TDT)
• Yes
• Intel© Active Management Technology (AMT)
• Yes
• Intel© Standard Manageability (ISM)
• Yes
• Intel© Remote Platform Erase (RPE)
• Yes
• Intel© One-Click Recovery
• Yes
• Intel© Control-Flow Enforcement Technology
• Yes
• Intel© Total Memory Encryption - Multi Key
• Yes
• Intel© AES New Instructions
• Yes
• Secure Key
• Yes
• Intel© Trusted Execution Technology
• Yes
• Execute Disable Bit
• Yes
• Intel© OS Guard
• Yes
• Intel© Boot Guard
• Yes
• Mode-based Execute Control (MBEC)
• Yes
• Intel© Stable IT Platform Program (SIPP)
• Yes
• Intel© Virtualization Technology with Redirect Protection (VT-rp)
• Yes
• Intel© Virtualization Technology (VT-x)
• Yes
• Intel© Virtualization Technology for Directed I/O (VT-d)
• Yes
• Intel© VT-x with Extended Page Tables (EPT)
• Yes

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
