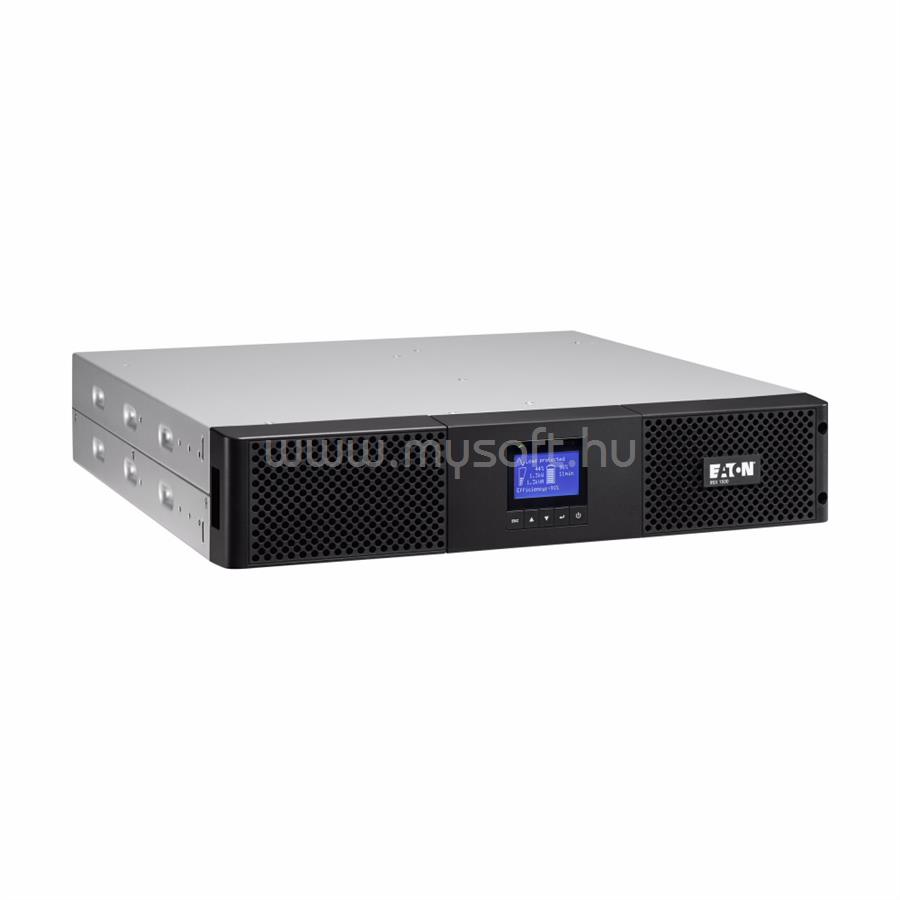

EATON UPS 1500VA C13/C14 9SX RACK ONLINE KETTŐS KONVERZIÓ SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 43.8 cm
• PRODUCT HEIGHT
• 8.65 cm
• PRODUCT WIDTH
• 43.8 cm
• PRODUCT WEIGHT
• 18.4 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• MAX NUMBER OF BATTERY PACKS
• 4
• WATTAGE
• 1350 W
• OUTPUT POWER FACTOR
• 0.9
• FORM FACTOR
• Rack
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
• 3
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C14
• INPUT VOLTAGE - MIN
• 120 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• Hot-swappable internal batteries and extended battery modules (EBMs)
• BATTERY TYPE
• Sealed, lead-acid
• EFFICIENCY
• 91.4
• SPECIAL FEATURES
• Double conversion topology
• Constantly monitors power conditions and regulates voltage and frequency
• Provides more real power (watts) to protect more equipment with a 0.9 power factor
• Energy efficient, reduce energy and cooling costs
• Internal bypass allows service continuity in case of UPS fault
• Next-generation graphical LCD display
• Meter energy consumption (at the UPS level)

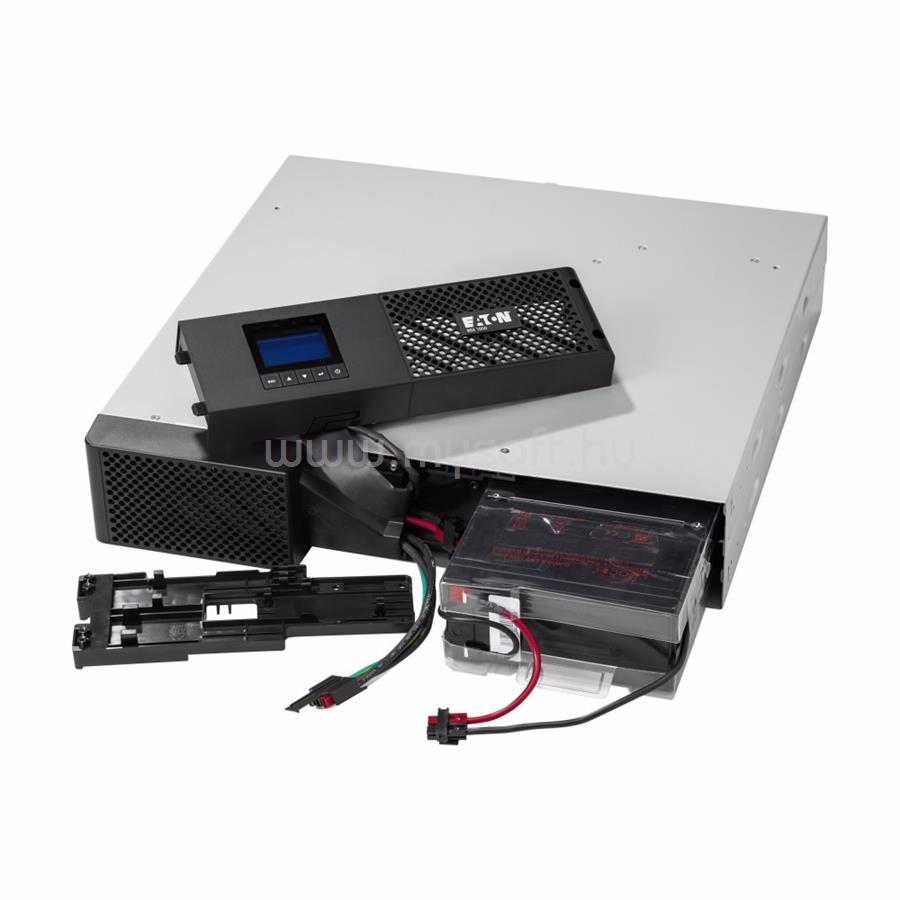

• Hot swappable batteries
• Advanced Battery Management (ABM) technology to increase battery lifetime
• Long backup time with up to 4 optional EBM
• Cable locking system
• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• OUTPUT VOLTAGE - MIN
• 200 V
• COLOR
• Black
• EXTENDED BATTERY CAPABILITY
• Yes
• OUTPUT VOLTAGE RANGE
• 200/208/220/230/240 V +/- 2%
• TOPOLOGY
• Online/Double-conversion
• BTU RATING
• Online: 460
• EFFICIENCY (ECO-MODE)
• 97.4
• BACK-UP TIME
• 16 min
• INPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• INPUT POWER FACTOR
• >.99
• INPUT FREQUENCY RANGE
• 40-70 Hz
• INTERNAL BYPASS
• Yes
• INPUT VOLTAGE - MAX
• 276 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• ABM & Temperature compensated charging method (user selectable)
• Automatic battery test
• Deep discharge protection
• Automatic recognition of external battery units
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 6
• VA RATING
• 1500 VA
• POTENTIAL FREE SWITCH CONTACT
• Yes
• RECEPTACLE
• (6) C13
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• UPS
• (2) IEC-IEC output cables
• USB cable
• Serial cable
• (2) brackets for 19' mounting
• (2) Rack-mounting kit
• Safety instructions
• Quickstart guide
• NOISE LEVEL
• <43 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• Multilingual graphical LCD display
• BATTERY QUANTITY
• 4
• RACK SIZE
• 2U
• VOLTAGE
• 230V
• HOT SWAP POWER
• No
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• ETHERNET INTERFACE
• No

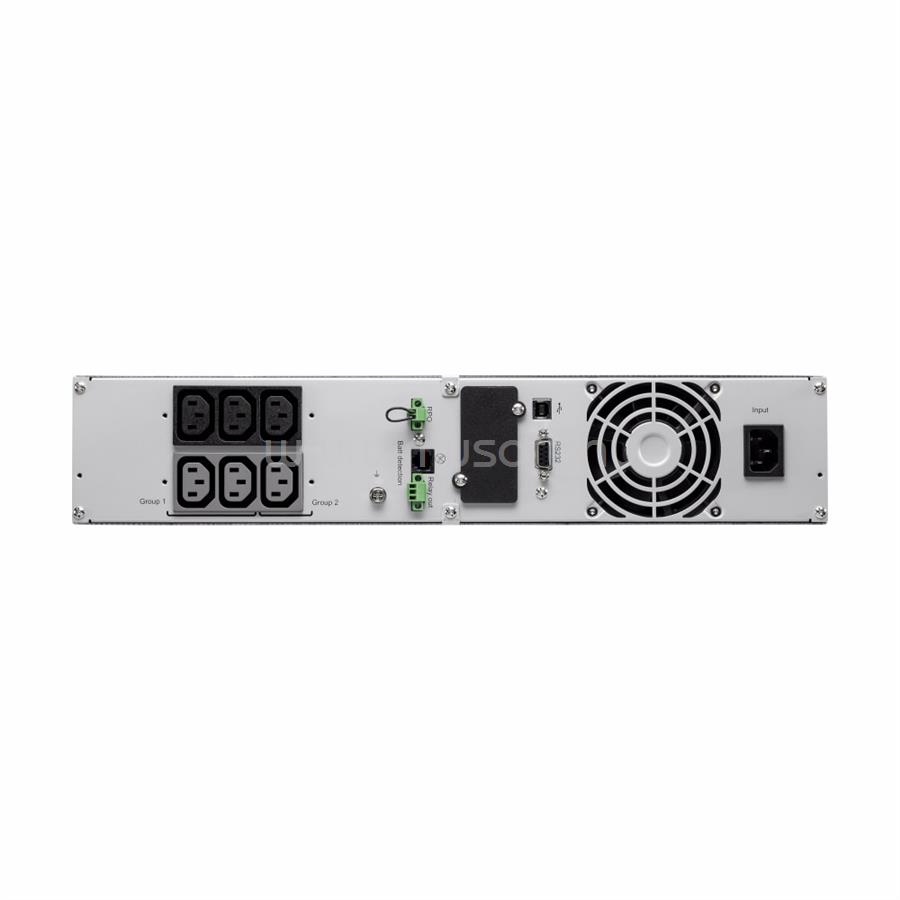

• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off
• Mini-terminal block for output relay
• Dry contacts (2 outputs, 1 input, optocoupler, DB9)
• RELATIVE HUMIDITY
• 0-95% non-condensing
• RACK MOUNTING KIT
• Yes
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 5.5 min
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 40 Hz
• BATTERY RATING
• 12 V / 9 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• EXPANSION SLOTS
• One slot for optional communication card
• INPUT VOLTAGE RANGE
• 190-276 V (120 V-276 V with derating)
• NOMINAL FREQUENCY
• 50/60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 3000 m
