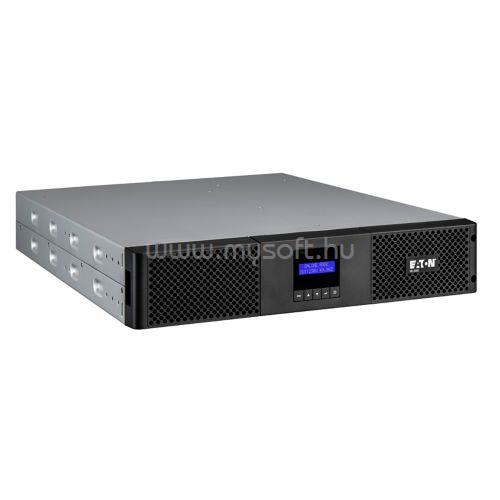

EATON 9E 2000I RACK2U 1800 W 2000 VA SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 608 mm
• PRODUCT HEIGHT
• 86.5 mm
• PRODUCT WIDTH
• 438 mm
• PRODUCT WEIGHT
• 29.9 kg
• COMPLIANCES
• CE Marked
• TUV
• CERTIFICATIONS
• IEC/EN 62040-1
• IEC/EN 62040-2
• CE

• ADDITIONAL SPECIFICATIONS

• SPECIAL FEATURES
• Double conversion topology
• Constantly monitors power conditions and regulates voltage and frequency
• Provides more real power (watts) to protect more equipment with a 0.9 power factor
• Internal bypass allows service continuity in case of UPS fault
• LCD display

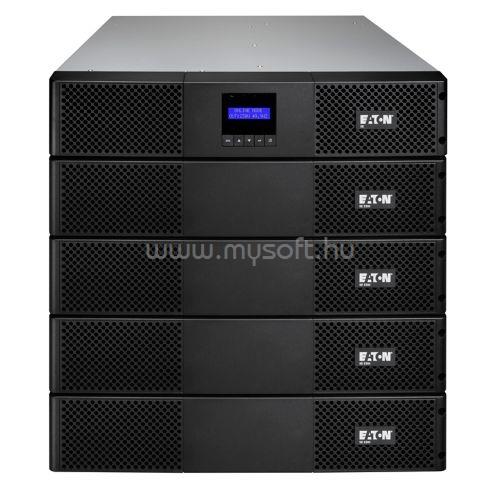

• Long backup time with up to 4 optional EBM
• TYPE
• UPS
• TOPOLOGY
• Online/Double-conversion
• FORM FACTOR
• Rack
• RACK SIZE
• 2U
• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• COLOR
• Black
• VA RATING
• 2000 VA
• WATTAGE
• 1800 W
• RACK MOUNTING KIT
• Yes
• PACKAGE CONTENTS
• UPS
• (2) IEC-IEC output cables
• USB cable
• Rack-mounting kit (rails and brackets)
• Safety instructions
• Quickstart guide
• INTERNAL BYPASS
• Yes
• HOT SWAP POWER
• No
• AUTO SHUTDOWN FUNCTION
• Yes
• PRIMARY FREQUENCY - MAX
• 70 Hz
• PRIMARY FREQUENCY - MIN
• 40 Hz
• INPUT CONNECTION
• C14
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• NOMINAL FREQUENCY
• 50/60 Hz
• INPUT FREQUENCY RANGE
• 40-70 Hz
• INPUT POWER FACTOR
• >.99
• RECEPTACLE
• (6) C13
• NUMBER OF OUTPUTS C13
• 6
• OUTPUT WAVEFORM
• Sine wave
• VOLTAGE
• 230V
• OUTPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• FEED TYPE
• 1
• VOLTAGE TYPE
• AC
• BATTERY MANAGEMENT
• Temperature compensated charging method
• Automatic battery test
• Deep discharge protection
• BATTERY REPLACEMENT
• Replacable batteries
• BATTERY RATING
• 12 V / 7 Ah
• BATTERY TYPE
• Sealed, lead-acid
• EXTENDED BATTERY CAPABILITY
• Yes
• RUNTIME AT HALF LOAD
• 12 min

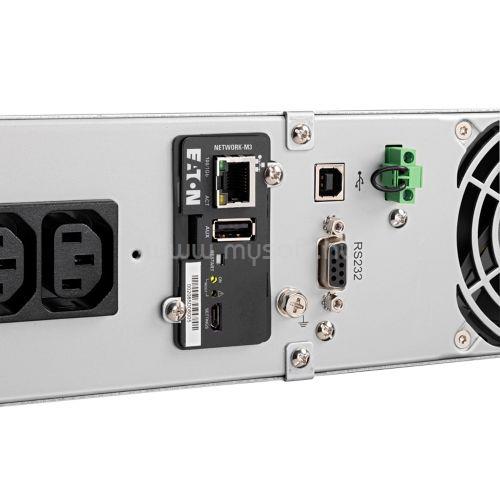

• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off
• EXPANSION SLOTS
• One slot for optional communication card
• ETHERNET INTERFACE
• No
• INCLUDES NETWORK CARD
• No
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• USER INTERFACE
• Multilingual LCD display
• TYPE OF INTERFACE
• Other
• POTENTIAL FREE SWITCH CONTACT
• Yes
• ALTITUDE
• 3000 m
• BTU RATING
• Online: 546
• NOISE LEVEL
• <45 dB at 1 meter
• RELATIVE HUMIDITY
• 0-96% non-condensing
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• INPUT VOLTAGE - MAX
• 276 V
• INPUT VOLTAGE - MIN
• 140 V
• OUTPUT VOLTAGE - MAX
• 240 V
• OUTPUT VOLTAGE - MIN
• 220 V
• SECONDARY FREQUENCY - MAX
• 60 Hz
• SECONDARY FREQUENCY - MIN
• 50 Hz
• BATTERY QUANTITY
• 6
• EFFICIENCY
• 91
• EFFICIENCY (ECO-MODE)
• 96.5
• MAX NUMBER OF BATTERY PACKS
• 4
• OUTPUT FREQUENCY
• 50/60 Hz
• OUTPUT POWER FACTOR
• 0.9
• OUTPUT VOLTAGE RANGE
• 220/230/240 V +/- 2%
• PHASE (INPUT)
• 1
• PHASE (OUTPUT)
• 1
• RUNTIME AT FULL LOAD
• 4.5 min
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
• 3
