EATON 5SC 1000IR VONALI-INTERAKTÍV 1:1 UPS SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 440 mm
• PRODUCT HEIGHT
• 86.2 mm
• PRODUCT WIDTH
• 405 mm
• PRODUCT WEIGHT
• 14.96 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• OUTPUT WAVEFORM
• Sine wave
• WATTAGE
• 700 W
• OUTPUT POWER FACTOR
• 0.7
• FORM FACTOR
• Rack
• ENCLOSURE
• Black
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C14
• INPUT VOLTAGE - MIN
• 184 V
• OUTPUT VOLTAGE - MAX
• 240 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• BATTERY REPLACEMENT
• User replaceable
• BATTERY TYPE
• Lead-acid maintenance-free (replaceable)
• EFFICIENCY
• 96
• SPECIAL FEATURES
• Automatic Voltage Regulation (AVR)
• Delivers clean sinewave output

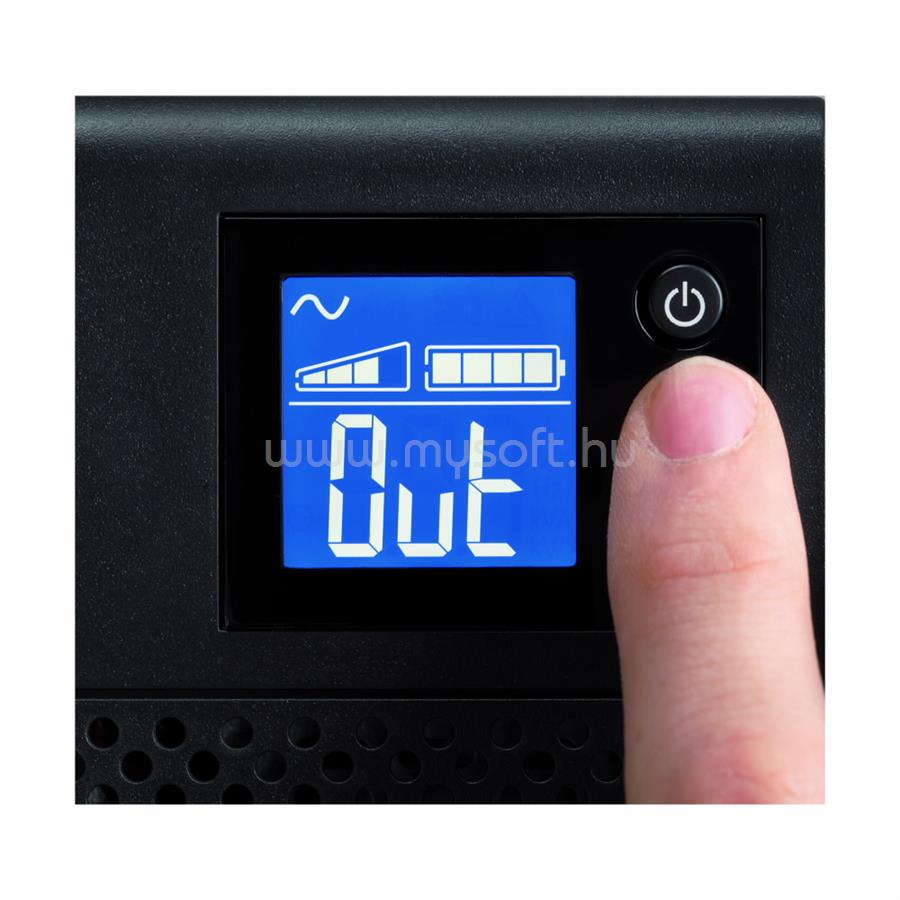

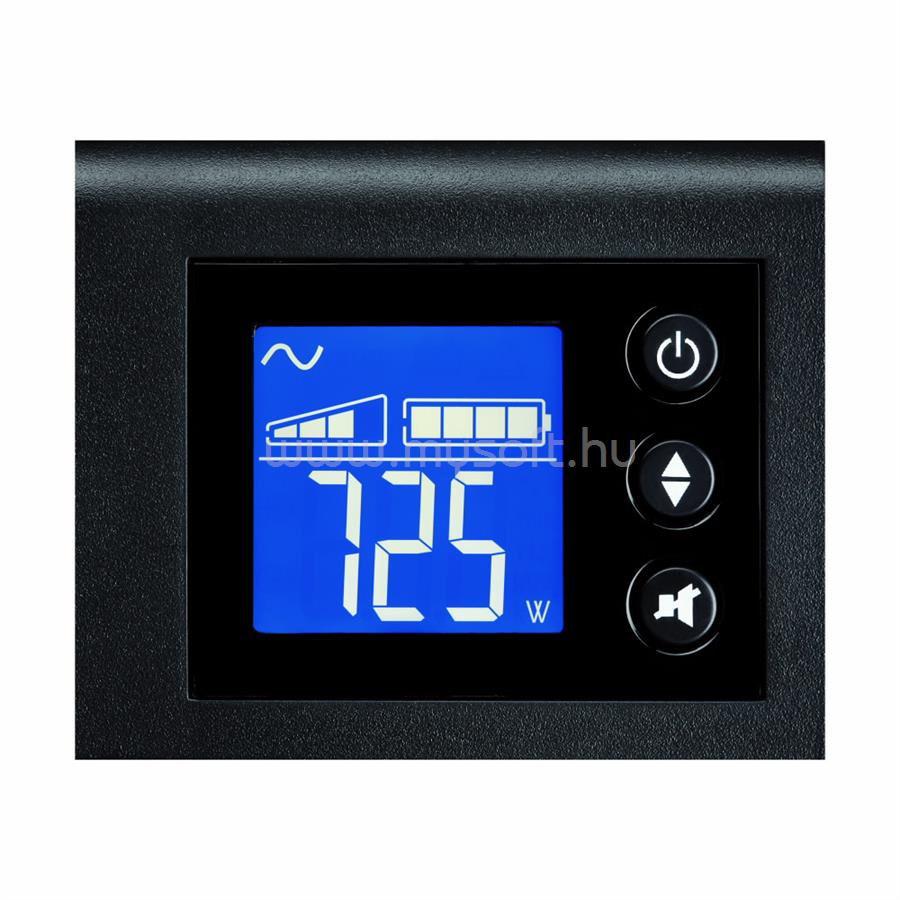

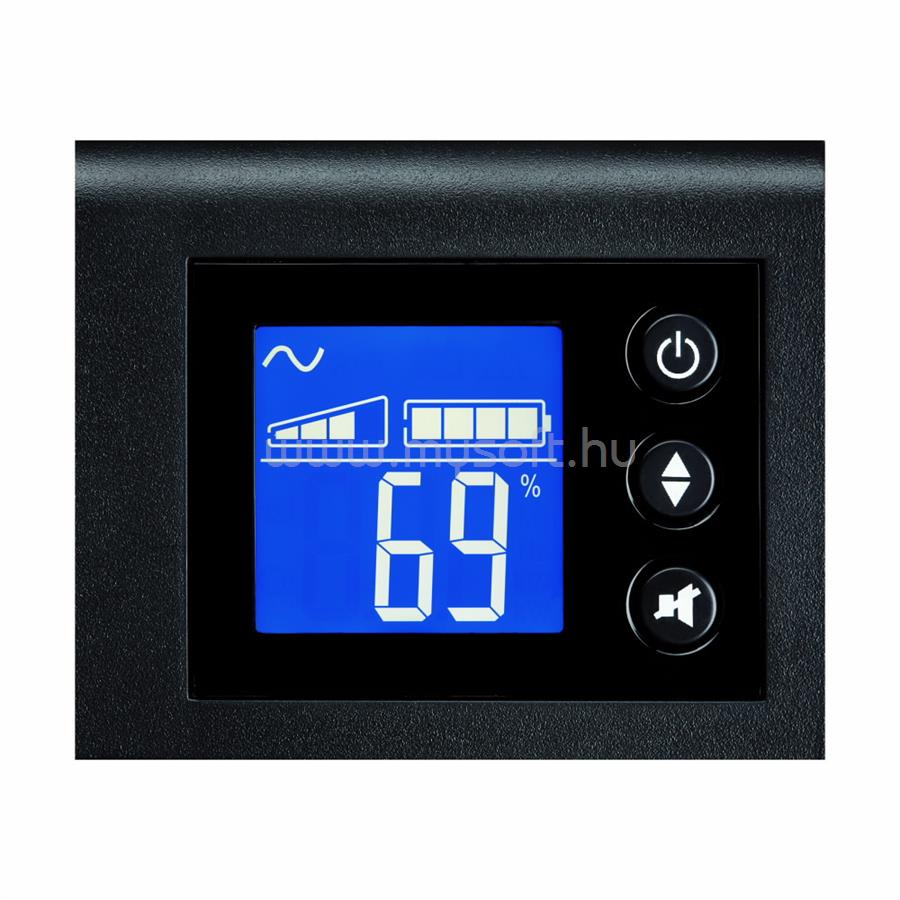

• LCD display for real-time status and measurements
• Reliable and affordable UPS for rack servers, networking and storage

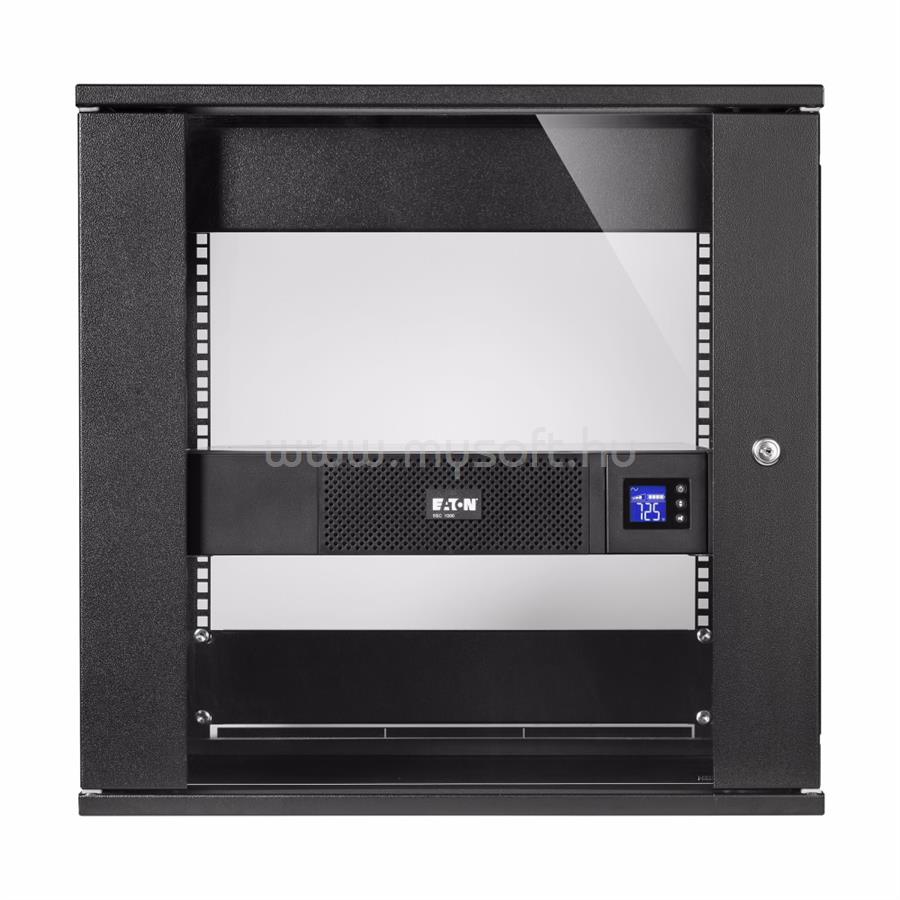

• Compatible with 500 mm depth enclosures

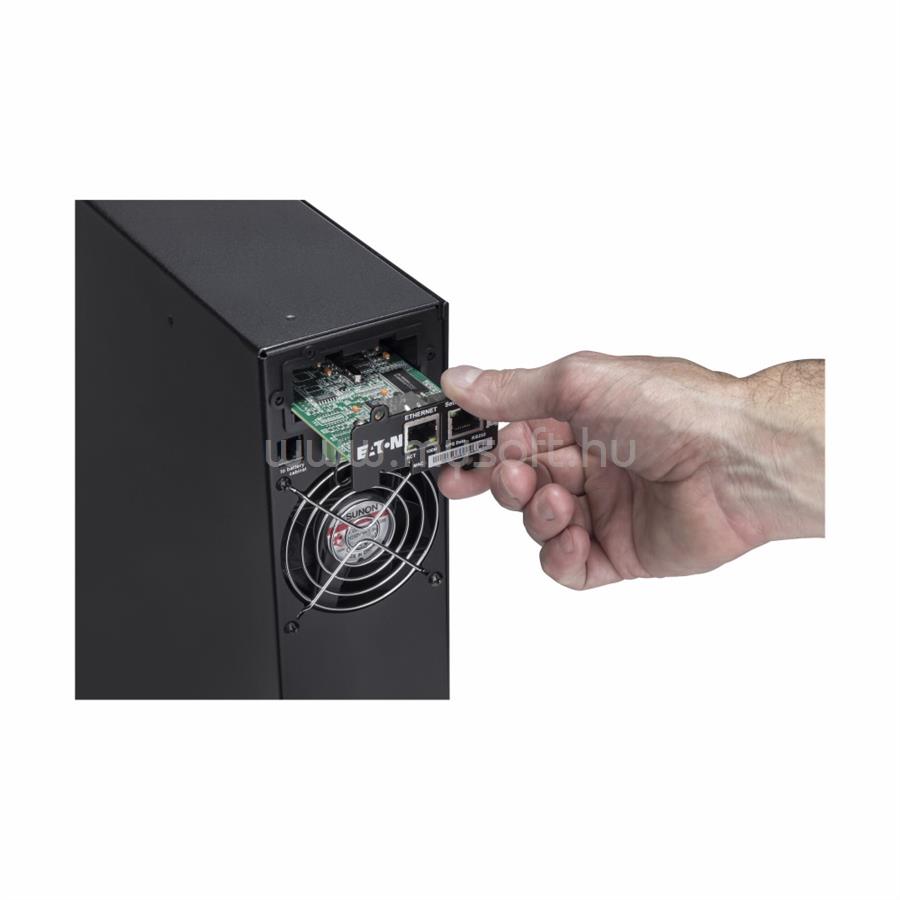

• 1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• Fully integrates with Eaton Intelligent Power Manager software
• 1 USB port + 1 serial port
• Advanced Battery Management (ABM) technology to increase battery lifetime
• Hot swappable batteries
• Remote ON/OFF and remote Power OFF connectors
• Cable locking system
• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• OUTPUT VOLTAGE - MIN
• 220 V
• COLOR
• Black
• EXTENDED BATTERY CAPABILITY
• No
• OUTPUT VOLTAGE RANGE
• 230 V (+6%/-10%)
• TOPOLOGY
• Line-interactive
• BTU RATING
• Online: 143
• BACK-UP TIME
• 11.5 min
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• INPUT FREQUENCY RANGE
• 45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
• INPUT VOLTAGE - MAX
• 276 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 8
• VA RATING
• 1000 VA
• POTENTIAL FREE SWITCH CONTACT
• Yes

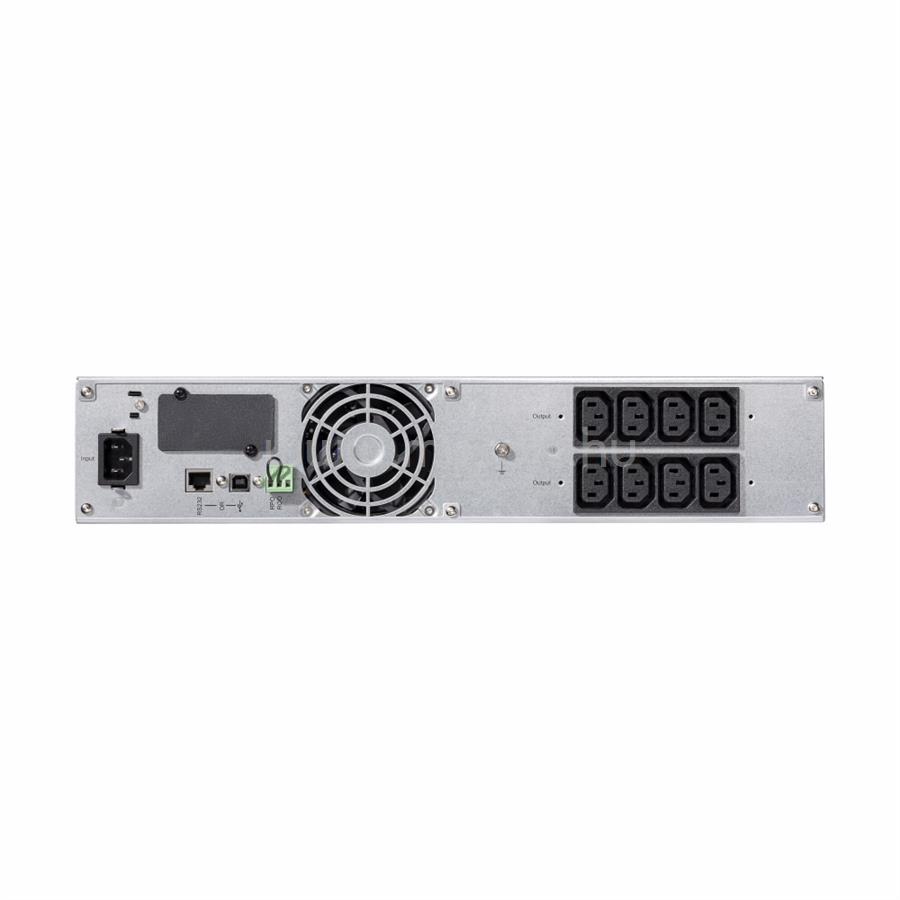

• RECEPTACLE
• (8) C13
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• Rack-mounting kit
• Cable locking system
• USB cable
• Serial cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• NOISE LEVEL
• <40 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• LCD Display
• BATTERY QUANTITY
• 2
• RACK SIZE
• 2U
• VOLTAGE
• 230V
• TEMPERATURE RANGE
• 0-90% non-condensing
• ETHERNET INTERFACE
• No
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote On/Off and Remote Power Off
• Dry contacts (2 outputs, optocoupler, RJ)
• RELATIVE HUMIDITY
• 0-90% non-condensing
• RACK MOUNTING KIT
• Yes
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 5 min
• TYPE OF INTERFACE
• Other
• PRIMARY FREQUENCY - MIN
• 45 Hz
• BATTERY RATING
• 12 V / 9 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• EXPANSION SLOTS
• One slot for optional communication card
• INPUT VOLTAGE RANGE
• 184-276 V
• NOMINAL FREQUENCY
• 50-60 Hz
• PRIMARY FREQUENCY - MAX
• 65 Hz
• ALTITUDE
• 3000 m
