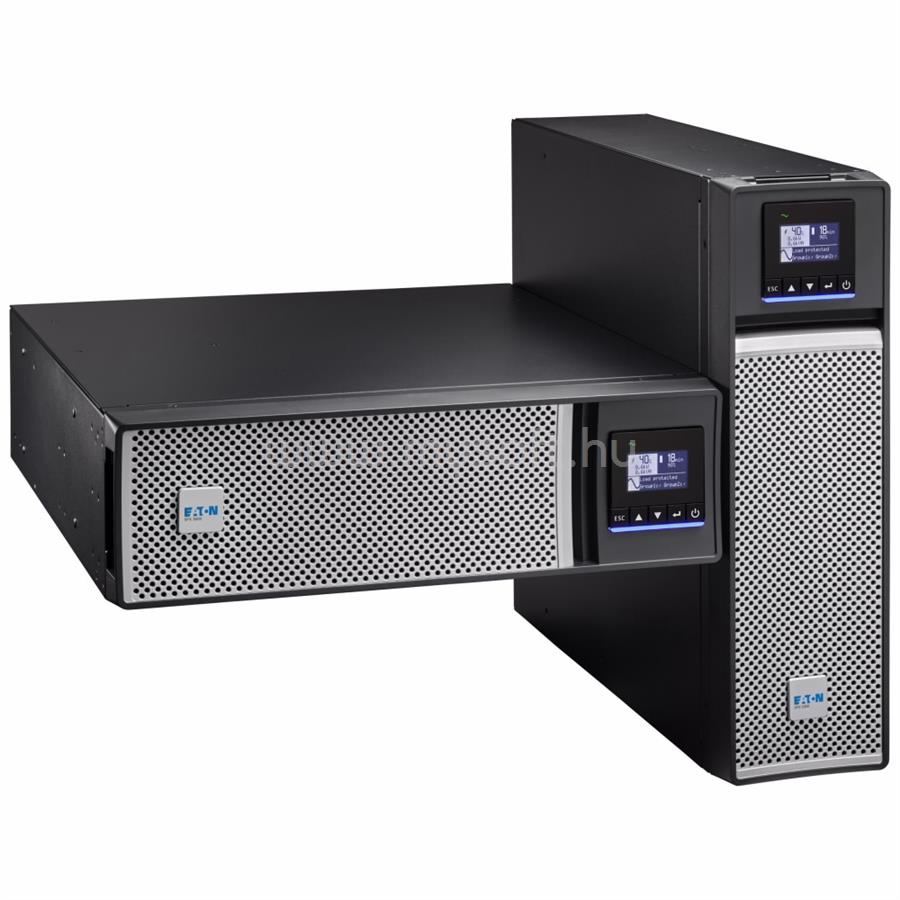

EATON 2200VA - 5PX2200IRT3UG2 (8X C13 KIMENET, VONALI-INTERAKTÍV, LCD, USB, RACK 3U/TORONY) SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 483 mm
• PRODUCT HEIGHT
• 129 mm
• PRODUCT WIDTH
• 438 mm
• PRODUCT WEIGHT
• 27.5 kg

• BATTERY

• BATTERY TYPE
• Lead-acid maintenance-free (replaceable)
• BATTERY REPLACEMENT
• User replaceable
• BATTERY QUANTITY
• 6
• BATTERY MANAGEMENT
• ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
• BATTERY RATING
• 12 V / 7 Ah
• EXTENDED BATTERY CAPABILITY
• Yes

• ELECTRICAL OUTPUT

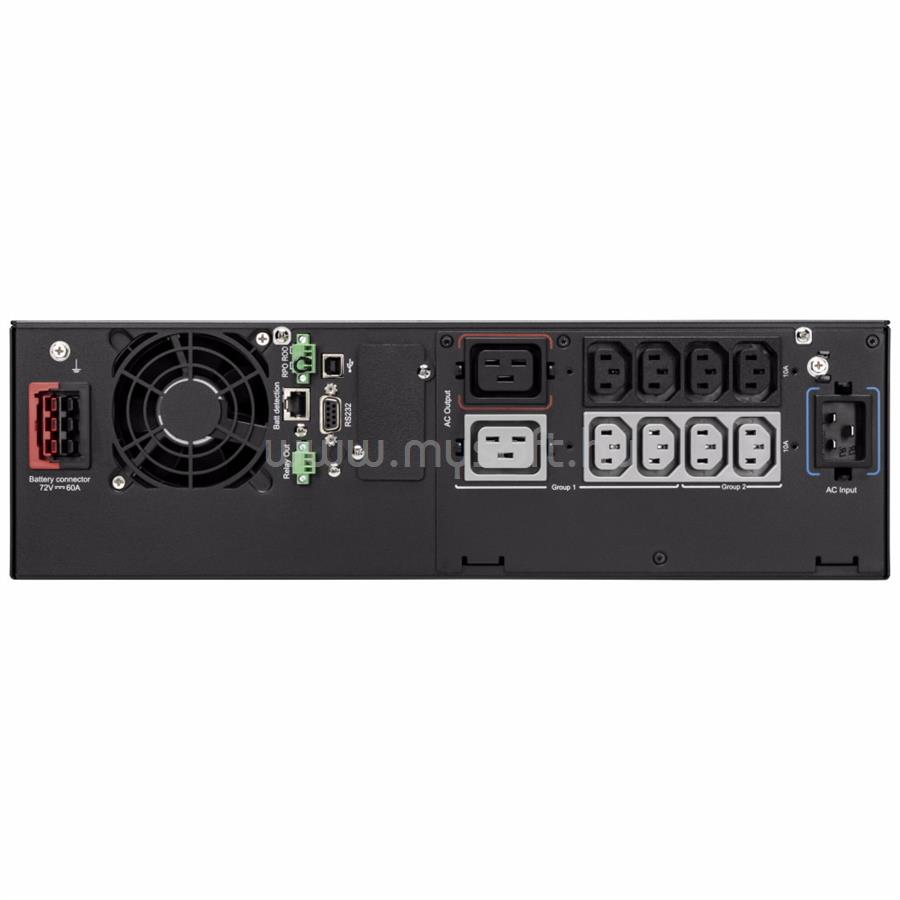

• RECEPTACLE
• (8) C13, (2) C19
• VOLTAGE
• 230V
• WATTAGE
• 2200 W
• OUTPUT POWER FACTOR
• 1
• OUTPUT VOLTAGE RANGE
• 230 V (+6%/-10%)
• OUTPUT WAVEFORM
• Sine wave
• OUTPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• FEED TYPE
• 1
• TOPOLOGY
• Line-interactive
• VA RATING
• 2200 VA

• ELECTRICAL INPUT

• INPUT CONNECTION
• C20
• INPUT NOMINAL VOLTAGE
• 230V default (200/208/220/230/240V)
• NOMINAL FREQUENCY
• 50-60 Hz
• INPUT CORD LENGTH
• 1.8m
• INPUT VOLTAGE RANGE
• 160-294 V (adjustable to 150 V-294 V)
• INPUT FREQUENCY RANGE
• 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

• COMMUNICATIONS

• INCLUDES NETWORK CARD
• No
• COMMUNICATION
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote On/Off and Remote Power Off
• Mini-terminal block for output relay
• Dry contacts (3 outputs, 1 input, optocoupler, DB9)
• USER INTERFACE
• Multilingual graphical LCD display
• POTENTIAL FREE SWITCH CONTACT
• Yes
• EXPANSION SLOTS
• One slot for optional communication card
• SOFTWARE COMPATIBILITY
• Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• TYPE OF INTERFACE
• Other

• ENVIRONMENTAL

• ALTITUDE
• 3000 m
• NOISE LEVEL
• <40 dB at 1 meter
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
• RELATIVE HUMIDITY
• 0-90% non-condensing

• ADDITIONAL SPECIFICATIONS

• CONSTRUCTION TYPE
• 482.6 mm (19 inch) device
• PACKAGE CONTENTS
• Input cable
• Rack-mounting kit
• (2) Supports for tower mounting
• Cable locking system
• USB cable
• Serial cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• PHASE (OUTPUT)
• 1
• AUTO SHUTDOWN FUNCTION
• Yes
• COLOR
• Black/silver
• EFFICIENCY
• 98
• RACK MOUNTING KIT
• Yes
• PHASE (INPUT)
• 1
