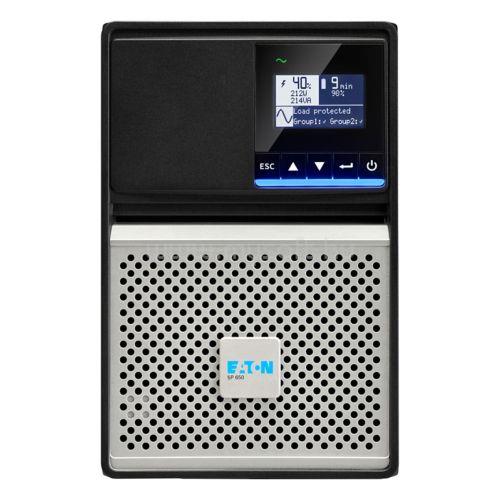

EATON 5P 650IG2 VONALI-INTERAKTÍV 1:1 UPS SZÜNETMENTES TÁPEGYSÉG

• General specifications

• Product Length/Depth
• 345 mm
• Product Height
• 233 mm
• Product Width
• 150 mm
• Product Weight
• 7.9 kg

• Battery

• Battery type
• Lead-acid maintenance-free (replaceable)
• Battery replacement
• User replaceable
• Battery quantity
• 1
• Battery management
• ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
• Battery rating
• 12 V / 9 Ah
• Extended battery capability
• No

• Electrical output

• Voltage
• 230V
• Receptacle
• (4) C13
• Wattage
• 520 W
• Output voltage range
• 230 V (+6%/-10%)
• Output frequency
• 50/60 Hz
• Output nominal voltage
• 230V default (200/208/220/230/240V)
• Topology
• Line-interactive

• Electrical input

• Input connection
• C14
• Input nominal voltage
• 230V default (200/208/220/230/240V)
• Nominal frequency
• 50-60 Hz
• Input voltage range
• 160-294 V (adjustable to 150 V-294 V)
• Input frequency range
• 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

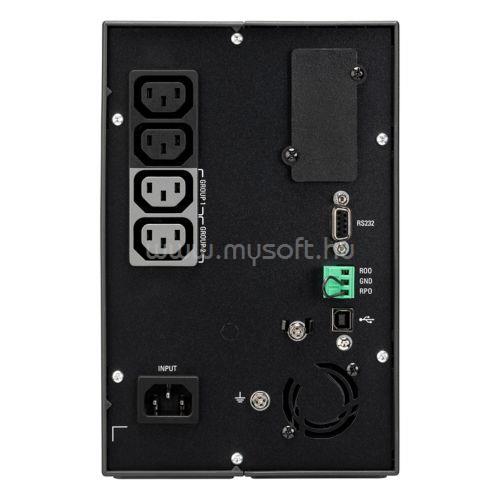

• Communications

• Communication
• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote On/Off and Remote Power Off
• Dry contacts (2 outputs, optocoupler, RJ)
• Ethernet interface
• No
• Potential free switch contact
• Yes
• Expansion slots
• One slot for optional communication card
• Software compatibility
• Eaton Brightlayer Software suite
• Type of interface
• Other

• Environmental

• Altitude
• 3000 m
• Noise level
• <35 dB at 1 meter
• Temperature range
• 0° to 40°C (32° to 104°F)
• BTU Rating
• Online: 53, Battery: 461 BTU/hr
• Relative humidity
• 0-90% non-condensing

• Additional specifications

• Form factor
• Tower
• Construction type
• Free standing model
• Enclosure
• Black/silver
• Package contents
• USB cable
• (2) IEC-IEC cables
• Quickstart guide
• Safety instructions
• Phase (output)
• 1
• Auto shutdown function
• Yes
• Color
• Black/silver
• Rack mounting kit
• No
• Efficiency
• 97
• Phase (input)
• 1
