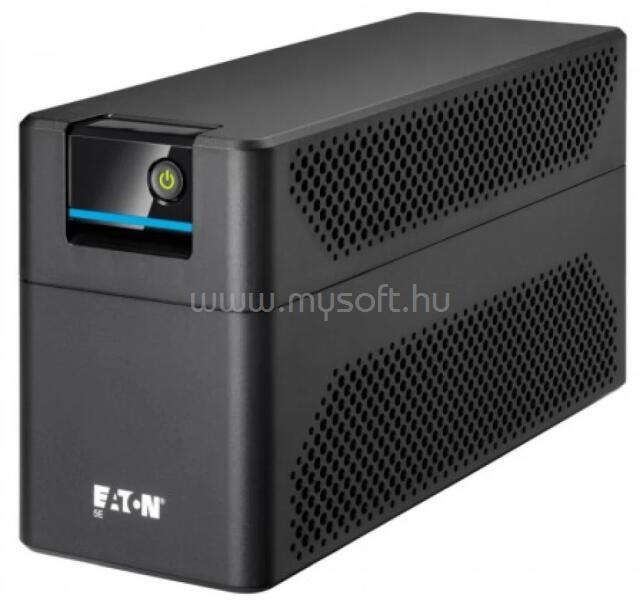

EATON 5E 1600 USB IEC G2 SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 330 mm
• PRODUCT HEIGHT
• 180 mm
• PRODUCT WIDTH
• 133 mm
• PRODUCT WEIGHT
• 8.89 kg
• COMPLIANCES
• CB
• LVD Directive
• EMC Directive
• RoHS Directive
• Packaging Directive
• WEEE Directive
• Batteries Directive
• CERTIFICATIONS
• IEC/EN 62040-1
• IEC/EN 62040-2
• CE
• EAC
• UKCA
• Cm
• Ukr
• IEC/EN 62040-3

• PRODUCT SPECIFICATIONS

• SPECIAL FEATURES
• Automatic Voltage Regulation (AVR)
• Saves space with a compact tower design
• HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
• TYPE
• UPS
• TOPOLOGY
• Line-interactive
• FORM FACTOR
• Tower
• CONSTRUCTION TYPE
• Free standing model
• COLOR
• Black
• VA RATING
• 1600 VA
• WATTAGE
• 900 W
• RACK MOUNTING KIT
• No
• PACKAGE CONTENTS
• (2) IEC-IEC output cables
• Quick start
• Safety instructions
• SURGE PROTECTION
• Yes
• INTERNAL BYPASS
• No
• HOT SWAP POWER
• No
• AUTO SHUTDOWN FUNCTION
• Yes
• PRIMARY FREQUENCY - MAX
• 63 Hz
• PRIMARY FREQUENCY - MIN
• 45 Hz
• INPUT CONNECTION
• C14
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• NOMINAL FREQUENCY
• 50/60 Hz
• INPUT FREQUENCY RANGE
• 45-63 Hz

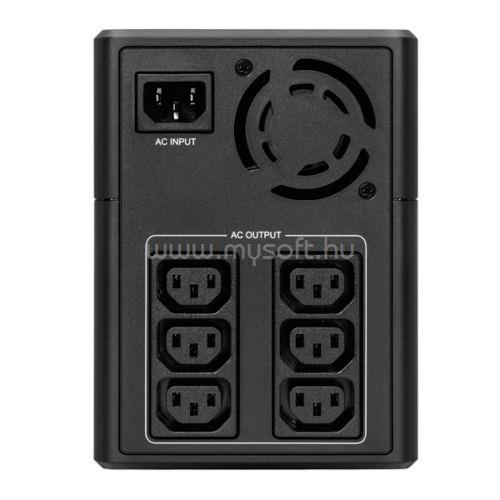

• RECEPTACLE
• (6) C13
• NUMBER OF OUTPUTS C13
• 6
• VOLTAGE
• 230V
• OUTPUT NOMINAL VOLTAGE
• 230V
• FEED TYPE
• 1
• VOLTAGE TYPE
• AC
• BATTERY MANAGEMENT
• Automatic battery test, deep-discharge protection, cold-start capable
• BATTERY RATING
• 12 V / 7 Ah
• BATTERY TYPE
• Sealed, lead-acid
• EXTENDED BATTERY CAPABILITY
• No
• COMMUNICATION
• USB port (HID compliant)
• EXPANSION SLOTS
• No
• ETHERNET INTERFACE
• No
• INCLUDES NETWORK CARD
• No
• SOFTWARE COMPATIBILITY
• Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
• USER INTERFACE
• LEDs
• TYPE OF INTERFACE
• USB
• POTENTIAL FREE SWITCH CONTACT
• No
• RELATIVE HUMIDITY
• 0-90% non-condensing
• TEMPERATURE RANGE
• 0° to 40°C (32° to 104°F)
• OPERATING TEMPERATURE - MAX
• 40 °C
• OPERATING TEMPERATURE - MIN
• 0 °C
• OUTPUT APPARENT POWER
• 1600 VA
• INPUT VOLTAGE - MAX
• 300 V
• INPUT VOLTAGE - MIN
• 140 V
• OUTPUT VOLTAGE - MAX
• 257 V
• OUTPUT VOLTAGE - MIN
• 195 V
• SECONDARY FREQUENCY - MAX
• 60 Hz
• SECONDARY FREQUENCY - MIN
• 50 Hz
• BATTERY QUANTITY
• 2
• EFFICIENCY
• 95
• INPUT VOLTAGE RANGE
• 140-300 V
• OUTPUT FREQUENCY
• 50/60 Hz
• OUTPUT VOLTAGE RANGE
• 195-257 V
• PHASE (INPUT)
• 1
• PHASE (OUTPUT)
• 1
