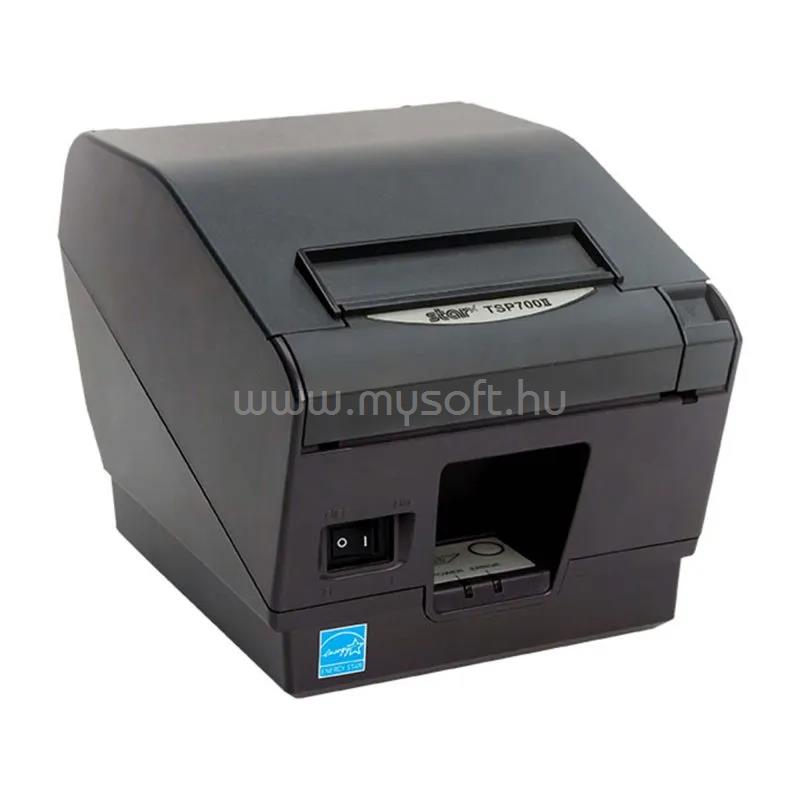

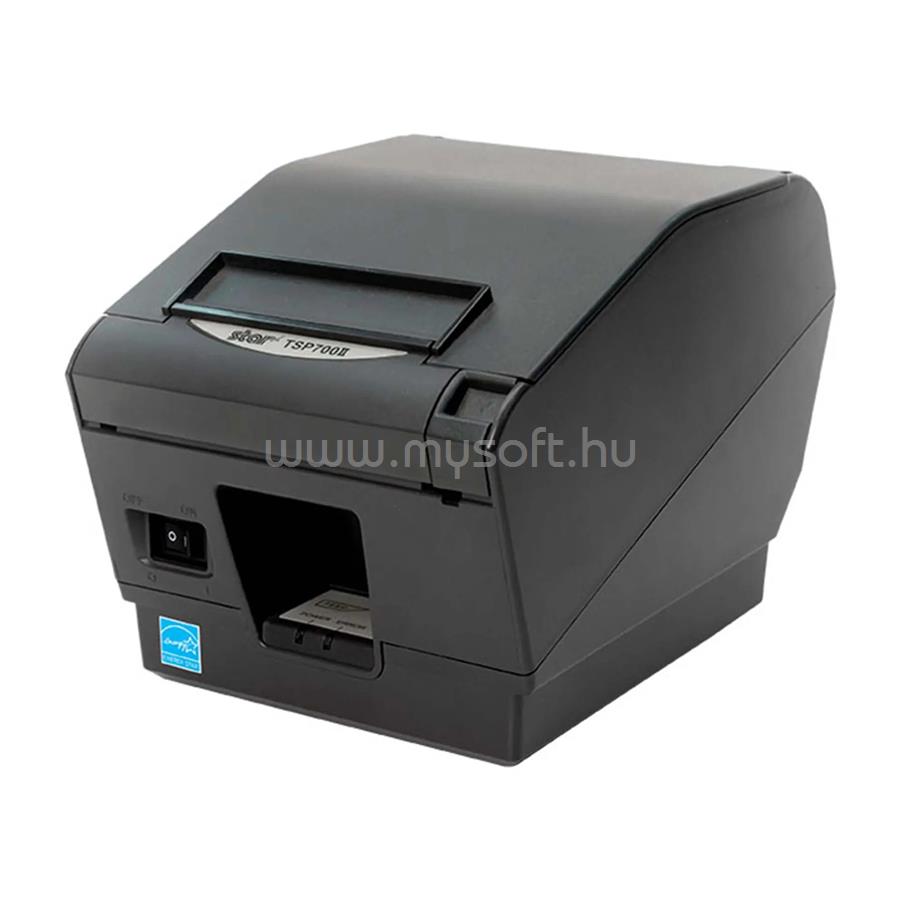

STAR TSP743U II-24 203 DPI CÍMKENYOMTATÓ (SZÜRKE)

Funkciók

• • Másolás
  • Szkennelés
  • FAX
  • Duplex nyomtatás

Csatlakozók

• • USB
  • LAN
  • Wi-Fi
  • Párhuzamos port

Nyomtatási méret

Tálcák

• 1. tálca:
  2. tálca:

• Specification

• Printer Method
• Direct Line Thermal
• Print Speed
• 45 Receipts Per Minute (250 mm/sec)
• Printer Case Color
• Gray
• Print Resolution (Vertical x Horizontal)
• 203×203 dpi, 406×203 dpi
• No. of Columns
• 48 / 64 or 58 / 71 (Depends on Paper Width) Includes 1st column print for lottery applications
• Font Size
• 12 x 24
• Character Set
• ANK 95, 32 Int 128 Graphic
• International Code Pages
• Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added
• Bar Codes
• 9 versions / PDF417, QR, Maxicode Options
• Line Spacing
• 3 mm or 4 mm or programmable
• Top Margin
• 13 mm minimum default (3mm selectable via Memory Switch Utility)
• External Paper Feed Support
• Yes
• Auto Cutter
• Guillotine (Full or Partial Cut Selectable)
• Cover Open Sensor
• Yes
• Logo Store Capacity
• 2 Mbit Flash ROM with Graphic Management Software
• Flash ROM
• 16 Mbit
• Multiple Copy Support
• N/A
• Journal Capability
• N/A
• Label Support
• Yes; Black timing marks between labels required
• Power Supply
• External; Requires PS60A External Power Supply
• Drivers Available
• Windows 10, Windows 8.1, Windows© XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android
• Digitally Signed (WHQL)
• Yes
• Swappable Interfaces
• Yes
• Connectivity
• Apple MFi Certified Bluetooth, CloudPRNT, Serial, Parallel, USB, Powered USB, Ethernet, Virtual Serial Port to USB, Virtual Serial Port to Ethernet
• Emulation Modes
• Star Mode, ESC/POS™
• Peripheral Drive Circuit
• 2 circuits, (24V max. 1A), 1 Compulsion input
• Power Consumption
• Average 1.8 Amp. Printing, 0.15 Amp. Standby Requires PS60A External Power Supply
• Operating Conditions
• Temperature: 5oC to 45oC Humidity: 10% - 90% RH (without condensation)
• Storage Conditions
• Temperature: -20oC to 60oC Humidity: 10% - 90% RH
• Dimensions
• 147 x 148 x 213 (w x h x d)mm
• Weight
• 1.75 kg
• Reliability MCBF
• 60 Million Lines
• Auto Cutter
• 2 Million Cuts
• Included with Printer
• Configuration Utility, and Value Add Utility modeled after futurePRNT Software
• Wall Mount Bracket
• Interface Cover
• 58mm Paper Guide
• Power Switch Cover

• Paper Specifications

• Width
• 80mm standard, 82.5 and 58mm with paper guide
• Thicknes
• 0.065 ~ 0.15 mm
• Roll Diameter
• Up to 100 mm
• Easy - Load
• "Drop-In & Print"
• Paper Out Sensor
• Standard
• Black Mark Sensor
• Standard
• Paper Low Sensor
• Standard
• Maximum Print Width
• 80mm paper = 72mm, 82.5mm paper = 80mm, 58mm paper = 52mm

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
