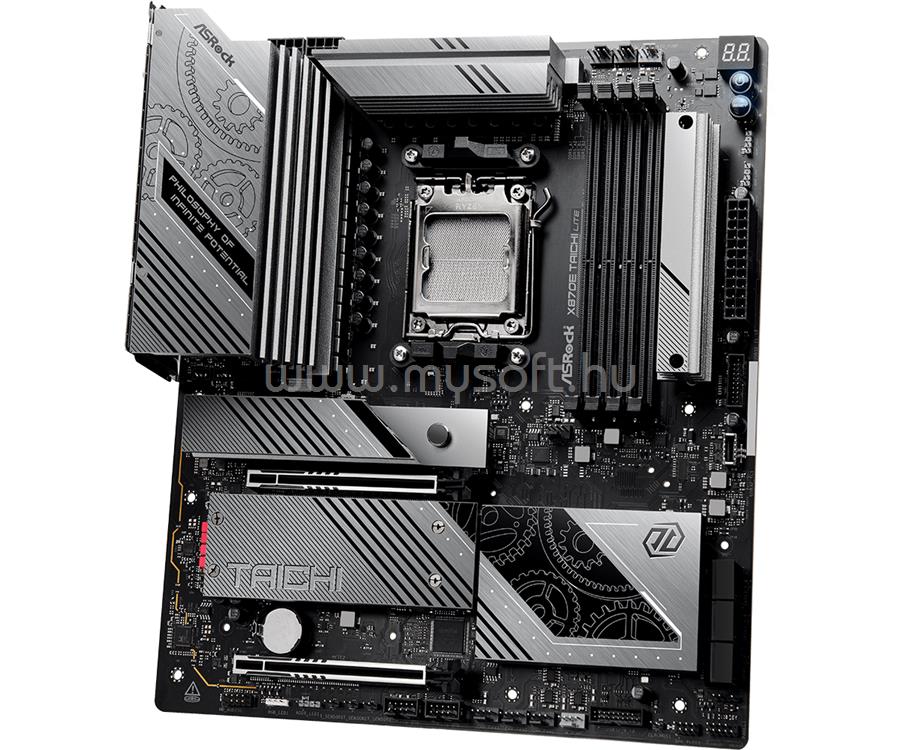

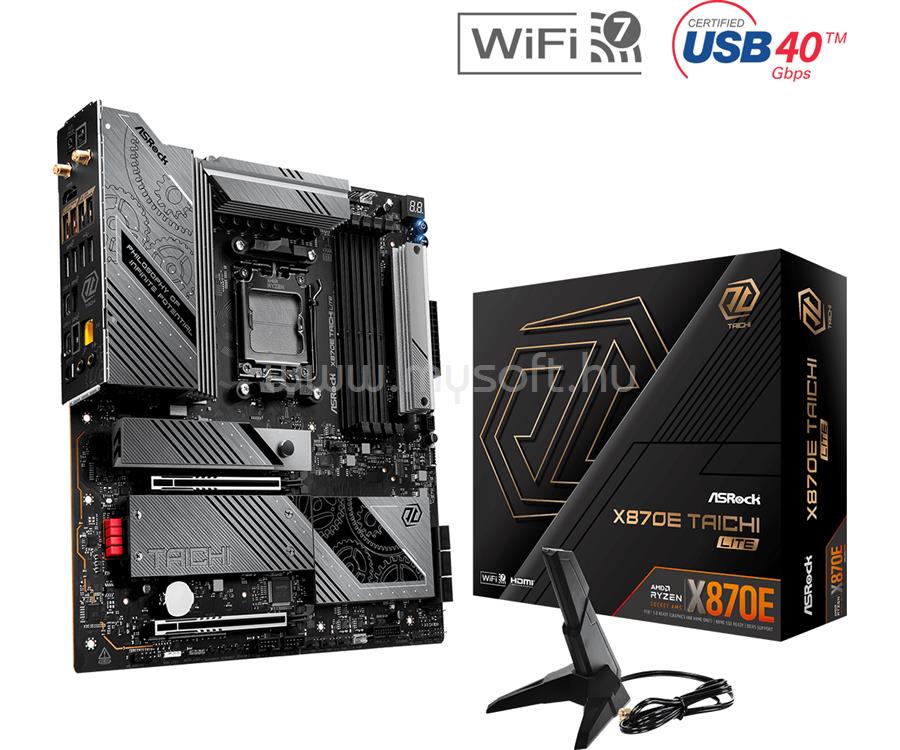

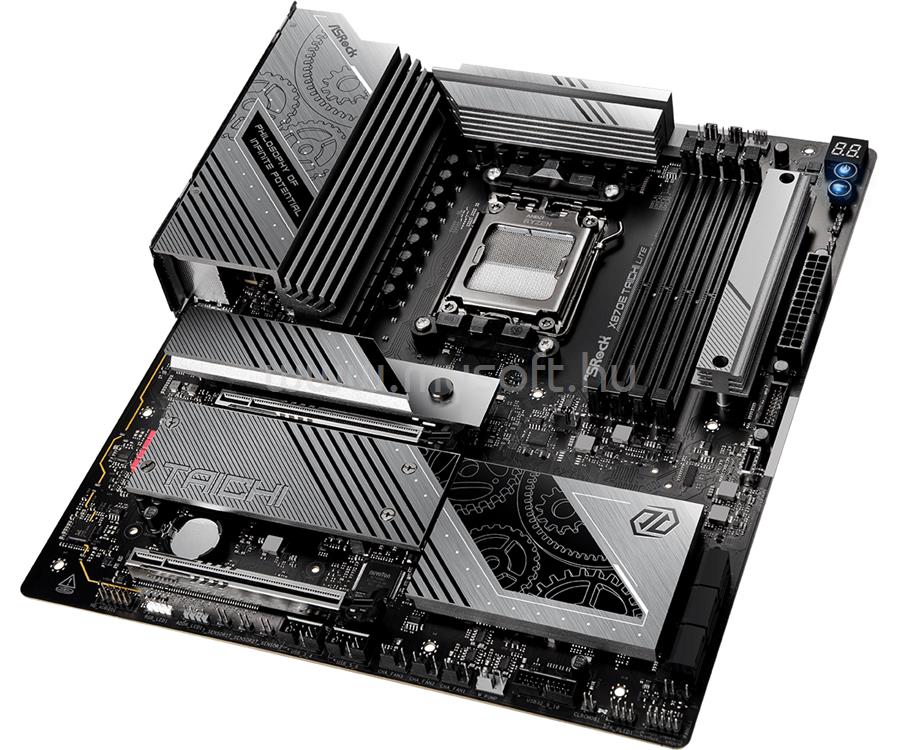

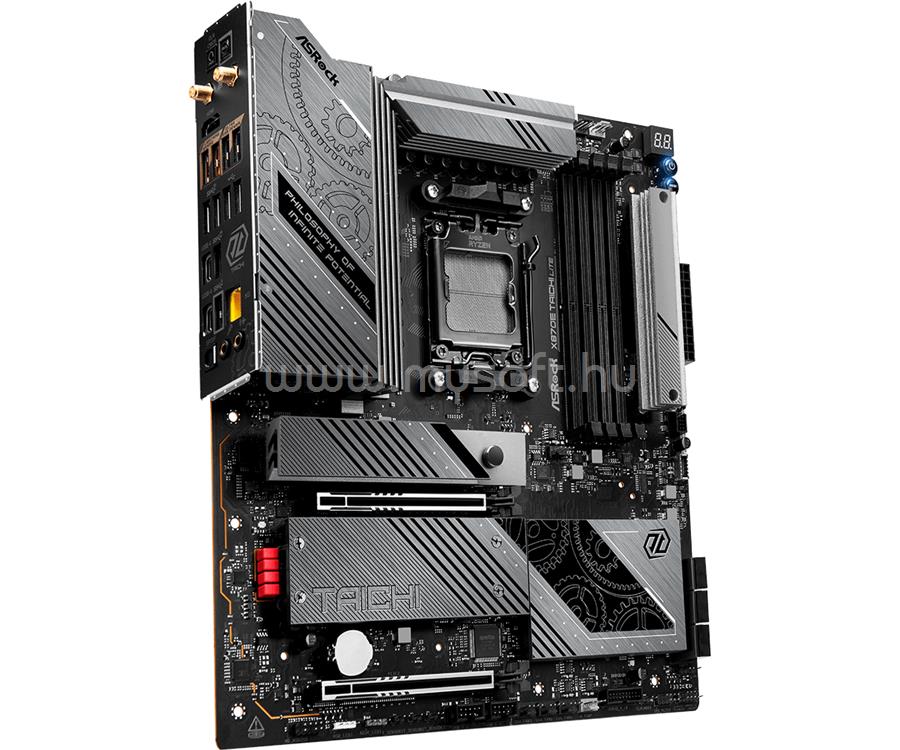

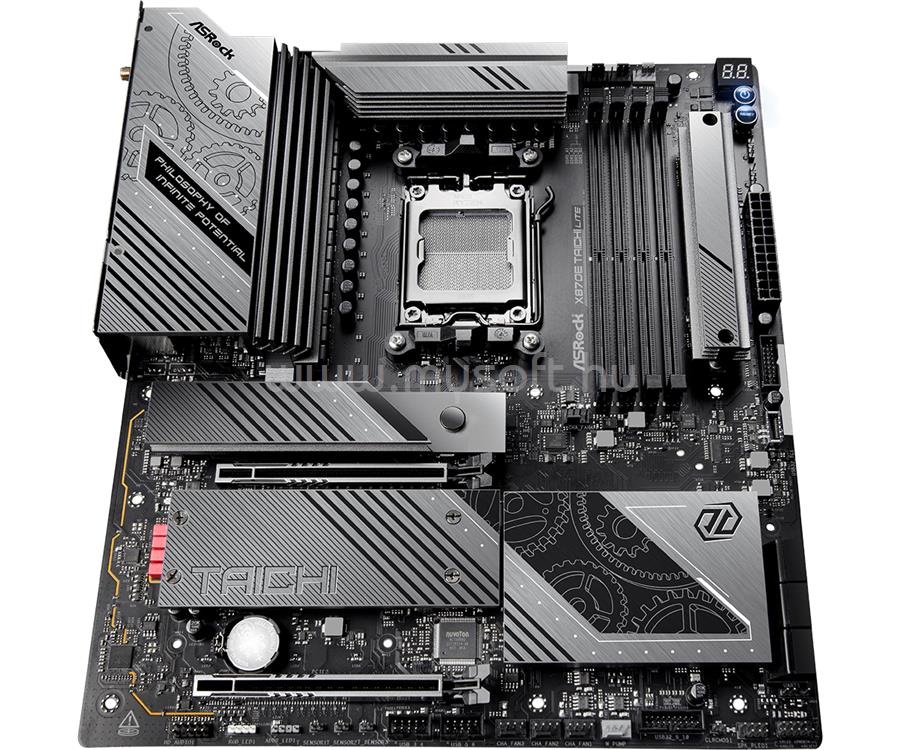

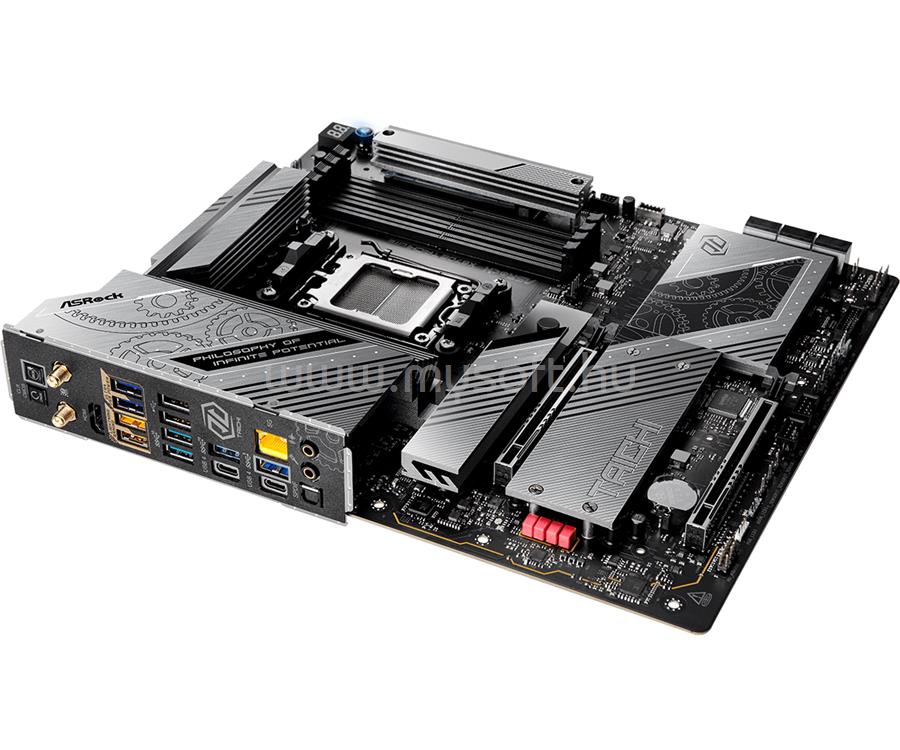

ASROCK ALAPLAP X870E TAICHI LITE (AM5, E-ATX)

• Unique Feature

• Superb Productivity
• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Type-C Ports (40 Gb/s)
• Rock-Solid Durability
• Server-Grade Low-Loss PCB
• 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• Ultrafast Connectivity
• 5G LAN, 802.11be Wi-Fi 7 Module
• ASRock Lightning Gaming Ports
• EZ Update
• BIOS Flashback Button
• ASRock Auto Driver Installer

• CPU

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• Supports ASRock Hyper BCLK Engine

• Chipset

• AMD X870E

• Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
• * Only the CPU's embedded graphics can be displayed through USB4 ports.
• If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.

• Audio

• 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• WIMA Audio Capacitors (For Rear Outputs)
• ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
• Individual PCB Layers for R/L Audio Channel
• Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
• Nahimic Audio

• LAN

• 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
• Realtek RTL8126

• Wireless LAN

• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 160MHz channel bandwidth with 6GHz* frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO
• *The Wi-Fi 7 module is supported by Microsoft Windows© 11 only. There is no driver available for Windows© 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows© Update and software updates once available.

• Slots

• CPU
• 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*
• Chipset
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Supports AMD CrossFire
• * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

• Storage

• CPU
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 6 x SATA3 6.0 Gb/s Connectors
• * Supports NVMe SSD as boot disks
• M2_1 is the first priority for M.2 installation.
• M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.

• RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• USB

• CPU
• 2 x USB4 Type-C (Rear)
• 2 x USB 3.2 Gen2 Type-A (Rear)
• Chipset
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 3 x USB 3.2 Gen2 Type-A (Rear)
• 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
• * All USB ports support ESD Protection

• Connector

• 3 x Thermistor Cable Headers
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15? Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED
• * Supports in total up to 12V/3A, 36W LED Strip
• ** Support in total up to 5V/3A, 15W LED Strip
• *** CPU_FAN1 supports the fan power up to 1A (12W).
• CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
• CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

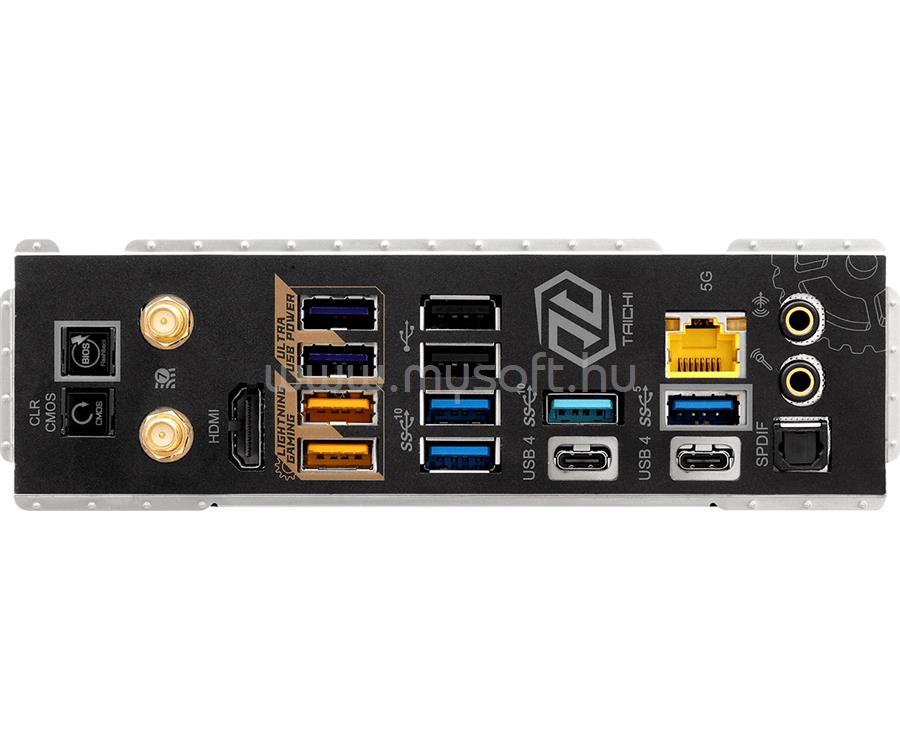

• Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)*
• 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)
• * Supports USB PD 3.0 up to 5V@3A (15W) charging

• Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock Polychrome SYNC
• ASRock XFast LAN
• UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

• 4 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 1 x ARGB Splitter Cable
• 3 x Thermistor Cables

• Form Factor

• EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
• 8 Layer PCB
• 2oz Copper PCB

• OS

• Microsoft Windows© 10 64-bit / 11 64-bit

• Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
