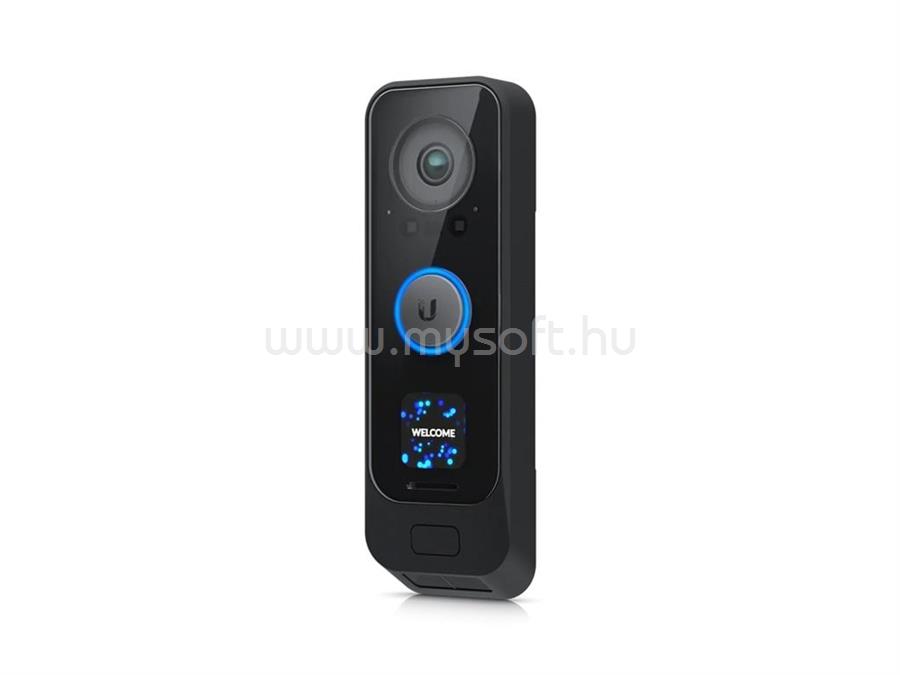

UBIQUITI UVC G4 DOORBELL PRO VIDEO KAPUTELEFON

• Mechanical

• Dimensions
• 160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")
• Weight
• Without mount: 253 g (8.92 oz)
• With flat wall mount: 286 g (10.08 oz)
• With 20° wedge mount: 325 g (11.46 oz)
• Enclosure materials
• Polycarbonate, aluminum alloy
• Mount materials
• Flat wall mount: aluminum alloy
• 20° wedge mount: polycarbonate
• Weatherproofing
• IPX4

• Optics

• Sensor
• Main camera: 5MP CMOS sensor
• Package camera: 8MP CMOS sensor
• Lens
• Fixed focal length
• View angle
• Main camera: H: 138°, V: 114°, D: 155°
• Package camera: H: 97.5°, V: 79.4°, D: 118.2°
• Night mode
• Built-in IR LED illumination and IR cut filter

• Video

• Video compression
• H.264
• Resolution
• Main camera: 2MP 1600 x 1200 (4:3)
• Package camera: 2MP 1600 x 1200 (4:3)
• Max. frame rate
• 30 FPS

• System

• Processor
• Quad-core Arm© Cortex©-A53 based chip
• Networking interface
• 802.11a/b/g/n/ac WiFi
• Bluetooth 5.0
• GbE support (with UACC-Adapter-DBPOE)
• Max. power consumption
• 10W
• Power requirements
• 16-24V AC, 1.25A max., 50/60 Hz
• USB-C power cable, 5V DC, 2A
• Supported voltage range
• 37-57V DC
• LED
• Link/activity
• Button
• (1) Ring button
• (1) Factory reset
• Mounting
• Flat wall, 20° wedge (Included)
• Operating temperature
• -10 to 40o C (14 to 104o F)
• Operating humidity
• 10 to 90% noncondensing
• Certifications
• FCC, IC, CE

• Audio

• Microphone
• Yes (Can be disabled in software)
• Speaker
• Yes

• Software

• Web application
• UniFi Protect: Version 1.21.0 and later
• Mobile app
• UniFi Protect iOS: Version 1.5.8 and later
• UniFi Protect Android: Version 1.4.8 and later

• Compatible Mechanical Chimes

• Broan-NuTone
• LA126WH
• Broan-NuTone
• LA11WH
• Heath Zenith
• SL-2735
• Craftmade
• CTPW-RG
• Broan-NuTone
• LA39WH
• Newhouse Hardware
• CHM3D

• Compatible Digital Chimes

• Broan-NuTone
• LA600WH
• IQ AMERICA
• DW-2850
• IQ AMERICA
• DW-2840

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
