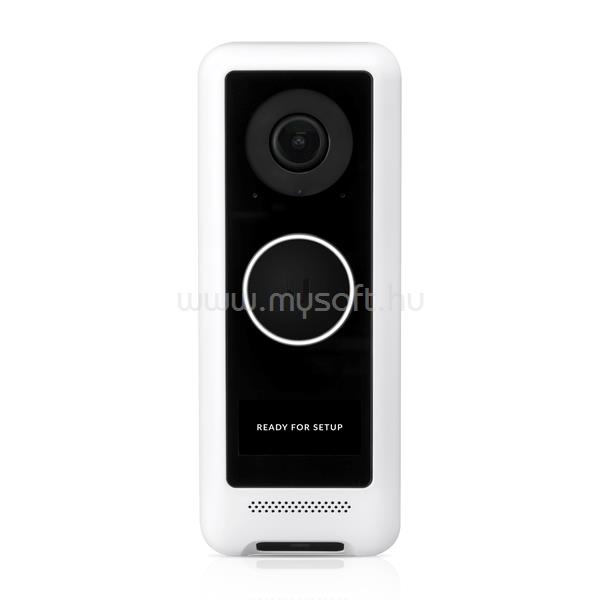

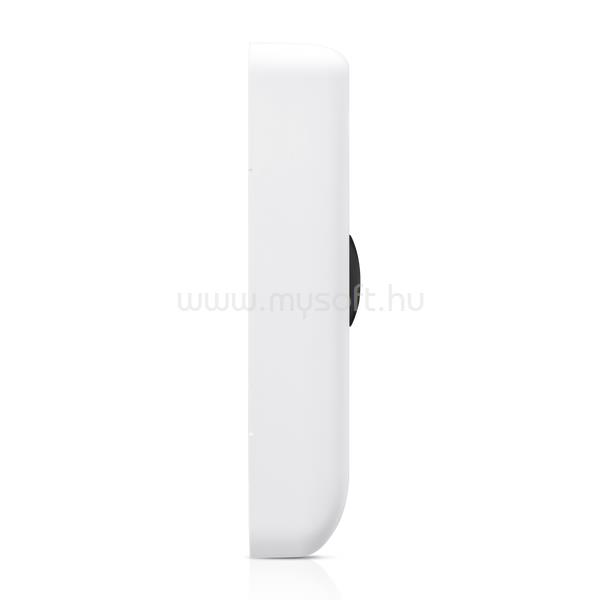

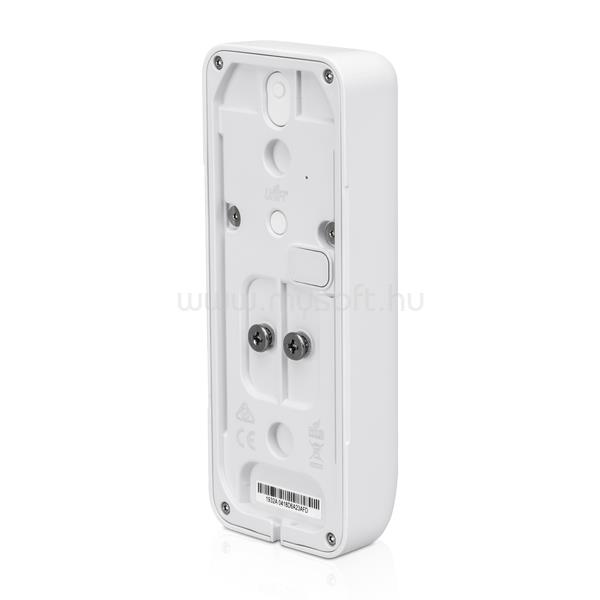

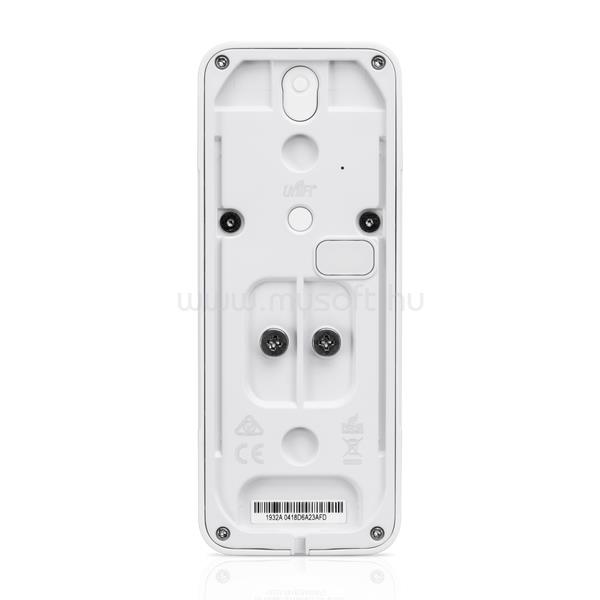

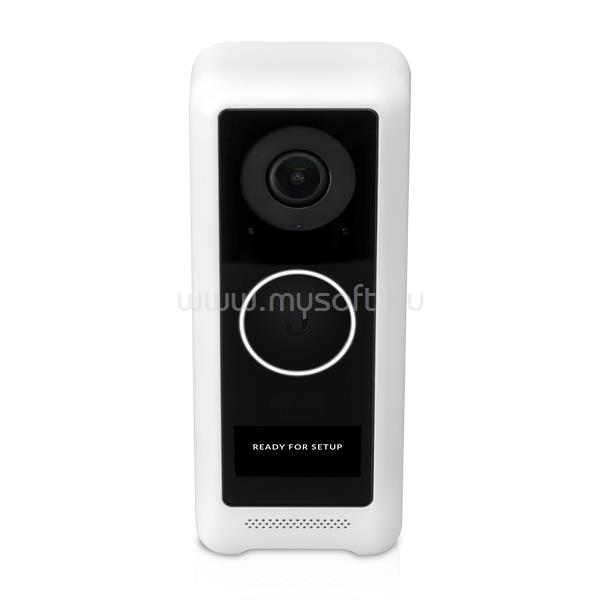

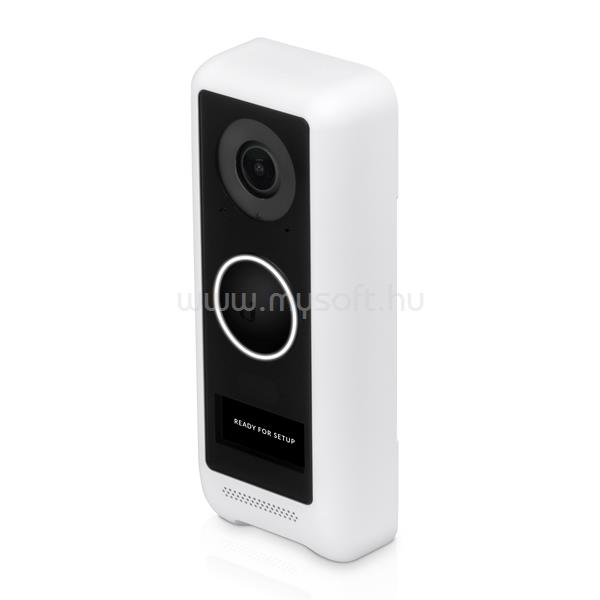

UBIQUITI UVC-G4-DOORBELL KÜLTÉRI/BELTÉRI 2MP KAMERÁS OKOS CSENGŐ

• Mechanical

• Dimensions
• 118.3 x 46.8 x 25.8 mm (4.66 x 1.84 x 1.02")
• Weight
• Without mount
• 130 g (4.59 oz)
• With flat wall mount
• 178 g (6.28 oz)
• With 20° wedge mount
• 200 g (7.05 oz)
• Enclosure material
• Polycarbonate
• Mount materials
• Flat wall mount: aluminum alloy
• 20° wedge mount: polycarbonate
• Weatherproofing
• IPX4

• Optics

• Sensor
• 5 MP CMOS sensor
• Lens
• Fixed focal length
• View angle
• H: 138°, V: 114°, D: 155°
• Night mode
• Built-in IR LED illumination and IR cut filter

• Video

• Video compression
• H.264
• Resolution
• 1600 x 1200 (4:3)
• Maximum frame rate
• 30 FPS

• System

• Processor specs
• Quad core Arm Cortex-A53 based chip
• Memory information
• 512 MB
• Management interface
• UniFi Protect
• Networking interface
• 802.11 ac Wi-Fi
• Flash memory support
• 256 MB
• Max. power consumption
• 12VA
• Power requirements
• 16-24VAC, 20VA
• Link/activity LED
• Yes
• Button
• Factory reset
• Mounting
• Flat wall/20° wedge (kits included)
• Operating temperature
• -10 to 40o C (14 to 104o F)
• Operating humidity
• 0 to 90% noncondensing
• Certifications
• FCC, IC, CE

• Audio

• Microphone
• Yes (can be disabled in software)
• Speaker
• Yes

• Software

• UniFi OS application
• UniFi Protect
• Mobile app
• UniFi Protect iOS and Android

• Compatible Mechanical Chimes

• Broan-NuTone
• LA126WH
• Broan-NuTone
• LA11WH
• Heath Zenith
• SL-2735
• Craftmade
• CTPW-RG
• Broan-NuTone
• LA39WH
• Newhouse Hardware
• CHM3D

• Compatible Digital Chimes

• Broan-NuTone
• LA600WH
• IQ AMERICA
• DW-2850
• IQ AMERICA
• DW-2840

• Transformer Specifications

• Input rating (5, 6)
• 230V, 50/60Hz
• Output rating (1, 4)
• 16VAC, 15VA
• Operating temperature
• -5 to 35 o C (23 to 95o F)
