UBIQUITI UNIFI GATE ACCESS BELÉPTETŐ RENDSZER STARTER KIT

• Overview

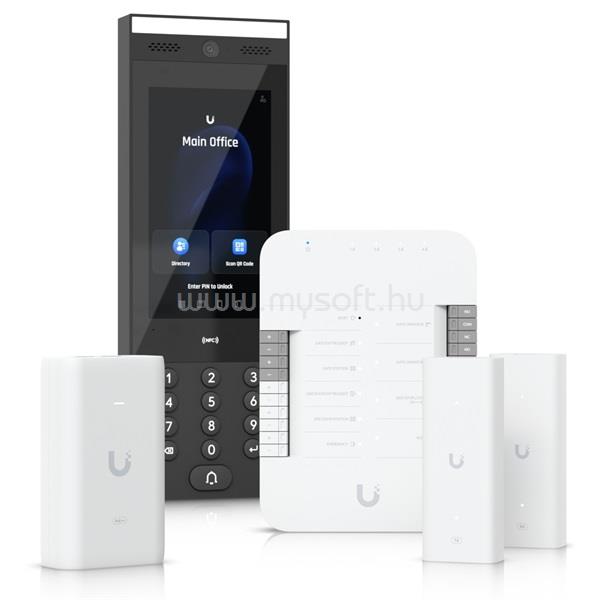

• In the Box
• (1) Gate Hub
• (1) Intercom
• (1) PoE++ adapter
• (2) 2-wire PoE extenders

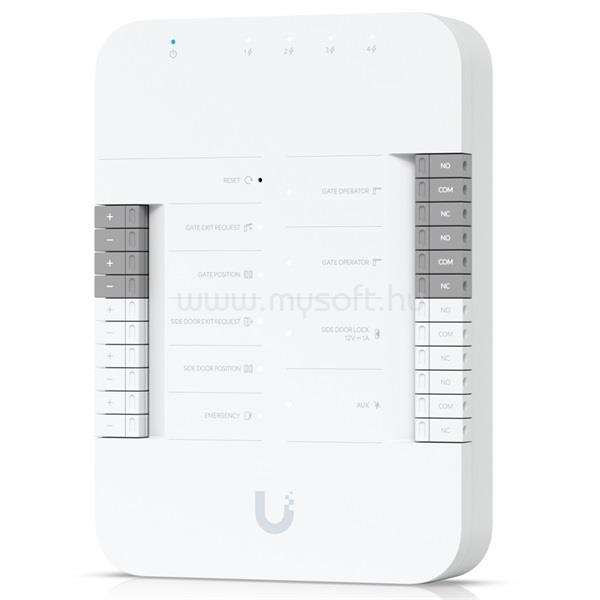

• Gate Hub

• Dimensions
• 175 x 126 x 26 mm
• (6.9 x 5 x 1")
• Supported Doors
• 1 gate, 1 side door
• Input Terminals
• (1) Gate exit request
• (1) Gate position
• (1) Side door exit request
• (1) Side door position
• (1) Emergency
• Power Method
• PoE++
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Enclosure Material
• Polycarbonate
• Mounting
• DIN-rail (Included)
• Weight
• 460 g (1 lb)
• Indoor and Outdoor Use
• Indoor only: device itself
• Outdoor: with waterproof junction box
• NDAA Compliant
• Yes
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Ambient Operating Temperature
• -30 to 60° C (-22 to 104° F)
• Ambient Operating Humidity
• 5 to 90% noncondensing
• Networking Interface
• (5) 10/100/1000 Base-T
• PoE Interface
• (1) PoE++ input, 50V DC, 1A
• (4) PoE outputs, 50V DC, Max. 28W
• Max. Power Consumption
• 22W (Without PoE output)
• 50W (With PoE output)
• Digital Input
• Gate exit request, gate position, side door exit request, side door position, emergency
• Dry Output Relay
• (2) Operator: rated 30V DC, up to 1A
• (1) Aux: rated 30V DC, up to 1A
• Powered Output Relay
• Side door lock: 12V DC, up to 1A
• LEDs
• W/B
• Button
• (1) Factory-reset
• Recommend Max. Cable Length
• UA-Lock-Electric (400mA)
• 24 AWG length: 25 m (82 ft)
• 22 AWG length: 42 m (138 ft)
• 20 AWG length: 66 m (217 ft)
• 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA)
• 24 AWG length: 20 m (66 ft)
• 22 AWG length: 32 m (105 ft)
• 20 AWG length: 51 m (167 ft)
• 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800mA)
• 24 AWG length: 12 m (29 ft)
• 22 AWG length: 20 m (66 ft)
• 20 AWG length: 30 m (98 ft)
• 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
• Other locks
• (1A)
• 24 AWG length: 9 m (30 ft)
• 22 AWG length: 15 m (49 ft)
• 20 AWG length: 24 m (79 ft)
• 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-Hub-Gate, V01
• Software Information
• The software version can be checked at https://unifi.ui.com

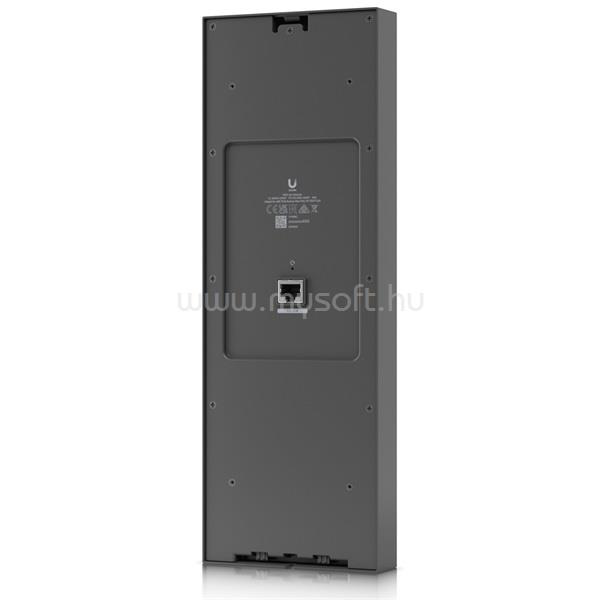

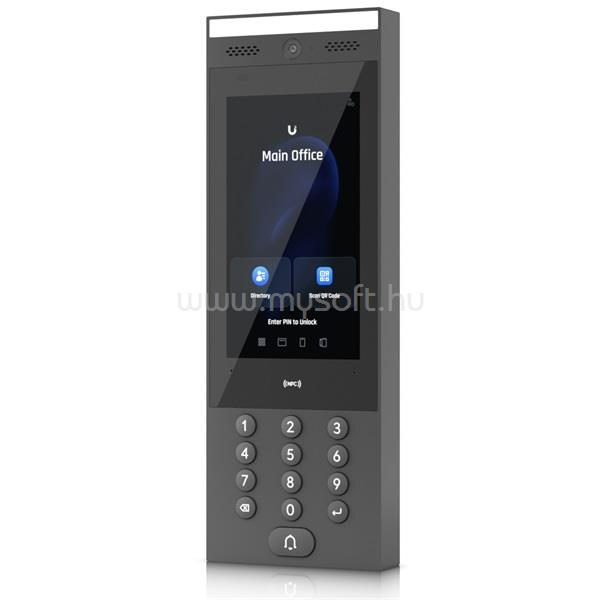

• Intercom

• Dimensions
• 324.8 x 113.7 x 28.3 mm
• (12.8 x 4.5 x 1.1")
• Integrated Camera
• Yes
• NFC Card & Keyfob Access
• Yes
• PIN Access
• Yes
• Mobile Unlock
• Yes
• Two-Way Intercom & Doorbell Access
• Yes
• Weatherproofing
• IP65
• NDAA Compliant
• Yes
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Weight
• Device: 965 g (2.1 lb)
• Bracket: 445 g (1 lb)
• Enclosure Material
• Aluminum alloy, UV-stabilized polycarbonate, glass
• Mount Material
• Powder-coated stainless steel
• Mounting
• Wall mount, adapter to the gooseneck pedestal (Included)
• Surface angle, flush mount, sunshield kit (Optional)
• Indoor and Outdoor Use
• Yes
• Ambient Operating Temperature
• Device: -30 to 60° C (-22 to 140° F)
• Display: -25 to 60° C (-13 to 140° F)
• Ambient Operating Humidity
• 5 to 90% noncondensing
• Networking Interface
• (1) GbE RJ45 port
• Connectivity
• BLE 4.2
• NFC
• Power Method
• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption
• 13W
• Supported Voltage Range
• 48V DC
• Sensors
• Proximity sensor
• ALS sensor
• Display
• 177 mm (7") diagonal
• Touch Screen Technology
• Capacitive multi-touch
• Display Luminance
• Max. 1000 nits (Typical)
• Resolution
• 1024 x 600 px
• Microphone
• Yes
• Speaker
• (1) Yes, 2W
• NFC Frequency
• 13.56 MHz
• NFC Read Range
• < 30 mm
• NFC Technology
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• LEDs
• Amber
• Buttons
• (1) Factory-reset
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-Intercom, V01
• Software Information
• The software version can be checked at https://unifi.ui.com

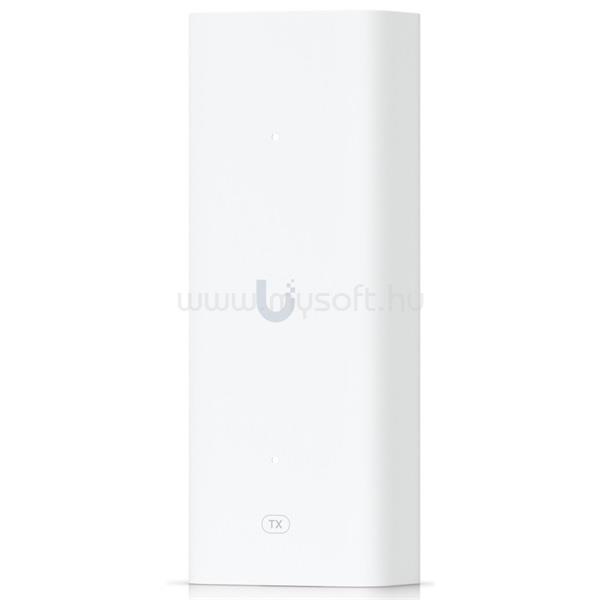

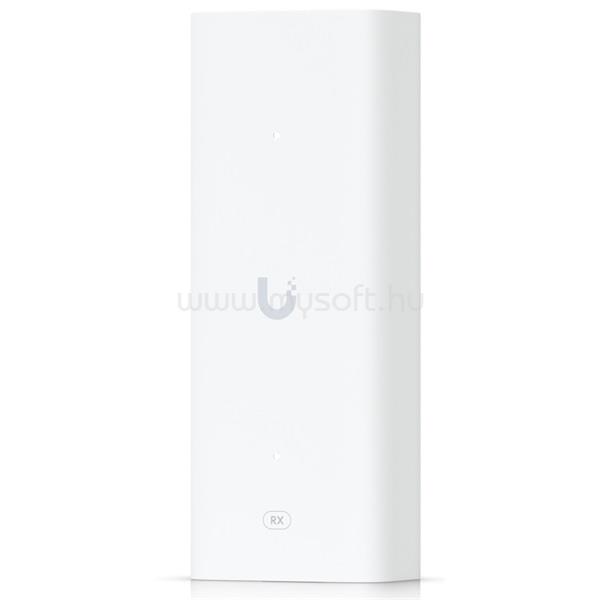

• Wire PoE Extenders

• Model
• UACC-Extender-2Wire-PoE-Tx/Rx
• Dimensions
• 40 x 105 x 25 mm
• (1.6 x 4.1 x 1")
• Weight
• PoE in: 77 g (2.7 oz)
• PoE out: 79 g (2.8 oz)
• Enclosure Material
• Polycarbonate
• Mounting Material
• Polycarbonate
• NDAA Compliant
• Yes
• Networking Interface
• (1) 10/100 MbE
• (1) Homeplug AV
• PoE Interface
• PoE input: (1) PoE++, 50V DC, Max. 1.2A
• PoE output: (1) PoE+, 48V DC, 0.72A
• Management
• (1) 10/100 MbE
• Power Method
• PoE++
• Max. Power Consumption
• 3W (Without PoE output)
• ESD/EMP Protection
• Air: +/-8kV, contact: +/-4kV
• LEDs
• White
• Ambient Operating Temperature
• -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing
• Certifications
• CE, FCC, IC

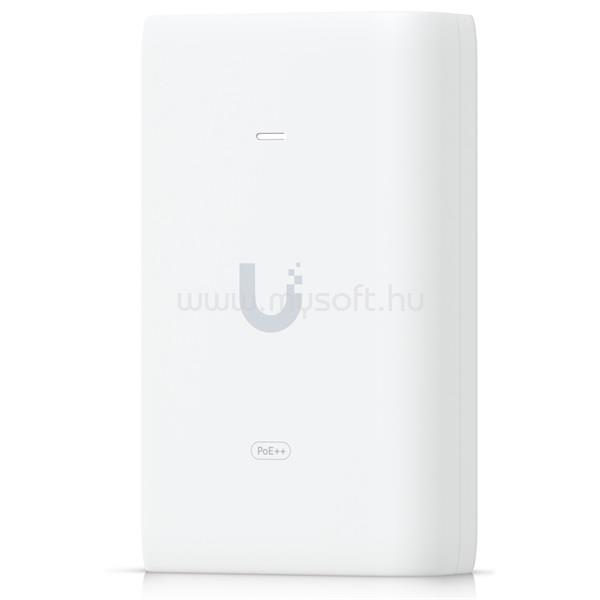

• PoE++ Adapter

• Model
• U-PoE++
• Dimensions
• 106 x 63 x 34 mm
• (4.2 x 2.5 x 1.3")
• Weight
• 210 g (7.4 oz)
• Output Voltage
• 48V DC @ 1.25A
• Gigabit LAN Port
• Yes
• Rated Voltage
• 100-240V AC @ 50/60Hz
• Input Current
• 1.3A @ 120V AC
• 0.75A @ 230V AC
• Inrush Current
• <100A peak @ 120V AC
• <200A peak @ 230V AC
• Efficiency
• 85+%
• Output Ripple
• 1% max.
• Switching Frequency
• 65 kHz
• Line Regulation
• < 1%
• Load Regulation
• < 3%
• 4-pair Powering
• Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• AC Connector
• IEC-320 C6
• Data In / PoE
• RJ45 shielded socket
• Surge Protection
• Difference and common mode
• Clamping Protection
• 11V data, 60V power
• Max. Surge Discharge
• 1500A (8/20 ?s) power
• Peak Pulse Current
• 36A (10/1000 ?s) data
• Shunt Capacitance
• <5 pF data
• Response Time
• <1 ns
• Power Method
• Universal AC input, 100-240V AC, 50/60 Hz
• Power Supply
• AC/DC
• Supported Voltage Range
• 100-240V AC
• Max. PoE+ Wattage per Port by PSE
• 60W
• Ambient Storage Temperature
• -30 to 70°C (-22 to 158° F)
• Ambient Operating Temperature
• 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity
• 10 to 95% noncondensing
• Certifications
• CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
• NDAA Compliant
• Yes
