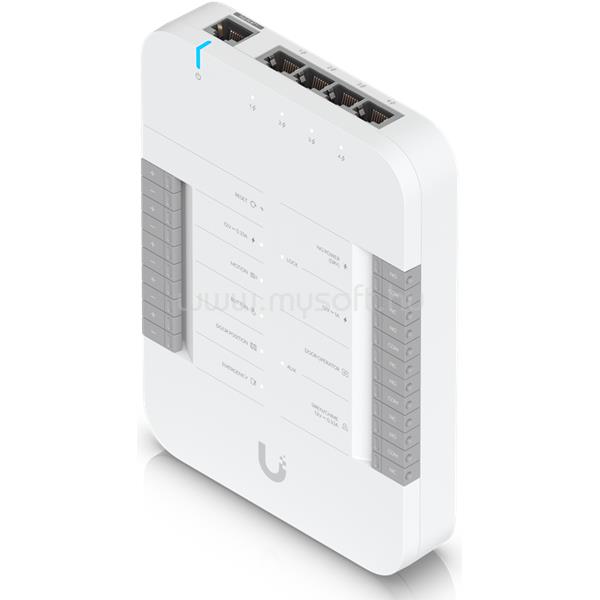

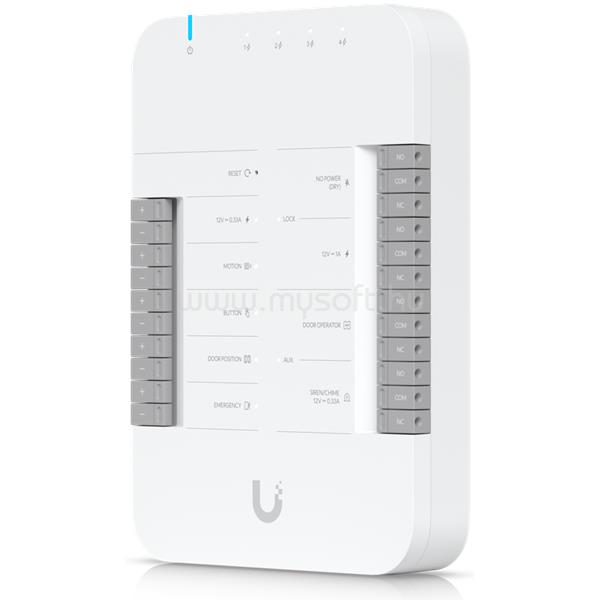

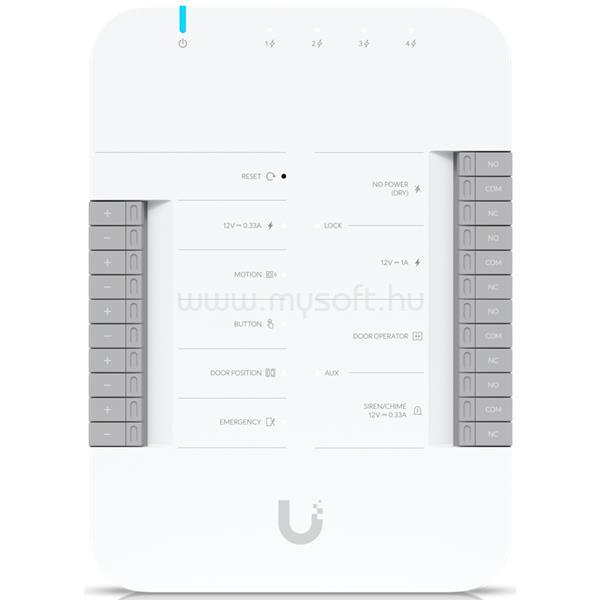

UBIQUITI UA-HUB-DOOR UNIFI ACCESS 4XGBE LAN POE IP HUB

• Overview

• Dimensions
• 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
• UniFi Application Suite
• Access
• Yes
• Supported Doors
• 1

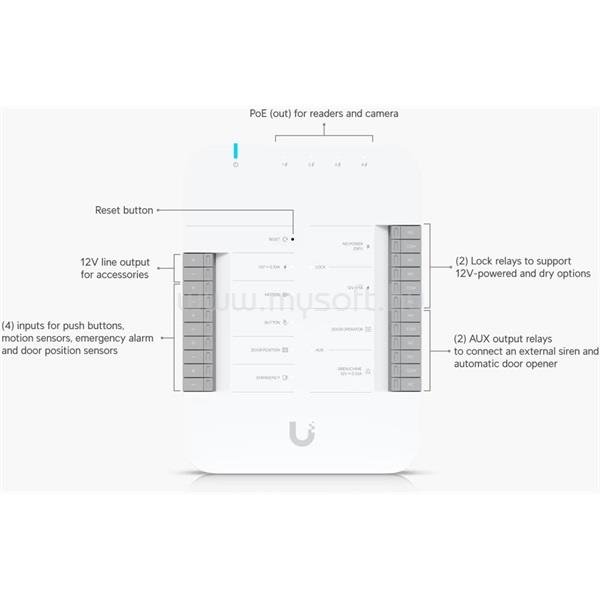

• Input Terminals
• (2) Door exit request
• (1) Door position
• (1) Emergency
• Power Method
• PoE++
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• NDAA Compliant
• Yes
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I

• Mechanical

• Weight
• 363 g (12.8 oz)
• Enclosure Material
• Polycarbonate
• Mount Material
• Polycarbonate

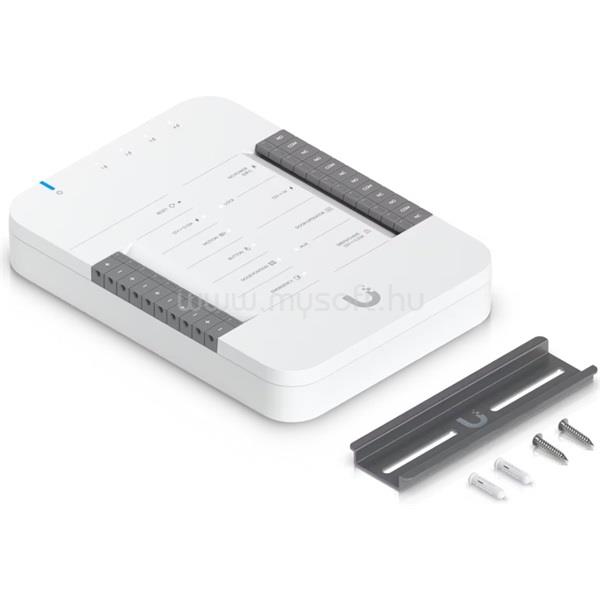

• Mounting
• DIN-rail (Included)

• Hardware

• Digital Input
• Request to exit, request to enter, remote release, door position sensor
• Dry Output Relay
• Lock: 30V DC, 1A
• Aux: 30V DC, 1A
• Powered Output Relay
• Lock: 12V DC, 1A
• Aux: 12V DC, 0.33A
• 12V DC, 0.33A
• Indoor and Outdoor Use
• Indoor only
• Ambient Operating Temperature
• 0 to 40° C
• (32 to 104° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing

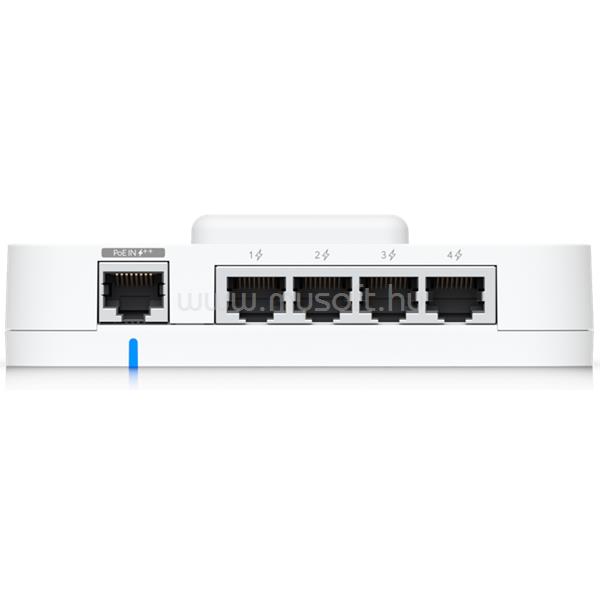

• Networking Interface
• (5) 10/100/1000 Base-T
• PoE Interface
• (1) PoE++ input, 50V DC, 1A
• (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
• Max. Power Consumption
• 30W (Without PoE output)
• 50W (With PoE output)
• LEDs
• W/B
• Buttons
• (1) Factory-reset
• Recommend Max. Cable Length
• UA-Lock-Electric (400mA)
• 24 AWG length: 25 m (82 ft)
• 22 AWG length: 42 m (138 ft)
• 20 AWG length: 66 m (217 ft)
• 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA)
• 24 AWG length: 20 m (66 ft)
• 22 AWG length: 32 m (105 ft)
• 20 AWG length: 51 m (167 ft)
• 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800mA)
• 24 AWG length: 12 m (29 ft)
• 22 AWG length: 20 m (98 ft)
• 20 AWG length: 30 m (167 ft)
• 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
• Other locks (1A)
• 24 AWG length: 9 m (30 ft)
• 22 AWG length: 15 m (49 ft)
• 20 AWG length: 24 m (79 ft)
• 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: 1
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-Hub-Door002, V01

• Software

• Management Application
• Access
• Software Information
• The software version can be checked at https://unifi.ui.com
