UBIQUITI UA-G3-SK-PRO UNIFI ACCESS PRO G3 BELÉPTETŐ RENDSZER STARTER KIT

• Overview

• In the Box
• (1) Door Hub
• (1) G3 Reader Pro
• (1) G3 Reader
• (2) Pocket Keyfobs
• Touch Pass
• 10 free 1-year Touch Passes included

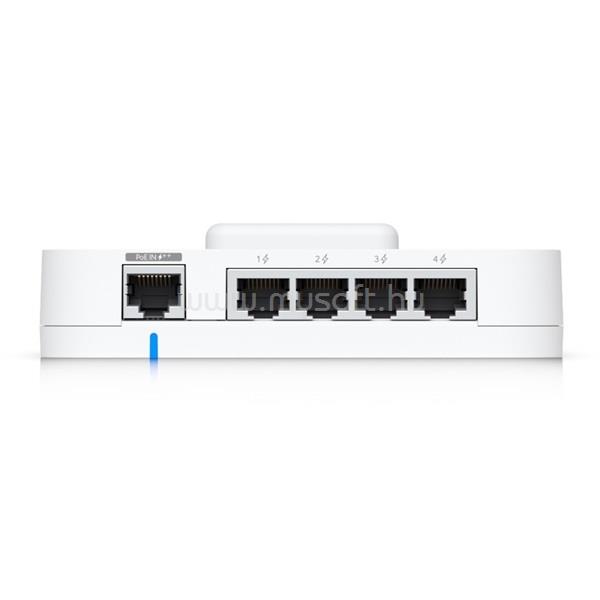

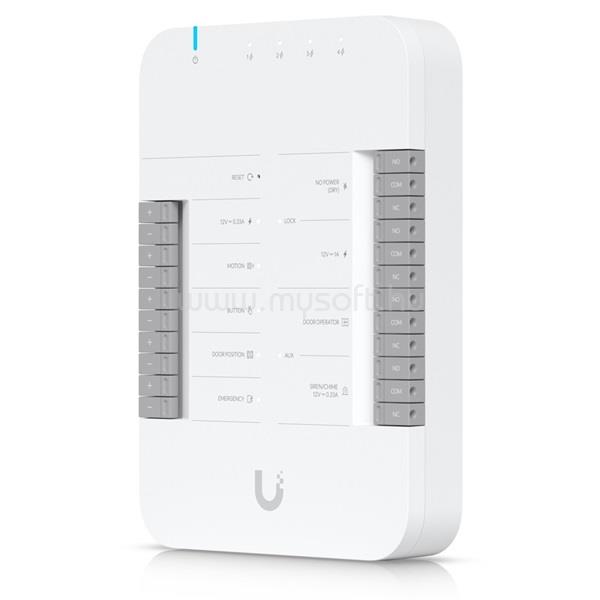

• Door Hub

• Dimensions
• 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
• Supported Doors
• 1
• Input Terminals
• (2) Door exit request
• (1) Door position
• (1) Emergency
• Power Method
• PoE++
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Weight
• 363 g (12.8 oz)
• Enclosure Material
• Polycarbonate
• Mount Material
• Polycarbonate
• Mounting
• DIN-rail (Included)
• Ambient Operating Temperature
• 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing
• Networking Interface
• (5) 10/100/1000 Base-T
• PoE Interface
• (1) PoE++ input, 50V DC, 1A
• (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
• Max. Power Consumption
• 30W (Without PoE output)
• 50W (With PoE output)
• Digital Input
• Request to exit, request to enter, remote release, door position sensor
• Dry Output Relay
• Lock: 30V DC, 1A
• Aux: 30V DC, 1A
• Powered Output Relay
• Lock: 12V DC, 1A
• Aux: 12V DC, 0.33A
• 12V DC, 0.33A
• LEDs
• B/W
• Button
• (1) Factory-reset
• Recommend Max. Cable Length
• UA-Lock-Electric (400mA)
• 24 AWG length: 25 m (82 ft)
• 22 AWG length: 42 m (138 ft)
• 20 AWG length: 66 m (217 ft)
• 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
• UA-Lock-Magnetic-540kg (500mA)
• 24 AWG length: 20 m (66 ft)
• 22 AWG length: 32 m (105 ft)
• 20 AWG length: 51 m (167 ft)
• 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
• UA-Lock-Magnetic-270kg (800mA)
• 24 AWG length: 12 m (29 ft)
• 22 AWG length: 20 m (98 ft)
• 20 AWG length: 30 m (167 ft)
• 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
• Other locks
• (1A)
• 24 AWG length: 9 m (30 ft)
• 22 AWG length: 15 m (49 ft)
• 20 AWG length: 24 m (79 ft)
• 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: 1
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-Hub-Door002, V01
• Software Information
• The software version can be checked at https://unifi.ui.com

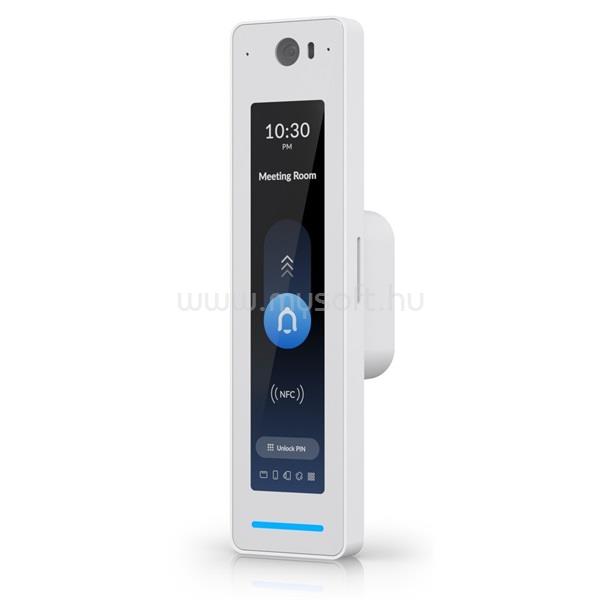

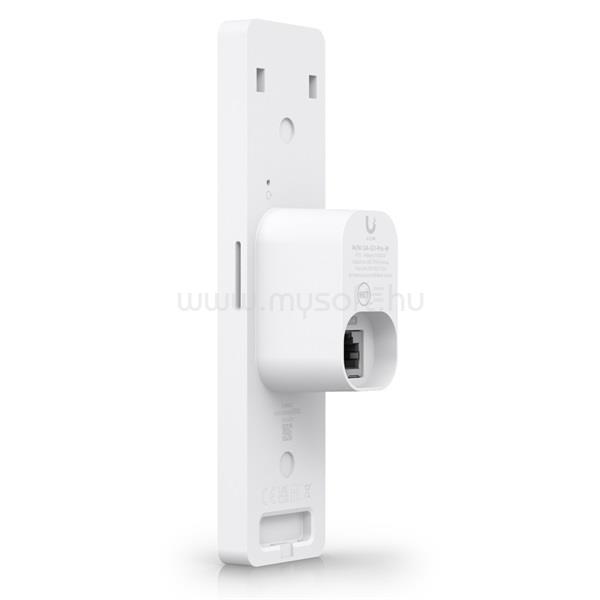

• G3 Reader Pro

• Dimensions
• 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
• Integrated Camera
• Yes
• NFC Card & Keyfob Access
• Yes
• PIN Access
• Yes
• Apple/Google Wallet
• Yes
• Mobile Unlock
• Yes
• Two-Way Intercom & Doorbell Access
• Yes
• Weatherproofing
• IP55
• NDAA Compliant
• Yes
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Weight
• 136 g (4.8 oz)
• Enclosure Material
• Polycarbonate, glass
• Mount Material
• Aluminum alloy
• Mounting
• Wall, gang-box mount (Included)
• Angle mount, junction box (Optional)
• Indoor and Outdoor Use
• Yes
• Ambient Operating Temperature
• Device: -30 to 45° C (-22 to 113° F)
• Display: -10 to 45° C (14 to 113° F)
• Ambient Operating Humidity
• 5 to 90% noncondensing
• Networking Interface
• (1) GbE RJ45 port
• Connectivity
• BLE 4.2
• NFC
• Power Method
• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption
• 6W
• Supported Voltage Range
• 48V DC
• ESD/EMP Protection
• Air: +/-15kV, contact: +/-8kV
• Sensors
• Proximity sensor
• Display
• 120 mm (4.7") diagonal
• Touch Screen Technology
• Capacitive touch
• Display Luminance
• 480 nits (Typical)
• Screen Orientation
• Portrait
• Resolution
• 1280 x 286 px
• Microphone
• Yes
• Speaker
• (1) Yes, 1.5W
• LEDs
• R/G/B/W/Amber Learn More
• Button
• (1) Factory-reset
• NFC Frequency
• 13.56 MHz
• NFC Read Range
• < 30 mm (1.18'')
• NFC Technology
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• ECP 2.0
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC,UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-G3-Pro-W/UA-G3-Pro-B, V01
• Software Information
• The software version can be checked at https://unifi.ui.com

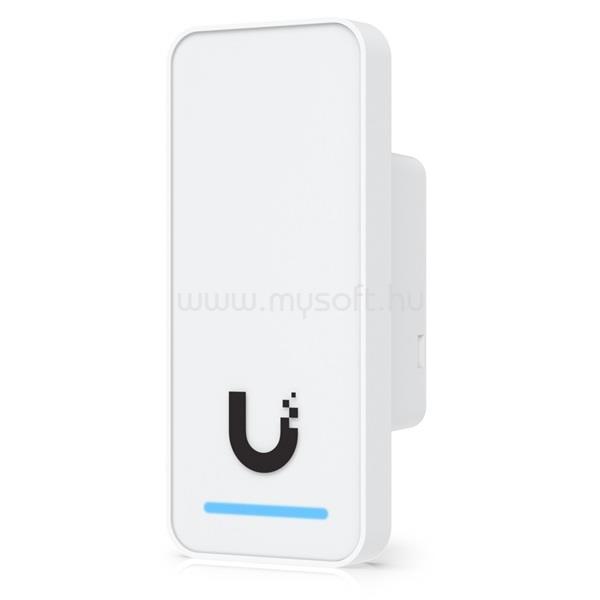

• G3 Reader

• Dimensions
• 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
• NFC Card & Keyfob Access
• Yes
• Apple/Google Wallet
• Yes
• Mobile Unlock
• Yes
• Handwave Request to Exit
• Yes
• Weatherproofing
• IP55
• NDAA Compliant
• Yes
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Weight
• 82 g (2.9 oz)
• Enclosure Material
• Polycarbonate, glass
• Mount Material
• Aluminum alloy
• Mounting
• In-wall, gang box (Included)
• Junction box (Optional)
• Indoor and Outdoor Use
• Yes
• Ambient Operating Temperature
• -30 to 45° C (-22 to 113° F)
• Ambient Operating Humidity
• 5 to 90% noncondensing
• Networking Interface
• (1) 10/100 MbE RJ45 port
• Connectivity
• BLE 4.1
• NFC
• Power Method
• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption
• 5W
• Supported Voltage Range
• 48V DC
• ESD/EMP Protection
• Air: +/-15kV, contact: +/-8kV
• Sensors
• Proximity sensor
• Speaker
• (1) Yes, 0.7W
• LEDs
• R/G/B/W
• Button
• (1) Factory-reset
• NFC Frequency
• 13.56 MHz
• NFC Read Range
• < 30 mm (1.18'')
• NFC Technology
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• ECP 2.0
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-G3, V01
• Software Information
• The software version can be checked at https://unifi.ui.com

• Pocket Keyfob

• Dimensions
• 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
• Weight
• 16 g (0.56 oz)
• Enclosure Material
• Polycarbonate, stainless steel, silicone rubber
• Weatherproofing
• IP54
• NDAA Compliant
• Yes
• Ambient Operating Humidity
• 10 to 90% noncondensing
• Ambient Operating Temperature
• -10 to 45° C (14 to 113° F)
• NFC Frequency
• 13.56 MHz
• NFC Technology
• ISO/IEC 14443 Type A
• MIFARE DESFire EV3 4K
• UniFi Access Proprietary Security Protocol
• Certification
• CE

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
