UBIQUITI UNIFI ACCESS G2 STARTER KIT PRO

• UA-Hub-Door Mechanical

• Dimensions
• 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
• Weight
• 363 g (12.8 oz)
• Enclosure material
• Polycarbonate
• Mounting material
• Polycarbonate

• UA-Hub-Door Hardware

• Networking interface
• (5) 10/100/1000 Base-T
• Power method
• PoE++
• UL 294 Power-limited Class 2 PSU
• UL 60950/62368 LPS/PS2 PSU
• Max. power consumption
• Without PoE output: 30W
• With PoE output: 50W
• PoE input
• 50V DC, 1A
• PoE output
• PoE passthrough, (4) PoE, 50V DC, total 20W
• LEDs
• White/blue (Learn more)
• Button
• (1) Factory-reset
• Digital input
• Request to exit/request to enter/remote release/door position sensor
• Dry output relay
• Lock: 30V DC, 1A
• Aux: 30V DC, 1A
• Powered output relay
• Lock: 12V DC, 1A
• Aux: 12V DC, 0.33A
• 12V DC, 0.33A
• Operating environment
• Indoor use only
• Ambient operating temperature
• 0 to 40° C (32 to 104° F)
• Ambient operating humidity
• 5 to 95% noncondensing
• UL 294 level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• UL 294 statement
• Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: 1
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

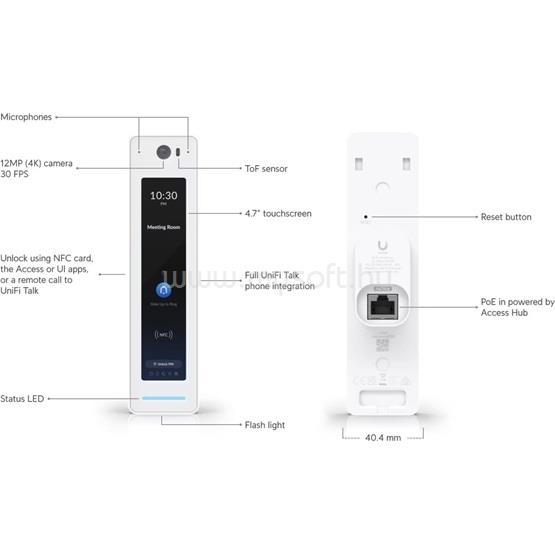

• UA-G2-Pro Mechanical

• Dimensions
• 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
• Weight
• 136 g (4.8 oz)
• Enclosure material
• Polycarbonate, glass
• Mount material
• Aluminum alloy
• Mounting
• Wall, gang box
• Weatherproofing
• IP55

• UA-G2-Pro Hardware

• Networking interface
• (1) GbE RJ45 port
• Connectivity
• BLE 4.2
• NFC
• Power method
• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Supported voltage range
• 48V DC
• Max. power consumption
• 6W
• ESD/EMP protection
• Air: ?15kV, contact: ?8kV
• Sensor
• Proximity sensor
• Camera view angle
• H: 96.67°, V: 123.15°, D: 153.11°
• Microphone
• Yes
• Speaker
• (1) 4 ohm, 1.5W
• LEDs
• R/G/B/W/Amber (Learn more)
• Button
• (1) Factory-reset
• NFC frequency
• 13.56 MHz
• NFC read range
• < 30 mm
• NFC technology
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• Operating environment
• Outdoor use
• Ambient operating temperature
• Device: -30 to 45° C (-22 to 113° F)
• Display:* -10 to 45° C (14 to 113° F)
• *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)
• Ambient operating humidity
• 5 to 90% noncondensing
• Software information
• The software version of a product can be checked at https://unifi.ui.com
• UL 294 level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• UL 294 statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• PoE cabling requirements
• Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

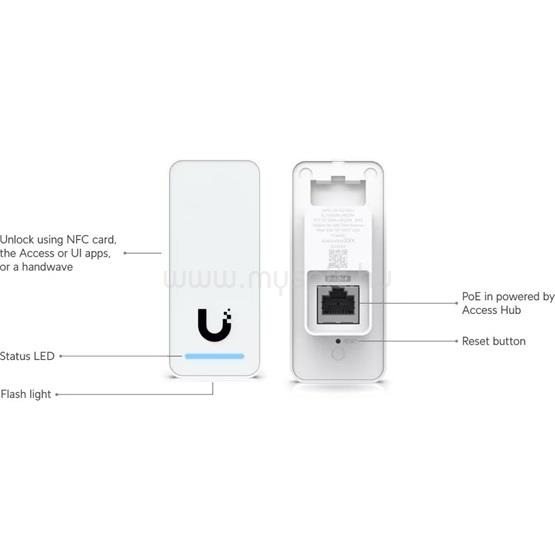

• UA-G2 Mechanical

• Dimensions
• 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
• Weight
• 82 g (2.9 oz)
• Enclosure material
• Polycarbonate, glass
• Mounting
• In wall, gang box
• Weatherproofing
• IP55

• UA-G2 Hardware

• Networking interface
• (1) 10/100 MbE RJ45 port
• Connectivity
• BLE 4.1
• Power method
• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Supported voltage range
• 48V DC
• Max. power consumption
• 5W
• ESD/EMP protection
• Air: ?15kV, contact: ?8kV
• Sensors
• Proximity sensor
• Speaker
• (1) 8 ohm, 0.7W
• LEDs
• R/G/B/W (Learn more)
• Button
• (1) Factory-reset
• NFC frequency
• 13.56 MHz
• NFC read range
• < 30 mm
• NFC technology
• ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• Operating environment
• Outdoor use
• Ambient operating temperature
• -30 to 45° C (-22 to 113° F)
• Ambient operating humidity
• 5 to 90% noncondensing
• Software information
• The software version of a product can be checked at https://unifi.ui.com
• UL 294 level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• UL 294 statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• PoE cabling requirements
• Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

• UA-Pocket Mechanical

• Dimensions
• 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
• Weight
• 16 g (0.56 oz)
• Enclosure material
• Polycarbonate, stainless steel
• Weatherproofing
• IP54

• UA-Pocket Hardware

• NFC frequency
• 13.56 MHz
• NFC technology
• ISO/IEC 14443 Type A
• MIFARE DESFire EV3 4K
• UniFi Access Proprietary Security Protocol
• Ambient operating temperature
• -10 to 45° C (14 to 113° F)
• Ambient operating humidity
• 10 to 90% noncondensing
• Certification
• CE
