ASUS ALAPLAP TUF GAMING Z890-PLUS WIFI (LGA1851, ATX)

• CPU

• Support Intel© Core Ultra Processors (Series 2), LGA1851*
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel© Z890 Chipset

• Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel© Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• *** Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x Intel© Thunderbolt™ 4 port (USB Type-C©) supports DisplayPort and Thunderbolt™ video outputs****
• 1 x USB 20Gbps port (USB Type-C©) supports DisplayPort video output******
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• ****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
• ***** In DP alt mode, supports up to UHBR20.
• ****** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• ******* VGA resolution support depends on processors' or graphic cards' resolution.
• ********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

• Expansion Slots

• Intel© Core Ultra Processors(Series 2)*
• 1 x PCIe 5.0 x16 slot
• Intel© Z890 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x4 slot
• 2 x PCIe 4.0 x1 slots
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

• Storage

• Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel© Core™ Ultra Processors(Series 2)*
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel© Z890 Chipset
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * Intel© Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

• Ethernet

• 1 x Intel© 2.5Gb Ethernet
• TUF LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 8 ports)
• 1 x Thunderbolt 4 port (1 x USB Type-C©)
• 1 x USB 20Gbps port (1 x USB Type-C©)
• 3 x USB 10Gbps ports (3 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 20Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C© power delivery output: max. 5V/3A

• Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Features
• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

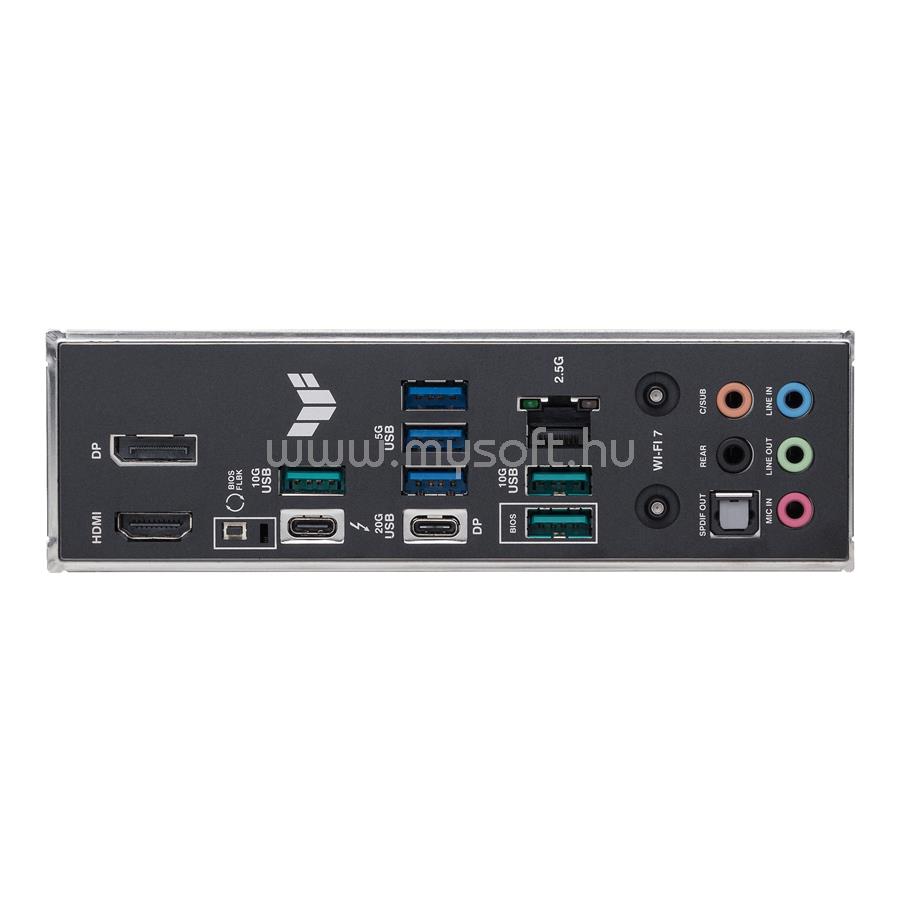

• Back Panel I/O Ports

• 1 x Thunderbolt 4 USB Type-C© port
• 1 x USB 20Gbps port (1 x USB Type-C© with DP Alt mode)
• 3 x USB 10Gbps ports (3 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Intel© 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable RGB Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt (USB4©) header

• Special Features

• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O
• ASUS Q-Design
• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeDIMM
• Aura Sync
• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• TUF GAMING CPU-Z
• DTS Audio Processing
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• NPU Boost

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

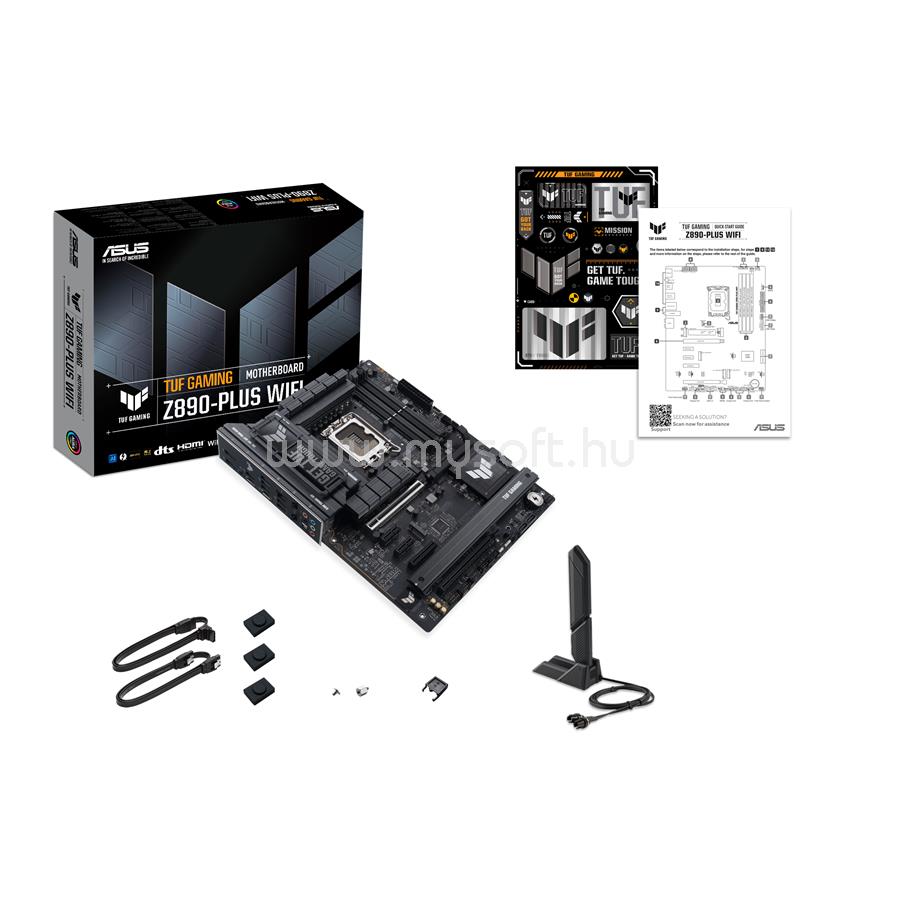

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 Q-Slide package
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 SSD
• 1 x TUF GAMING sticker
• 1 x TUF GAMING removable nameplate
• Documentation
• 1 x Quick start guide

• Operating System

• Windows 11 (22H2 & later)

• Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
