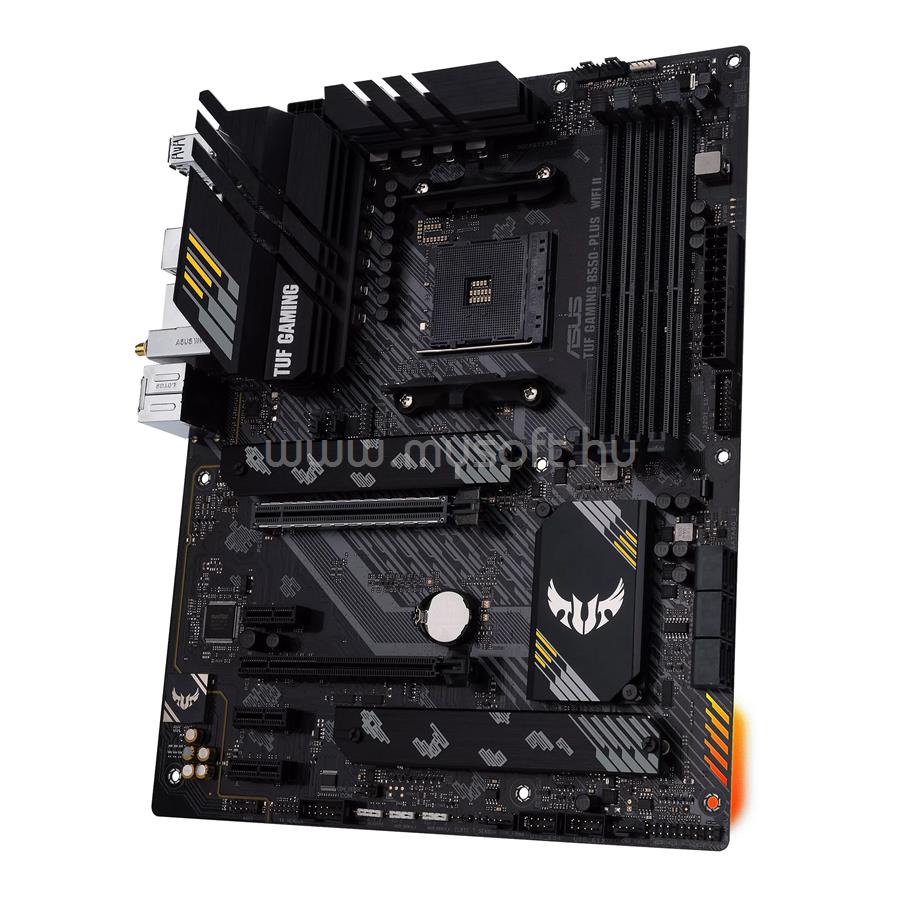

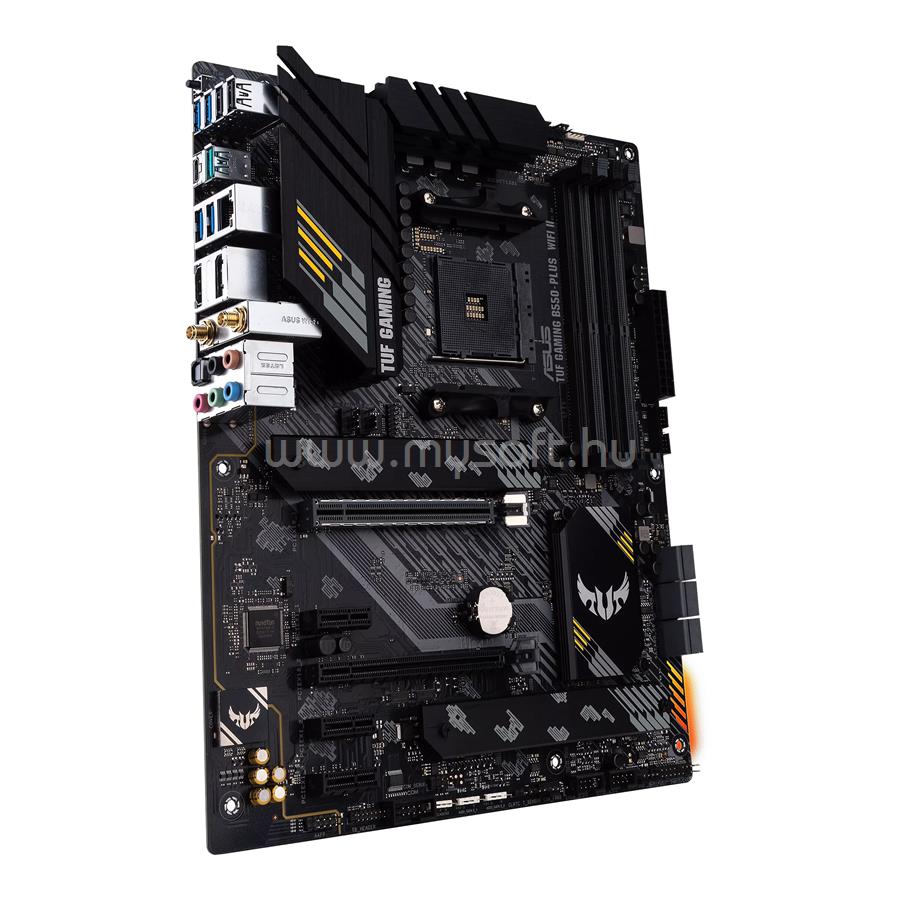

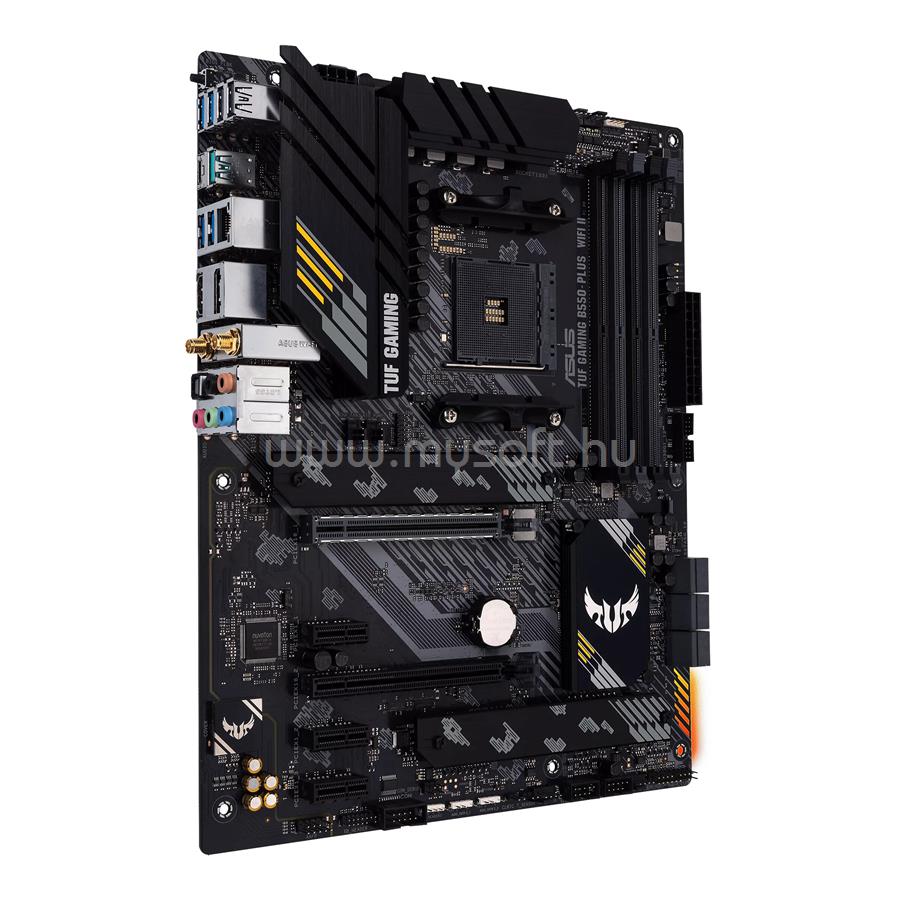

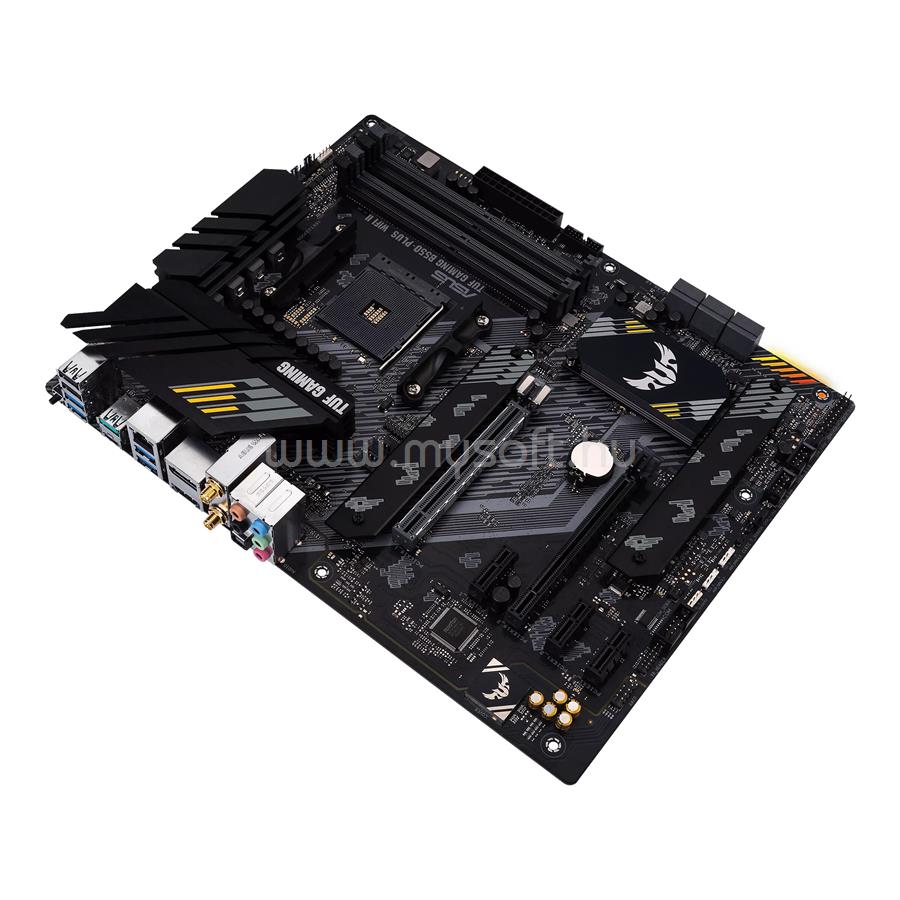

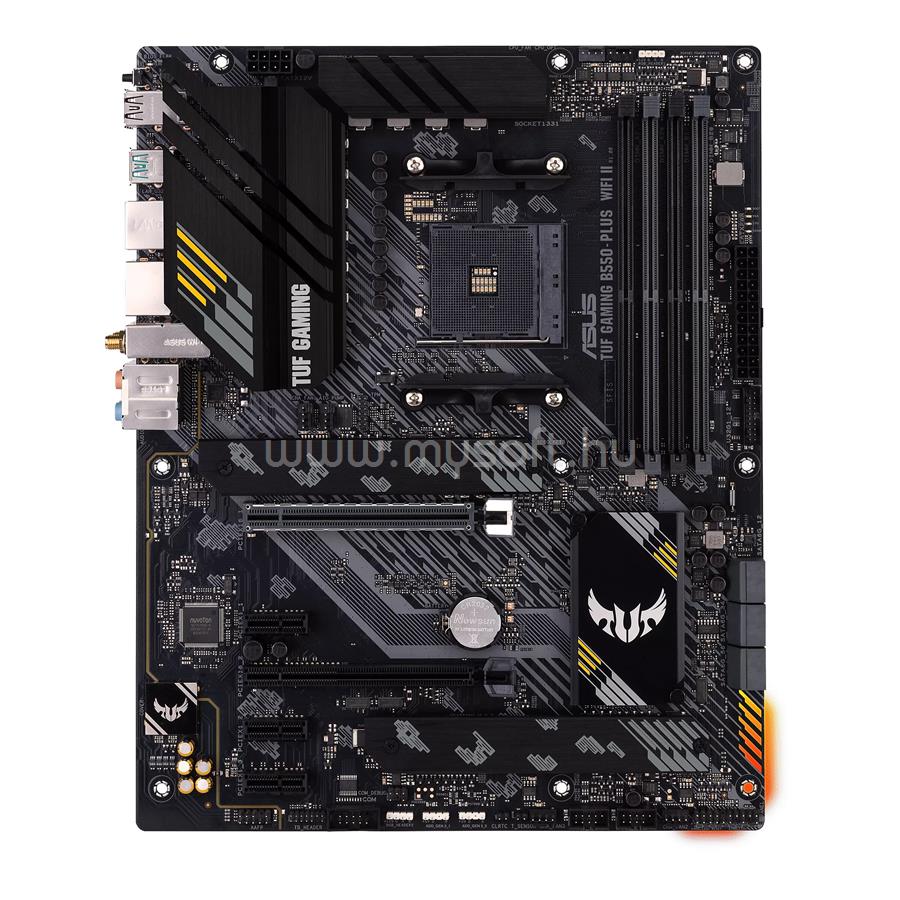

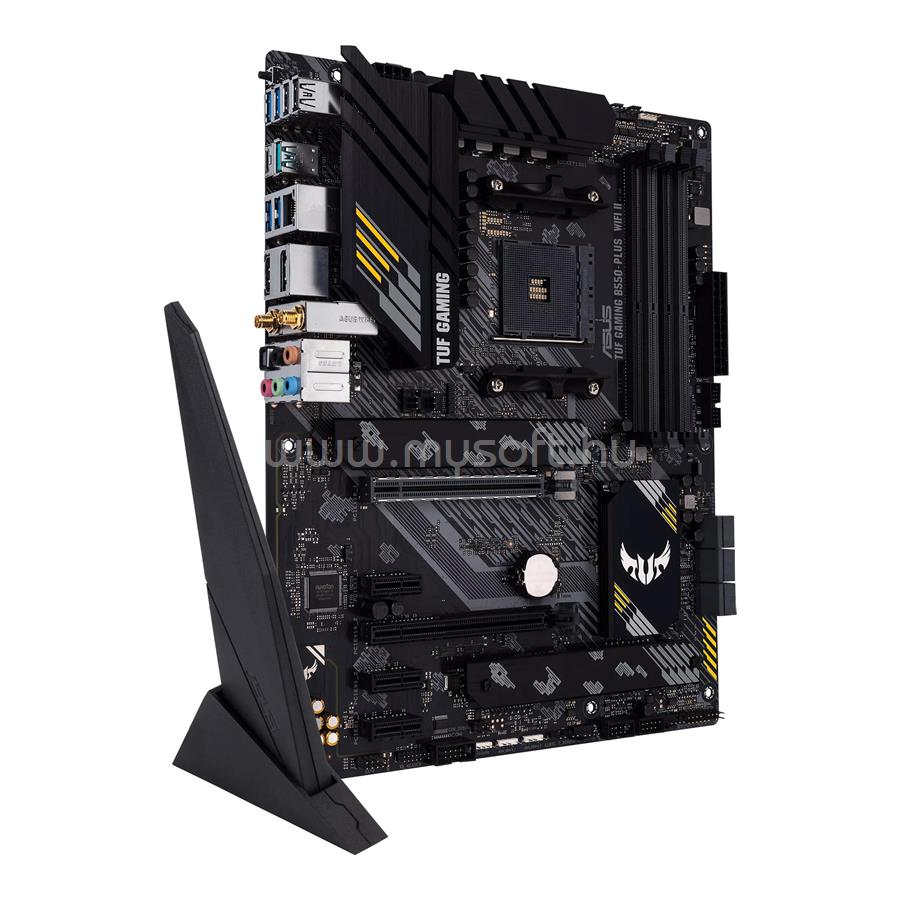

ASUS ALAPLAP TUF GAMING B550-PLUS WIFI II (AM4, ATX)

• Memory

• 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
• Dual Channel Memory Architecture
• * ECC Memory (ECC mode) support varies by CPU.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

• Graphics

• 1 x DisplayPort 1.2
• 1 x HDMITM 2.1(4K@60HZ)
• *Graphics specifications may vary between CPU types.

• Expansion Slots

• AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• AMD B550 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)*
• 3 x PCIe 3.0 x1 slot*
• *PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
• **Support PCIe bifurcation for RAID on CPU function.

• Storage

• AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
• AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• AMD B550 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
• 6 x SATA 6Gb/s ports
• Support Raid 0, 1, 10
• *M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

• Wireless & Bluetooth

• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2*
• *Bluetooth v5.2 function will be ready in Windows 11 or later.

• USB

• Rear USB:Total 8 ports
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C©)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio Cover

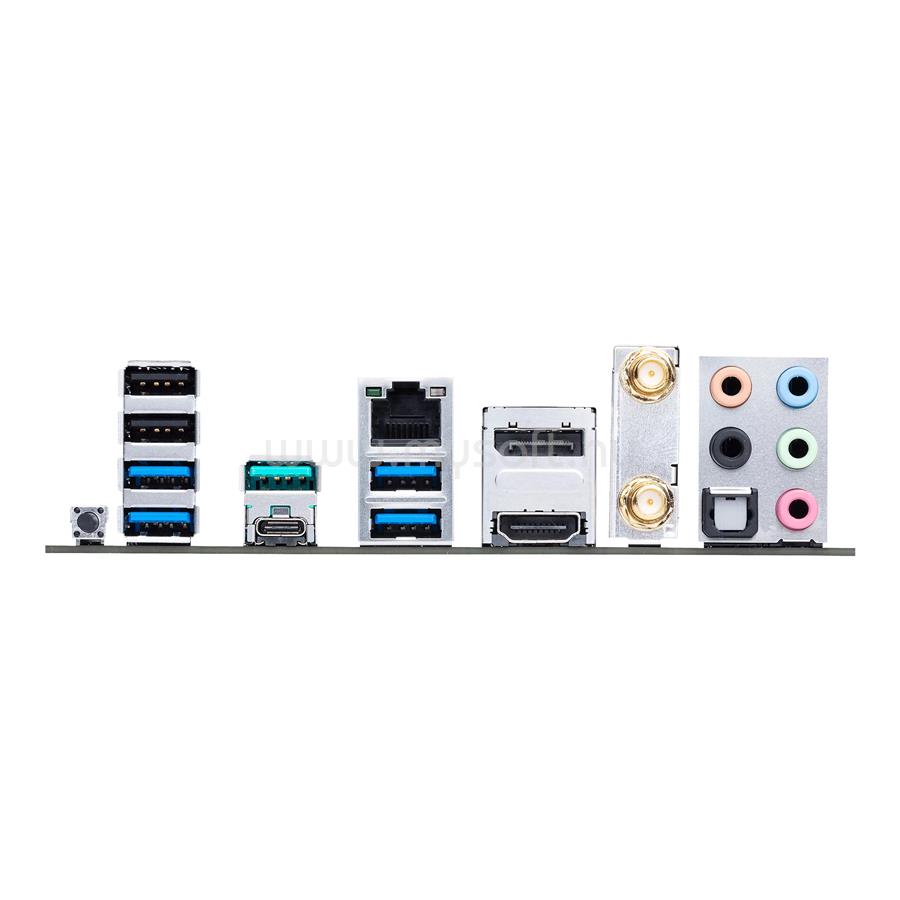

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C©)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x ASUS Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 3 x 4-pin Chassis Fan header(s)
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 header(s)
• 2 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

• Special Features

• ASUS TUF PROTECTION
• ASUS DIGI+ VRM (Digital power design with Dr. MOS)
• ASUS Enhanced DRAM Overcurrent Protection
• ASUS ESD Guards
• TUF LANGuard
• ASUS Overvoltage Protection
• ASUS SafeSlot
• ASUS Stainless-Steel Back I/O
• ASUS Q-Design
• ASUS Q-DIMM
• ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• ASUS Q-Slot
• ASUS Thermal Solution
• Aluminum M.2 heatsink
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Procool
• AURA Sync
• AURA RGB header(s)
• Addressable Gen 2 RGB header(s)

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Sync
• Two-Way AI Noise Cancelation
• AI Suite 3
• Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 4
• PC Cleaner
• EZ update
• System Information
• Aura Creator
• TUF GAMING CPU-Z
• DTS Custom for GAMING Headsets
• Norton Anti-virus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Operating System

• Windows 10 64bit

• Form Factor

• ATX
• 30.5cm x 24.4cm
