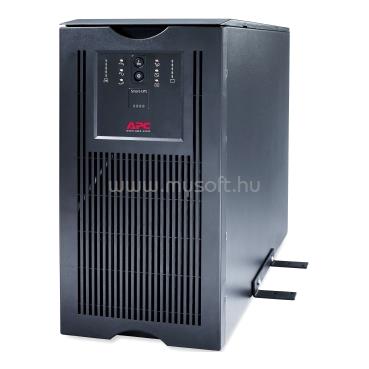

APC SMART-UPS 5000VA 5U RM 19IN 230V RACKMOUNT/TOWER SZÜNETMENTES TÁPEGYSÉG

• Main

• Run time for load 4000 W
• Min-max: 400-4000 W
• 9min 21s
• Max. Capacity Used
• 100 %
• Product or component type
• Uninterruptible power supply (UPS)

• Complementary

• Communication port type
• SmartSlot

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Additional information
• Configurable for 220 : 230 or 240 nominal output voltage
• Extended runtime
• 0
• Number of battery filled slots
• 0
• Number of battery free slots
• 0
• Battery recharge time
• 3 h
• Number of battery replacement quantity
• 2
• Battery life
• 3.5 year(s)
• Replacement battery
• RBC55
• Battery charger power
• 542 W rated

• General

• Provided equipment
• CD with software
• Documentation CD
• Installation guide
• Rack mounting hardware
• Rack mounting support rails
• Smart UPS signalling RS-232 cable
• User manual
• Web/SNMP management card
• Number of power module
• 0
• Number of power module filled slots
• 0
• Number of power module free slots
• 0
• Redundant
• No

• Physical

• Number of rack unit
• 5U
• Colour
• Black
• Height
• 8.74 in (22.2 cm)
• Width
• 19.02 in (48.3 cm)
• Depth
• 25.98 in (66 cm)
• Net weight
• 215.46 lb(US) (97.73 kg)
• Mounting location
• Front
• Mounting preference
• No preference
• Mounting mode
• Rack-mounted
• Two post mountable
• 0
• USB compatible
• No

• Input

• Main Input Voltage
• 230 V
• Input voltage limits
• 151...302 V adjustable
• 160...286 V
• Number of input connectors
• 1 hard wire 3-wire
• Network frequency
• 50/60 Hz +/- 3 Hz auto-sensing

• Output

• Main Output Voltage
• 230 V
• Other Output Voltage
• 220 V
• 240 V
• Rated power in W
• 4000 W
• rated power in VA
• 5000 VA

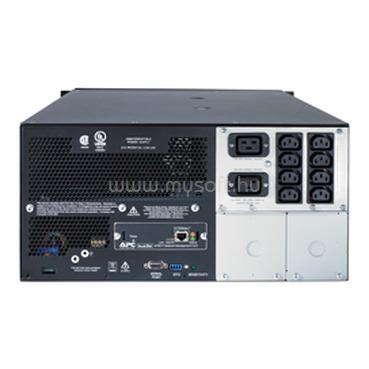

• output connection type
• 8 IEC 320 C13
• 4 IEC Jumpers
• 2 IEC 320 C19
• Crest factor
• 3 : 1
• Harmonic distortion
• Less than 5 % at full load
• Maximum configurable power in VA
• 5000 VA
• Maximum configurable power in W
• 4000 W
• Transfer time
• 2 ms typical : 4 ms maximum
• UPS type
• Line interactive
• Wave type
• Sine wave
• Efficiency
• 96 % full load)
• Output frequency
• 47...53 Hz for 50 Hz nominal sync to mains

• Conformance

• Product certifications
• C-Tick
• CE
• GOST
• VDE
• Marking
• GS Mark
• Standards
• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

• Environmental

• Acoustic level
• 53 dBA
• Heat dissipation
• 430 Btu/h
• Operating altitude
• 0...10000 ft
• ambient air temperature for operation
• 32.104 °F (0.40 °C)
• Ambient air temperature for storage
• 5.113 °F (-15.45 °C)
• Storage altitude
• 0.50000 ft (0.0000000000.15240.0000000000 m)
• Relative humidity
• 0.95 %
• Storage Relative Humidity
• 0.95 %

• Communications & Management

• Alarm
• Audible and visible alarms : configurable delays
• Free slots
• 0
• Preinstalled device
• Network management card
• Control panel
• LED status display with on line : on battery : replace battery and overload indicators

• Surge Protection and Filtering

• Surge energy rate
• 480 J
• Noise suppression
• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
