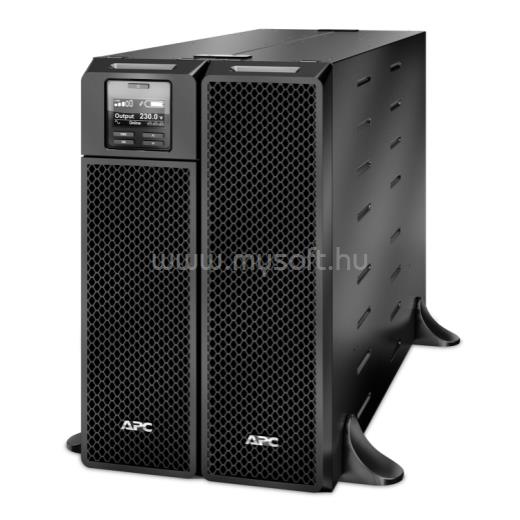

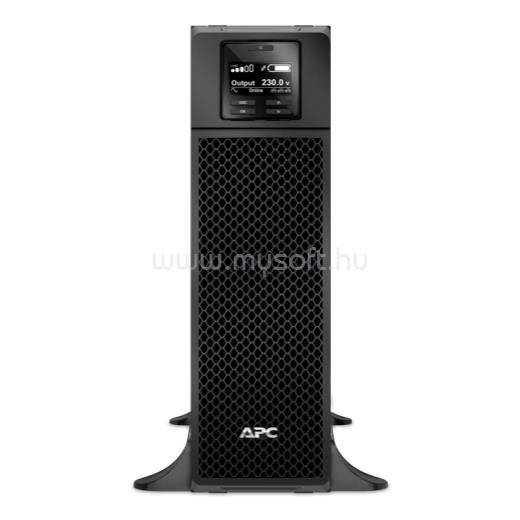

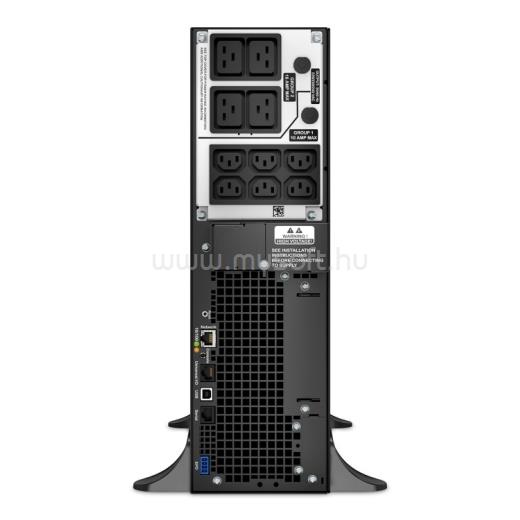

APC UPS 5000VA SRT5KXLI SZÜNETMENTES TÁPEGYSÉG C13/C19/HARDWIRE SRT ONLINE KETTŐS KONVERZIÓ

• Output

• Max Configurable Power (Watts)
• 4.5kWatts / 5.0kVA
• Output Voltage Distortion
• Less than 2 %
• Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages
• 220 V, 240 V
• Load Crest Factor
• 3 : 1
• Topology
• Double conversion online
• Waveform type
• Sine wave
• Bypass
• Internal bypass (automatic and manual)

• Input

• Input frequency
• 40 - 70 Hz Auto-sensing
• Input voltage range for main operations
• 100 - 275 Adjustable (half load)V
• Other Input Voltages
• 220 V, 240 V

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Included Battery Modules
• 2
• Typical recharge time
• 1.5hour(s)
• Nominal Battery Voltage
• 192 V
• Expected Battery Life (years)
• 3 - 5
• RBC Quantity
• 1
• Battery Charge Power (Watts)
• 560 Watts
• Extendable Run Time
• 1

• Communications & Management

• Interface Port(s)
• RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
• Control panel
• Multifunction LCD status and control console
• Audible Alarm
• Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)
• Yes
• Available SmartSlot Interface Quantity
• 1

• Surge Protection and Filtering

• Surge energy rating
• 480Joules

• Physical

• Maximum Height
• 432MM, 43.2CM
• Maximum Width
• 130MM, 13.0CM
• Maximum Depth
• 719MM, 71.94CM
• Net Weight
• 54.43KG
• Shipping weight
• 63.6KG
• Shipping Height
• 330MM, 33.0CM
• Shipping Width
• 610MM, 61.0CM
• Shipping Depth
• 960MM, 96.0CM
• Color
• Black
• Units per Pallet
• 6.0

• Environmental

• Operating Temperature
• 0 - 40 °C
• Operating Relative Humidity
• 0 - 95 (Non-condensing) %
• Operating Elevation
• 0 - 3048meters
• Storage Temperature
• -15 - 45 °C
• Storage Relative Humidity
• 0 - 95 (Non-condensing) %
• Storage Elevation
• 0 - 15240meters
• Audible noise at 1 meter from surface of unit
• 55.0dBA
• Online thermal dissipation
• 931.0BTU/hr
• Protection Class
• IP20

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
