APC SRT2200RMXLI SMART-UPS SRT 2200VA RM 230V SZÜNETMENTES TÁPEGYSÉG

• Key Features

• Run time for load 1980 W
• Min-max: 198-1980 W
• 3m 53s
• Max. Capacity Used
• 100%
• Output power capacity
• 1.98kWatts / 2.2kVA
• Rack Height
• 2U

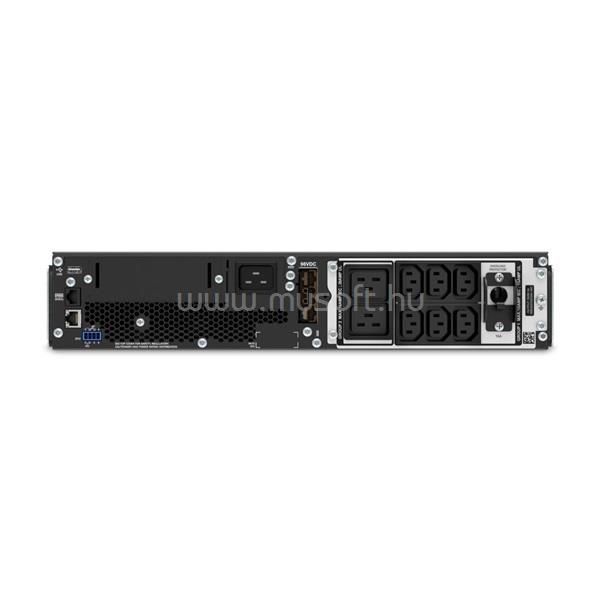

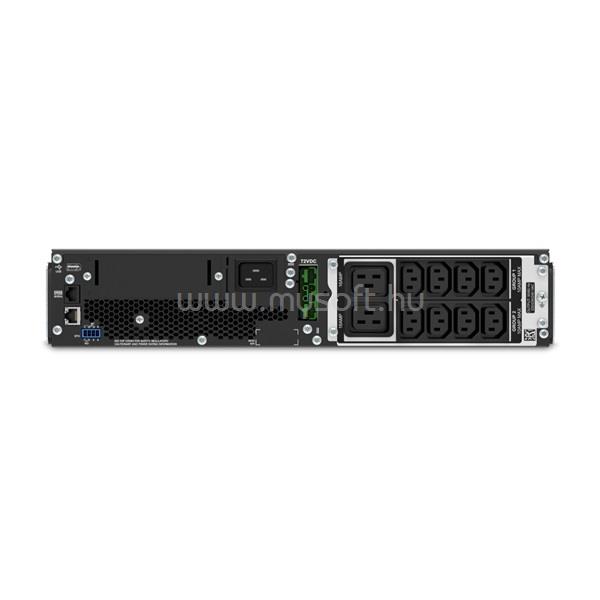

• Output Connections
• (2) IEC 60320 C19 (Battery Backup)
• (2) IEC 320 C19 (Battery Backup)
• (2) IEC Jumpers (Battery Backup)
• (8) IEC 60320 C13 (Battery Backup)
• (8) IEC 320 C13 (Battery Backup)
• Nominal Output Voltage
• 230V
• Nominal Input Voltage
• 230V
• Input Connections
• BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
• Cord Length
• 2.4meters

• Output

• Max Configurable Power (Watts)
• 1.98kWatts / 2.2kVA
• Output Voltage Distortion
• Less than 2 %
• Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages
• 220 V, 240 V
• Load Crest Factor
• 3 : 1
• Topology
• Double conversion online
• Waveform type
• Sine wave
• Bypass
• Built-in bypass

• Input

• Input frequency
• 40 - 70 Hz Auto-sensing
• Input voltage range for main operations
• 100 - 275 Adjustable (half load)V
• Number of Power Cords
• 1
• Other Input Voltages
• 220 V, 240 V

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Included Battery Modules
• 1
• Typical recharge time
• 3hour(s)
• Nominal Battery Voltage
• 72 V
• Replacement Battery
• APCRBC141
• Expected Battery Life (years)
• 3 - 5
• RBC Quantity
• 1
• Battery Charge Power (Watts)
• 122 Watts
• Extendable Run Time
• 1

• Communications & Management

• Interface Port(s)
• RJ-45 Serial, Smart-Slot, USB

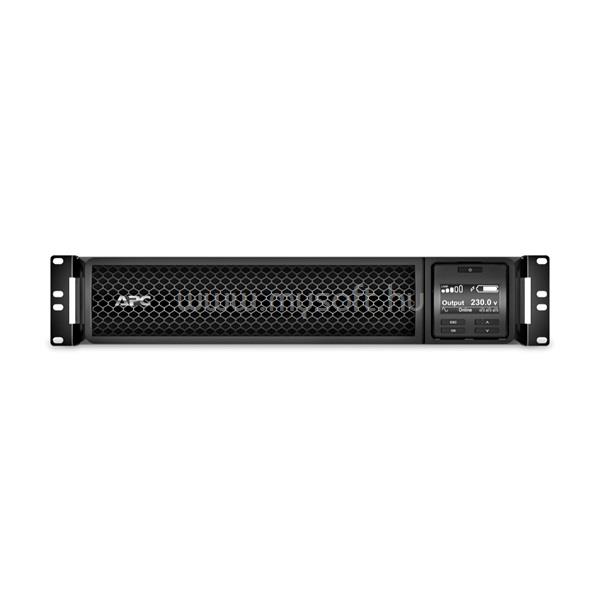

• Control panel
• Multifunction LCD status and control console
• Audible Alarm
• Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)
• Yes
• Available SmartSlot Interface Quantity
• 1

• Surge Protection and Filtering

• Surge energy rating
• 340Joules

• Physical

• Maximum Height
• 85MM, 8.5CM
• Maximum Width
• 432MM, 43.2CM
• Maximum Depth
• 584MM, 58.4CM
• Net Weight
• 25.0KG
• Shipping weight
• 34.02KG
• Shipping Height
• 246MM, 24.6CM
• Shipping Width
• 599MM, 59.9CM
• Shipping Depth
• 810MM, 81.0CM
• Color
• Black

• Environmental

• Operating Temperature
• 0 - 40 °C
• Operating Relative Humidity
• 0 - 95 (Non-condensing) %
• Operating Elevation
• 0 - 3048meters
• Storage Temperature
• -20 - 50 °C
• Storage Relative Humidity
• 0 - 95 (Non-condensing) %
• Storage Elevation
• 0 - 15240meters
• Audible noise at 1 meter from surface of unit
• 55.0dBA
• Online thermal dissipation
• 535.0BTU/hr
• Protection Class
• IP20

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
