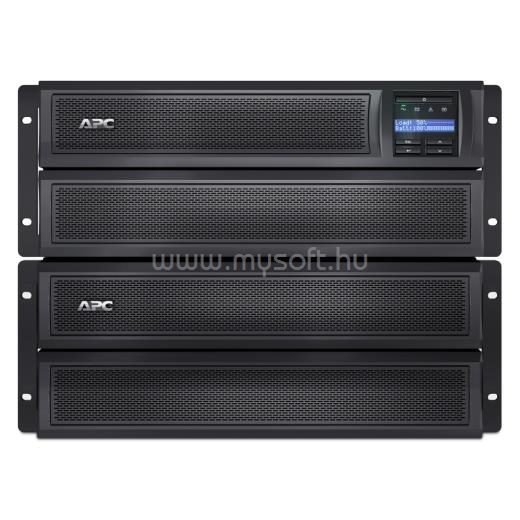

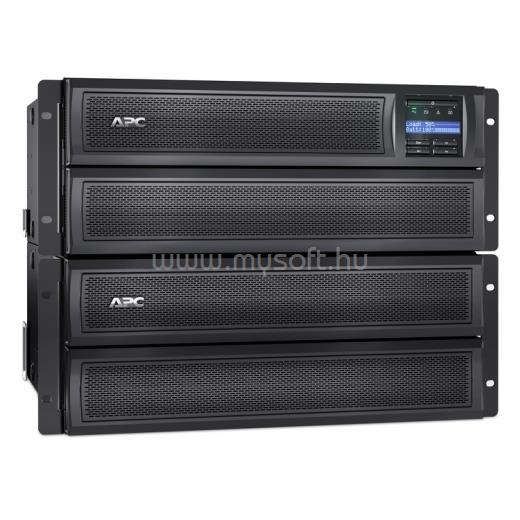

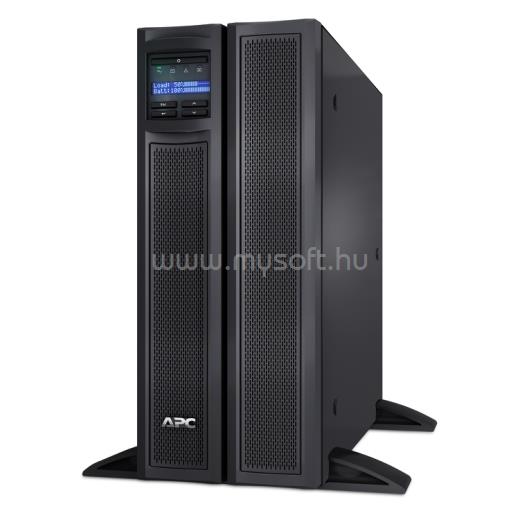

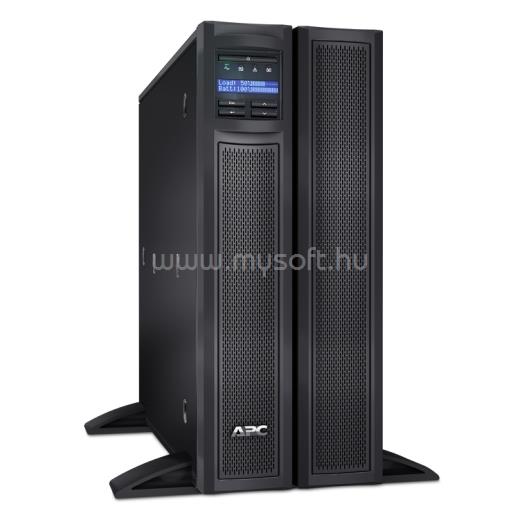

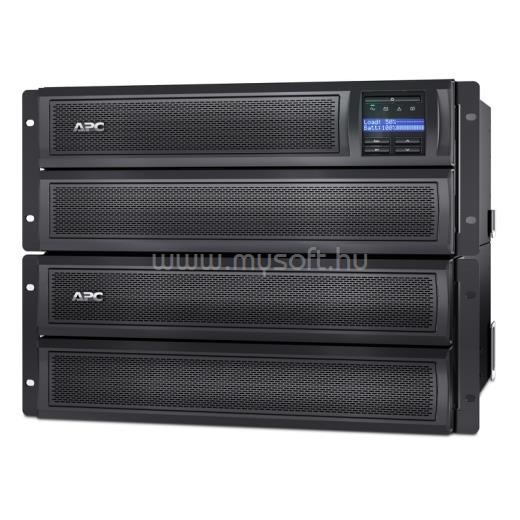

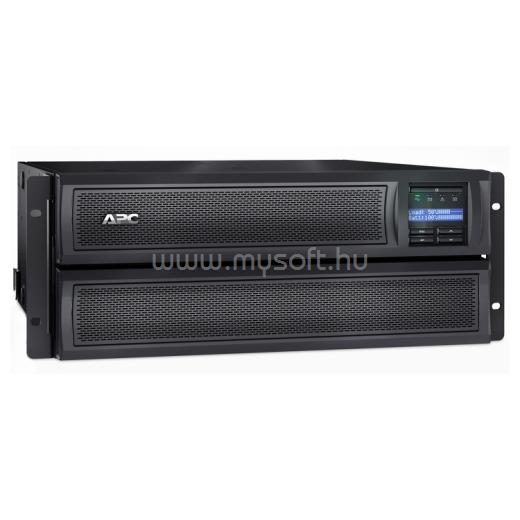

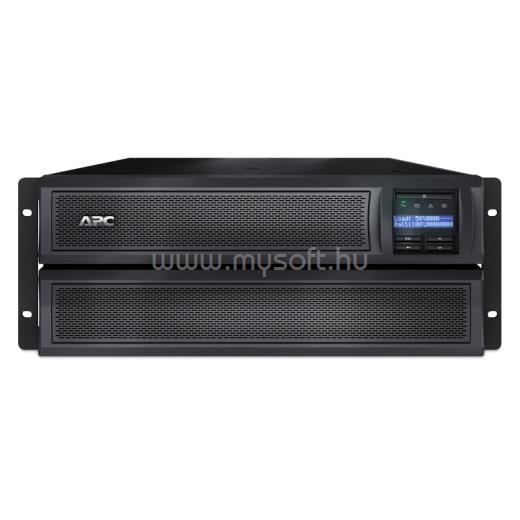

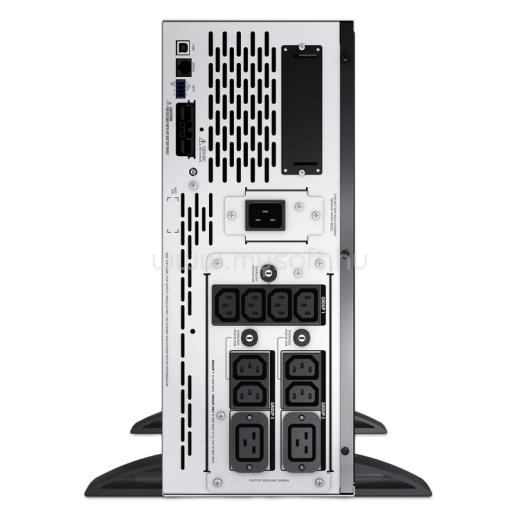

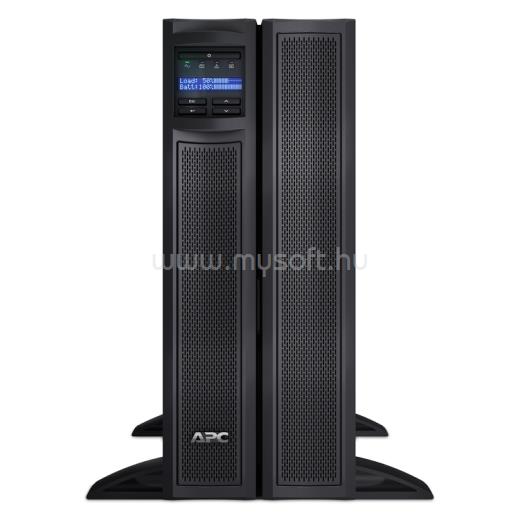

APC UPS 2200VA SMX2200HV SZÜNETMENTES TÁPEGYSÉG C13/C19/C20 X RACK VONALI-INTERAKTÍV

• Output

• Max Configurable Power (Watts)
• 1.98kWatts / 2.2kVA
• Output Voltage Distortion
• Less than 5 %
• Output Frequency (sync to mains)
• 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages
• 208 V, 220 V, 240 V
• Topology
• Line interactive
• Waveform type
• Sine wave
• Transfer Time
• 6 ms typical : 10 ms maximum

• Input

• Input frequency
• 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations
• 140 - 280V
• Number of Power Cords
• 1
• Other Input Voltages
• 220 V, 240 V

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Typical recharge time
• 3hour(s)
• Replacement Battery
• APCRBC143
• Expected Battery Life (years)
• 3 - 5
• RBC Quantity
• 1
• Battery Charge Power (Watts)
• 233 Watts
• Extendable Run Time
• 1

• Communications & Management

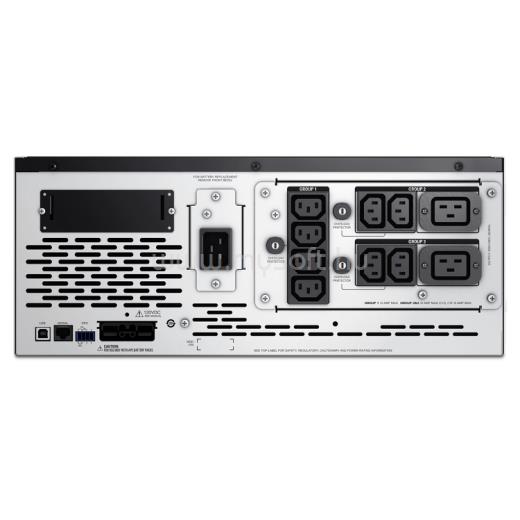

• Interface Port(s)
• RJ-45 Serial, SmartSlot, USB
• Control panel
• LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
• Audible Alarm
• Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)
• Yes
• Available SmartSlot Interface Quantity
• 1

• Surge Protection and Filtering

• Surge energy rating
• 645Joules
• Filtering
• Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

• Physical

• Maximum Height
• 432MM, 43.2CM
• Maximum Width
• 178MM, 17.8CM
• Maximum Depth
• 483MM, 48.3CM
• Net Weight
• 38.56KG
• Shipping weight
• 47.73KG
• Shipping Height
• 330MM, 33.0CM
• Shipping Width
• 586MM, 58.6CM
• Shipping Depth
• 633MM, 63.3CM
• Color
• Black

• Environmental

• Operating Temperature
• 0 - 40 °C
• Operating Relative Humidity
• 0 - 95 %
• Operating Elevation
• 0 - 3048meters
• Storage Temperature
• -15 - 45 °C
• Storage Relative Humidity
• 0 - 95 %
• Storage Elevation
• 0 - 15240meters
• Audible noise at 1 meter from surface of unit
• 55.0dBA
• Online thermal dissipation
• 150.0BTU/hr

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
