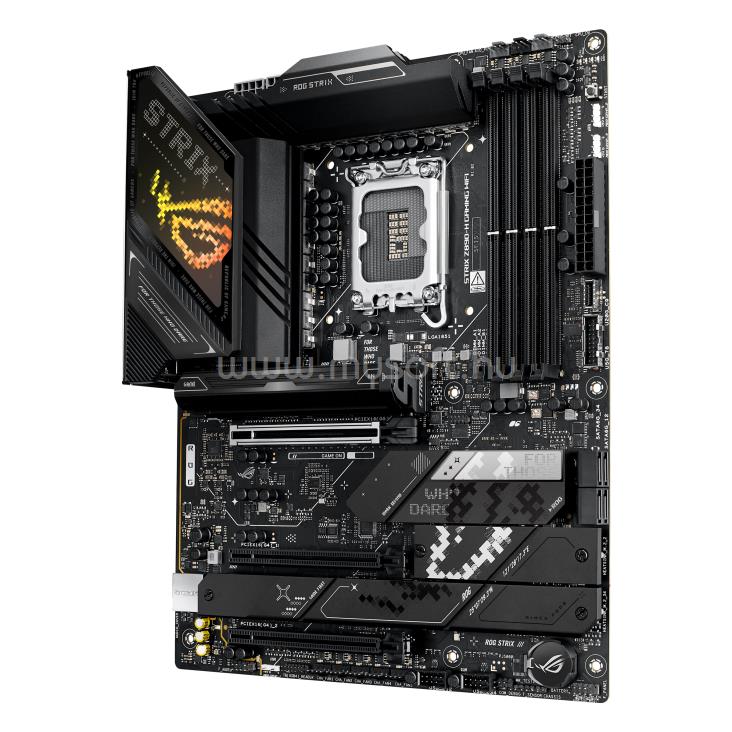

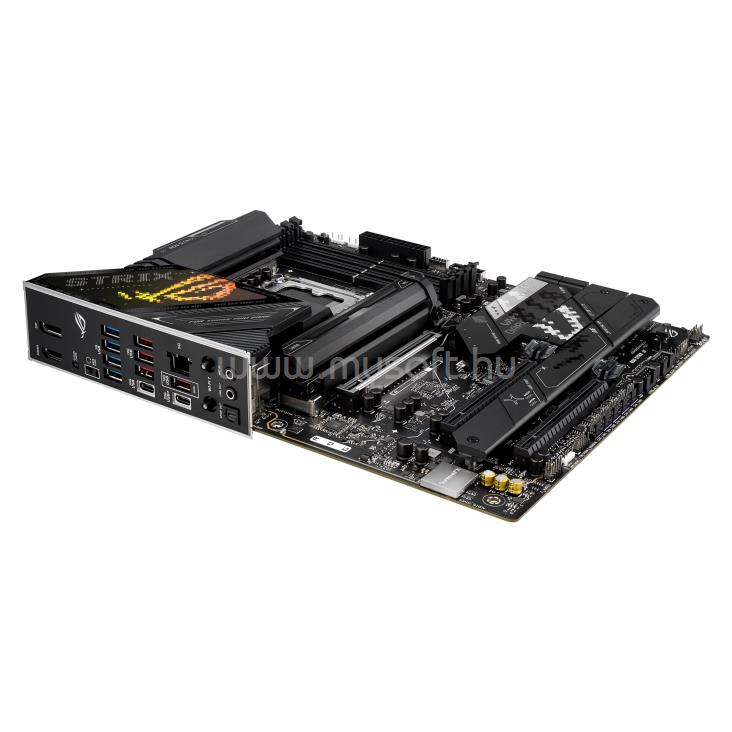

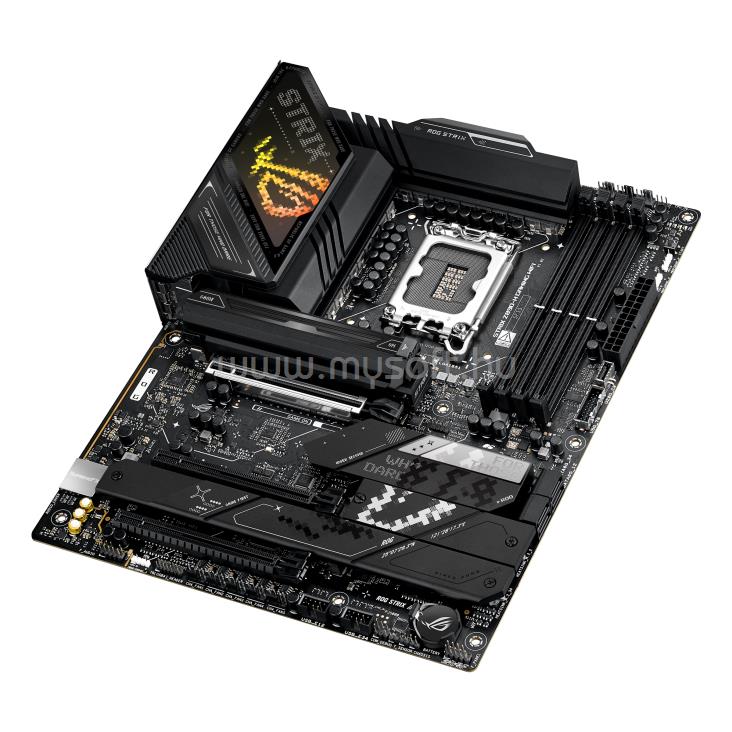

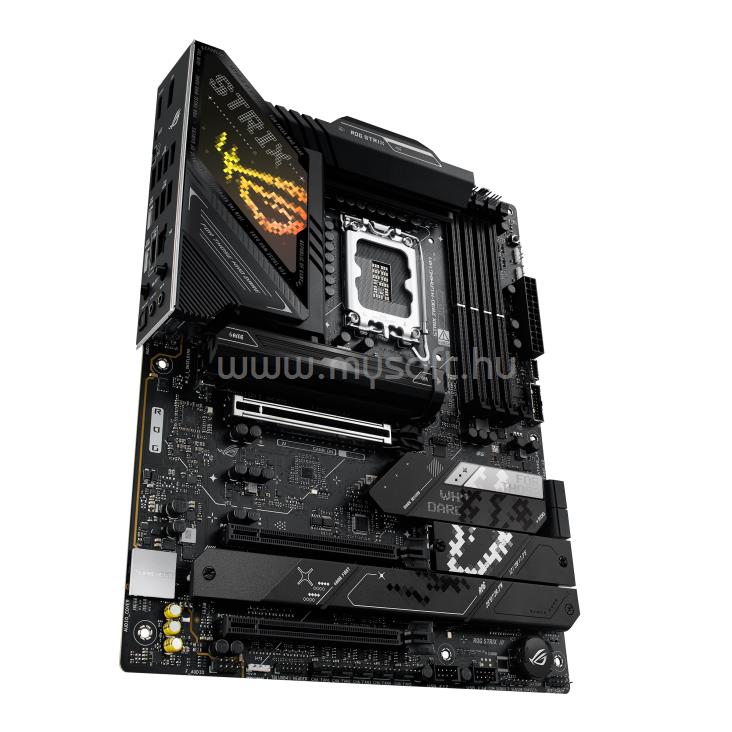

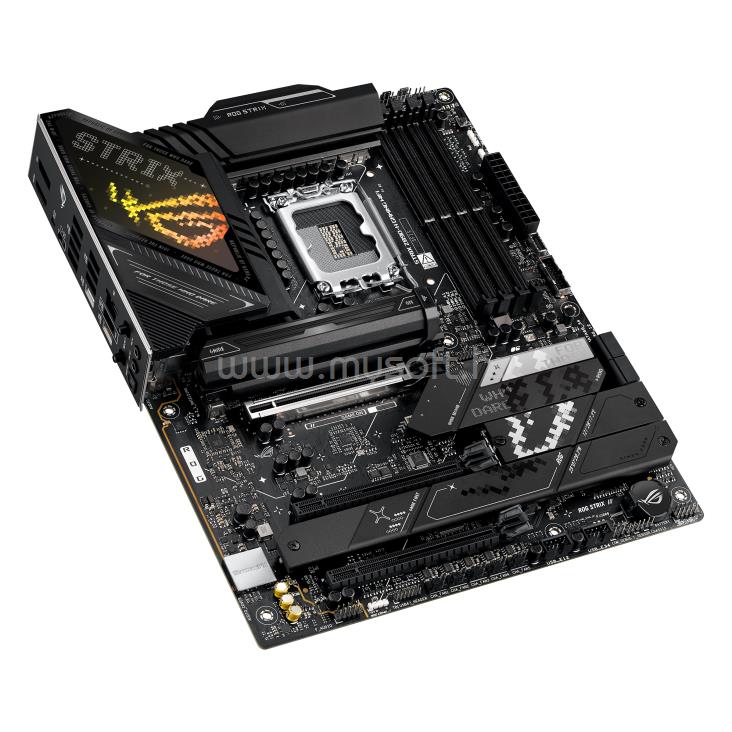

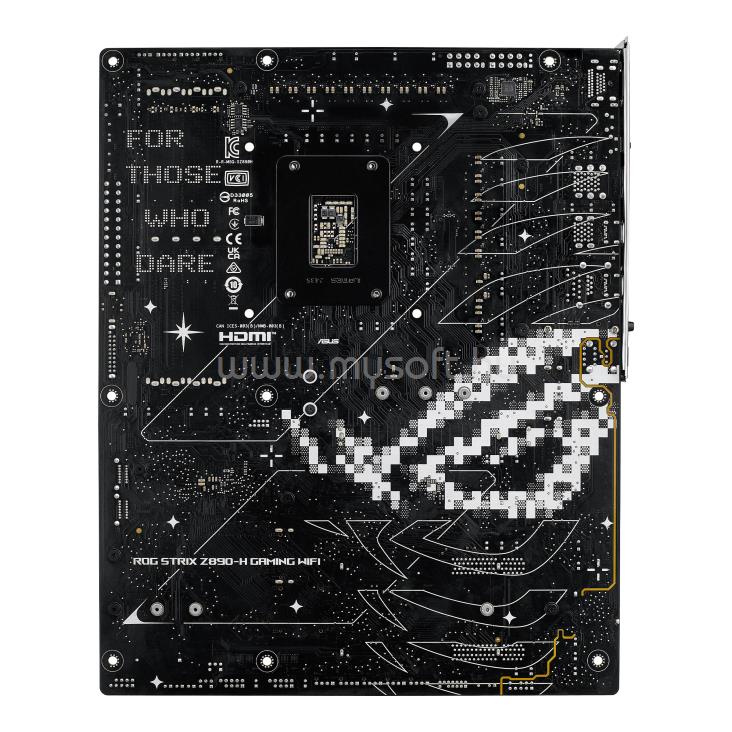

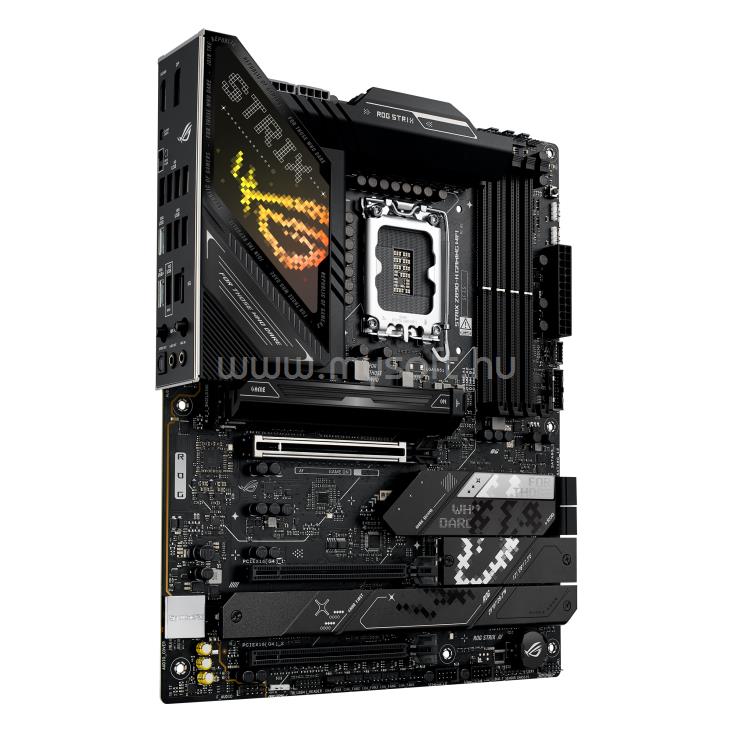

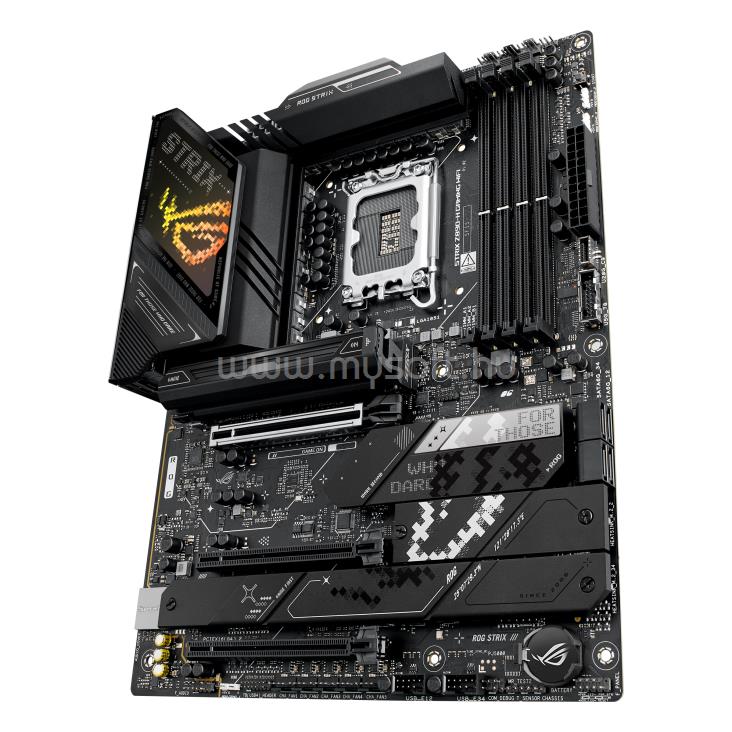

ASUS ALAPLAP ROG STRIX Z890-H GAMING WIFI (LGA1851, ATX)

• CPU

• Intel© Socket LGA1851 for Intel© Core Ultra Processors(Series 2)
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel© Z890 Chipset

• Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• Supports Intel© Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)
• *Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory
• Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x DisplayPort**
• 1 x HDMI port***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• Intel© Core Ultra Processors(Series 2)
• 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
• Intel© Z890 Chipset
• 2 x PCIe 4.0 x16 slots (supports x4 mode)
• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

• Storage

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel© Core Ultra Processors(Series 2)*
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel© Z890 Chipset
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• * Intel© Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.

• Ethernet

• 1 x Realtek 5G Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 10 ports)
• 2 x USB 20Gbps ports (1 x USB Type-C©* + 1 x USB Type-C© with up to 30W PD Fast-charge)**
• 4 x USB 10Gbps ports (4 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 20Gbps (1 x USB Type-C©)
• 1 x USB 5Gbps header support 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C© power delivery output: max. 5V/3A
• ** USB Type-C© power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

• Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

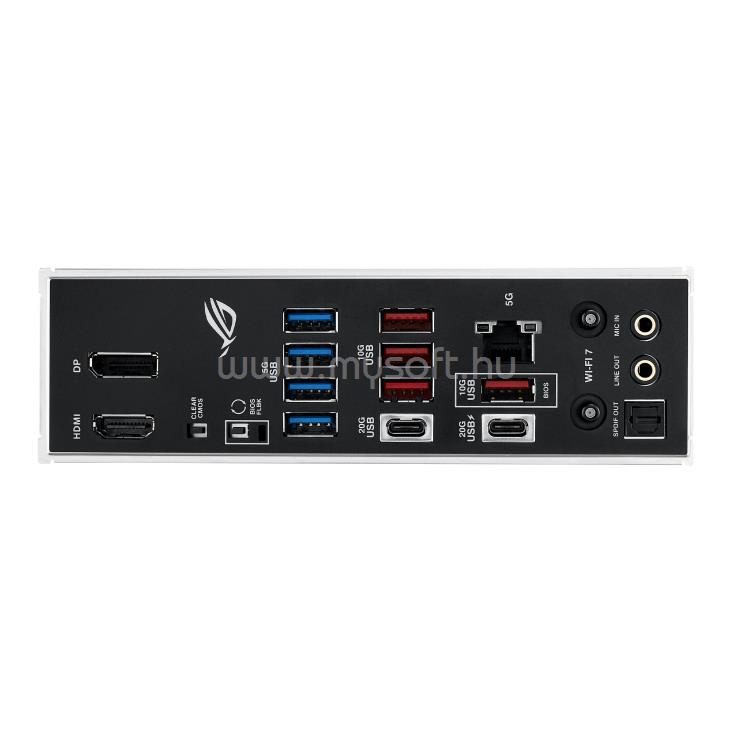

• Back Panel I/O Ports

• 2 x USB 20Gbps ports (1 x USB Type-C©* + 1 x USB Type-C© with up to 30W PD Fast-charge**)
• 4 x USB 10Gbps ports (4 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan header
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header support 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt (USB4©) header

• Special Features

• Extreme Engine Digi+
• 5K Black metallic capacitors
• ASUS Q-Design
• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Dashboard
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS button
• CPU Socket lever protector
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• Aura Sync
• Addressable Gen 2 headers
• Rear USB 20Gbps with PD Fast Charge Support
• Support: up to 30W fast charging and USB Wattage Watcher
• Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
• Compatible with PD3.0

• Software Features

• ROG Exclusive Software
• ROG CPU-Z
• Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• AIDA64 Extreme (60 days free trial)
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• GameFirst
• HWiNFO
• Power Saving
• ASUS AI Advisor
• ASUS Driver Hub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• NPU Boost
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• FlexKey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Thermal pad for M.2 22110
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubbers
• Documentation
• 1 x Quick start guide

• Operating System

• Windows© 11 (22H2 & later)

• Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
