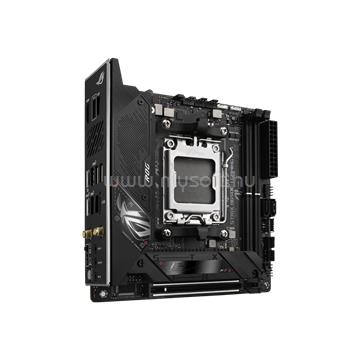

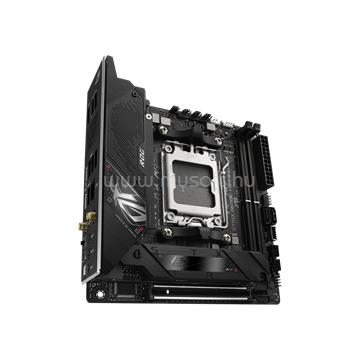

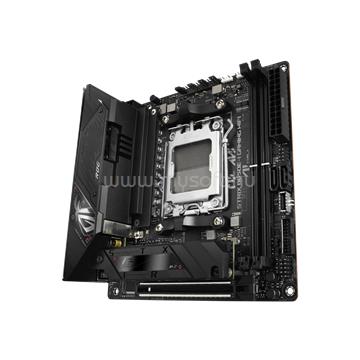

ASUS ALAPLAP ROG STRIX B650E-I GAMING WIFI (AM5, MINI-ITX)

ASUS alaplap ROG STRIX B650E-I GAMING WIFI (AM5, mini-ITX)

132 990 Ft 104 717 Ft + ÁFA

Komponens > Alaplap > AM5

raktáron

  • HA MOST MEGRENDELED
  • Házhoz szállítjuk
    KEDDRE (2024-04-02)
  • Ügyfélszolgálatunkon átveheted már
    KEDDEN (2024-04-02) 9:30 - 17:30
  • mysoft azonosító
    15-2817705
Adatlap frissítve: 2024. 03. 28. 8:21:14



cib
GLS
  • Specification

  • CPU
  • AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
  • * Refer to www.asus.com for CPU support list.
  • Chipset
  • AMD B650
  • Memory
  • 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
  • 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO™)
  • OptiMem II
  • * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
  • Graphics
  • 1 x HDMI© port***
  • 1 x USB3.2 Gen2 port supports USB Type-C© display outputs****
  • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  • ** Supports max. 8K@60Hz as specified in display outputs
  • ***Supports 4K@60Hz as specified in HDMI 2.1.
  • **** VGA resolution support depends on processors' or graphic cards' resolution.
  • Expansion Slots
  • AMD Ryzen™ 7000 Series Desktop Processors*
  • 1 x PCIe 5.0 x16 slot*
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
  • To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
  • Storage
  • Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
  • AMD Ryzen 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 2 x SATA 6Gb/s ports
  • *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.
  • Ethernet
  • 1 x Intel© 2.5Gb Ethernet
  • ASUS LANGuard
  • Wireless & Bluetooth
  • Wi-Fi 6E
  • 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  • Supports 2.4/5/6GHz frequency band*
  • Bluetooth© v5.2**
  • * WiFi 6E 6GHz regulatory may vary between countries.
  • ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB
  • Rear USB (Total 8 ports)
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
  • 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C©)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB (Total 5 ports)
  • 1 x USB 3.2 Gen 2 connector
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
  • Supports up to 32-Bit/384 kHz playback
  • Audio Features
  • Audio Shielding
  • Savitech SV3H712 AMP
  • LED-illuminated audio jacks
  • Rear optical S/PDIF out port
  • Premium audio capacitors
  • *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
  • Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
  • 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C© with DP Alt mode)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x HDMI© port
  • 1 x Wi-Fi Module
  • 1 x Intel© 2.5Gb Ethernet port
  • 3 x LED-illuminated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x FlexKey button
  • *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
  • Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin AIO Pump header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 2 x M.2 slots (Key M)
  • 2 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 2 connector
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 headers supports additional 2 USB 2.0 ports
  • Miscellaneous
  • 1 x Addressable Gen 2 header
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x CPU Over Voltage jumper
  • 1 x 12-1 pin Front Panel Audio header (AAFP)
  • 1 x 10-1 pin System Panel header
  • 1 x Speaker header
  • 1 x Thermal Sensor header
  • Special Features
  • Extreme Engine Digi+
  • 5K Black Metallic Capacitors
  • ASUS Q-Design
  • M.2 Q-Latch
  • Q-DIMM
  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • Q-Slot
  • ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsink
  • VRM heatsink design
  • ASUS EZ DIY
  • BIOS FlashBack button
  • BIOS FlashBack LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
  • AURA Sync
  • AURA RGB header
  • Addressable Gen 2 header
  • Software Features
  • ROG Exclusive Software
  • GameFirst VI
  • ROG CPU-Z
  • Sonic Studio III + Sonic Studio Virtual
  • Mixer + Sonic Suite Companion
  • Sonic Radar III
  • DTS© Sound Unbound
  • Anti-virus software
  • ASUS Exclusive Software
  • Armoury Crate
  • AIDA64 Extreme (60 days free trial)
  • AURA Creator
  • AURA Sync
  • Fan Xpert 4
  • Power Saving
  • Two-Way AI Noise Cancellation
  • AI Suite 3
  • TPU
  • DIGI+ VRM
  • Turbo app
  • PC Cleaner
  • MyAsus
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • Dynamic OC Switcher
  • FlexKey
  • BIOS
  • 256 MbFlash ROM, UEFI AMI BIOS
  • Manageability
  • WOL by PME, PXE
  • Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • 1 x ROG USB2.0 splitter cable
  • 1 x Panel cable
  • Additional Cooling Kit
  • 1 x Thermal pad for M.2
  • Miscellaneous
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x Cable ties package
  • 1 x M.2 Bracket
  • 1 x M.2 SSD screw package
  • 1 x M.2 Q-Latch package for M.2 backplate
  • 1 x ROG key chain
  • 1 x ROG Strix sticker
  • 1 x ROG Strix thank you card
  • 1 x Rubber Package for M.2 backplate
  • Documentation
  • 1 x User guide
  • Operating System
  • Windows© 11 64-bit, Windows 10 64-bit
  • Form Factor
  • Mini-ITX Form Factor
  • 6.7 inch x 6.7 inch (17 cm x 17 cm)
Garancia fogyasztók részére
  • 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia
Garancia nem fogyasztók részére
  • 3 év gyártó által biztosított szervizgarancia
