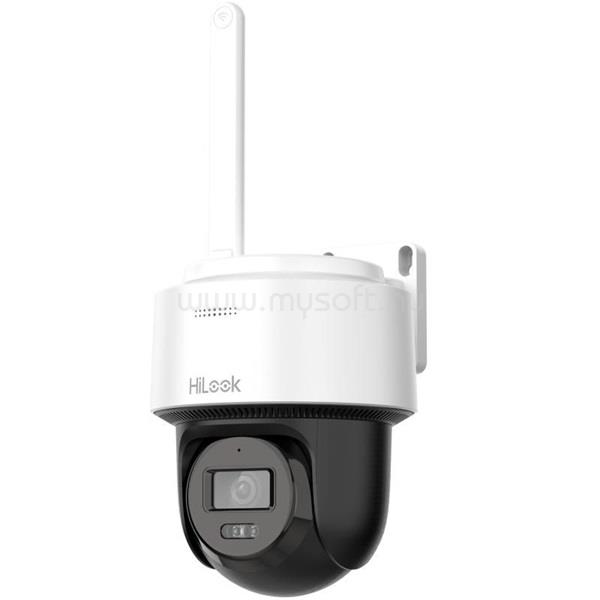

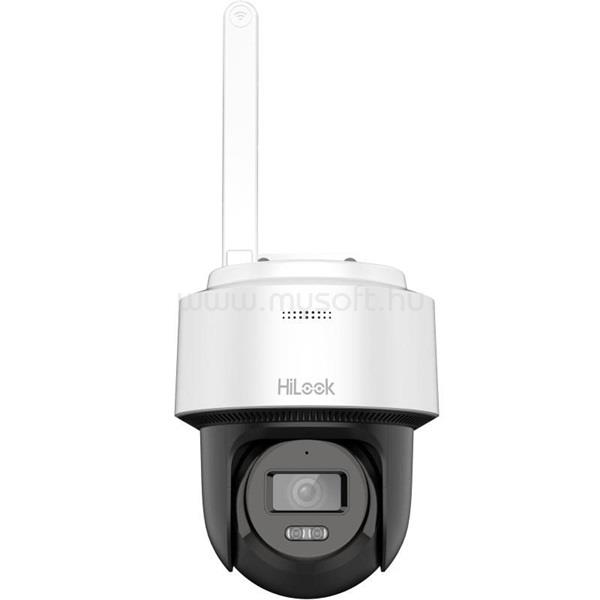

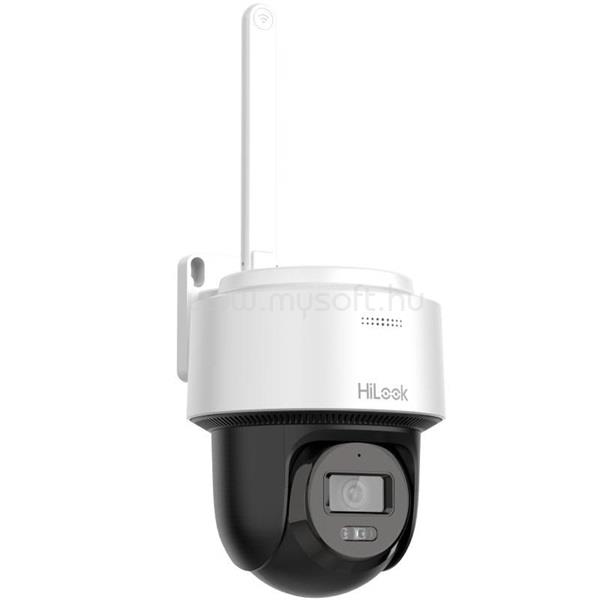

HILOOK PTZ-N2C400M-D/W(2.8MM) /KÜLTÉRI/4MP/2,8MM/WIFI6/HYBRID LIGHT IP WIFI PT KAMERA - EASYLINK SZETTHEZ

• Camera

• Image Sensor
• 1/2.7" Progressive Scan CMOS
• Max. Resolution
• 2560 × 1440
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR

• Lens

• Focal Length
• 2.8 mm, 4 mm
• FOV
• 2.8 mm, horizontal FOV 94°, vertical FOV 49°, diagonal FOV 114°
• 4 mm, horizontal FOV 70°, vertical FOV 35°, diagonal FOV 85°
• Aperture
• F1.6

• Illuminator

• Supplement Light Type
• IR,White Light
• Supplement Light Range
• IR distance: up to 25 m, White light distance: up to 25 m
• IR Wavelength
• 850 nm

• PTZ

• Movement Range (Pan)
• 0° to 345°
• Movement Range (Tilt)
• 0° to 80°
• Pan Speed
• Up to 25°/s
• Tilt Speed
• Up to 20°/s
• Power-off Memory
• Yes

• Video

• Main Stream
• 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 20 fps (768 x 432)
• 60 Hz: 20 fps (768 x 432)
• Video Compression
• H.265, H.264, MJPEG
• Video Bit Rate
• 32 Kbps to 8 Mbps
• H.264 Type
• Baseline Profile/Main Profile/High Profile
• H.265 Type
• Main Profile

• Audio

• Audio Compression
• G.711ulaw/AAC-LC
• Audio Bit Rate
• AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps
• G.711ulaw: 64 Kbps
• Audio Sampling Rate
• 8 kHz/16 kHz
• Environment Noise Filtering
• Yes

• Wireless (Wi-Fi)

• Wi-Fi Protocols
• IEEE802.11b, IEEE802.11g, IEEE802.11n, IEEE802.11ax
• Frequency Range
• 2.4 GHz to 2.4835 GHz
• Channel Bandwidth
• 20/40 MHz

• Network

• Protocols
• IPv4/IPv6, HTTP, QoS, SMTP, NTP, RTSP, RTP, RTCP, TCP/IP, UDP, DHCP, Bonjour, SNMP, DNS, DDNS
• API
• ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• User/Host
• Up to 32 users
• 3 user levels: administrator, operator, and user
• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Client
• Wired network: HiLookVision, iVMS-4200
• Wi-Fi: iVMS-4200
• *Wi-Fi connection with HiLookVision directly is not possible

• Image

• Image Settings
• Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• BLC, HLC, 3D DNR
• Privacy Mask
• 4 programmable rectangle privacy masks

• Interface

• Ethernet Interface
• 1 RJ45 10M/100M self-adaptive Ethernet port
• Built-in Microphone
• 1 built-in microphone
• On-board Storage
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker
• 1 built-in speaker

• Event

• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Notify surveillance center, send email, trigger recording, trigger capture, audible warning

• Approval

• Protection
• IP66 (IEC 60529-2013)

• General

• Power
• 12 VDC +/- 25%, reverse polarity protection, 0.75 A, max. 9 W, O5.5 mm coaxial power plug,
• *A switching adapter is included in the package.
• Dimension
• 131.9 mm × 163.9 mm × 312.6 mm (5.19" × 6.45" × 12.31")
• Weight: 600 g (1.32 lb.)
• With Package Weight: 900 g (2.0 lb.)
• Material
• Plastic
• Operating Condition
• -10 °C to 40 °C (-14 °F to 104 °F). Humidity 90% or less (non-condensing)
• General Function
• Heartbeat, anti-banding, mirror, password protection, password reset via email
• Language
• English, Ukrainian

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
