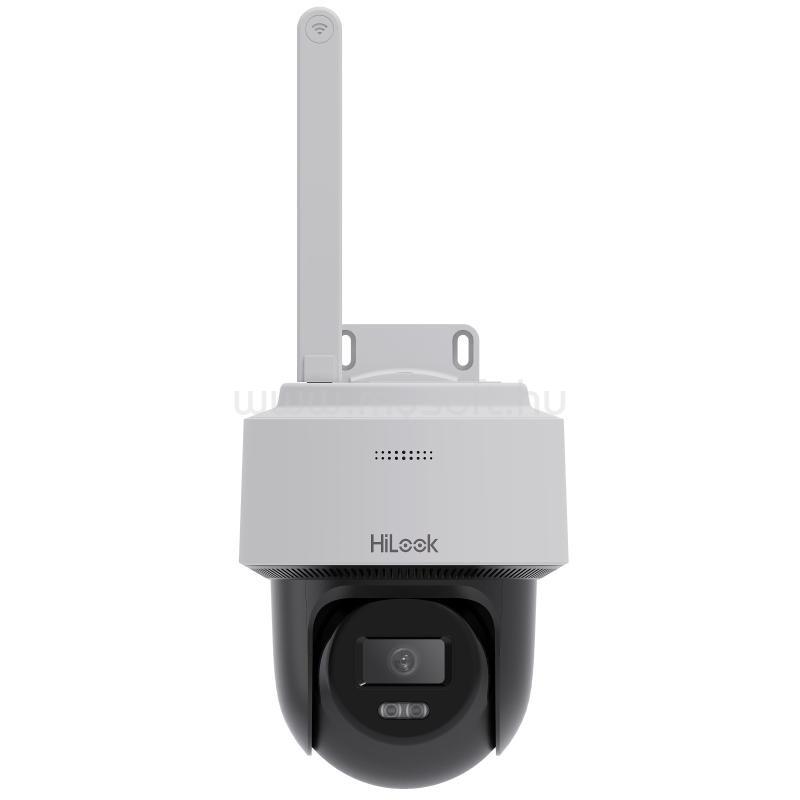

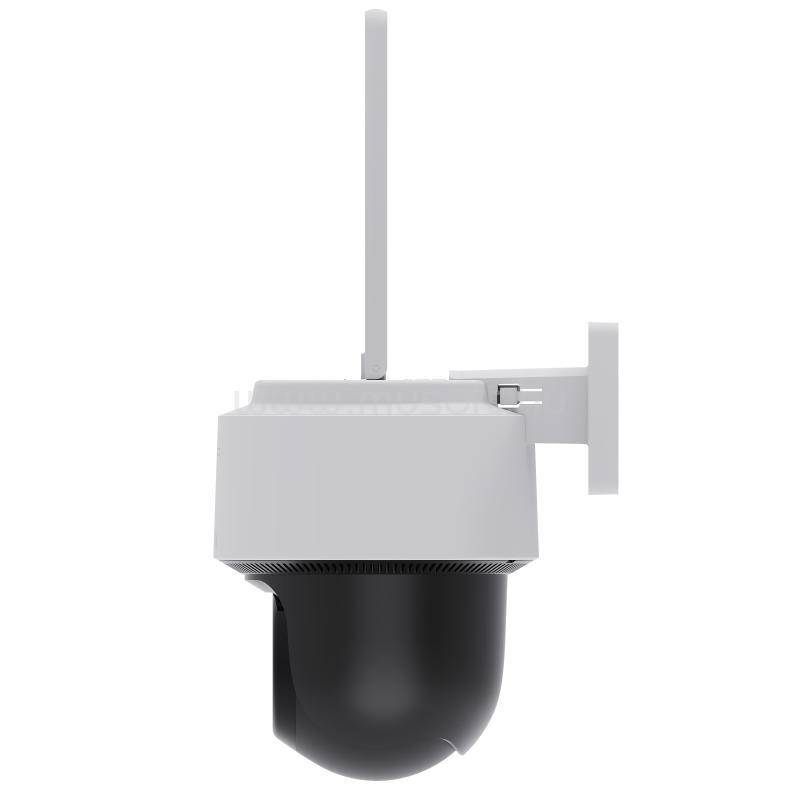

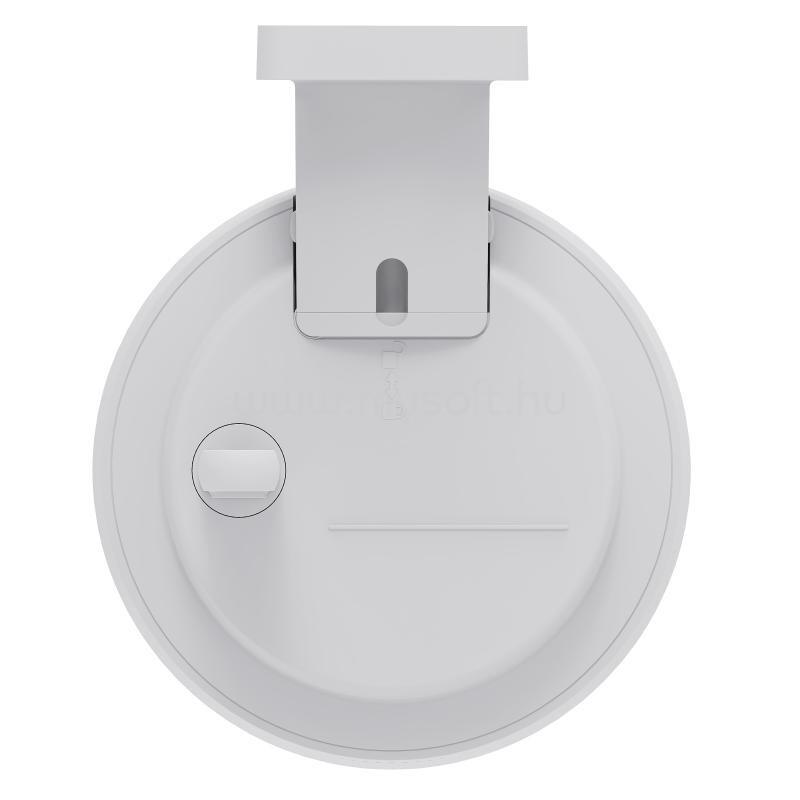

HILOOK PTZ-N2C400I-W(2.8MM)(W) WIFI IP DÓMKAMERA

• Camera

• Image Sensor
• 1/2.9" Progressive Scan CMOS
• Max. Resolution
• 2560 × 1440
• Min. Illumination
• Color: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR

• Lens

• Focal Length
• 2.8 mm
• FOV
• 2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°
• Aperture
• F1.6

• Illuminator

• Supplement Light Type
• IR
• Supplement Light Range
• IR distance: up to 30 m
• IR Wavelength
• 850 nm

• PTZ

• Movement Range (Pan)
• 0° to 345°
• Movement Range (Tilt)
• 0° to 80°
• Pan Speed
• Up to 25°/s
• Tilt Speed
• Up to 20°/s

• Video

• Main Stream
• 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)
• 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
• Video Compression
• Main stream: H.265/H.264,
• Sub-stream: H.265/H.264
• Video Bit Rate
• 256 Kbps to 2 Mbps
• H.264 Type
• Baseline profile,Main profile,High profile
• H.265 Type
• Main profile

• Audio

• Audio Compression
• G.711,AAC-LC
• Audio Bit Rate
• 64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate
• 8 kHz,16 kHz
• Environment Noise Filtering
• Yes

• Network

• Protocols
• TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
• API
• ONVIF, SDK
• Security
• Password protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface
• Client
• iVMS-4200, HiLookVision, Hik-Partner-Pro

• Wireless (Wi-Fi)

• Encryption Mode
• WPA-PSK/WPA2-PSK
• Wi-Fi Protocols
• IEEE802.11b,IEEE802.11g,IEEE802.11n
• Frequency Range
• 2.412 GHz to 2.472 GHz
• Channel Bandwidth
• 20 MHz
• Modulation
• 802.11b: CCK, QPSK, BPSK,
• 802.11g: OFDM,
• 802.11n: OFDM
• Transfer Rate
• 11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
• Wireless Range
• Up to 50 m
• (The performance varies based on actual environment)

• Image

• Image Settings
• Saturation, brightness, contrast, and sharpness adjustable by client software
• Wide Dynamic Range (WDR)
• Digital WDR

• Interface

• Ethernet Interface
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
• 1 built-in microphone
• On-board Storage
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Speaker
• 1 built-in speaker

• Event

• Basic Event
• Motion detection (support alarm triggering by specified target type (human and vehicle)), exception
• Linkage
• Upload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite

• General

• Power
• 12 VDC +/- 10%, 1 A, max. 10 W, O2 mm coaxial power plug, reverse polarity protection
• Dimension
• 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
• Camera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)
• Material
• Plastic
• Operating Condition
• -30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
• General Function
• heartbeat,mirror
