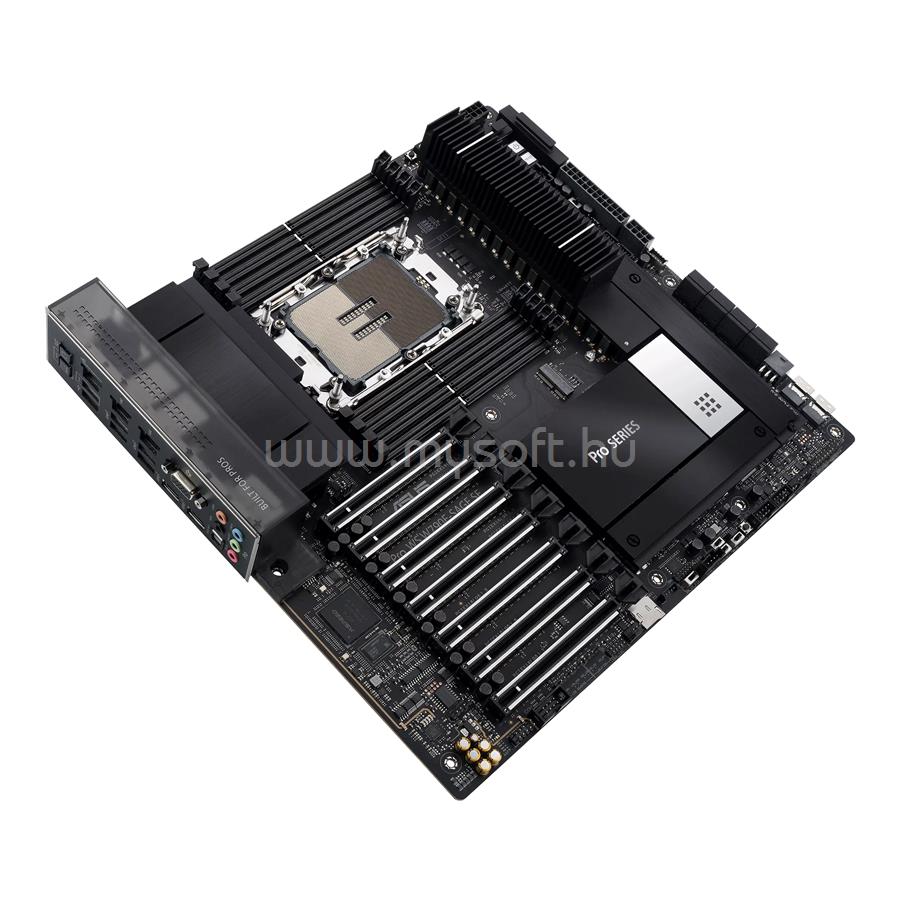

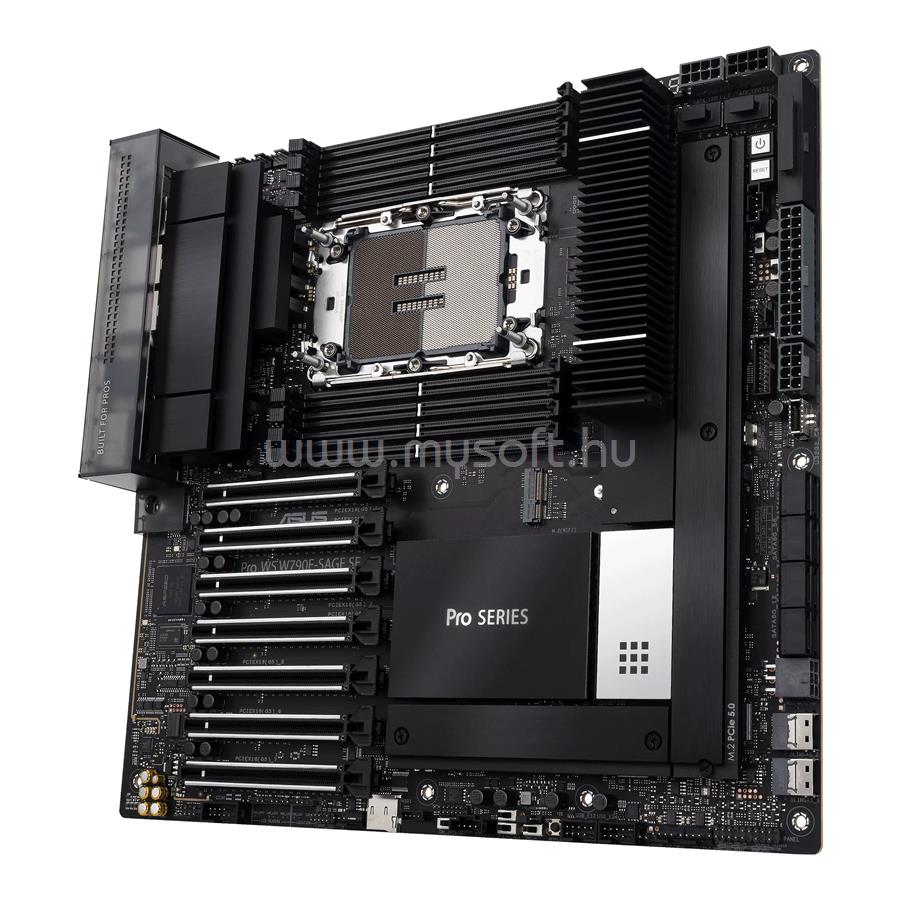

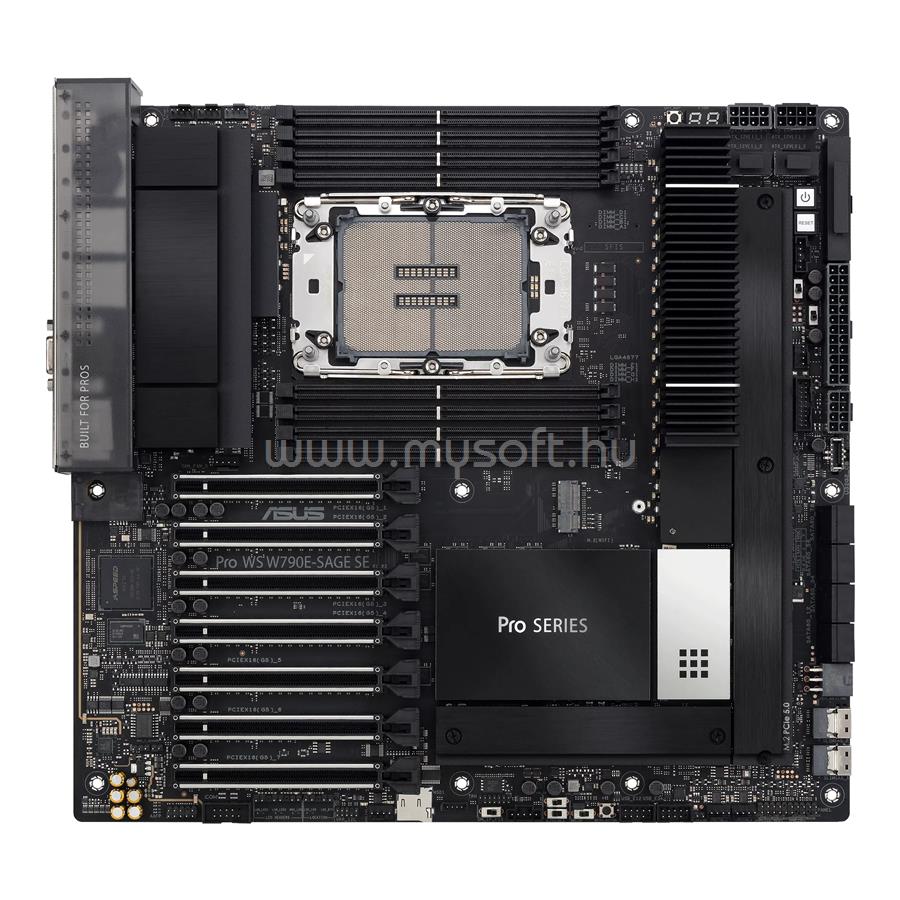

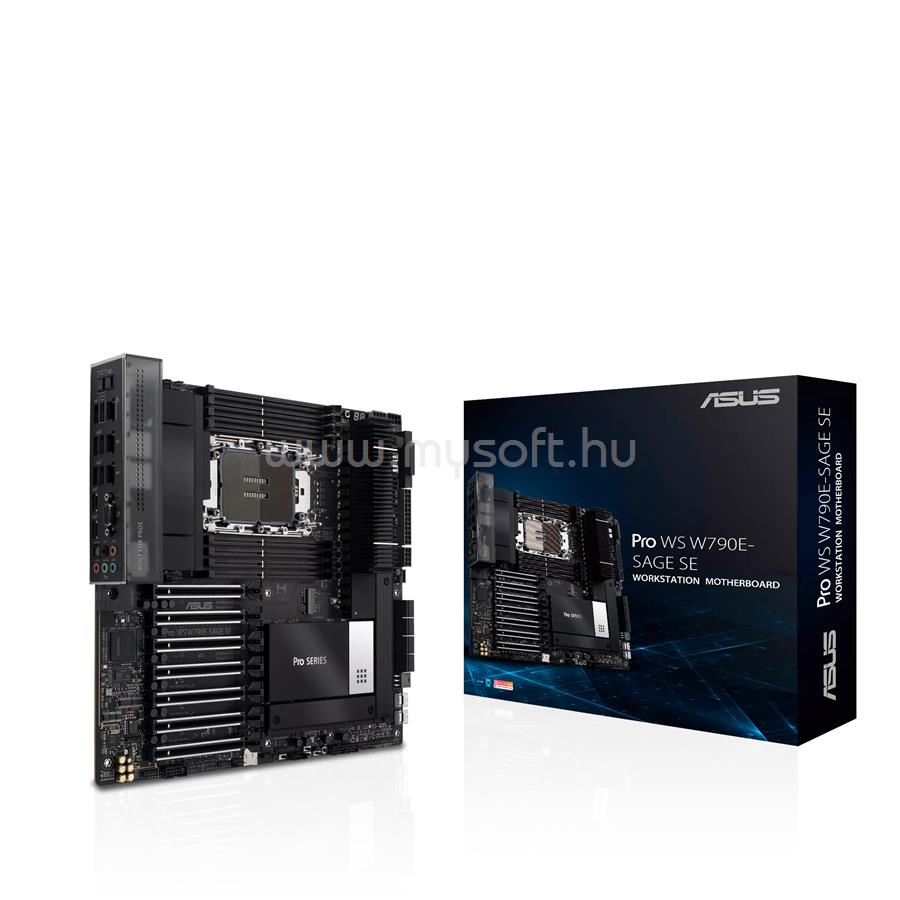

ASUS ALAPLAP PRO WS W790E-SAGE SE (LGA4677, EEB)

• CPU

• Intel© Socket LGA4677 for Xeon© W-3400 and W-2400 Series Processors*
• Supports Intel© Turbo Boost Max Technology 3.0
• * Refer to www.asus.com for CPU support list.

• Chipset

• Intel© W790 Chipset

• Memory

• 8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory*
• 8-Channel Memory Architecture
• Supports Intel© Extreme Memory Profile (XMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/

• Graphics

• 1 x VGA port from AST2600

• Expansion Slots

• Intel© Xeon© W-3400 Series Processors*
• 7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)**
• Intel© Xeon© W-2400 Series Processors*
• 4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)**
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** Please refer to the block diagrams in the Appendix for more details.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports*
• Intel© Xeon© W-3400 Series Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
• Intel© W790 Chipet**
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device
• SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device
• 8 x SATA 6Gb/s ports
• * Supports Intel© Virtual RAID on CPU (Intel© VROC) and Intel Volume Management Device (Intel©VMD)
• ** Intel© VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
• *** M.2_1 and M.2_2 slots will be disabled once an Intel© Xeon© W-2400 Series Processor is installed.

• Ethernet

• 1 x Intel© dual 10Gb Ethernet
• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard

• USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C©)
• 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C©)
• 2 x USB 2.0 port(s) (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C© )
• 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

• Audio

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Features
• Power pre-regulator reduces power input noise to ensure consistent performance
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
• Surround Sound audio.

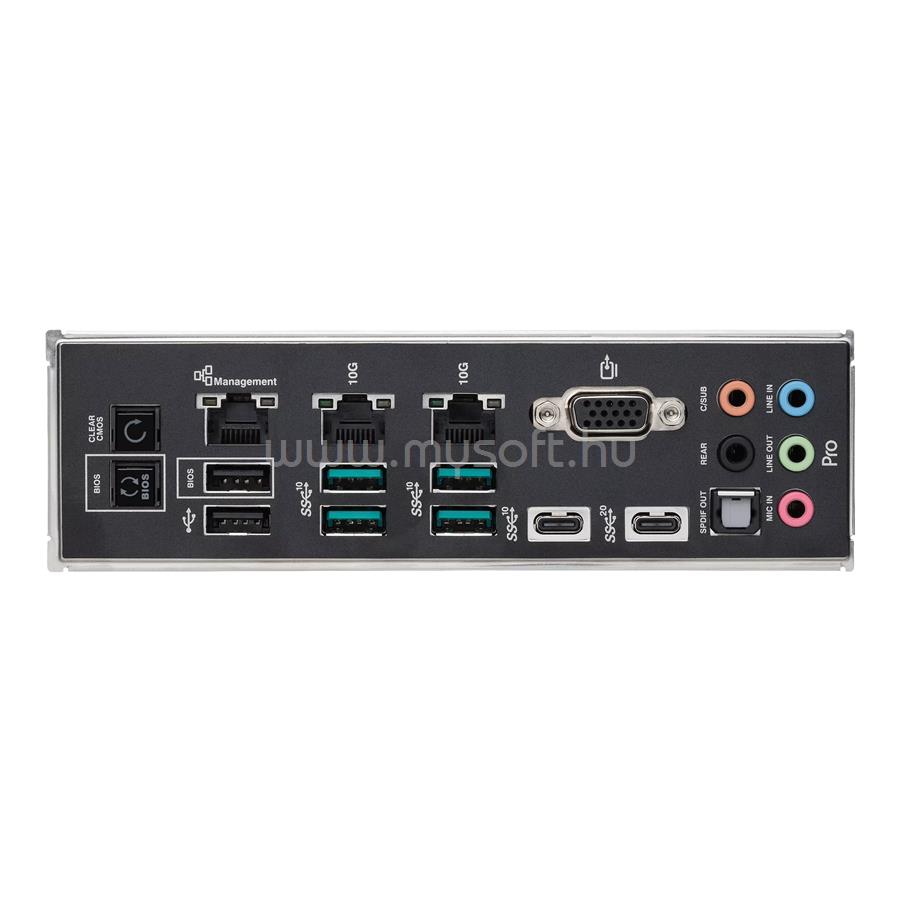

• Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
• 5 x USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C©)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x VGA port
• 2 x Intel© dual 10Gb Ethernet ports
• 1 x Realtek 1Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 5 x 4-pin Chassis Fan header(s)
• 1 x W_PUMP+ header(s)
• Power related
• 2 x 24-pin Main Power connector
• 4 x 8-pin +12V Power connector
• 1 x 8-pin PCIe Power connector
• 1 x 6-pin PCIe Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 2 x SlimSAS connector(s)
• 8 x SATA 6Gb/s ports
• 1 x VROC Key connector
• USB
• 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C© )
• 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• Miscellaneous
• 1 x COM Port header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x LN2 Mode jumper
• 1 x M.2 slot (Key E)
• 1 x ReTry button
• 1 x Safe Boot button
• 1 x SPI TPM header (14-1pin)
• 1 x Start button
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• BMC Related
• 1 x BMC switch
• 1 x VGA switch
• 1 x BMC LAN fixed IP switch
• 1 x IPMI switch
• 2 x Q_PSU switch
• 2 x PSU SMBus header
• 1 x Front panel location LED header
• 1 x Location button header
• 1 x VPP_I2C header
• 1 x Micro SD card socket
• 1 x BMC_T_SENSOR header
• 1 x BMC LED
• 1 x Location LED
• 1 x Message LED header

• Special Features

• Extreme OC Kit
• FlexKey button
• LN2 Mode
• ReTry button
• Safe boot button
• Start button
• Extreme Engine Digi+
• 10K Black Metallic Capacitors
• MicroFine Alloy Choke
• ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• LANGuard
• Overvoltage Protection
• Safeslot
• Stainless-Steel Back I/O
• ASUS Q-Design
• M.2 Q-Latch
• Q-Code
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• Steel backplate
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Caterr1 LED
• Box Headers
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• Bespoke Motherboard Design & Business Focused Features
• 24/7 Reliability
• Overcurrent Protection

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Fan Xpert 4
• AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleaner
• ASUS CPU-Z
• IT Management software supported
• ASUS Control Center Express(ACCE)
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUSTeK. EzFlash Utility
• FlexKey

• BIOS

• 512 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE (UEFI mode)

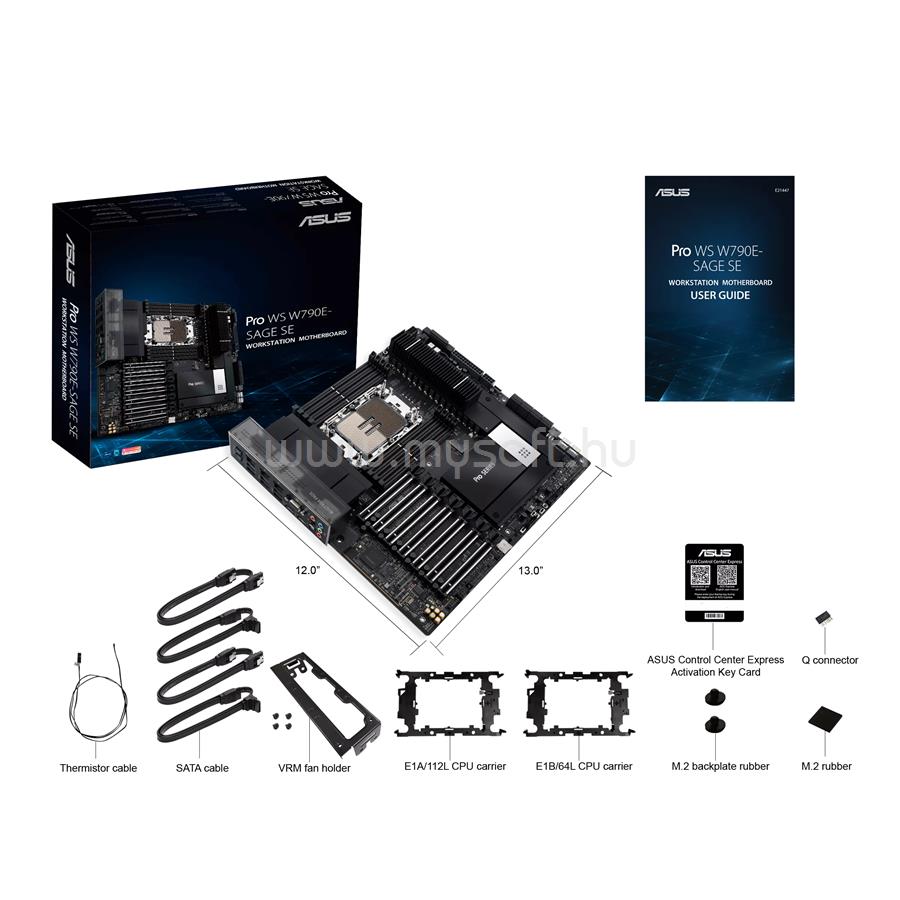

• Accessories

• Cables
• 4 x SATA 6Gb/s cables
• 1 x Thermistor cable pack
• Miscellaneous
• 1 x VRM Fan holder
• 1 x Q-connector
• 1 x M.2 Rubber Package(s)
• 1 x M.2 backplate Rubber Package(s)
• 1 x Screw package for M.2 Key E
• 1 x CPU guard for LGA 4677 E1A
• 1 x CPU guard for LGA 4677 E1B
• Documentation
• 1 x ACC Express Activation Key Card
• 1 x User guide

• Operating System

• Windows© 11, Windows© 10 64-bit

• Form Factor

• EEB Form Factor
• 12 inch x 13 inch (30.5 cm x 33 cm)
