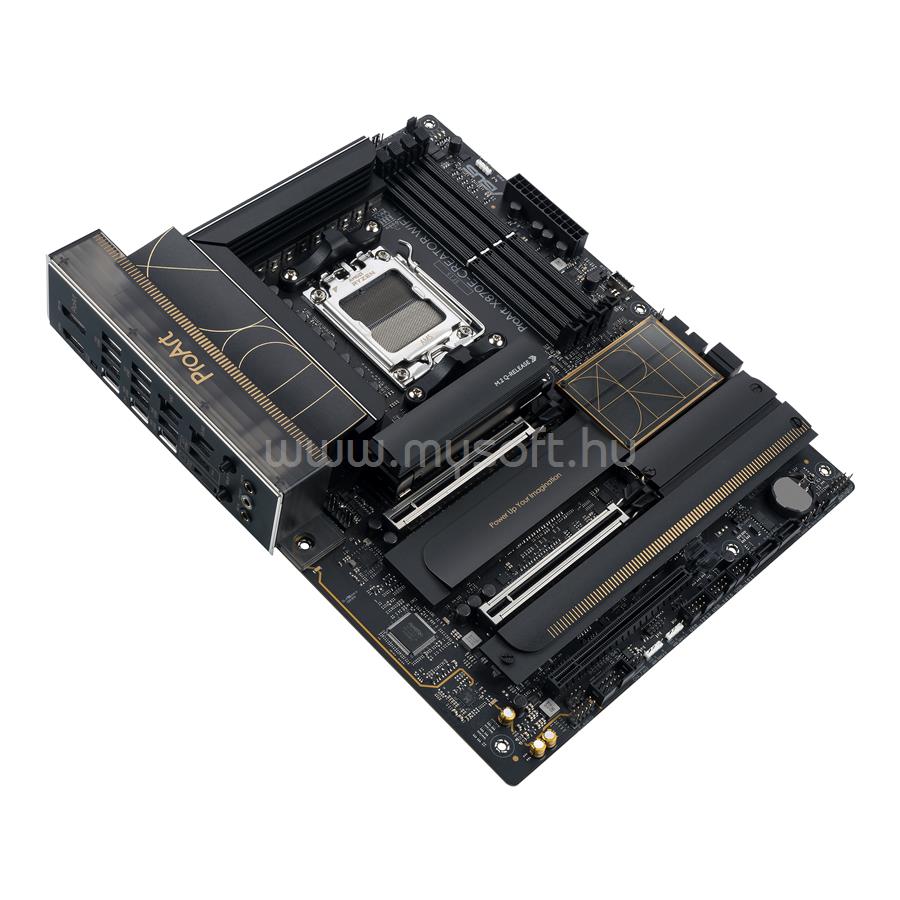

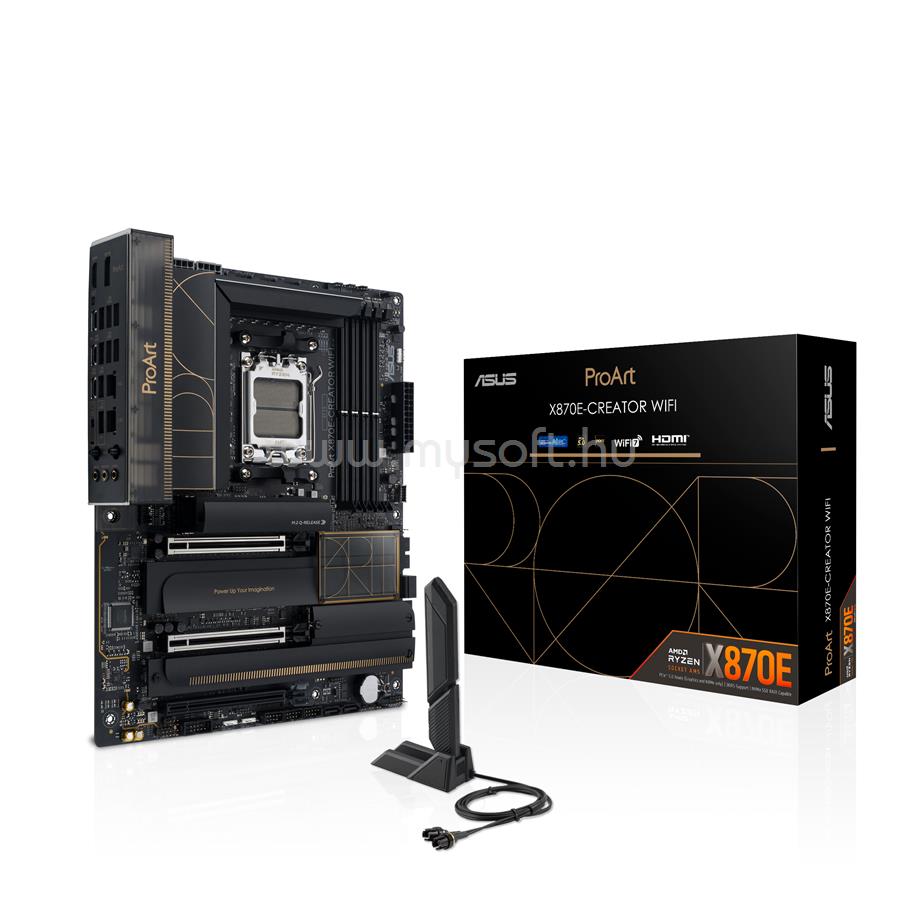

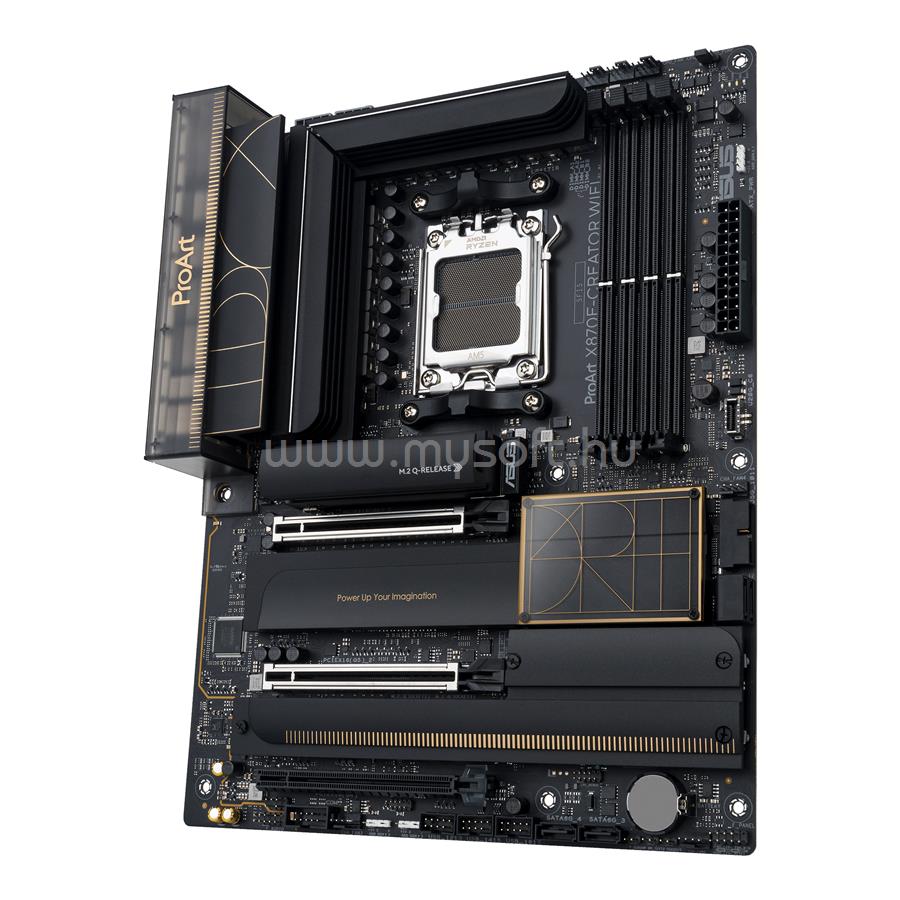

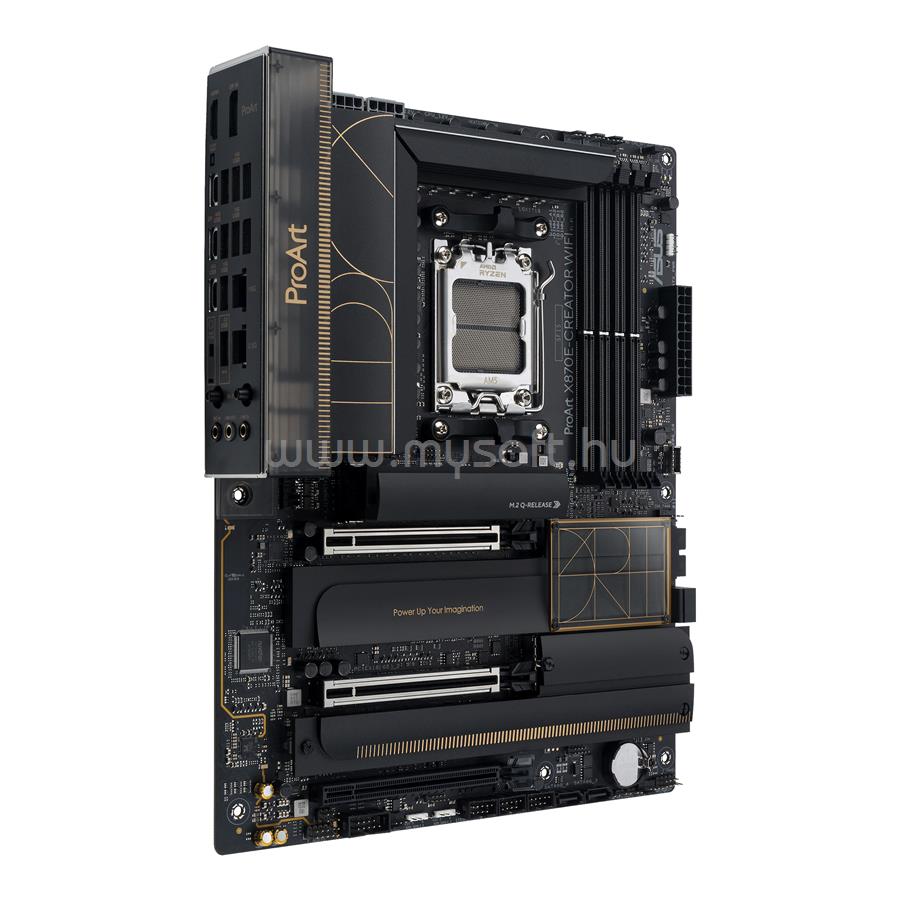

ASUS ALAPLAP PROART X870E-CREATOR WIFI (AM5, ATX)

• CPU

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

• Chipset

• AMD X870E

• Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to
• 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
• 8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for
• Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• ** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• *** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

• Graphics

• 1 x HDMI port**
• 2 x USB4© (40Gbps) ports support USB Type-C© display outputs***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
• AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)
• AMD Ryzen 8500 & 8300 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled)
• AMD X870E Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.
• *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.
• - To ensure compatibility of the device installed, please refer to
• https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot is not supported
• AMD X870E Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
• AMD RAIDXpert2 Technology
• Ryzen 7000 series processors: PCIe RAID 0/1/10
• Ryzen 8000 series processors: PCIe RAID 0/1
• Ryzen 9000 series processors: PCIe RAID 0/1/5/10
• X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

• Ethernet

• 1 x Marvell© AQtion 10Gb Ethernet
• 1 x Intel© 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 11 ports)
• 2 x USB4© (40Gbps) port(s) (2 x USB Type-C©)
• 1 x USB 20Gbps port(s) (1 x USB Type-C©)
• 7 x USB 10Gbps port(s) (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• Front USB (Total 9 ports)
• 1 x USB 20Gbps connector (supports USB Type-C© with up to 30W PD/QC4+)**
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• "* USB Type-C© power delivery output: max. 5V/3.0A"
• ** USB Type-C© power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

• Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• - Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

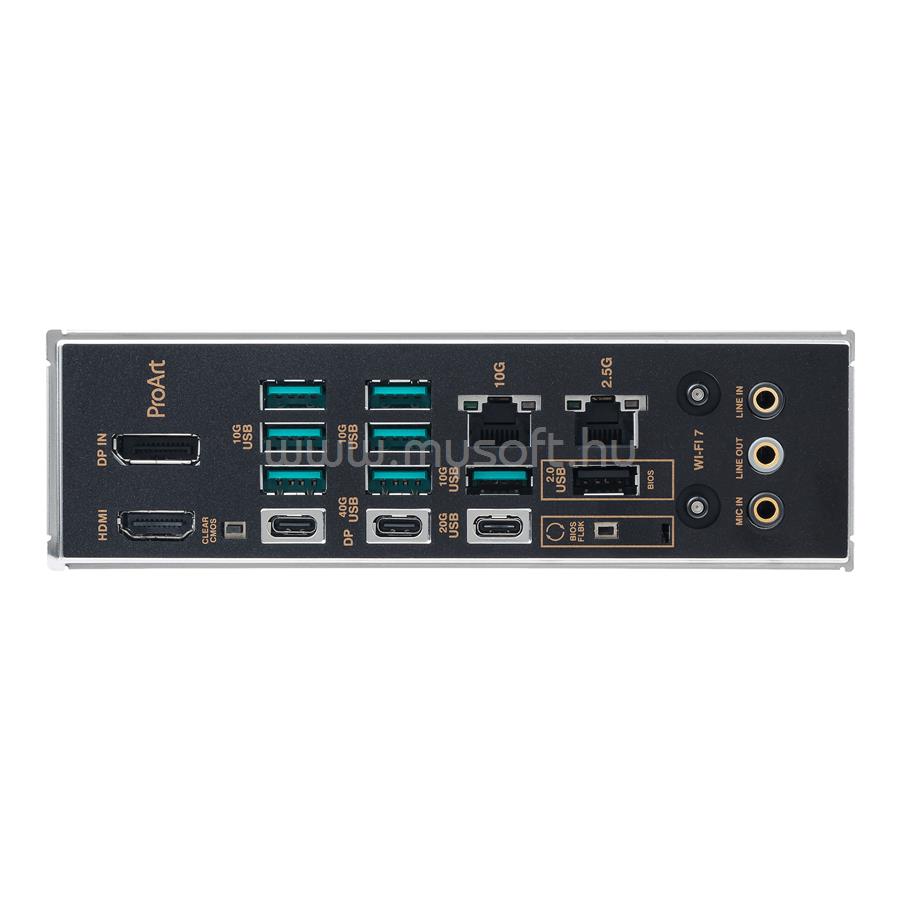

• Back Panel I/O Ports

• 2 x USB4© (40Gbps) port(s) (2 x USB Type-C©)
• 1 x USB 20Gbps port (1 x USB Type-C©)
• 7 x USB 10Gbps ports (7 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x DisplayPort (Input only)
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Marvell© AQtion 10Gb Ethernet
• 1 x Intel© 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 20Gbps connector (supports USB Type-C© with up to 30W PD/QC4+)
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 6 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design)
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• LANGuard
• Overvoltage Protection
• Safeslot
• Stainless-Steel Back I/O
• ASUS Q-Design
• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Connector
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsinks
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• AURA Sync
• Addressable Gen 2 headers
• Bespoke Motherboard Design & Business Focused Features
• 24/7 Reliability
• Overcurrent Protection
• Front Panel USB 20Gbps with Quick Charge 4+ Support
• Support: up to 30W fast charging and USB Wattage Watcher
• Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
• Compatible with PD3.0

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• TurboV Core
• ASUS CPU-Z
• ProArt Creator Hub
• CreationFirst
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• FlexKey

• Remote Management Features

• IT Management software supported
• ASUS Control Center Express(ACCE)

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 1 x DisplayPort cable
• 4 x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Thermal pad for M.2 22110
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Q-connector
• 1 x M.2 Q-Latch package
• 1 x M.2 Q-Latch Q-Slide package for M.2 backplate
• 2 x Rubber Packages for M.2
• 1 x ProArt ruler
• Documentation
• 1 x Quick start guide
• 1 x ACC Express Activation Key Card

• Operating System

• Windows© 11

• Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
