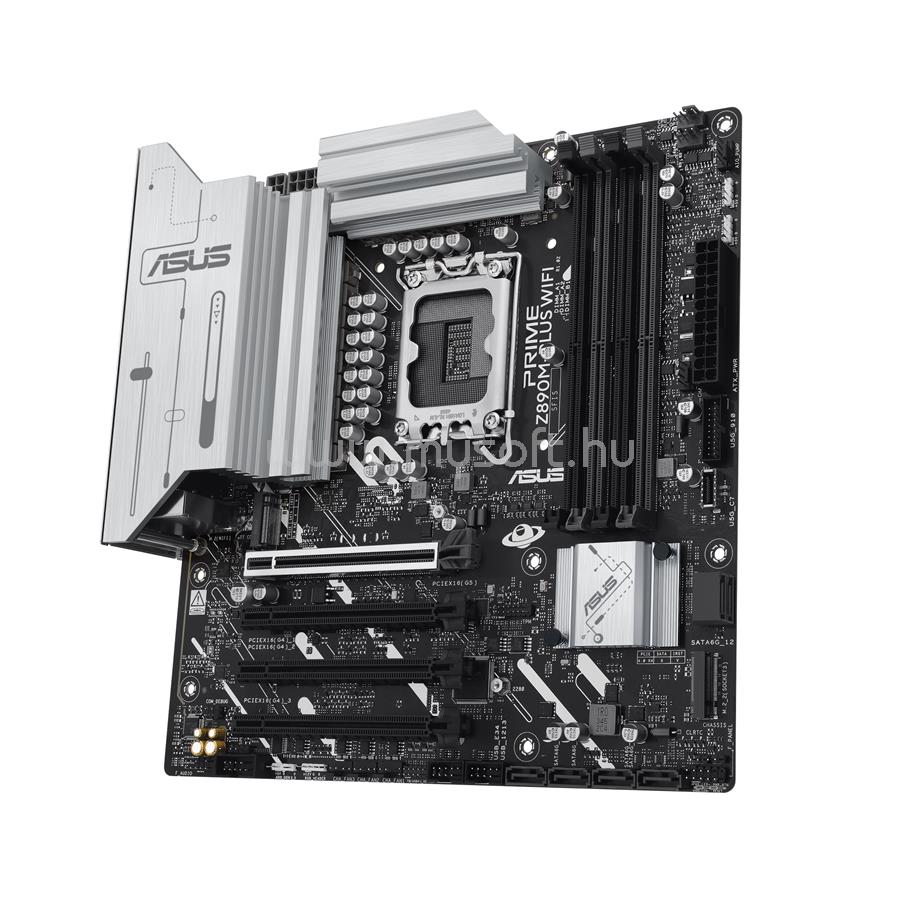

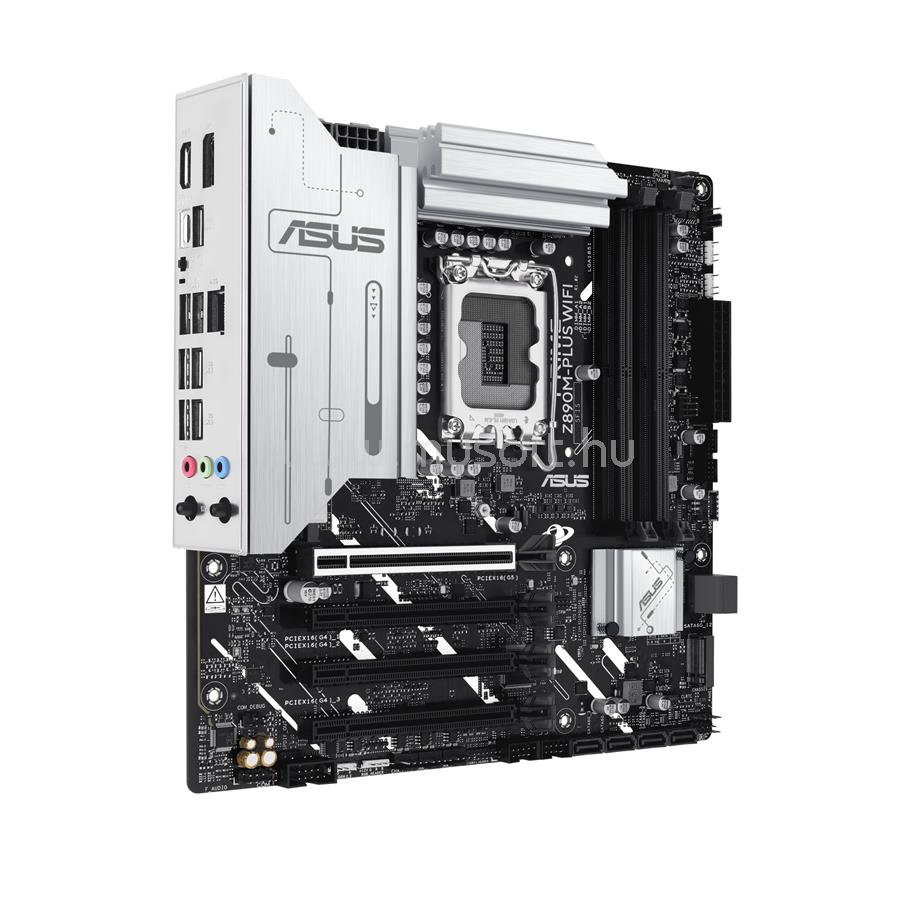

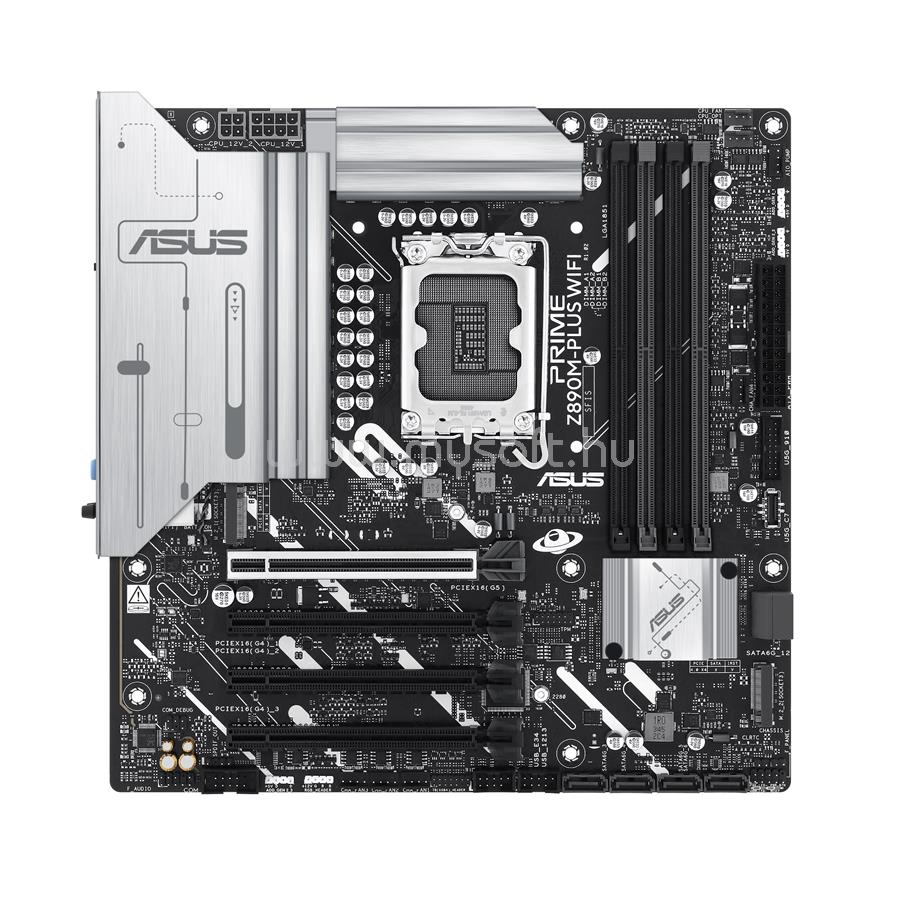

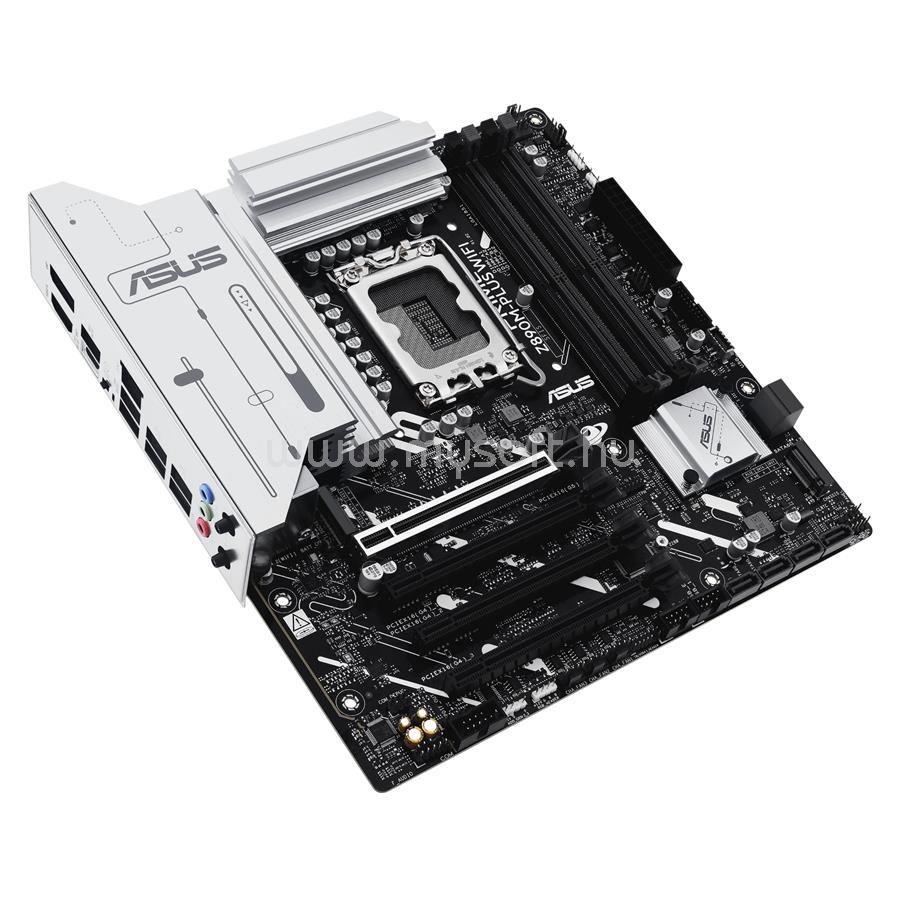

ASUS ALAPLAP PRIME Z890M-PLUS WIFI (LGA1851, MATX)

• CPU

• Supports Intel© Core™ Ultra Processors(Series 2), LGA1851*
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Lapkakészlet

• Intel© Z890 Chipset

• Memória

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel© Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III(AEMPIII)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Grafika

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x USB 20Gbps port (USB Type-C©) supports DisplayPort video output****
• *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• ***Supports 4K@60Hz as specified in HDMI 2.1.
• ****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
• ***** VGA resolution support depends on processors' or graphic cards' resolution.
• ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

• Bővítőhelyek

• Intel© Core Ultra Processors (Series 2)*
• 1 x PCIe 5.0 x16 slot
• Intel© Z890 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 2 x PCIe 4.0 x16 slots (support x1 mode)
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Tároló

• Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
• Intel© Core™ Ultra Processors (Series 2)*
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• Intel© Z890 Chipset
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 6 x SATA 6Gb/s ports
• * Intel© Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

• Vezeték nélküli kapcsolat/Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (1 x USB Type-C© with DP Alt mode)
• 1x USB 10Gbps port (1 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A) **
• Front USB (Total 7 ports)
• 1 x USB 5Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports**
• * USB Type-C© power delivery output: max. 5V/3A
• ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

• Audió

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

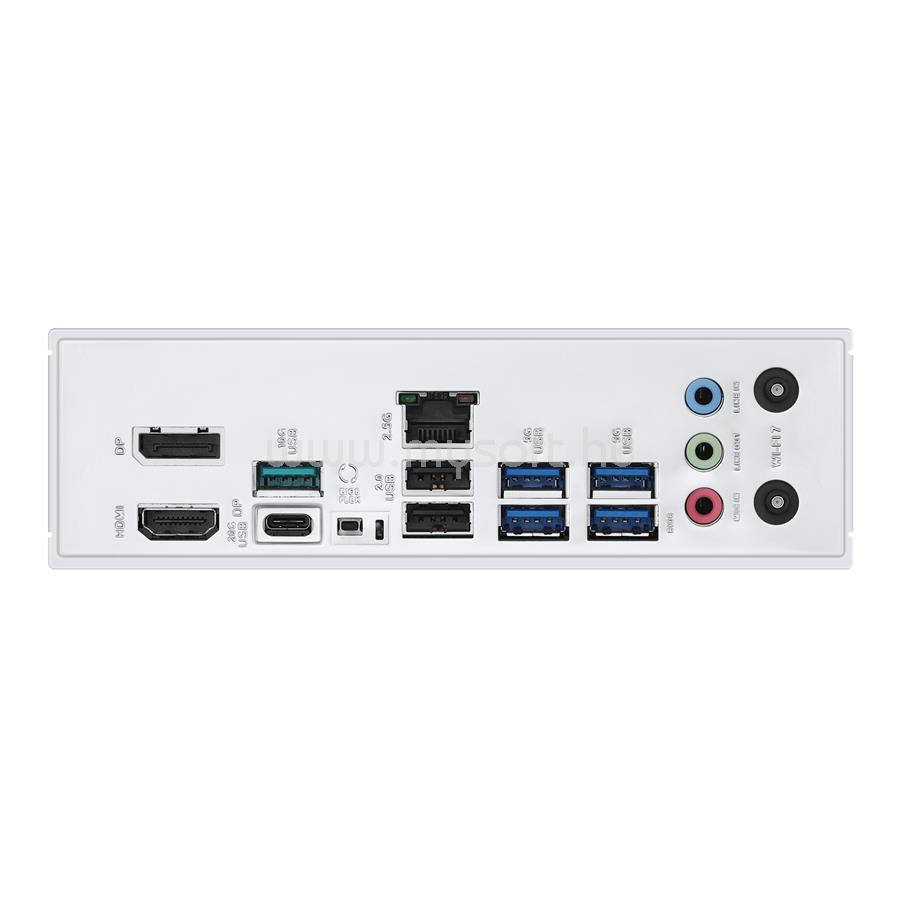

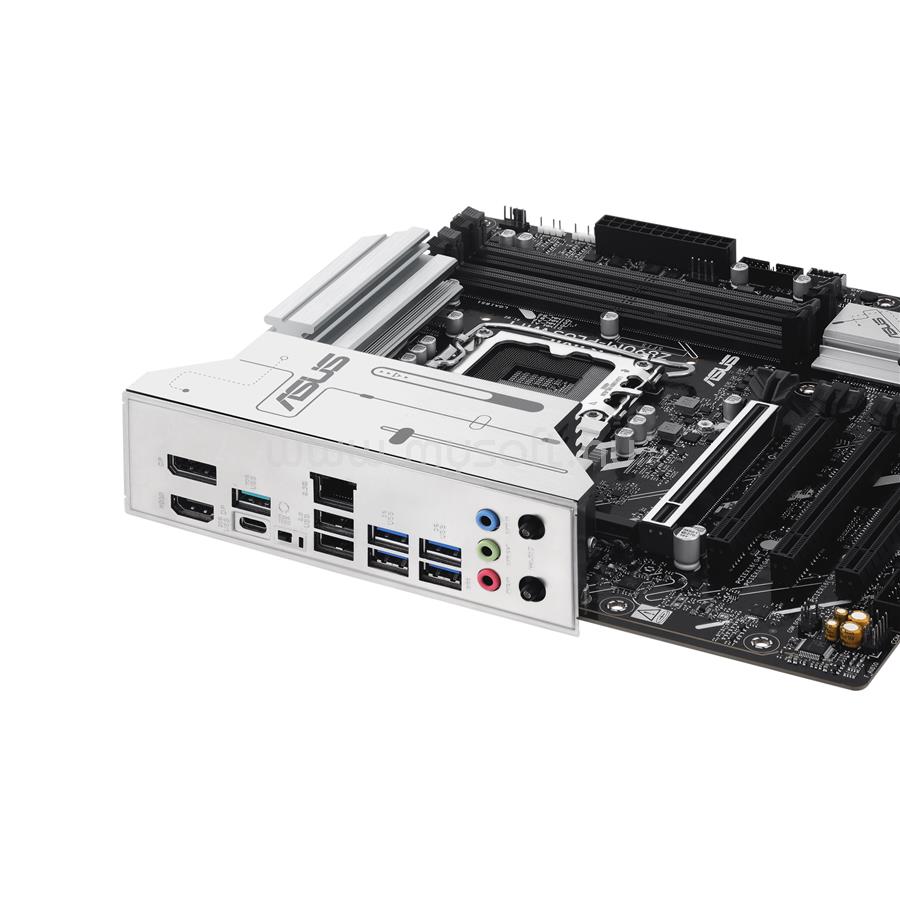

• I/O-csatlakozók a hátlapon

• 1 x USB 20Gbps port (1 x USB Type-C© with DP Alt mode)
• 1x USB 10Gbps port (1 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

• Belső I/O-csatlakozók

• Fan and cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 1 x 4-pin +12V CPU Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin Front Panel System header
• 1 x Thunderbolt™ (USB4©) header

• Speciális funkciók

• ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot
• ASUS Thermal Solution
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• Aura Sync
• Aura RGB header
• Addressable Gen 2 headers

• Szoftverszolgáltatások

• ASUS Exclusive Software
• Armoury Crate
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• NPU Boost (Intel K-series Processors only)

• BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

• Felügyelhetőség

• WOL by PME, PXE

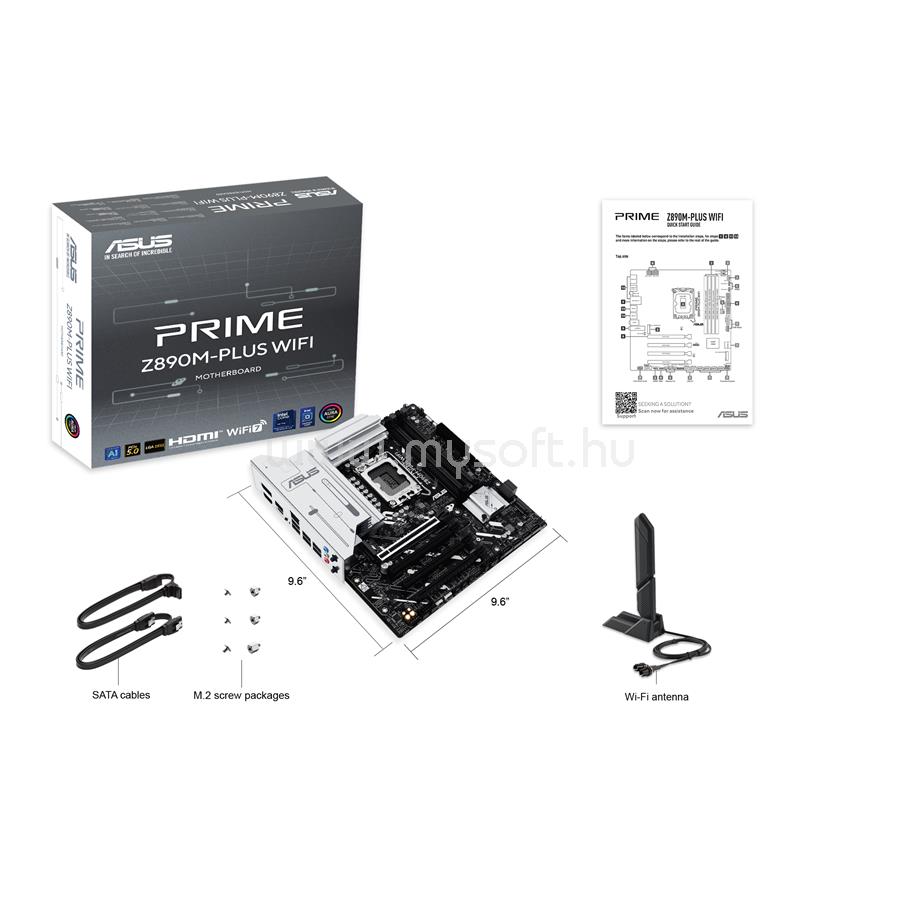

• Tartozékok

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous

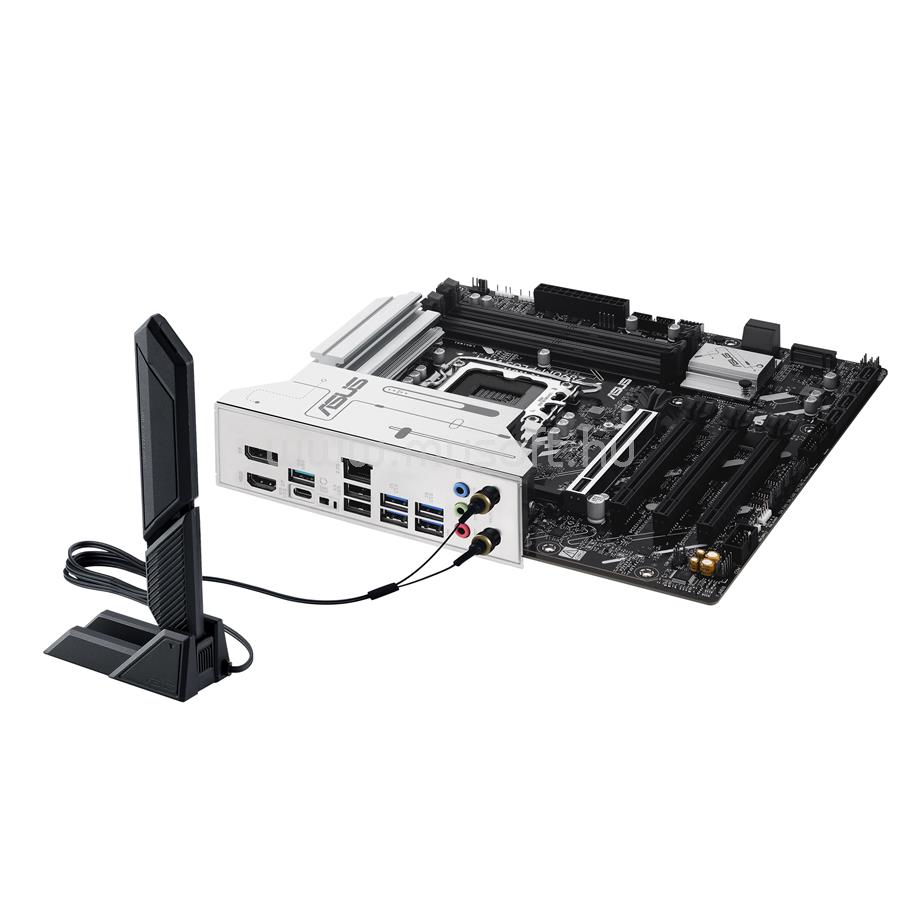

• 1 x ASUS WiFi Q-Antenna
• 3 x Screw packages for M.2 SSD
• Documentation
• 1 x Quick start guide

• Operációs rendszer

• Windows 11 (22H2 & later)

• Méret

• mATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
