ASUS ALAPLAP PRIME X870-P WIFI (AM5, ATX)

• CPU

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

• Chipset

• AMD X870 Chipset

• Memory

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x HDMI port**
• 2 x USB4© (40Gbps) ports support USB Type-C© display outputs***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
• *** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD X870 Chipset
• 3 x PCIe 4.0 x16 slots (support x1 mode)***
• ** Specifications vary by CPU types.
• *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
• *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.

• Storage

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• AMD X870 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***
• 2 x SATA 6Gb/s ports***
• * PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
• ** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
• *** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
• AMD RAIDXpert2 Technology
• Ryzen™ 9000 Series Processors: RAID 0/1/5/10
• Ryzen™ 8000 Series Processors: RAID 0/1
• Ryzen™ 7000 Series Processors: RAID 0/1/10
• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• AMD X870 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
• M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***
• 2 x SATA 6Gb/s ports***
• * PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
• ** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
• *** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
• AMD RAIDXpert2 Technology
• Ryzen 9000 Series Processors: RAID 0/1/5/10
• Ryzen 8000 Series Processors: RAID 0/1
• Ryzen 7000 Series Processors: RAID 0/1/10

• Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 10 ports)
• 2 x USB4© (40Gbps) ports (2 x USB Type-C©)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 10Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C© power delivery output: max. 5V/3A

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

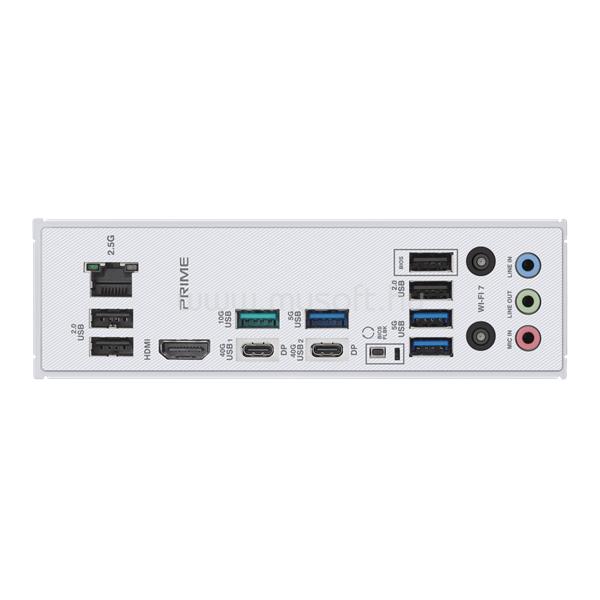

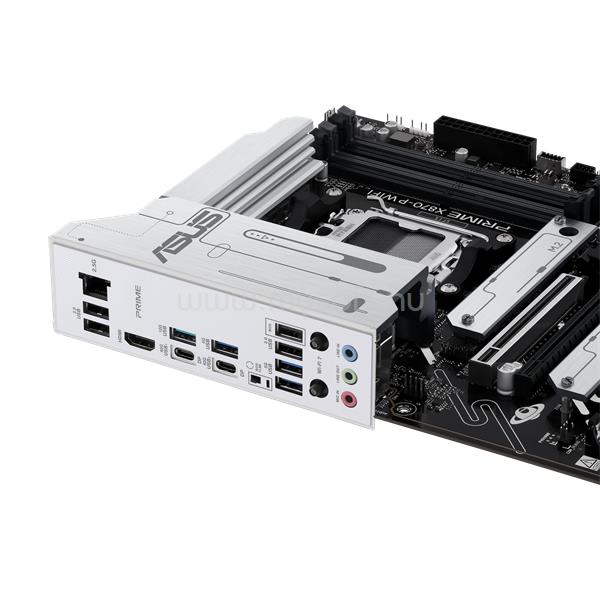

• Back Panel I/O Ports

• 2 x USB4© (40Gbps) ports (2 x USB Type-C©)
• 1 x USB 10Gbps port (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack button

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• Storage Related
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O
• ASUS Q-Design
• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot
• ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• Aura Sync
• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber package
• 2 x Screw packages for M.2 SSD
• Documentation
• 1 x Quick start guide

• Operating System

• Windows 11

• Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
