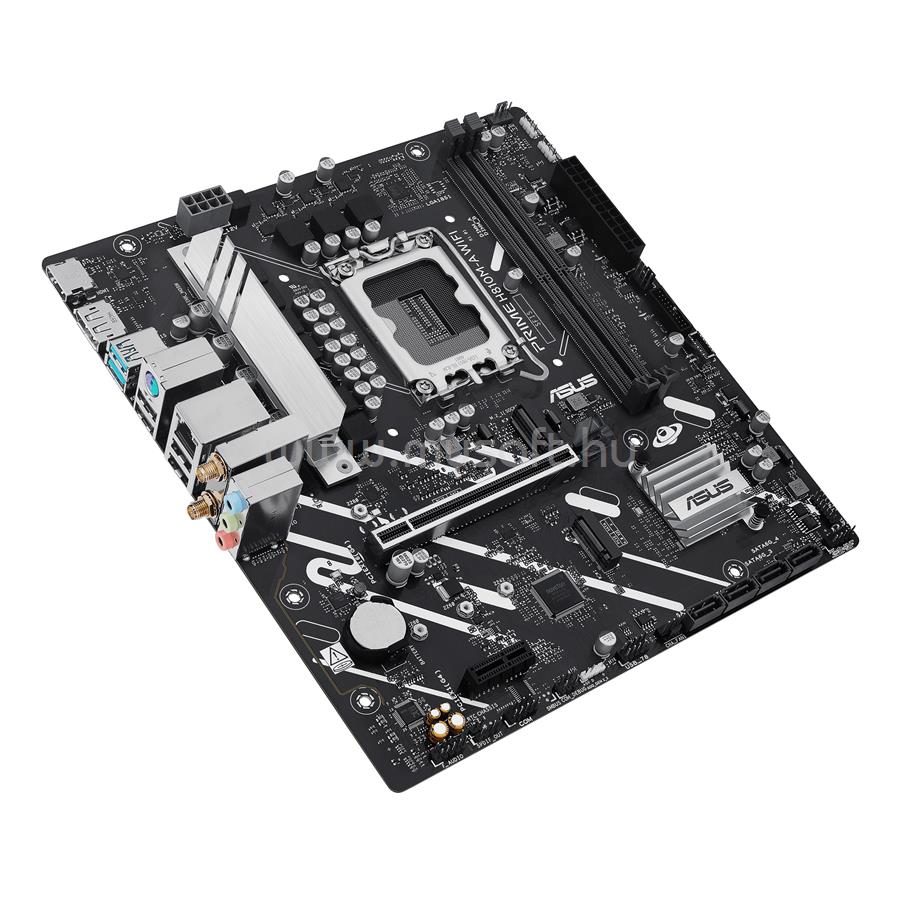

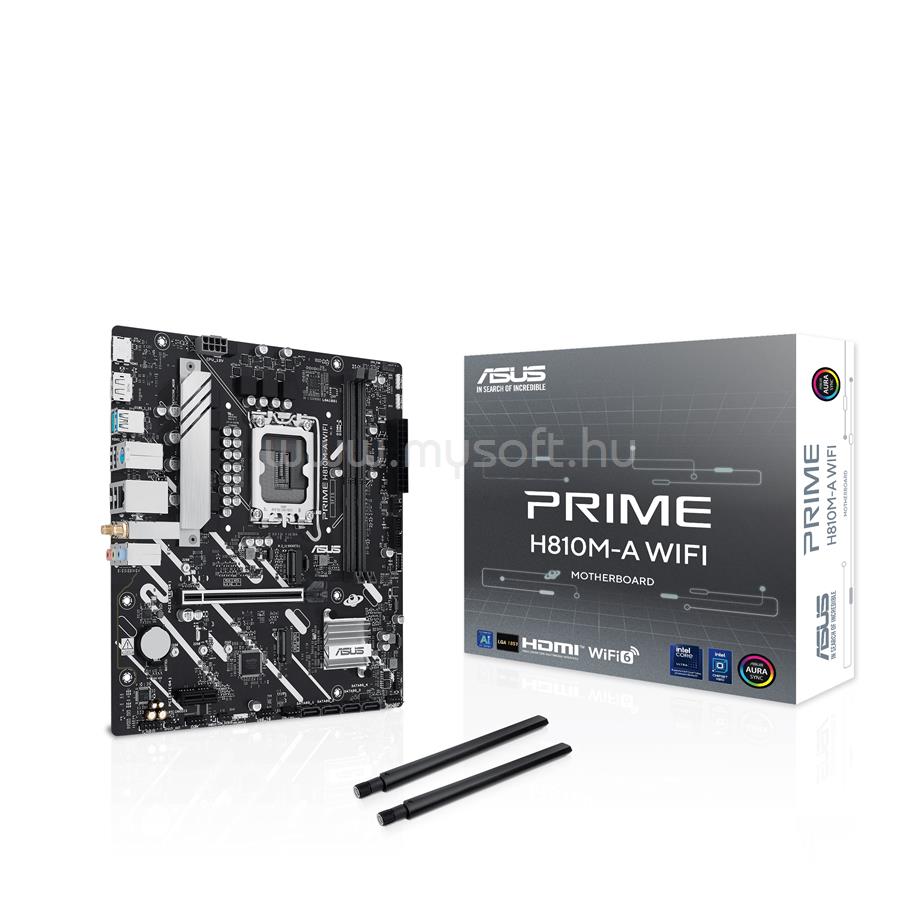

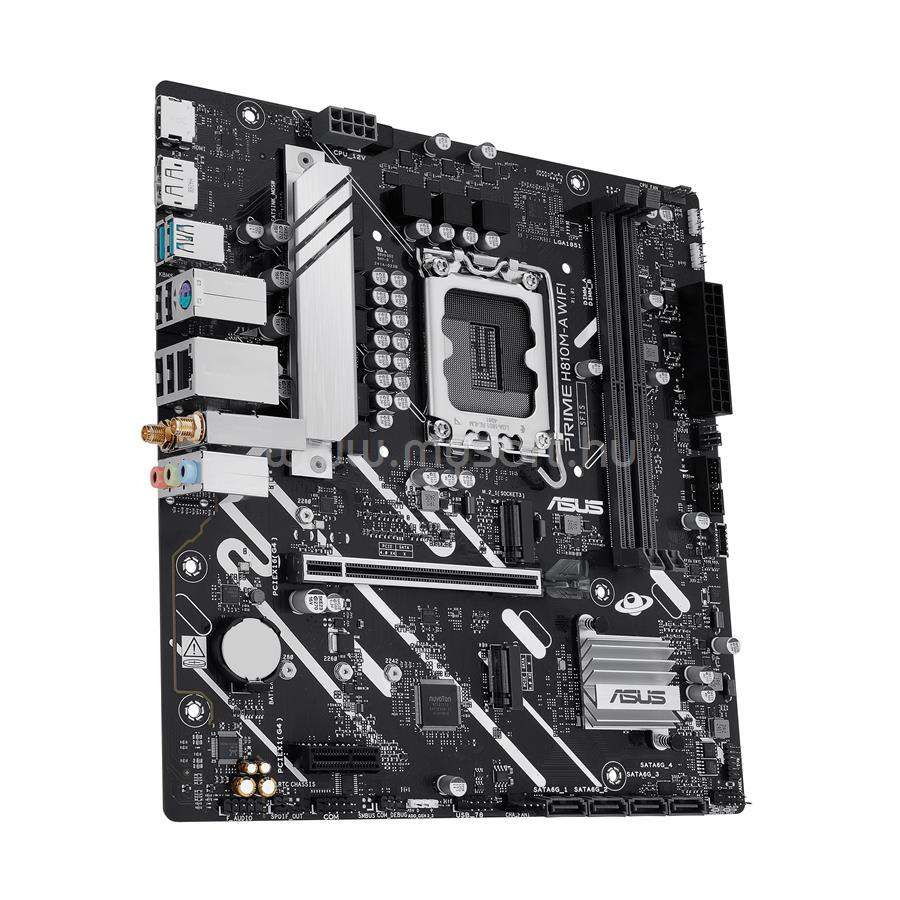

ASUS ALAPLAP PRIME H810M-A WIFI (LGA1851, MATX)

• CPU

• Support Intel© Core Ultra Processors (Series 2) , LGA1851
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0**
• * Refer to https://www.asus.com/support/download-center/ for CPU support list.
• ** Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel© H810 Chipset

• Memory

• 2 x DIMM slots, max. 128GB, DDR5
• Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel© Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile II (AEMP II)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• Intel© Core Ultra Processors (Series 2)
• 1 x PCIe 4.0 x16 slot
• Intel© H810 Chipset
• 1 x PCIe 4.0 x1 slot
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel© H810 Chipset
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
• 4 x SATA 6Gb/s ports

• Ethernet

• 1 x Intel© 1Gb Ethernet port*
• ASUS LANGuard
• *With Intel© I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

• Wireless & Bluetooth

• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11ax)
• Supports 2.4/5GHz frequency band
• Bluetooth© v5.3*
• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 6 ports)
• 2 x USB 10Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 5Gbps connector (supports USB Type-C©)*
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• * USB Type-C© power delivery output: max. 5V/3A
• ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

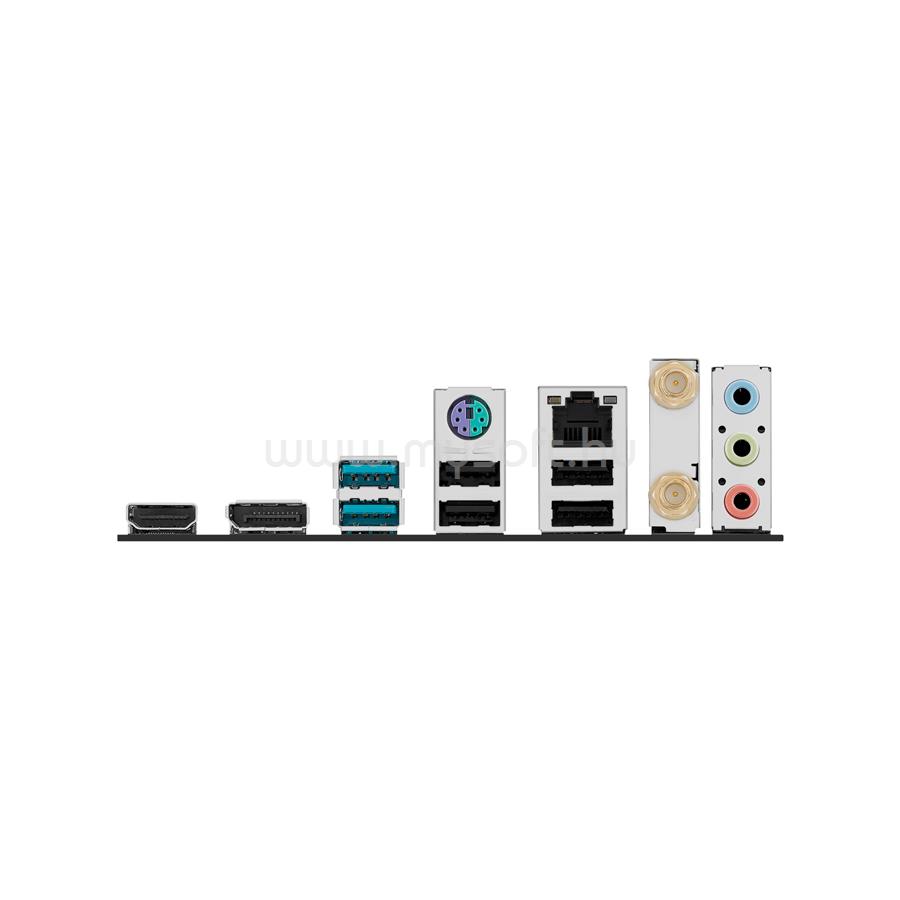

• Back Panel I/O Ports

• 2 x USB 10Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel© 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 keyboard/mouse combo port

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front Panel System header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage protection
• SafeSlot Core+
• Stainless-steel back I/O
• ASUS Q-Design
• Q-DIMM
• Q-Dashboard
• Q-LED Core
• Q-Slot
• ASUS Thermal Solution
• VRM heatsink design
• Aura Sync
• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

• BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antenna
• 1 x I/O shield
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x Quick start guide

• Operating System

• Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
