ASUS ALAPLAP PRIME B860M-A WIFI (LGA1851, MATX)

• CPU

• Support Intel© Core Ultra Processors (Series 2) , LGA1851*
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0
• *Refer to https://www.asus.com/support/download-center/ for CPU support list.
• **Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel© B860 Chipset

• Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel© Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)
• *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 2 x DisplayPort**
• 1 x HDMI™ port***
• 1 x USB 20Gbps port (USB Type-C©) supports DisplayPort video output**
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• **** Supports max. 4K@120Hz as specified in DisplayPort 1.4.
• ***** VGA resolution support depends on processors' or graphic cards' resolution.
• ******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

• Expansion Slots

• Intel© Core Ultra Processors(series 2)
• 1 x PCIe 5.0 x16 slot
• Intel© B860 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel© Core™ Ultra Processors (Series 2) *
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• Intel©B860 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
• 4 x SATA 6Gb/s ports
• * Intel© Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth© v5.3**
• * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
• ** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (1 x USB Type-C© with DP Alt mode)
• 1 x USB 10Gbps port (1 x Type-A )
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)**
• Front USB (Total 5 ports)
• 1 x USB 10Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• *USB Type-C© power delivery output: max. 5V/3A
• **USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

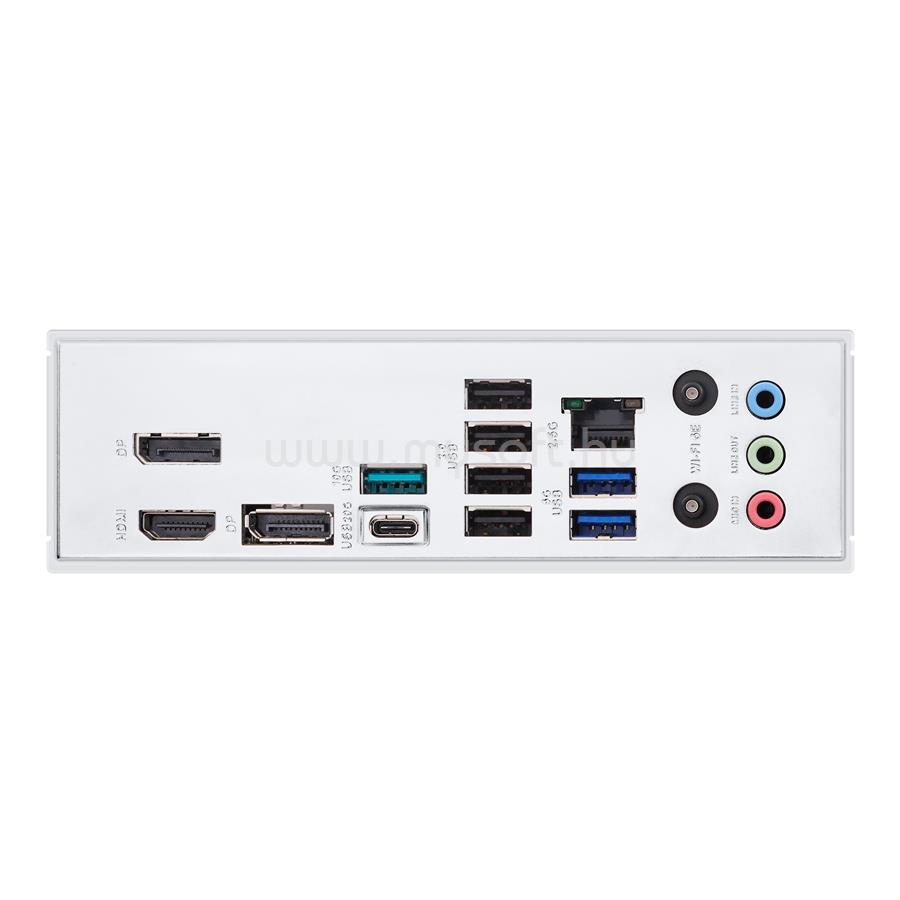

• Back Panel I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C© with DP Alt mode)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A )
• 2 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front System Panel header
• 1 x Thunderbolt (USB4©) header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O
• ASUS Q-Design
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• ProCool
• Pre-mounted I/O shield
• Aura Sync
• Aura RGB header
• Addressable Gen2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

• BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x M.2 rubber package
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x Quick start guide

• Operating System

• Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
