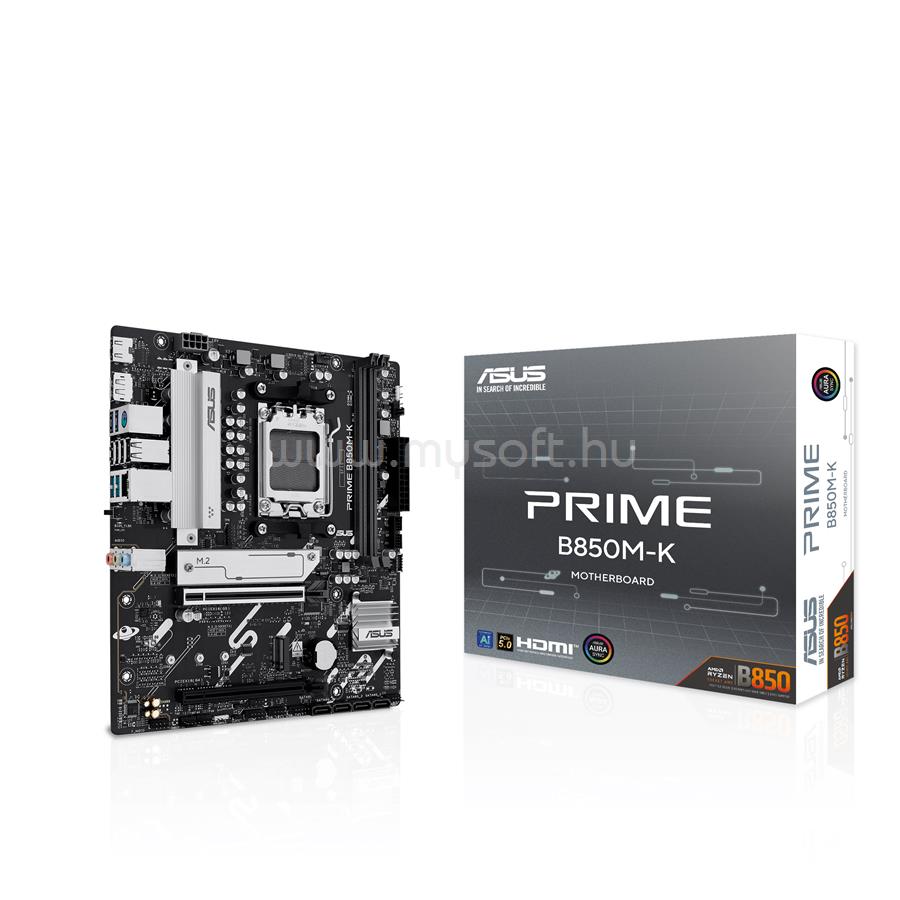

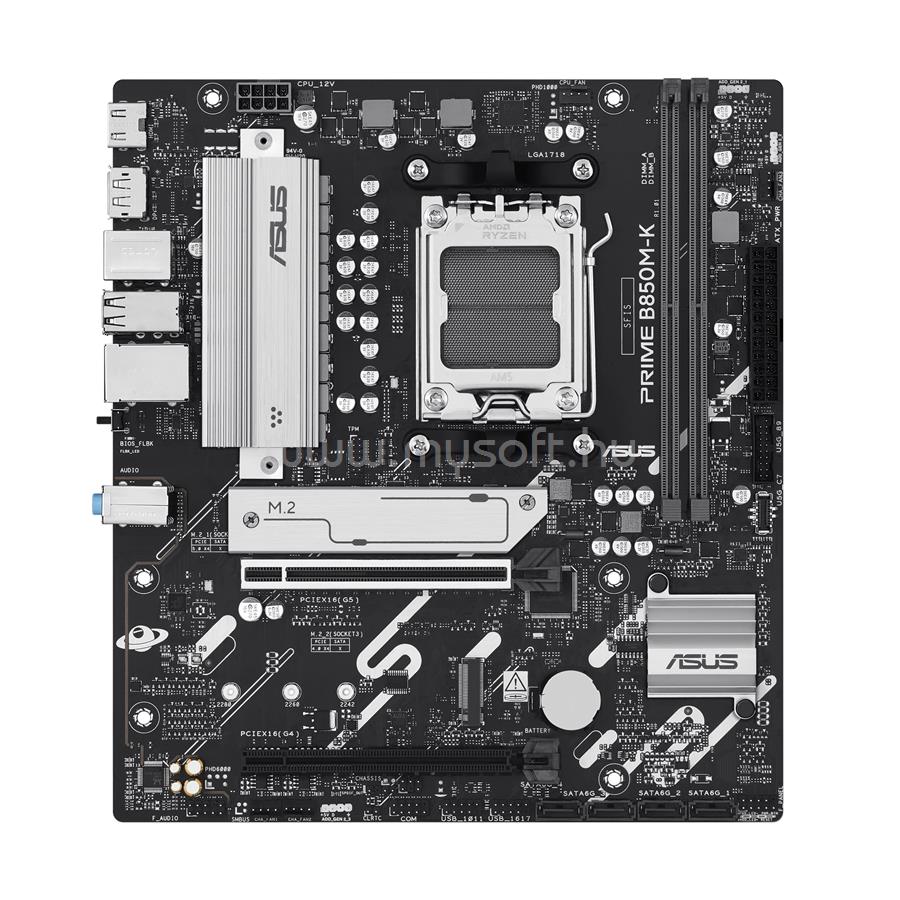

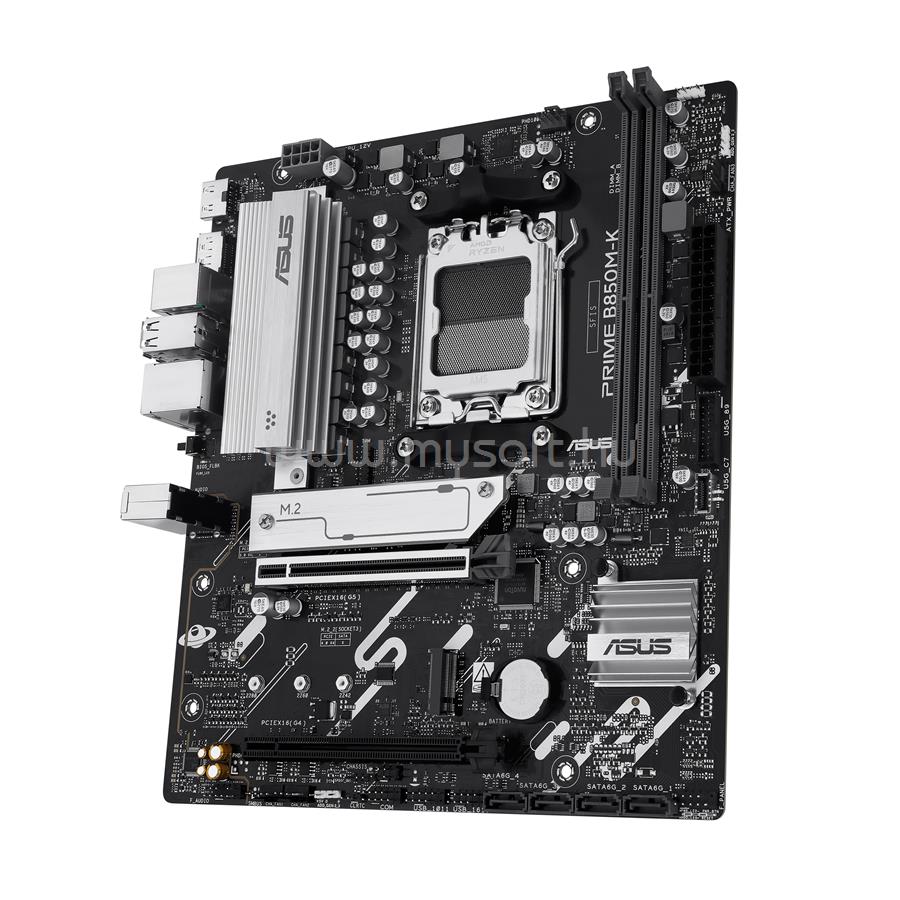

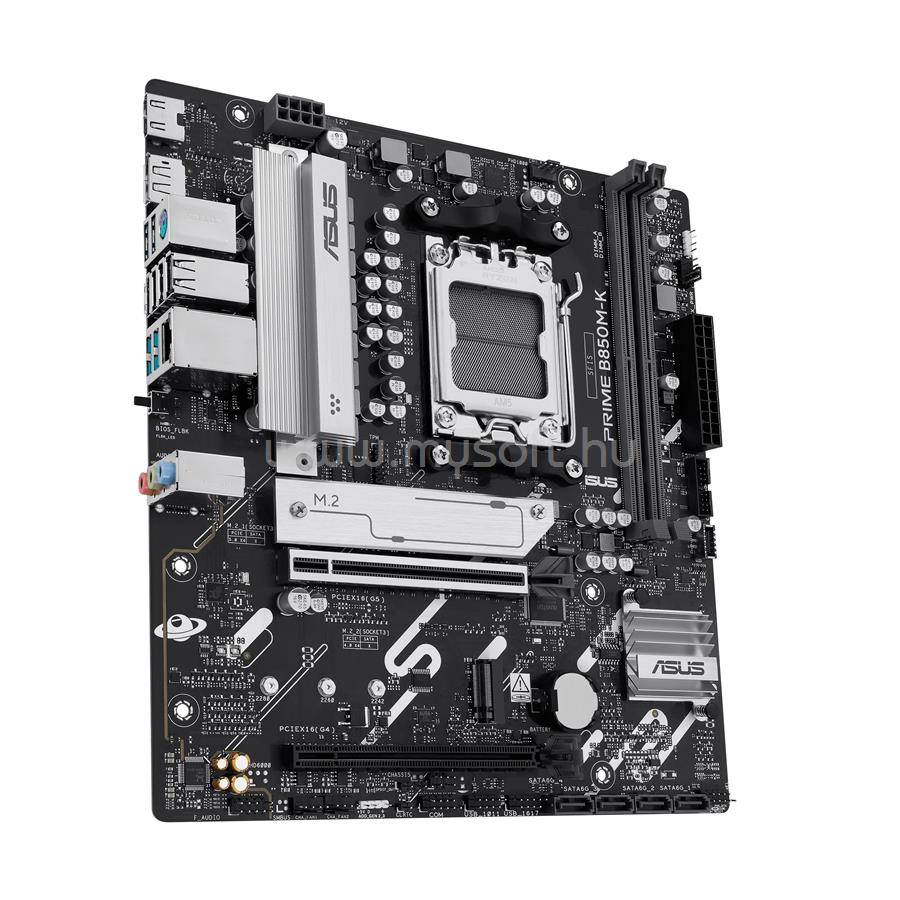

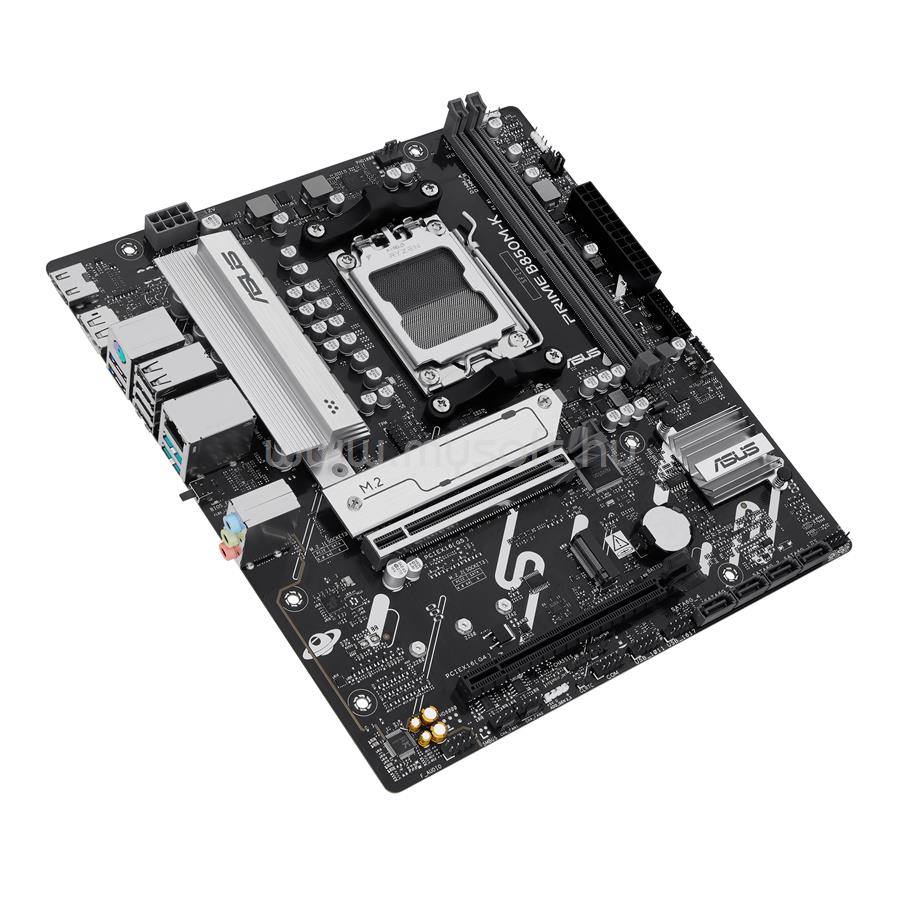

ASUS ALAPLAP PRIME B850M-K (AM5, MATX)

• CPU

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

• Chipset

• AMD B850 Chipset

• Memory

• 2 x DIMM slots, max. 128GB, DDR5 Supports up to
• 8200+MT/s(OC) with Ryzen 9000 Series Processors,
• 8400+MT/s(OC) with Ryzen 8000 Series Processors,
• 8000+MT/s(OC) with Ryzen 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B850 Chipset
• 1 x PCIe 4.0 x16 slot (support x4 mode)
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** Specifications vary by CPU types.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported

• Storage

• Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• AMD Ryzen 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
• AMD B850 Chipset
• 4 x SATA 6Gb/s ports
• * Specifications vary by CPU types.
• AMD RAIDXpert2 Technology
• Ryzen 9000 Series Processors: RAID 0/1/5/10
• Ryzen 8000 Series Processors: RAID 0/1
• Ryzen 7000 Series Processors: RAID 0/1/10

• Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

• USB

• Rear USB (Total 8 ports)
• 2 x USB 10Gbps ports (2 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 5Gbps connector (supports USB Type-C©)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB Type-C© power delivery output: max. 5V/3A

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

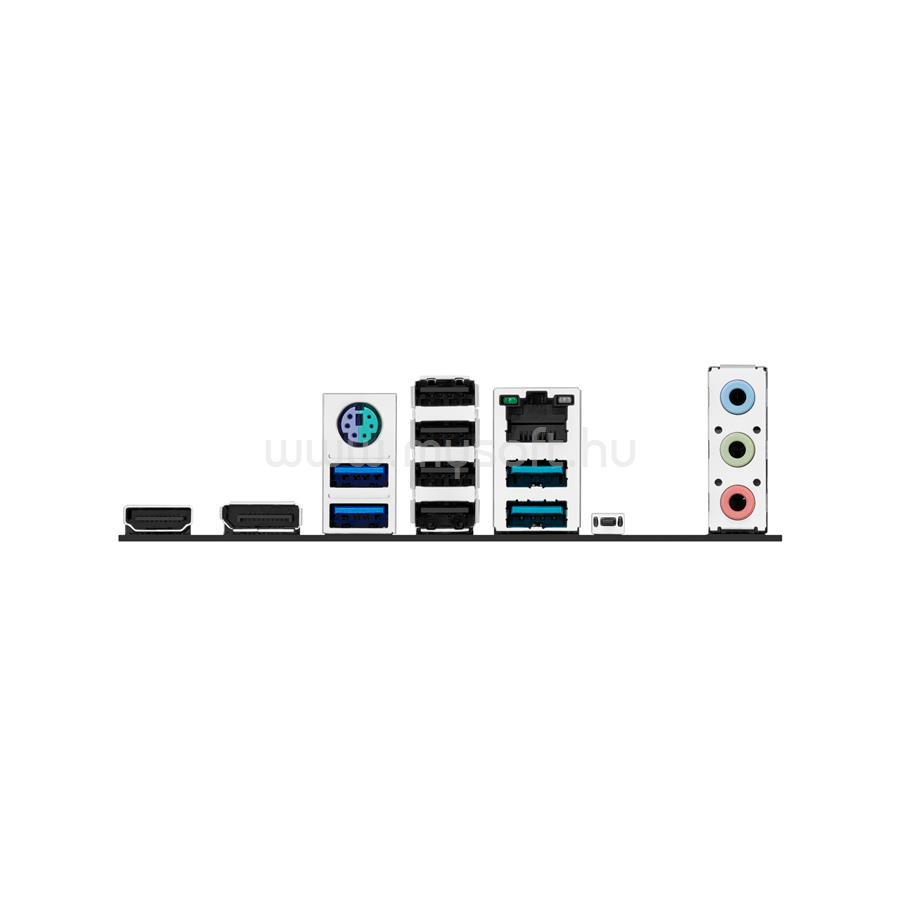

• Back Panel I/O Ports

• 2 x USB 10Gbps ports (2 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 3 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable RGB Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage protection
• SafeSlot
• Stainless-steel back I/O
• ASUS Q-Design
• Q-Dashboard
• Q-DIMM
• Q-LED Core
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• SafeSlot
• Aura Sync
• Addressable RGB Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• ASUS AI Advisor
• ASUS DriverHub
• TurboV Core
• ASUS CPU-Z
• Adobe Creative Cloud (Free Trial)
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 rubber package
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x Quick start guide

• Operating System

• Windows© 11, Windows© 10 64-bit

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
