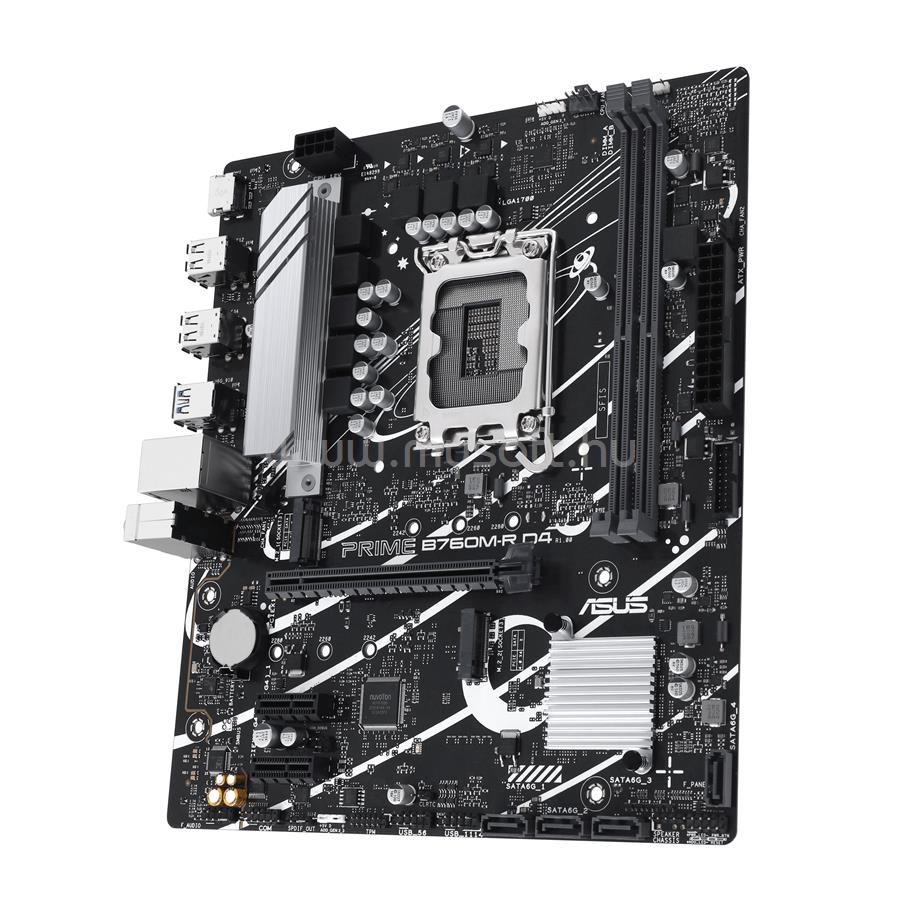

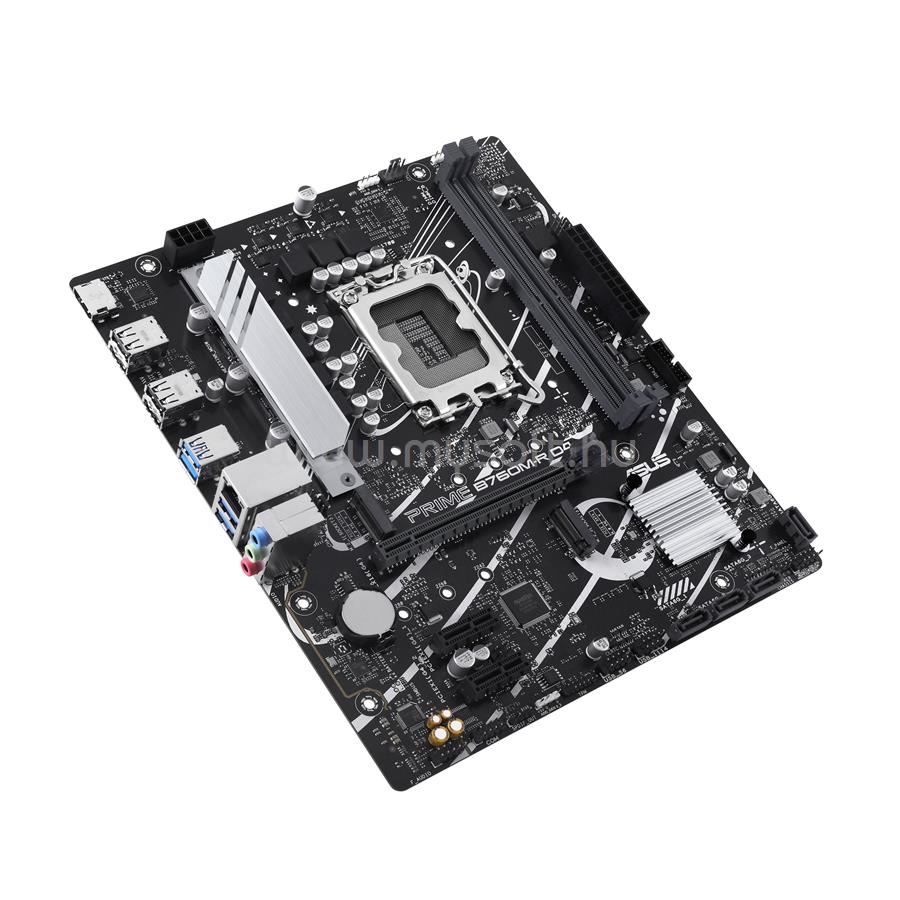

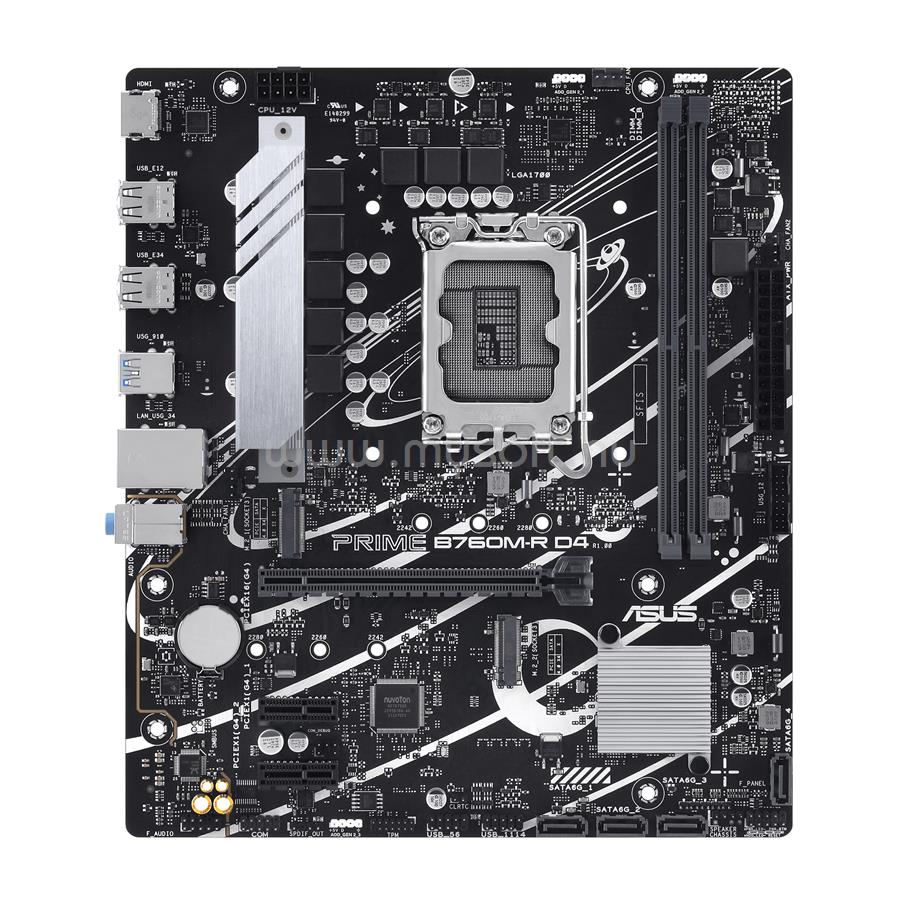

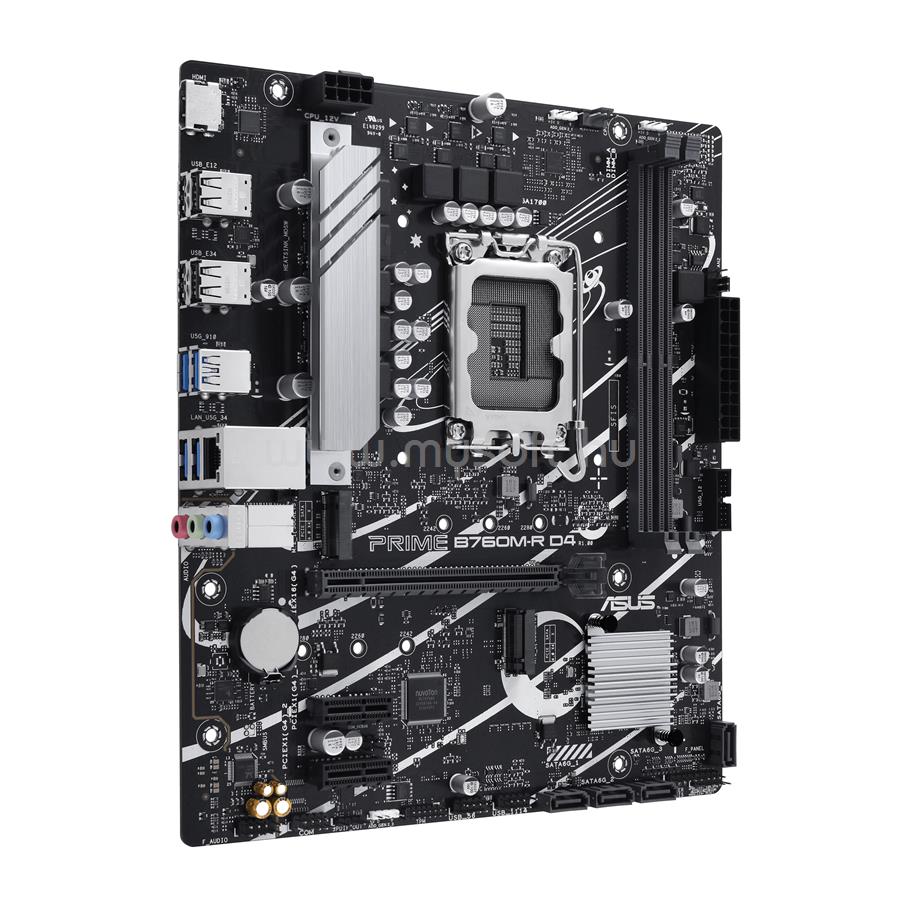

ASUS ALAPLAP PRIME B760M-R D4 (LGA1700, MATX)

• CPU

• Intel© Socket LGA1700 for Intel© Core 14th & 13th Gen Processors, Intel© Core 12th Gen, Pentium© Gold and Celeron© Processors*
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list.
• ** Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset

• Intel© B760 Chipset

• Memory

• 2 x DIMM slots, Max. 64GB, DDR4
• 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual channel memory architecture
• Supports Intel© Extreme Memory Profile (XMP) memory module
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

• Graphics

• 1 x HDMITM port**
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• Intel© Core Processors (14th & 13th & 12th Gen)
• 1 x PCIe 4.0 x16 slot
• Intel© B760 Chipset
• 2 x PCIe 4.0 x1 slots
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• Intel© Core Processors (14th & 13th & 12th Gen)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel© B760 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• * Intel© Rapid Storage Technology supports SATA RAID 0/1/5/10.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet

• USB

• Rear USB (Total 8 ports)
• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)*
• Front USB (Total 6 ports)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

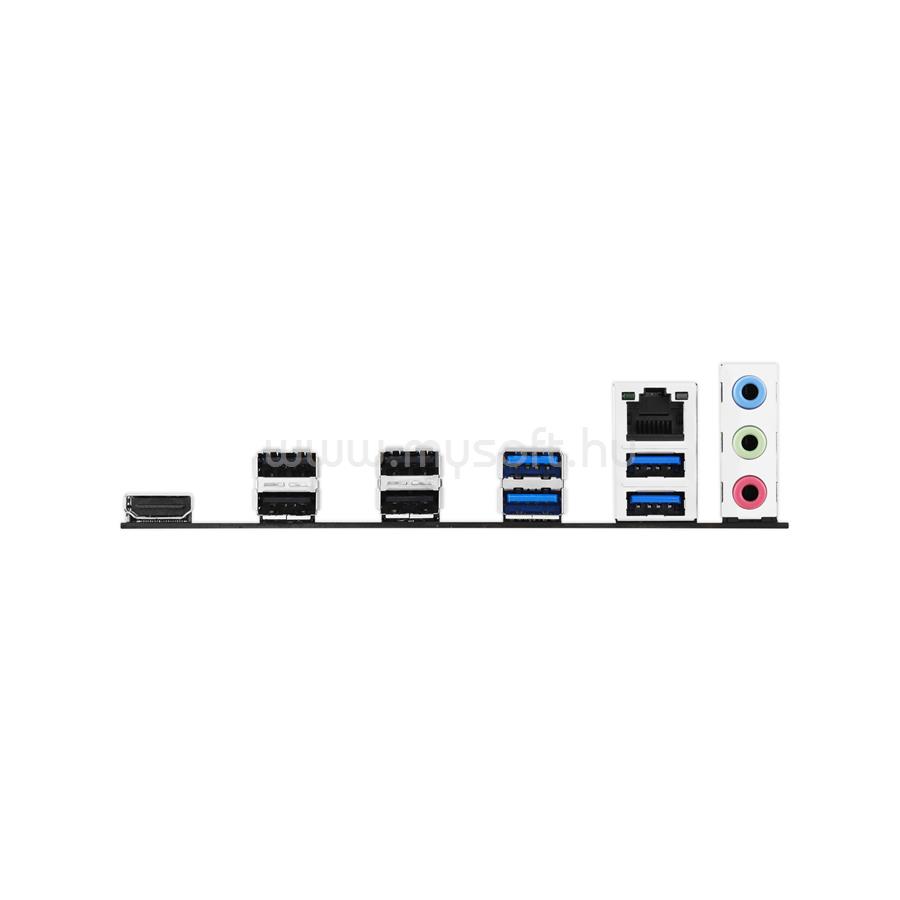

• Back Panel I/O Ports

• 4 x USB 5Gbps ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front panel audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage protection
• SafeSlot Core
• Stainless-steel back I/O
• ASUS Q-Design
• Q-DIMM
• Q-LED Core
• Q-Slot
• ASUS EZ DIY
• ProCool
• ASUS Thermal Solution
• VRM heatsink design
• Aura Sync
• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancelation
• AI Suite 3
• DIGI+ VRM
• PC Cleaner
• ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

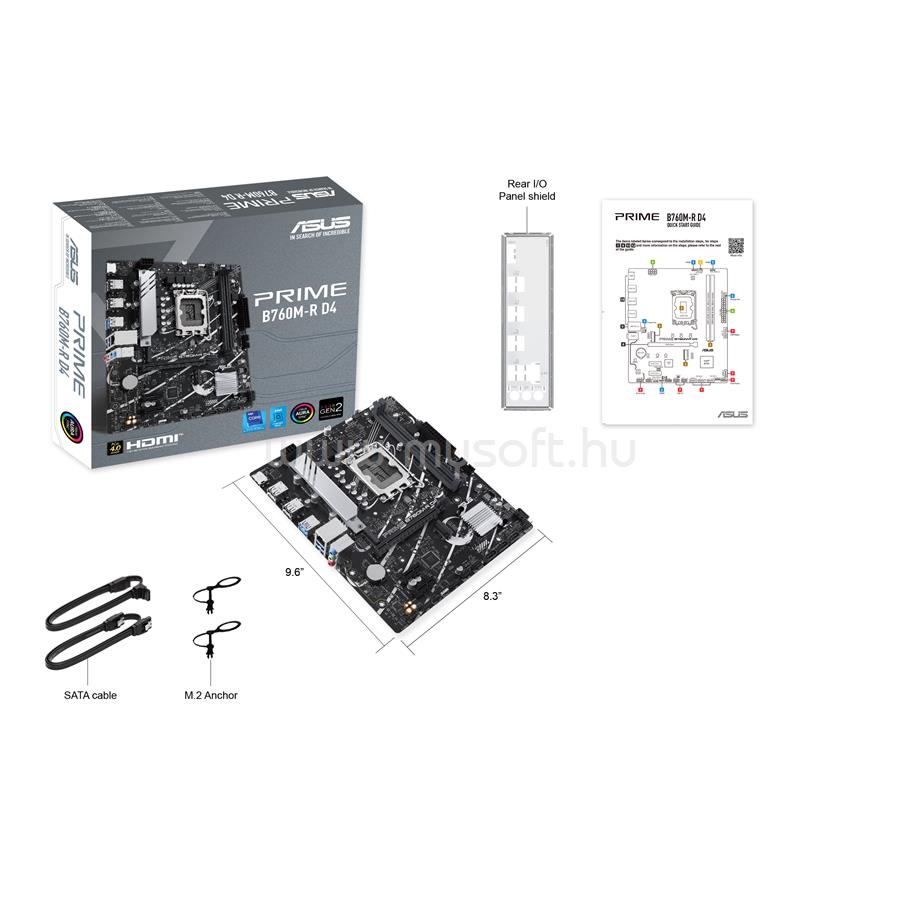

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O shield
• 2 x M.2 anchors
• Documentation
• 1 x Quick start guide

• Operating System

• Windows© 11, Windows© 10 64-bit

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
