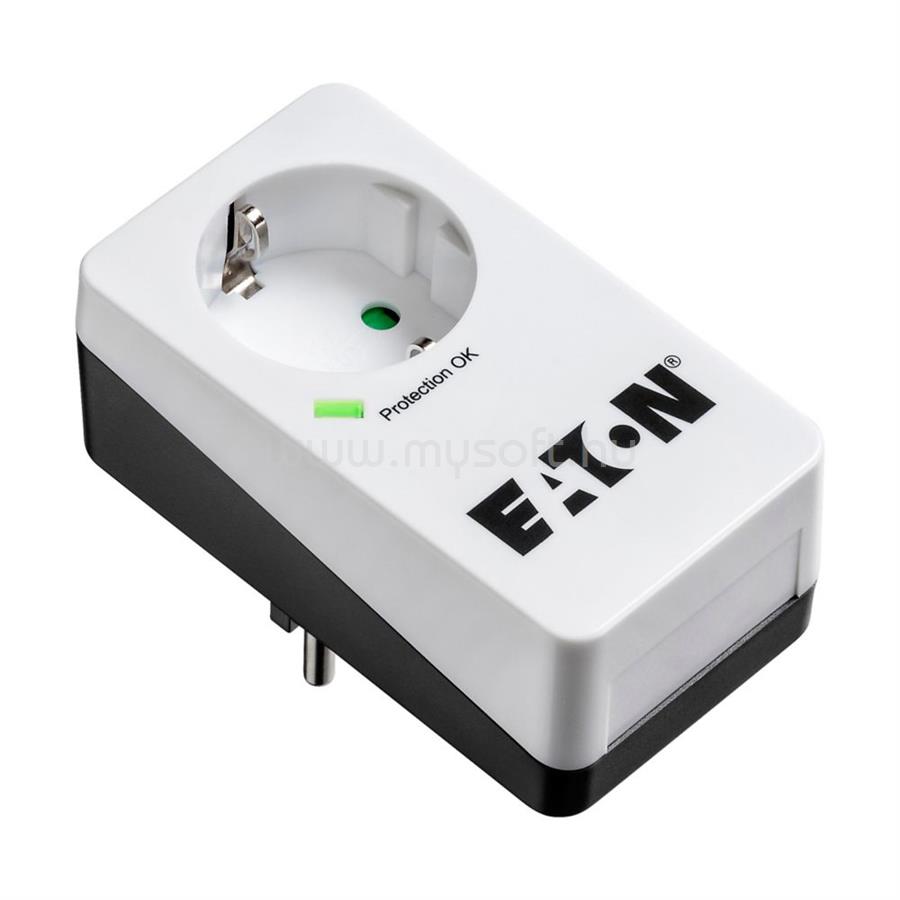

EATON PROTECTIONBOX 1, 1×DIN TÚLFESZÜLTSÉGVÉDŐ ALJZAT

• General specifications

• Product Length/Depth
• 98 mm
• Product Height
• 55 mm
• Product Width
• 72.5 mm
• Product Weight
• 0.115 kg
• Compliances
• CE Marked
• EAC
• Certifications
• IEC/EN 60884-1
• IEC/EN 61643-11
• Model Code
• Eaton Protection Box 1 DIN

• Additional specifications

• Type
• Surge Suppressor
• Special features
• High end surge protection device implementing Schuko (DIN) socket, IEC 61643-11 compliant, including connected equipment warranty
• Package contents
• Surge suppressor device
• Quickstart guide
• Color
• Black/white
• RAL-number
• 9003
• Housing shape
• Rectangular
• Mounting Method
• 35 mm DIN rail
• Material
• Plastic
• Material quality
• Other
• Surface finish
• Matt/Matte
• Surface protection
• Other
• Transparent
• No
• Power cord length
• 0

• Electrical Specifications

• Operating voltage
• 220-250 V
• Nominal frequency
• 50-60 Hz
• Amperage Rating
• 10A
• Phase
• Single-phase
• Circuit breaker
• No
• Residual current circuit breaker
• No
• Internet/tel line protection
• No

• Connectivity & Outlets

• Input connection
• Protective contact (SCHUKO)
• Number of socket outlets with protective contact
• 1
• Number of cold device socket outlets
• 8
• Number of outputs (other)
• 8
• Number of outlets
• 1
• Number of USB connections
• 0
• Number of NEMA-Outlets
• 0
• NEMA designation
• None
• Angle of rotated central insert
• Other

• Indicators & Controls

• Indicator type
• Color LED
• Switchable
• Yes

• Environmental & Safety

• Degree of Protection
• IP20
• Operating temperature - min
• 0 °C
• Operating temperature - max
• 40 °C
• Halogen Free
• No
