ASROCK ALAPLAP N100DC-ITX (MINI-ITX)

• Unique Feature

• Rock-Solid Durability
• 2+1+1 Power Phase EZ Update
• ASRock Auto Driver Installer

• CPU

• Intel© Quad-Core Processor N100 (Up to 3.4 GHz)
• Supports Intel© Turbo Boost Technology

• Memory

• 1 x DDR4 DIMM Slot
• Supports DDR4 non-ECC, un-buffered memory up to 3200
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 32GB

• BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

• Graphics

• Integrated Intel© UHD Graphics: 24 EUs inside (Up to 750MHz)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

• Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• *The inbox driver for Windows© 10 only supports 2-channel audio output. Please refer to the FAQ to check how to turn on the 5.1-channel audio output and any limitations.

• LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

• Slots

• 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode*
• 1 x M.2 Socket (Key E), supports type 2230 Intel© CNVio (Integrated WiFi/BT)**
• *Supports NVMe SSD as boot disks
• **M.2 PCI Express module is not supported

• Storage

• 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*
• 2 x SATA3 6.0 Gb/s Connectors
• *Supports NVMe SSD as boot disks

• USB

• 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)
• *All USB ports support ESD Protection

• Connector

• 1 x Print Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 2 x Chassis Fan Connectors (4-pin)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

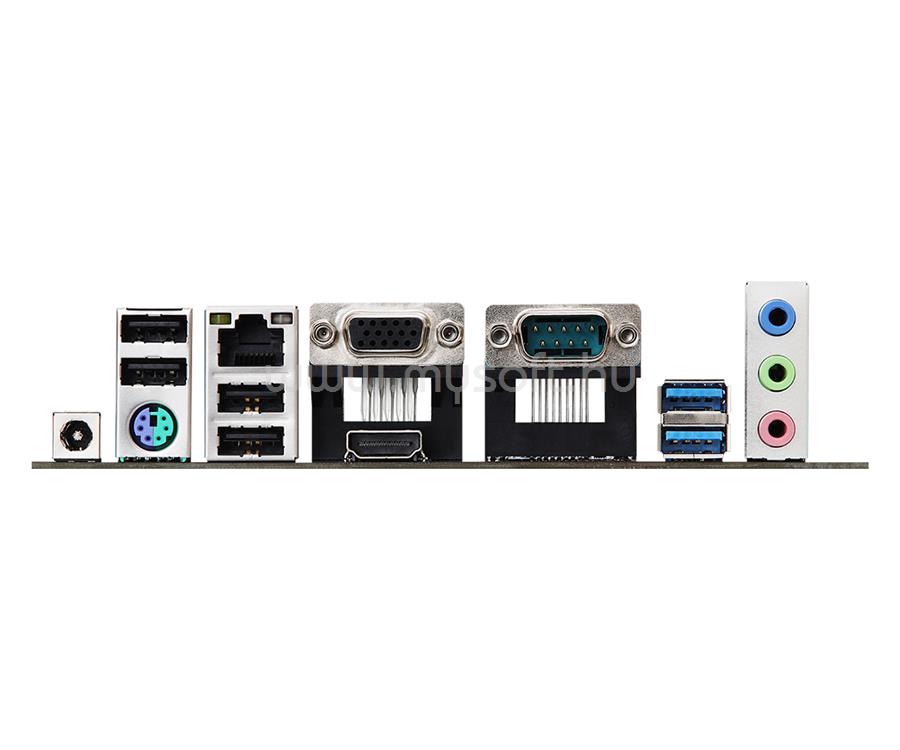

• Rear Panel I/O

• 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x Serial Port: COM1
• 1 x D-Sub Port
• 1 x HDMI Port
• 2 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

• Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x SATA Power Cable
• 2 x Screws for M.2 Sockets

• Form Factor

• Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
• Solid Capacitor design

• OS

• Microsoft Windows© 10 64-bit / 11 64-bit

• Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
