ACER X1328IC (1280X800) DLP PROJEKTOR

• Image

• Native Resolution
• 1280 x 800
• Maximum Resolution
• 1920 x 1200
• Standard Mode Brightness
• 5000 lm
• Low Mode Brightness
• 4000 lm
• Compatible Aspect Ratio
• 4:3
• 16:9
• Native Aspect Ratio
• 16:10
• Contrast Ratio
• 20,000:1
• Throw Ratio
• 1.54 to 1.72 (1524 mm@2000 mm)
• Digital Zoom
• 2x
• Zoom Ratio
• 1.1:1
• Vertical Keystone Correction
• -40°/+40°
• Maximum Vertical Sync
• 120 Hz
• Minimum Vertical Sync
• 24 Hz
• Maximum Horizontal Sync
• 100 kHz
• Minimum Horizontal Sync
• 15 kHz
• Colour Supported
• 1.07 Billion Colors
• Uniformity
• 80%
• Graphic Mode
• WUXGA
• Standard Mode Brightness Disclaimer
• Compliant with ISO 21118 standard

• Projection Lens

• Lens Type
• Manual Focus
• Manual Zoom
• Minimum Lens Aperture
• f/2.41
• Maximum Lens Aperture
• f/2.53
• Minimum Focal Length
• 21.85 mm
• Maximum Focal Length
• 24 mm
• Minimum Diagonal Image Size
• 685.80 mm
• Maximum Diagonal Image Size
• 7.62 m (300")
• Minimum Projection Distance
• 1 m
• Maximum Projection Distance
• 10 m
• Optical Zoom
• 1.1x

• Lamp

• Lamp Type
• OSRAM
• Number of Lamps
• 1
• Lamp Power
• 240 W
• Normal Mode Lamp Life
• 5000 Hour
• Economy Mode Lamp Life
• 10000 Hour
• ExtremeEco Mode Lamp Life
• 15000 Hour

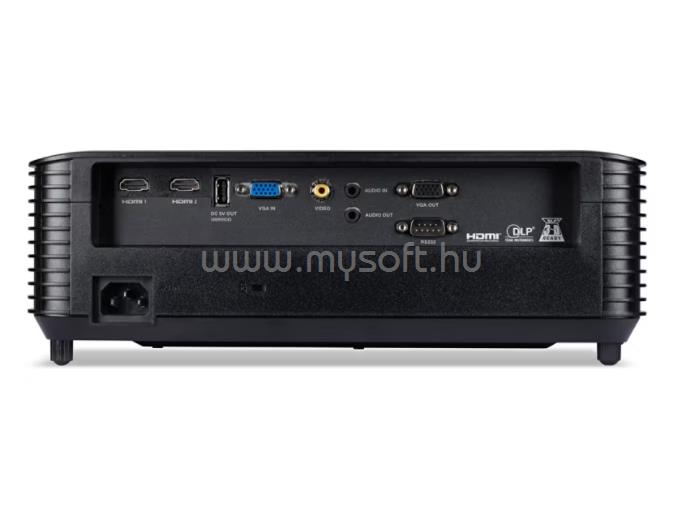

• Interfaces/Ports

• HDMI
• Yes
• HDMI Version
• HDMI 1.4b
• Number of USB Ports
• 2
• USB
• Yes
• USB Connector Type
• 2 x Type-A
• Number of Composite Video Ports
• 1
• Composite Video
• Yes
• Number of Component Video Ports
• 1
• Component Video
• Yes
• Number of VGA Outputs
• 1
• VGA Out
• Yes
• Number Of Audio Inputs
• 1
• Number Of Audio Outputs
• 1
• Audio Line In
• Yes
• Audio Line Out
• Yes
• Total Number of HDMI Ports
• 2
• HDMI Detail
• HDMI1.4b (HDCP 1.4) x 2
• USB Detail
• DC Out (5V/1A, USB Type A) x 1,USB (Type A) x 1, share output port
• RS-232 (D-sub)
• 1
• HDMI
• HDMI1.4b (HDCP 1.4) x 2
• VGA Out
• x1, D-sub
• Component
• x1 RCA
• Video
• x1, RCA
• Audio In
• x1, 3.5mm mini jack
• Audio Out
• x1, 3.5mm mini jack
• Speaker
• x1.0, 3 W Speaker
• x1.0, 3 W Speaker

• Technical Information

• Projection System
• DLP
• Projection Method
• Front Ceiling
• Rear
• Front
• Rear Ceiling
• Video Compatibility
• NTSC
• SDTV
• PAL
• SECAM
• EDTV
• HDTV
• Computer Compatibility
• Mac PC
• Google Chrome PC
• Windows PC
• Horizontal Scan Range
• 15 kHz - 100 kHz
• Vertical Scan Range
• 24 Hz - 120 Hz
• Offset
• 125%
• Noise Level (Economy Mode)
• 27 dB

• Audio

• Number of Speakers
• 1.0
• Speaker Output Power
• 3 W

• Display/Image

• Projection System
• DLP
• Light Source
• 240 W OSRAM
• Light Source Life
• 5000 hours (Standard), 10000 hours (ECO)
• Native Resolution
• 1280 x 800
• Maximum Resolution
• 1920 x 1200
• Brightness
• 5000 ANSI Lumens (Standard), 4000 lm (ECO), (Compliant with ISO 21118 standard)
• Aspect Ratio
• 16:10 (Native), 4:3 (Supported), 16:9 (Supported)
• Contrast Ratio
• 20,000:1
• Image Size
• 27" (68.6 cm) ~ 7.62 m (300")
• Keystone Correction
• +/- 40° (Vertical, Manual & Auto)
• Throw Ratio
• 1.54 to 1.72 (1524 mm@2000 mm)
• Zoom Ratio
• 1.1x
• Digital Zoom
• 2x
• Lens
• F = f/2.41~f/2.53, f = 21.85 mm~24 mm, Manual Focus, Manual Zoom
• Projection Mode
• Front Ceiling, Rear, Front, Rear Ceiling
• Display Colour
• 1.07 billion
• 1.07 billion
• Vertical Sync Rate
• 24 ~ 120 Hz
• Horizontal Sync Rate
• 15 to 100 kHz

• Control & Network

• RS232
• x1, D-sub

• General

• Noise Level
• 27 dB
• Security
• Kensington Lock
• Security Bar

• Power Description

• Power Supply
• 100 V AC ~ 240 V AC
• Input Voltage
• 120 V AC
• 230 V AC
• Operating Power Consumption
• 275 W
• Standby Power Consumption
• 500 mW

• Physical Characteristics

• Fan Noise
• 27 dB(A) Approximate Economy Mode
• Operating Temperature
• 0°C to 40°C
• Operating Humidity
• 80%
• Installation
• Ceiling Mount
• Security
• Kensington Lock
• Security Bar
• Weight (Approximate)
• 2.80 kg
• Form Factor
• Ceiling Mountable
• Height
• 113.7 mm
• Width
• 313 mm
• Depth
• 240 mm

• Miscellaneous

• Standard Accessories
• AC Power Cord
• Battery for remote control
• Lens Cap
• Quick Start Guide
• Remote Control
• Security Card
• VGA Cable
