LEGRAND NETATMO PRO INTELLIGENS WIFI TERMOSZTÁT

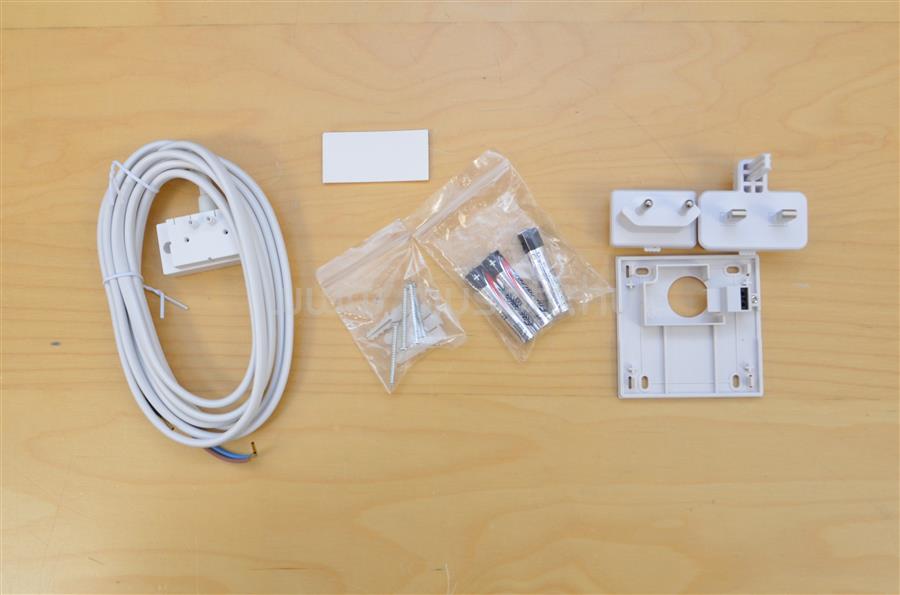

• IN THE BOX

• Thermostat
• Mobile stand + wall bracket
• Relay
• Boiler adapter
• Mains adapter
• Mounting plate
• 4 colour adhesives
• 3 AAA batteries
• Screws / Screws anchors

• SCHEDULE

• Set your weekly heating schedule simply by answering 5 questions.
• You can create as many schedules as you like.

• MULTI-ZONE

• You can install a thermostat for each heating circuit (e.g., ground floor and first floor). 1 Relay per thermostat.
• Manage all your heating areas using the same app.
• Temperature can be directly adjusted on the Thermostat.

• MECHANICS AND DESIGN

• Designed by Starck
• Translucent plexiglass cube. Timeless silhouette.
• 4 interchangeable colours.
• Designed for indoor use only.

• E-PAPER DISPLAY

• Energy efficient, extended range capability and optimum readability.

• SIZE

• Thermostat
• 83 x 83 x 22 mm

• CAPTORS AND MEASURES

• Temperature (measure)
• Range: 0°C to 50°C
• Accuracy: +/- 0,1°C
• Temperature (setpoint)
• Setpoint range: 5°C to 30°C
• Increment measure: 0.5°C
• Units: °C

• POWER AND BATTERIES

• Thermostat
• 3 AAA batteries (2-year lifespan)
• Relay
• 220/240 V

• FREE APP

• No subscription fees.
• Application available on the App Store and Google Play.
• Free access to your online personal dashboard.
• Accessible from multiple devices.

• COMPATIBLE WITH IOS / ANDROID

• iOS 9 minimum required for iPhone, iPad, iPod
• Android 4.2 minimum required with access to Google Play

• SETUP

• Compatible with gas, fuel, wood boilers and heat pumps.
• Replaces wired and wireless thermostats.
• Easy installation

• TECHNICAL SPECIFICATIONS

• Dry contact Thermostat (ON/OFF).
• Maximum switching current
• 4 A.
• Maximum switching voltage
• 250 VAC.
• Maximum switching capacity
• 120 VA (4A load @ 30V, 1A load @ 110V/120V or 0,5A load @ 220V/240V).
• Power factor
• cos > 0.8

• WIRELESS SPECIFICATIONS

• Open/WEP/WPA/WPA2-personal (TKIP and AES).
• Between the Relay and the Internet box: Wi-Fi 802.11 b/g/n (2.4GHz).
• Between the Thermostat and the Relay: radio long-range (868 MHz).

• REGULATORY STATEMENTS

• Declaration of Conformity
• Used Libraries
• Erp Directive
