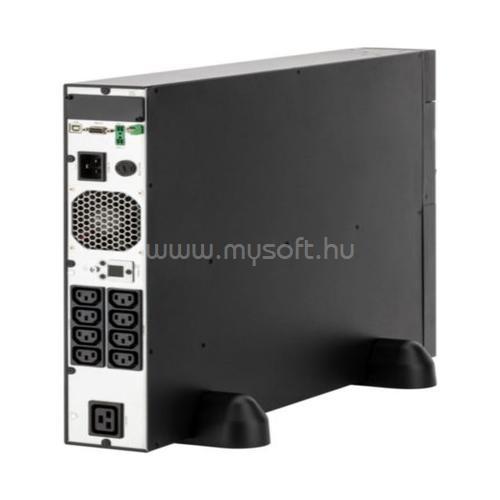

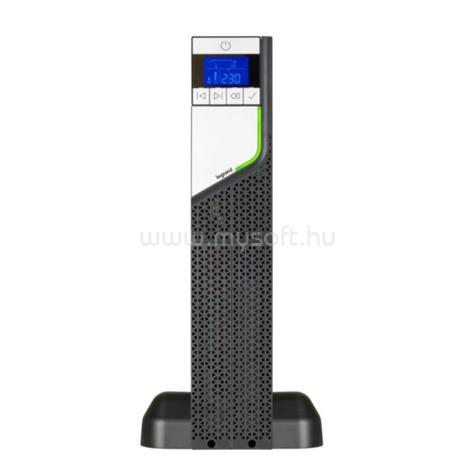

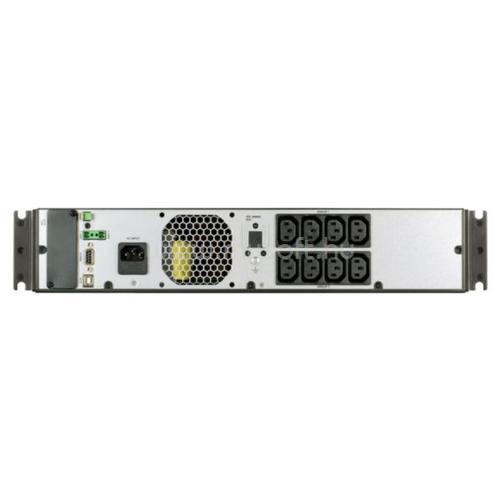

LEGRAND 311070 KEOR SPE 2U 2200 VA VONALI INTERAKTÍV TISZTÁN SZINUSZOS SZÜNETMENTES TÁPEGYSÉG

• Technical characteristics

• Input voltage
• 175 - 288 V
• Primary frequency
• 47-63 Hz
• Number of phases primary
• 1
• Output voltage
• 208-240 V
• Secondary frequency
• 50-60 Hz
• Output effective power
• 1980 W
• Output apparent power
• 2200 VA
• USB interface
• Yes
• With communication interface RS-232
• No
• SNMP
• Yes
• Voltage type
• AC
• Height
• 88 mm
• Width
• 440 mm
• Depth
• 600 mm
• Weight
• 28.3 kg
• Bridging time full load
• 2 min
• Suitable for network-management
• Yes
• USV- technology
• Line-interactive
• Construction type
• 482.6 mm (19 inch) device
• Max. voltage distortion output (linear load)
• 3 %
• Output power factor
• 0.9
• Overall efficiency
• 85 %
• Efficiency in eco-mode
• 98 %
• Potential free switch contact
• Yes
• Auto shut down function
• Yes
• Input connection
• C20
• Number of output connections C13
• 8
• Number of output connections C19
• 1
• Number of output connections with protective contact CEE 7/3 (type F)
• 0
• Number of output connections fixed connection
• 0
• Degree of protection (IP)
• IP20
• Operating / setting temperature
• 0-40 °C
• Storage temperature
• 0-50 °C
• Supply current
• 8-13 A
• Sound level
• 55 dB
• Terminal marking indication
• Yes
• Type of load
• Not applicable
• With socket outlet
• Yes
• Contains Batteries and/or Accumulator
• Yes
• IEC code (Pack1)
• VRLA
• Battery ou Accumulator (Pack1)
• Accumulator (rechargeable)
• Element Composition (Pack1)
• Lead-acid
• Number of Pack 1
• 1
• Number of Single Element (Pack1)
• 6
• Pack1 Location
• Product includes a battery
• Regulation Type (Pack1)
• P : Portable (Standard format)
