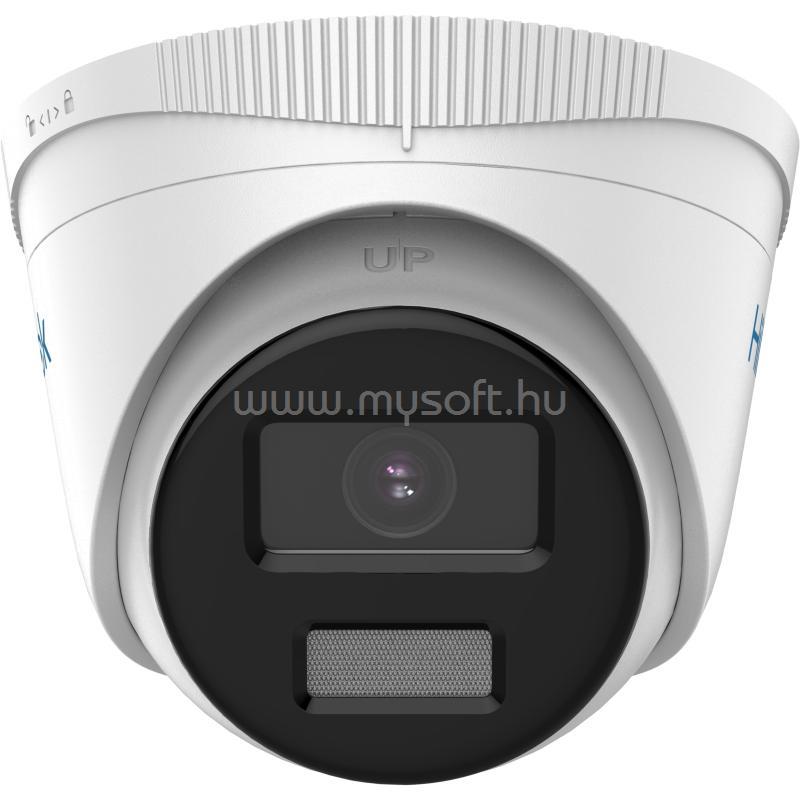

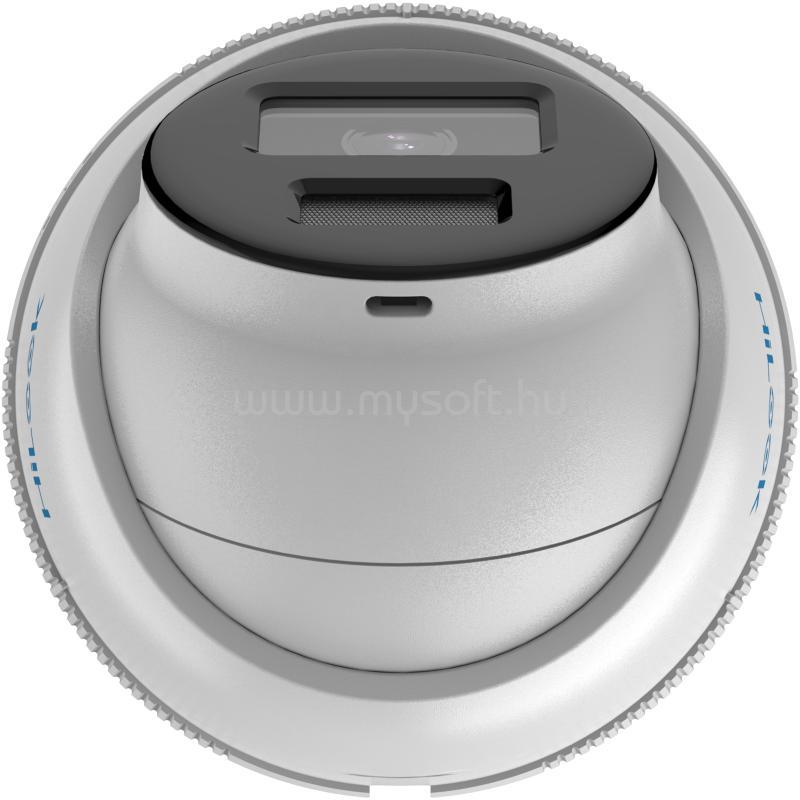

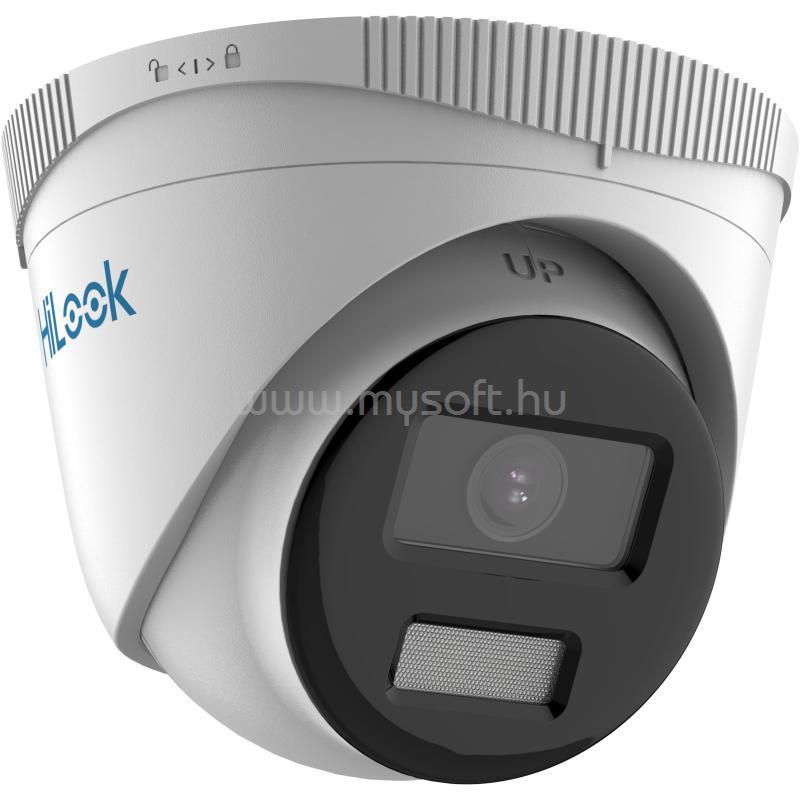

HILOOK IPC-T249HA IP TURRETKAMERA (4MP, 2,8MM, KÜLTÉRI, H265+, IP67, LED30M, ICR, DWDR, POE) COLORVU

• Camera

• Image Sensor
• 1/3" Progressive Scan CMOS
• Max. Resolution
• 2560 × 1440
• Min. Illumination
• Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time
• 1/3 s to 1/100,000 s
• Day & Night
• 24/7 color imaging
• Angle Adjustment
• Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens

• Lens Type
• Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV
• 2.8 mm, horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
• Lens Mount
• M12
• Iris Type
• Fixed
• Aperture
• F1.0
• Depth of Field
• 2.8 mm: 2 m to ?

• DORI

• DORI
• 2.8 mm, D: 64 m, O: 25 m, R: 12 m, I: 6 m

• Illuminator

• Supplement Light Type
• White Light
• Supplement Light Range
• Up to 30 m
• Smart Supplement Light
• Yes

• Video

• Main Stream
• 50 Hz:
• 20 fps (2560 × 1440)
• 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz:
• 20 fps (2560 × 1440)
• 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate
• 32 Kbps to 8 Mbps
• H.264 Type
• Baseline Profile,Main Profile,High Profile
• H.265 Type
• Main Profile
• Bit Rate Control
• CBR,VBR
• Region of Interest (ROI)
• 1 fixed region(s) for main stream

• Network

• Protocols
• TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• Simultaneous Live View
• Up to 6 channels
• API
• Open Network Video Interface (Profile S, Profile T),ISAPI,SDK
• User/Host
• Up to 32 users
• 3 user levels: administrator, operator, and user
• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Client
• iVMS-4200,HiLookVision
• Web Browser
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Wide Dynamic Range (WDR)
• 120 dB
• SNR
• > 52 dB
• Day/Night Switch
• Day,Night,Auto,Schedule
• Image Enhancement
• BLC,HLC,3D DNR
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask
• 4 programmable polygon privacy masks

• Interface

• Ethernet Interface
• 1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event

• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Upload to FTP, send email, notify surveillance center, trigger capture

• General

• Power
• 12 VDC ? 25%, 0.4 A, max. 5 W,O5.5 mm coaxial power plug,
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material
• Metal & Plastic
• Dimension
• 112 mm × 88.4 mm (4.4 × 3.5\")"
• Package Dimension
• 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight
• Approx. 370 g (0.8 lb.)
• With Package Weight
• Approx. 600 g (1.3 lb.)
• Storage Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
• English, Ukrainian
• General Function
• Heartbeat,anti-banding,mirror,password protection,password reset via email
