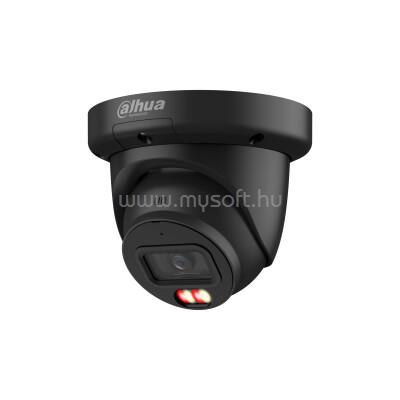

DAHUA IPC-HDW3649QM-S-IL IP TURRETKAMERA (6MP, 2,8MM, H265+, IP67, IR+LED30M, ICR, WDR, SD, POE, MIKROFON)

• Camera

• Image Sensor
• 1/2.7" CMOS
• Max. Resolution
• 3288 (H) × 1850 (V)
• ROM
• 256 MB
• RAM
• 1 GB
• Scanning System
• Progressive
• Electronic Shutter Speed
• Auto/Manual 1/3 s-1/100,000 s
• Min. Illumination
• 0.005 lux@F1.4 (Color, 30 IRE)
• 0.0005 lux@F1.4 (B/W, 30 IRE)
• 0 lux (Illuminator on)
• S/N Ratio
• >56 dB
• Illumination Distance
• Up to 30 m (98.43 ft) (IR)
• Up to 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control
• Auto;Manual
• Illuminator Number
• 2 (Multi-core (IR + warm) light)
• Angle Adjustment
• Pan: 0°-360°
• Tilt: 0°-80°
• Rotation: 0°-360°

• Lens

• Lens Type
• Fixed-focal
• Lens Mount
• M12
• Focal Length
• 2.8 mm
• Max. Aperture
• F1.4
• Field of View
• 2.8 mm: H: 110°; V: 58°; D: 132°
• Iris Control
• Fixed
• Close Focus Distance
• 2.8 mm: 1.4 m (4.59 ft)
• DORI Distance
• Detect
• 84.8 m
• ( 278.22 ft)
• Observe
• 33.9 m
• ( 111.22 ft)
• Recognize
• 17.0 m
• ( 55.77 ft)
• Identify
• 8.5 m
• ( 27.89 ft)
• *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

• Intelligence

• IVS (Perimeter Protection)
• Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection
• SMD
• SMD 4.0
• AcuPick
• Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
• AI SSA
• Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
• Face Detection (Full Image)
• Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
• Smart Search
• Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

• Video

• Video Compression
• H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
• AI Coding
• AI H.265; AI H.264
• *includes SmartCodec Technology,Smart H.264+ /H.265+
• Video Frame Rate
• Main stream: 3288 × 1850@(1-25/30 fps)
• Sub stream: 1920 × 1080@(1-25/30 fps)
• Third stream: 1920 × 1080@(1-25/30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Streaming Capability
• 3 streams
• Resolution
• 6M (3288 × 1850/3200 × 1800); 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control
• VBR;CBR;ABR
• Video Bit Rate
• H.264: 3 kbps-16384 kbps;
• H.265: 3 kbps-16384 kbps
• Day/Night
• Auto(ICR)/Color/B/W
• BLC
• Yes
• HLC
• Yes
• WDR
• 120 dB
• Scene Self-adaptation (SSA)
• Yes
• White Balance
• Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control
• Auto/Manual
• Noise Reduction
• 3D NR
• Motion Detection
• OFF/ON (4 areas, rectangular)
• Region of Interest (RoI)
• Yes (4 areas)
• Smart Illumination
• Yes
• Smart Dual Light
• Yes
• Defog
• Yes
• Image Rotation
• 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror
• Yes
• Privacy Masking
• 8 areas
• LDC
• Yes

• Audio

• Built-in MIC
• Yes, built-in Mic
• Audio Compression
• PCM; G.711a; G.711Mu; G.726; G.723

• Alarm

• Alarm Event
• No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; stay detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; SMD; security exception

• Network

• Network Port
• RJ-45 (10/100 Base-T)
• SDK and API
• Yes
• Network Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
• Interoperability
• ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
• User/Host
• 20 (Total bandwidth: 64 M)
• Storage
• FTP; SFTP; Micro SD card (support max. 512 GB); NAS
• Browser
• IE: IE11;
• Chrome;
• Firefox
• Management Software
• Smart PSS Lite; DSS; DMSS; DoLynk Care
• Mobile Client
• iOS;Android
• Security
• Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

• Certification

• Certifications
• CE-LVD: EN62368-1;
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

• Power

• Power Supply
• 12 VDC/PoE (802.3af)
• Dual Power Backup
• When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
• Power Consumption
• Basic: 3.7 W (12 VDC); 5.3 W (PoE);
• Max.: 7.4 W (12 VDC); 9.5 W (PoE) (H.265 + WDR + warm light + intelligence on)

• Environment

• Operating Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Operating Humidity
• ?95% (RH), non-condensing
• Storage Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Storage Humidity
• ?95% (RH), non-condensing
• Protection
• IP67

• Structure

• Casing Material
• Metal
• Product Dimensions
• 105.5 mm × ?122.0 mm (4.16" × ?4.80")
• Net Weight
• 0.53 kg (1.17 lb)
• Gross Weight
• 0.71 kg (1.57 lb)
