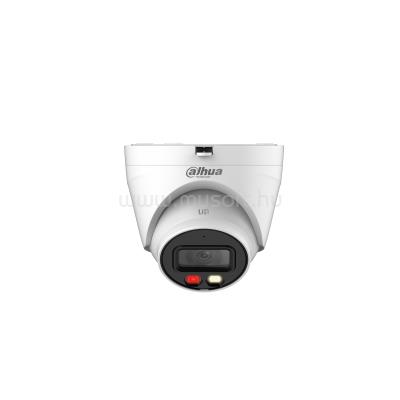

DAHUA IPC-HDW1439V-A-IL-0280B /4MP/ENTRY/2,8MM/IR/LED 30M/FULLCOLOR/ DUÁL MEGVILÁGÍTÁSÚ IP TURRET KAMERA

• Camera

• Image Sensor
• 1/2.9" CMOS
• Max. Resolution
• 2560 (H) × 1440 (V)
• ROM
• 128 MB
• RAM
• 128 MB
• Scanning System
• Progressive
• Electronic Shutter Speed
• Auto/Manual 1/3 s-1/100,000 s
• Min. Illumination
• 0.006 lux@F1.6 (Color,30 IRE)
• 0.0006 lux@F1.6 (B/W,30 IRE)
• 0 lux (Illuminator on)
• S/N Ratio
• >56 dB
• Illumination Distance
• Up to 30 m (98.43 ft) (IR LED)
• Up to 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control
• Auto;Manual
• Illuminator Number
• 1 (IR LED); 1 (Warm light)
• Angle Adjustment
• Pan: 0°-360°
• Tilt: 0°-78°
• Rotation: 0°-360°

• Lens

• Lens Type
• Fixed-focal
• Lens Mount
• M12
• Focal Length
• 2.8 mm
• Max. Aperture
• F1.6
• Field of View
• 2.8 mm: H: 94°; V: 52°; D: 111°
• Iris Control
• Fixed
• Close Focus Distance
• 2.8 mm: 1.1 m (3.61 ft)
• DORI Distance
• Lens
• 2.8 mm
• Detect
• 64.0 m
• (209.97 ft)
• Observe
• 25.6 m
• (83.98 ft)
• Recognize
• 12.8 m
• (41.99 ft)
• Identify
• 6.4 m
• (21.00 ft)

• Intelligence

• Human and Vehicle Detection
• Support the classification and accurate detection of human and vehicle
• Smart Search
• Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

• Video

• Video Compression
• H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec
• Smart H.265+; Smart H.264+
• Video Frame Rate
• Main stream: 2560 × 1440@(1-25/30 fps)
• Sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability
• 2 streams
• Resolution
• 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control
• CBR/VBR
• Video Bit Rate
• H.264: 32 kbps-4096 kbps
• H.265: 12 kbps-4096 kbps
• Day/Night
• Auto(ICR)/Color/B/W
• BLC
• Yes
• HLC
• Yes
• WDR
• 120 dB
• White Balance
• Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control
• Auto;Manual
• Noise Reduction
• 3D NR
• Motion Detection
• OFF/ON (4 areas, rectangular)
• Region of Interest (RoI)
• Yes (4 areas)
• Smart Illumination
• Yes
• Image Rotation
• 0°/180°
• Mirror
• Yes
• Privacy Masking
• 4 areas

• Audio

• Built-in MIC
• Yes, built-in Mic
• Audio Compression
• G.711a; G.711Mu; PCM; G.726

• Alarm

• Alarm Event
• Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human and vehicle); security exception

• Network

• Network Port
• RJ-45 (10/100 Base-T)
• SDK and API
• Yes
• Network Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability
• ONVIF (Profile S; Profile T); CGI
• User/Host
• 6 (Total bandwidth: 24 M)
• Storage
• FTP
• Browser
• IE; Chrome; Firefox
• Management Software
• Smart PSS Lite; DSS; DMSS
• Mobile Client
• iOS;Android
• Cyber Security
• Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption

• Power

• Power Supply
• 12 VDC/PoE (802.3af)
• Power Consumption
• Basic: 2 W (12 VDC); 2.9 W (PoE)
• Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.6 W (12 VDC); 5.7 W (PoE)

• Environment

• Operating Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Operating Humidity
• ?95%
• Storage Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Storage Humidity
• ?95%
• Protection
• IP67

• Structure

• Casing Material
• Inner core: Metal+plastic
• Cover: Plastic
• Product Dimensions
• 100.9 mm × ?109.9 mm (3.97" × ?4.33")
• Net Weight
• 0.33 kg (0.73 lb)
• Gross Weight
• 0.45 kg (0.99 lb)
