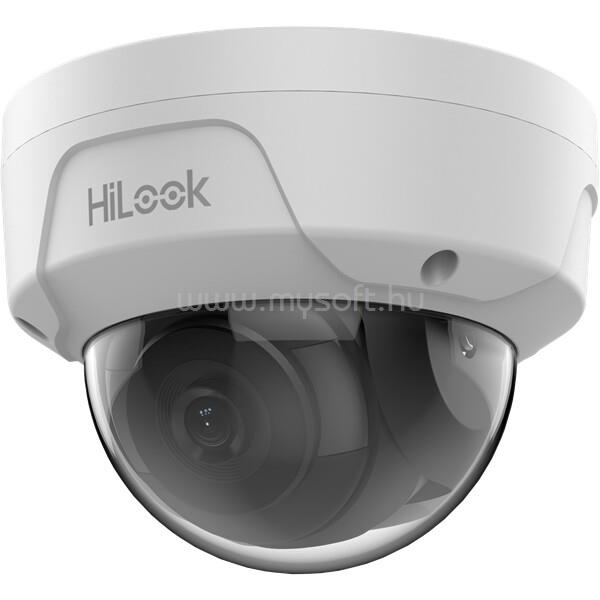

HILOOK IPC-D180H IP DÓMKAMERA (8MP, 2,8MM, KÜLTÉRI, H265+, IP67, IK10, IR30M, ICR, DWDR, POE)

• Camera

• Image Sensor
• 1/2.8" Progressive Scan CMOS
• Max. Resolution
• 3840 × 2160
• Min. Illumination
• Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time
• 1/3 s to 1/100,000 s
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0° to 355°, tilt: 0° to 75°

• Lens

• Lens Type
• Fixed focal lens
• Focal Length & FOV
• 2.8 mm, horizontal FOV 108°, vertical FOV 60°, diagonal FOV 127°
• Lens Mount
• M12
• Iris Type
• Fixed
• Aperture
• F2.0

• DORI

• DORI
• 2.8 mm, D: 81 m, O: 32 m, R: 16 m, I: 8 m

• Illuminator

• Supplement Light Type
• IR
• Supplement Light Range
• Up to 30 m
• Smart Supplement Light
• Yes
• IR Wavelength
• 850 nm

• Video

• Main Stream
• 50 Hz: 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression
• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate
• 32 Kbps to 16 Mbps
• H.264 Type
• Baseline Profile/Main Profile/High Profile
• H.265 Type
• Main Profile
• Bit Rate Control
• CBR/VBR
• Region of Interest (ROI)
• 1 fixed region for main stream

• Network

• Security
• Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address)
• Simultaneous Live View
• Up to 6 channels
• API
• Open Network Video Interface (Profile S), ISAPI, SDK
• Protocols
• TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP
• User/Host
• Up to 32 users
• 3 levels: Administrator, Operator and User
• Client
• iVMS-4200, HiLookVision
• Web Browser
• Plug-in required live view: IE 10, IE 11
• Local service: Chrome 57.0+, Firefox 52.0+

• Image

• Wide Dynamic Range (WDR)
• 120 dB
• SNR
• ? 52 dB
• Day/Night Switch
• Day, Night, Auto, Schedule
• Image Enhancement
• BLC, HLC, 3D DNR
• Image Settings
• Mirror, rotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Privacy Mask
• 4 regions of privacy mask

• Interface

• Ethernet Interface
• 1 RJ45 10 M/100 M self-adaptive Ethernet port

• Event

• Basic Event
• Motion detection, video tampering alarm, exception
• Linkage
• Notify surveillance center, trigger capture

• General

• Power
• 12 VDC ? 25%, 0.4 A, max. 5 W, O5.5 mm coaxial power plug
• PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Material
• Metal & Plastic
• Dimension
• O110.8 mm × 84.7 mm (4.4" × 3.3")
• Package Dimension
• 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• Weight
• Approx. 520 g (1.1 lb.)
• With Package Weight
• Approx. 720 g (1.6 lb.)
• Storage Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language
• English, Ukrainian
• General Function
• Anti-flicker, heartbeat, password protection, password reset via email

• Approval

• EMC
• FCC SDoC; CE-EMC; RCM
• Safety
• CB; CE-LVD
• Environment
• CE-RoHS; WEEE; Reach
• Protection
• IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
