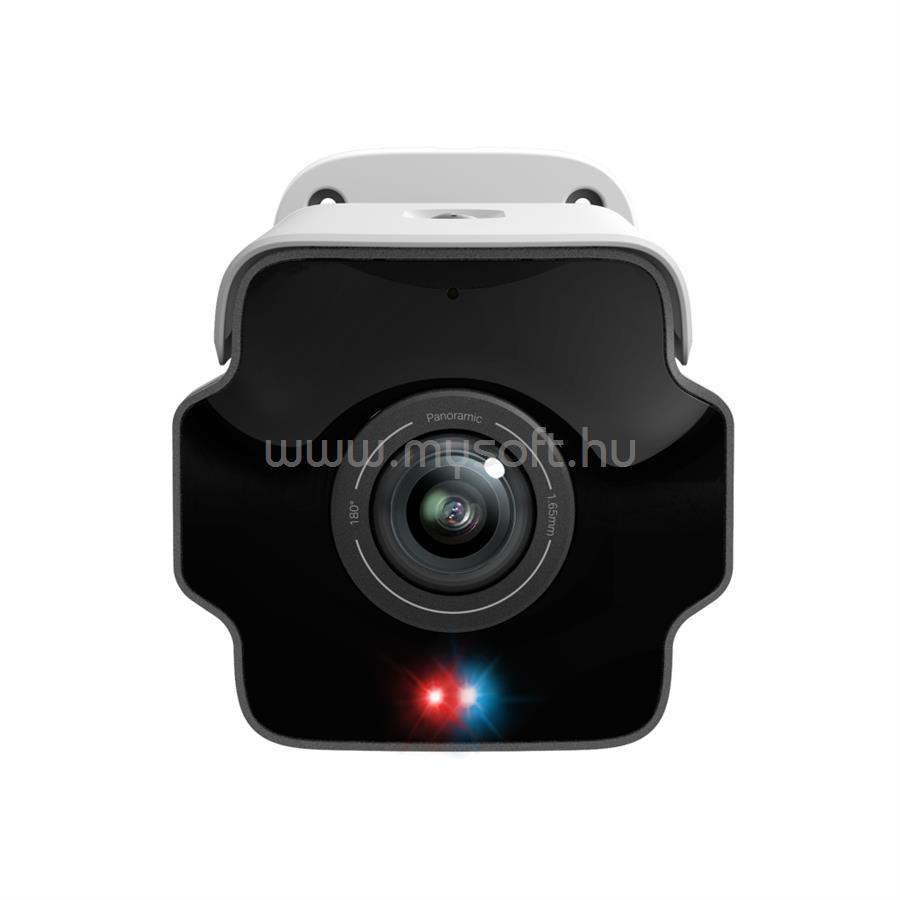

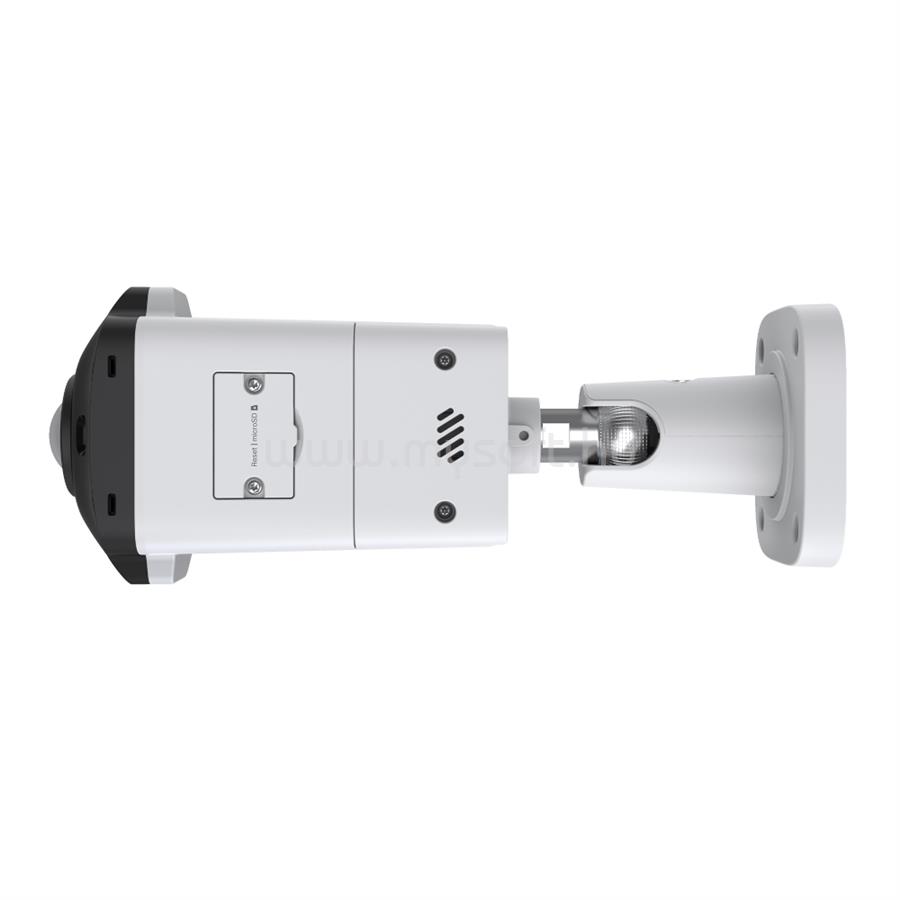

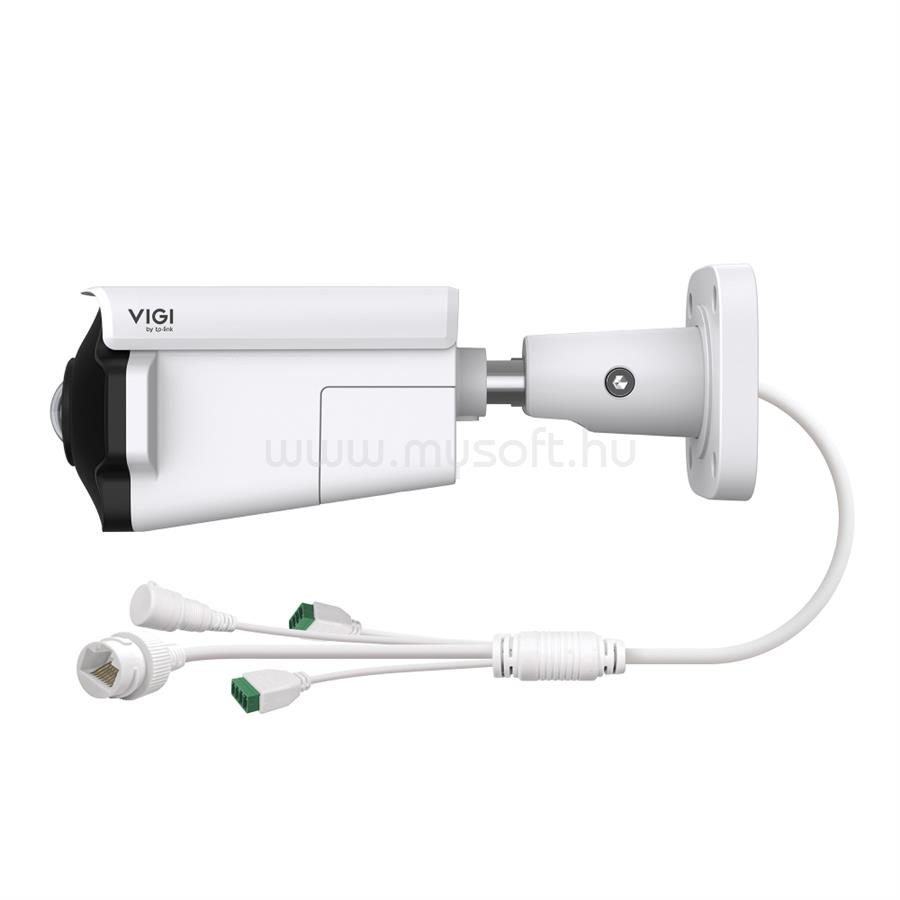

TP-LINK INSIGHT S385PI IP CSŐKAMERA (8MP, 1,65MM, IP67, H265+, IR20M, 12VDC/POE, SD; MIKR., HANGSZ.; FÉM)

TP-LINK InSight S385PI IP csőkamera (8MP, 1,65mm, IP67, H265+, IR20m, 12VDC/PoE, SD; mikr., hangsz.; fém)

119 990 Ft 94 480 Ft + ÁFA

Biztonságtechnika > IP kamera > Csőkamera

raktáron

  • HA MOST MEGRENDELED
  • Házhoz, csomagpontra, csomagautomatába szállítjuk
    PÉNTEKRE (2025-06-13) (NORMÁL)
    CSÜTÖRTÖKRE (2025-06-12) (EXPRESSZ)
  • Ügyfélszolgálatunkon átveheted
    PÉNTEKEN (2025-06-13) 9:30 - 16:30 (NORMÁL)
    CSÜTÖRTÖKÖN (2025-06-12) 16:00 - 16:30 (EXPRESSZ)


  • mysoft azonosító
    15-3756089
Adatlap frissítve: 2025. 06. 11. 0:42:31



cib
GLS
  • Kamera

  • Képérzékelő
  • 1/2.7" Progressive Scan CMOS
  • Shutter Speed
  • 1/3 to 1/10000 s
  • Slow Shutter
  • Yes
  • Min. szükséges megvilágítás
  • 0.005 Lux; 0 Lux with IR Light
  • Day/Night Mechanism
  • IR Cut Filter
  • Day/Night Switch
  • Unified/ Scheduled/ Auto
  • LENS

  • Type
  • Fixed Focal Lens
  • Focal Length
  • 1.65 mm
  • Aperture
  • F2.0
  • FOV
  • Horizontal FOV: 180°
  • Vertical FOV: 86°
  • Diagonal FOV: 180°
  • Lens Mount
  • M12
  • DORI Distance
  • 1.65mm:
  • D: 144.36 ft (44 m)
  • O: 60.15 ft (18.33 m)
  • R: 28.87 ft (8.8 m)
  • I: 14.44 ft (4.4 m)
  • Angle Adjustment (Manual)

  • Range
  • Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
  • ILLUMINATOR

  • IR LED
  • Quantity: 4
  • Range: 65.62 ft (20 m)*1
  • Wavelength: 850nm
  • Illuminator On/Off Control
  • Auto/Scheduled/Always on/Always off
  • VIDEO

  • Max. Resolution
  • 3840 x 2160
  • Main Stream
  • Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:
  • 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
  • Note:
  • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
  • Sub-Stream
  • Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:
  • 848x480,704x576, 640x480, 640x360,352x288, 320x240
  • Note:
  • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
  • Bit Rate Control
  • CBR, VBR
  • Video Compression
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
  • H.264 Type
  • High Profile
  • H.264+
  • Main Stream Supported
  • H.265 Type
  • Main Profile
  • H.265+
  • Main Stream Supported
  • Video Bit Rate
  • Main Stream: 256 Kbps to 8 Mbps
  • Sub-Stream: 64 Kbps to 1024 Kbps
  • Image

  • Image Settings
  • Mirror
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR
  • White Balance
  • Prevent Overexposure to Infrared Light
  • HLC Adjustable by Client Software
  • Image Enhancement
  • BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range
  • 120 dB
  • SNR
  • > 52 dB
  • Image Parameters Switch
  • Yes
  • Privacy Mask
  • Up to 4 Masks
  • ROI
  • 4 Regions
  • OSD Setting
  • Yes
  • Hang

  • Hangkommunikáció
  • Two-Way Audio
  • Hangbemenet
  • Built-in Microphone
  • Audio In Interface
  • Hangkimenet
  • Built-in Speaker
  • Audio Out
  • Interface
  • Hangtömörítés
  • Yes
  • Audio Sampling Rate
  • 8KHz
  • Environment Noise Filtering
  • Yes
  • Audio Bit Rate
  • 64 Kbps(G.711 alaw)
  • Hálózat

  • Szabvány
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
  • ONVIF
  • Yes
  • API
  • Open Network Video Interface (Profile S/T/G)
  • Simultaneous Live View
  • 3 Main Streams & 3 Sub-Streams
  • Client
  • VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
  • Web Browser
  • Google Chrome© 57 and above
  • Firefox© 52 and above
  • Safari© 11 and above
  • Microsoft© Edge 91 and above
  • Cloud
  • Yes
  • Biztonság
  • Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
  • Figyelmeztetési és eseménykezelési vezérlés

  • Smart Event
  • Intrusion Detection
  • Line-Crossing Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Object Abandoned Detection
  • Object Removal Detection
  • Loitering Detection
  • People Detection
  • Vehicle Detection
  • Abnormal Sound Detection
  • Scene Change Detection
  • Basic Event
  • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
  • Video Tampering Detection
  • Exception ( Illegal Login)
  • Alarm Input Device
  • Alarm Linkage
  • Memory Card Video Recording
  • Upload to FTP Server
  • Alarm Output Device
  • Push Notifications
  • Send to Alarm Server
  • Active Defence-Sound Alarm
  • Active Defence-Light Alarm
  • Email Alarm
  • Deep Learning Function

  • People & Vehicle Analytics
  • Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. *2
  • Fizikai kezelőfelület

  • Hálózati csatlakozás
  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  • Alarm
  • 1 Alarm In, 1 Alarm Out
  • Red-Blue Warning Lights
  • Reset Button
  • Yes
  • Power
  • DC Power Port
  • On-board Storage
  • Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
  • Built-in Microphone
  • Yes; Records Anything Going on within a 15-ft Radius of the Camera
  • Built-in Speaker
  • Yes
  • Audio
  • 1 Audio In, 1 Audio Out
  • Általános

  • Operating Temperature
  • -30? to 60 °C
  • Storage Temperature
  • -40 to 60 °C
  • Operating Humidity
  • 95% or Less (Non-Condensing)
  • Storage Humidity
  • 95% or Less (Non-Condensing)
  • Csomagolás tartalma
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
  • Material
  • Metal
  • Net Weight
  • 1.01Kg
  • Power Supply
  • 12V DC +/- 5%, Max. 18W, 5.5 mm Coaxial Power Plug
  • PoE: 802.3at, Class 4, Max. 21W
  • Protection
  • IP67 Weatherproof, IK10 Vandal Proof
  • Product Dimensions (L x W x H)
  • 10.5 × 3.9 × 4 in (266 × 100 × 101 mm)
  • Certifications
  • CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
Garancia fogyasztók részére
  • 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia
Garancia nem fogyasztók részére
  • 3 év gyártó által biztosított szervizgarancia
